Spur

The Transition Spur is a 120mm-travel 29er that helped define the modern short-travel trail category. Built around a lightweight carbon chassis and a pivotless flex-stay rear triangle, it is designed for riders who want the climbing efficiency of a cross-country race bike without sacrificing downhill stability. Transition positions the Spur as an all-country machine, blending low weight with aggressive angles typically reserved for longer-travel platforms.

The current generation debuted in 2021 and received a mid-cycle update in 2024 to add Universal Derailleur Hanger (UDH) compatibility, enabling the use of SRAM Transmission drivetrains. It suits riders who tackle long backcountry miles, undulating terrain, and steep descents, prioritizing a highly active, momentum-carrying ride over the plush isolation of a heavier trail bike.

Transition Spur

Build

Size

03 / Geometry

Geometry & fit.

4 sizes published.

The Spur utilizes Transition’s Speed Balanced Geometry, pairing a slack 66-degree head tube angle with a long reach to create a highly stable footprint. This length gives the bike a distinctly centered, in-the-bike feel that favors leaning into sweeping arcs rather than making quick steering inputs from the bars. While this stability is a major asset on fast descents, the resulting long wheelbase can require extra effort to maneuver through tight, low-speed switchbacks.

For climbing and flat terrain, the steep seat tube angle places the rider in an upright, efficient pedaling posture. This forward-biased seated position helps keep the front wheel tracking straight on steep pitches, preventing the wandering steering often associated with slack head angles.

The cockpit setup reinforces the bike's aggressive intentions. Across the size run, the Spur is equipped with a short 40mm stem and wide handlebars, mirroring the setup of a dedicated enduro bike. Dropper post travel is generous, scaling up to 210mm or 240mm on larger frames, ensuring riders can get the saddle completely out of the way when navigating steep, technical descents.

Reach × Stack · size LGmm

Where the handlebar sits relative to the bottom bracket — the single most important fit pair.

01Fit geometry6 values

Stack619 mm

Reach480 mm

Top tube630 mm

Headtube length120 mm

Standover height670 mm

Seat tube length460 mm

03Handling geometry7 values

Headtube angle66°

Seat tube angle75.9°

BB height335 mm

BB drop40 mm

Offset44 mm

Wheelbase1219 mm

Chainstay length435 mm

Which size should I buy?

Slide your height to see the recommended size. GearWise's fit algorithm works from the published stack, reach, and ETT — the brand's own recommendation may differ.

Your height

5'8"173 cm

5'0"5'5"5'10"6'3"6'7"

Recommended sizeMDBased on stack, reach & ETT for your height · score 93/100.

→Calculated from GearWise's own stack / reach / ETT algorithm — the brand's size chart may recommend a different size, and a proper bike fit beats any calculator.

04 / Other builds

The lineup.

3 builds, ranging $4,799 – $8,199.

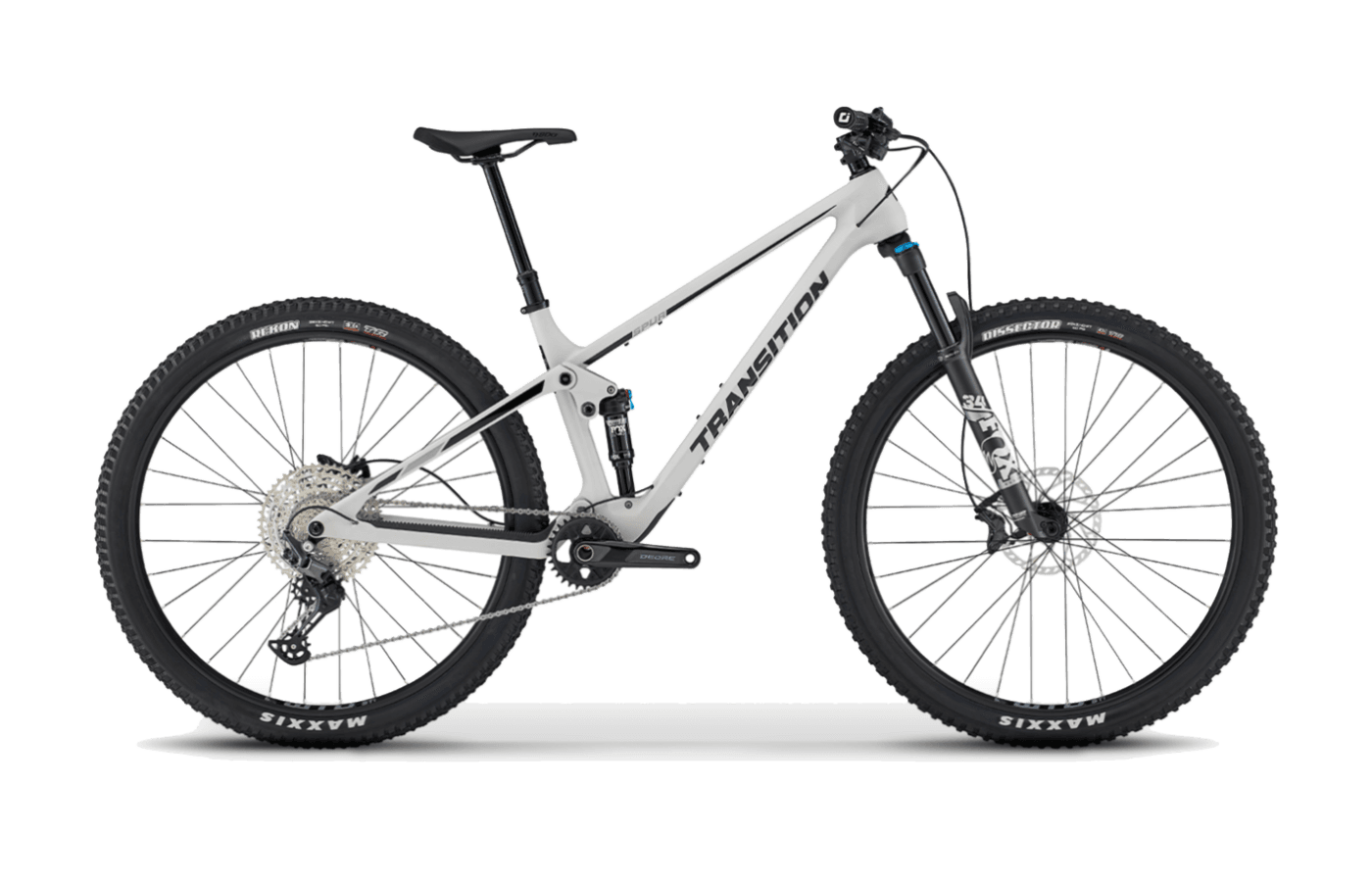

The Spur lineup consists of three carbon-framed builds, all featuring the updated UDH-compatible rear triangle. The range starts with the Carbon Deore, which offers a reliable entry point using a Shimano Deore 12-speed drivetrain, four-piston Deore brakes, and Fox Rhythm and Performance suspension. It rolls on aluminum WTB rims laced to Novatec hubs.

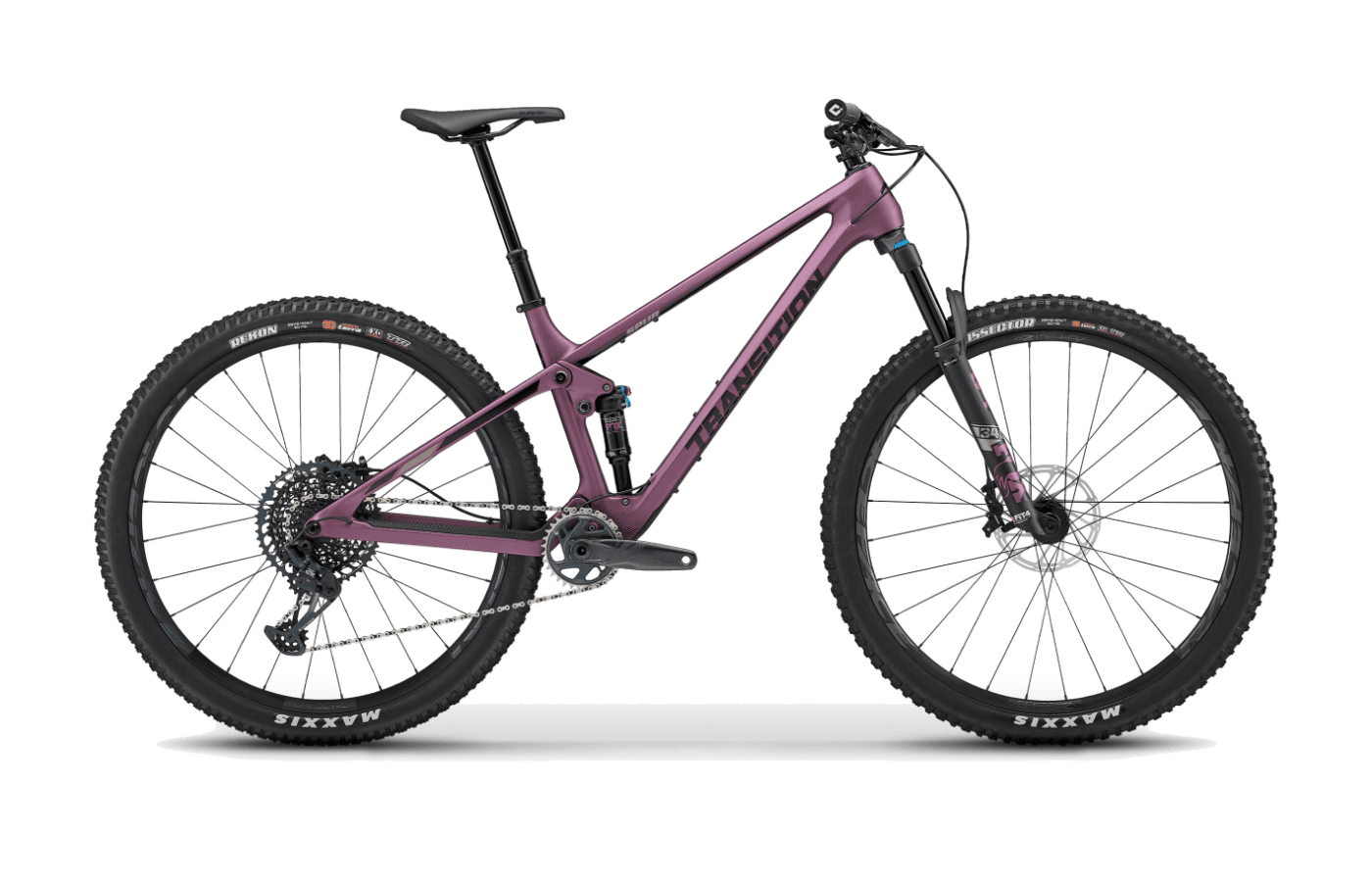

Stepping up to the mid-tier Carbon Eagle 90 introduces SRAM's GX Eagle Transmission for wireless shifting. This build upgrades the suspension to Fox Performance Elite components, featuring the highly adjustable GRIP X damper in the fork. It also moves to a DT Swiss M 1900 aluminum wheelset and SRAM Motive Bronze brakes.

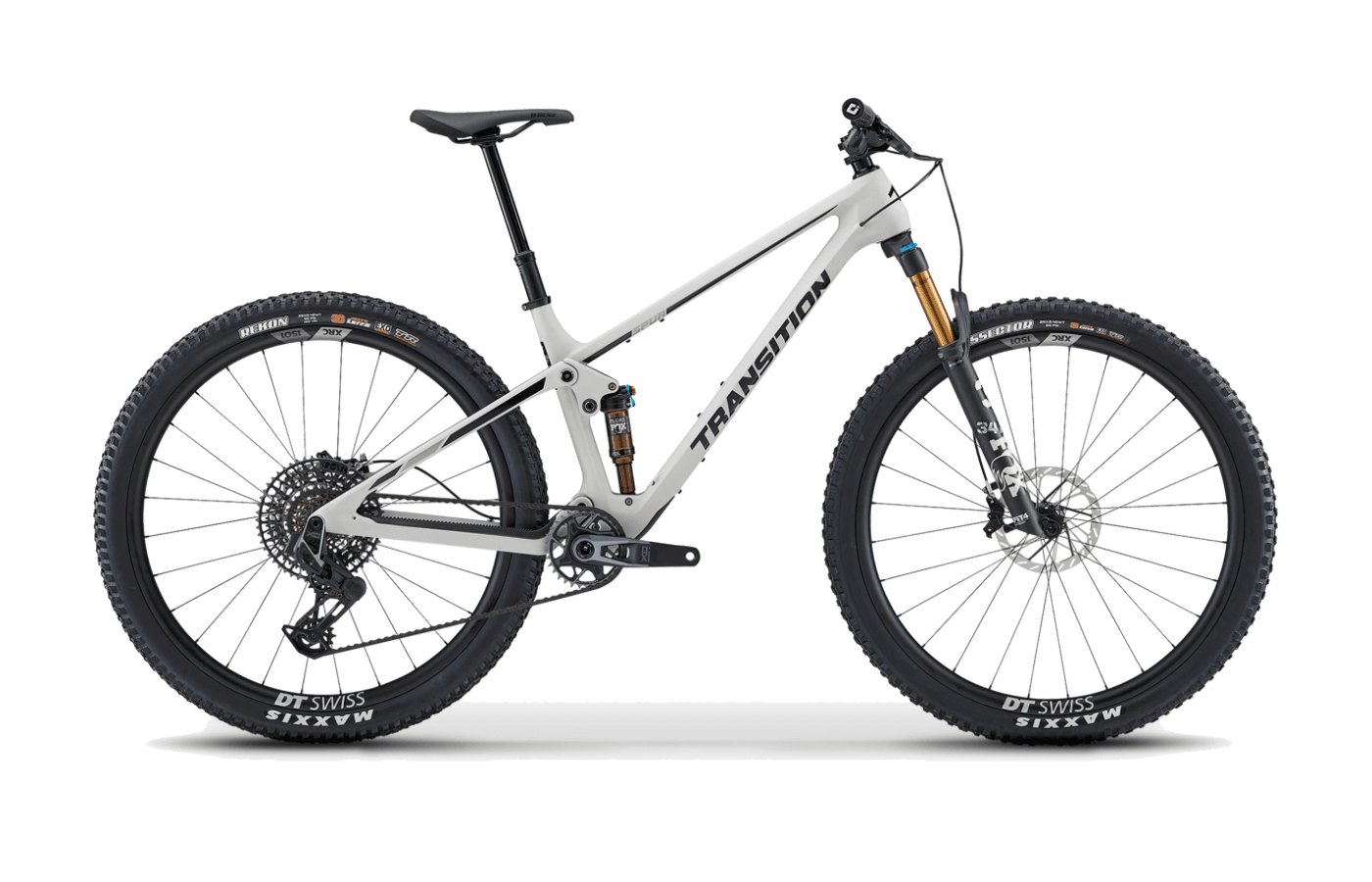

The flagship Carbon XO AXS build maximizes weight savings and performance. It features top-tier Fox Factory suspension with Kashima coating, a SRAM XO Eagle Transmission, and SRAM G2 RSC brakes. The most significant upgrade at this level is the DT Swiss XRC 1501 carbon wheelset, which noticeably reduces rotational weight to complement the lightweight frame. Across all builds, Transition specifies a Maxxis Dissector front and Rekon rear tire combination, balancing rolling speed with cornering grip.

05 / Reviews

From the press.

16 reviews from the cycling press.

Reviewers consistently praise the Transition Spur for its ability to carry momentum across undulating terrain, frequently describing it as a "speed generating machine" (Theloamwolf). On the trail, the suspension provides a firm, supportive platform that rewards an active riding style. Instead of absorbing every trail nuance like a longer-travel bike, the flex-stay rear end provides distinct pop, helping riders generate speed by pumping through rollers and out of corners.

When pointed downhill, the bike's length and slack front end provide a level of composure rarely found in the 120mm category. Testers noted that the geometry effectively "slows down the trail" (YouTube), offering riders more time to process technical features at speed. However, this capability comes with a notable tradeoff. Because the geometry encourages aggressive descending, riders often push the lightweight chassis to its limits. In high-speed compressions or heavy braking scenarios, some reviewers felt the frame "winding up and springing back" (Bebikes) unpredictably.

A recurring critique across early reviews centered on the stock braking specification. Because the bike encourages high speeds, multiple testers found that it was easy to "outride the brakes" (Theloamwolf), particularly when earlier models shipped with smaller rear rotors. Despite this, the consensus remains highly positive, with testers agreeing the Spur excels for riders who want a highly efficient climber that remains composed on steep, rough descents.
