Grail

The second-generation Canyon Grail is a dedicated gravel race bike, leaving behind the all-rounder identity of its predecessor. Canyon redesigned the platform around aerodynamic efficiency, high-speed stability, and integrated storage, tailoring it specifically for fast-paced events and smooth to moderately rough courses. The most obvious visual change is the departure of the double-decker Hover Bar, replaced by a more conventional but highly integrated one-piece cockpit. The frame itself adopts aero tube shapes borrowed from Canyon's road racing lineup, paired with a D-shaped seatpost. This generation is built for riders who prioritize power transfer and straight-line speed over plush compliance or technical trail agility. It suits competitive gravel racers and fast-paced riders who want a highly efficient, system-engineered machine for covering long distances rapidly.

Gen Gen 2

Build

Size

Stack	655mm
Reach	454mm
Top tube	648mm
Headtube length	230mm
Standover height	901mm
Seat tube length	600mm

Fit and geometry

The Grail’s geometry is heavily optimized for high-speed stability. Canyon slackened the head tube angle to 71.5 degrees across most sizes and extended the wheelbase significantly, adding up to 27mm over the previous generation. To keep the steering from feeling sluggish, the fork offset was adjusted to maintain a consistent 69mm trail figure. This combination creates a centered, balanced rider posture that resists deflection on fast, loose descents but requires a bit more body English to navigate tight singletrack.

Fit is largely dictated by the proprietary Double Drop one-piece carbon cockpit. The bar features a slight backsweep on the tops and a moderate flare in the drops, promoting an aerodynamic but comfortable hand position. However, the integrated design limits adjustability. Several reviewers noted that the stock handlebar widths—such as 420mm on the smallest frame sizes—feel unusually wide for a race-focused bike, which may frustrate riders looking for a narrow aerodynamic tuck. Because the steerer tube uses a standard 1 1/8-inch diameter, owners can swap to a traditional two-piece bar and stem, though doing so sacrifices the stock aesthetic and integrated accessory mounts.

Builds

The Grail lineup is split between CF SLX and CF SL carbon frames, with the primary differences being frame weight and integrated features. The higher-tier CF SLX models feature Canyon’s Aero LOAD downtube storage compartment and the Gear Groove cockpit, which allows for proprietary bolt-on accessories like aero extensions and computer mounts. The more affordable CF SL frames omit the downtube storage and use a standard version of the integrated cockpit without the Gear Groove interface.

Builds range from mid-tier mechanical groupsets to premium electronic options. The CF SLX tier offers SRAM Force AXS or Shimano GRX Di2, both paired with deep-section DT Swiss GRC 1400 carbon wheels and factory-installed power meters. The CF SL tier provides excellent value, utilizing the same aerodynamic frame shaping but stepping down to SRAM Rival AXS or mechanical Shimano GRX 12-speed drivetrains. These lower-tier builds roll on aluminum DT Swiss Gravel LN or Reynolds carbon wheels. Across the board, Canyon specs fast-rolling 40mm Schwalbe G-One or Pirelli tires, maximizing the frame's 42mm official tire clearance.

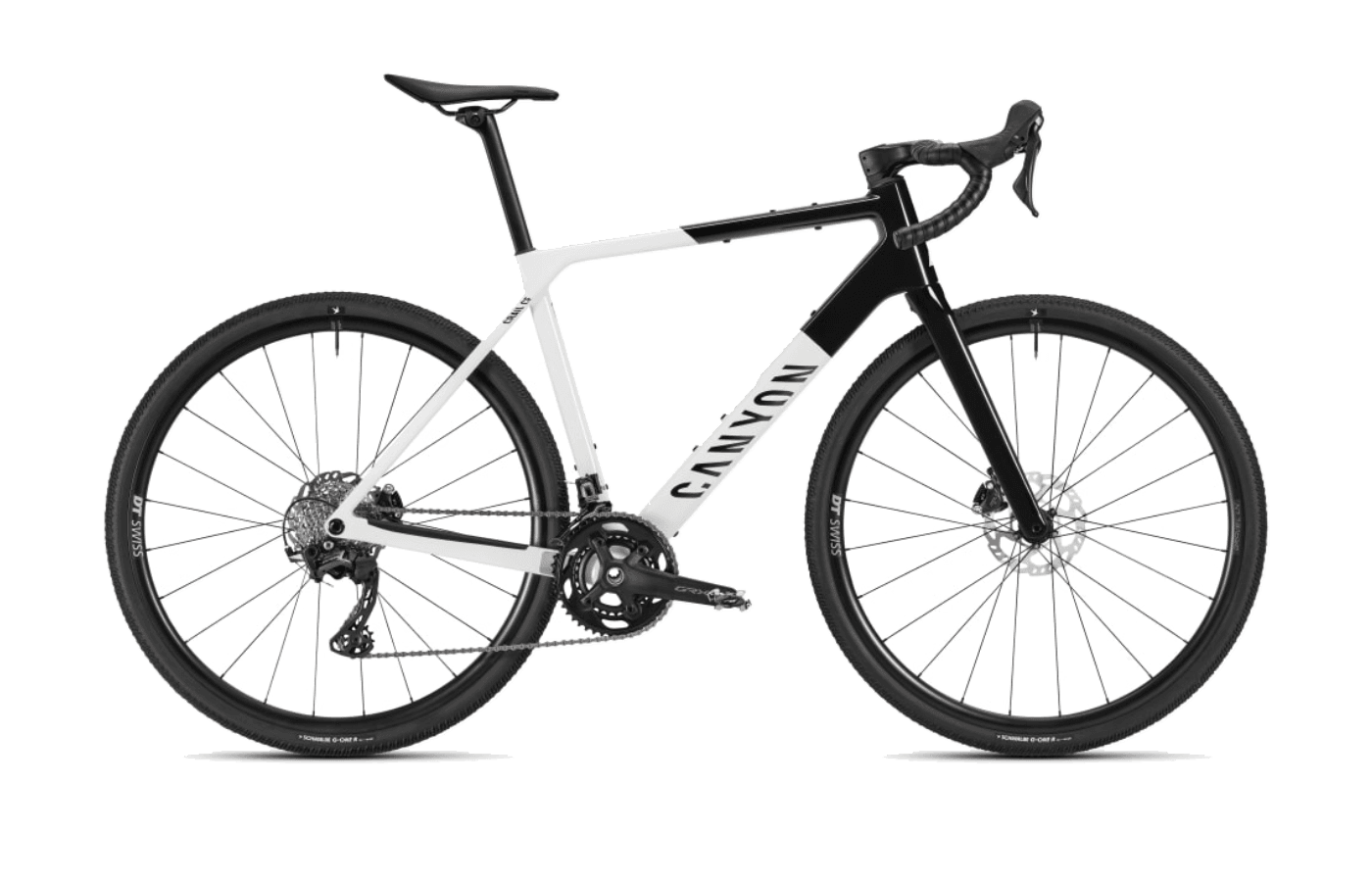

CF SL 7 Shimano GRX 12s

$2,899

SKU 4149; White Sprint / Blazing Mustard; Powermeter

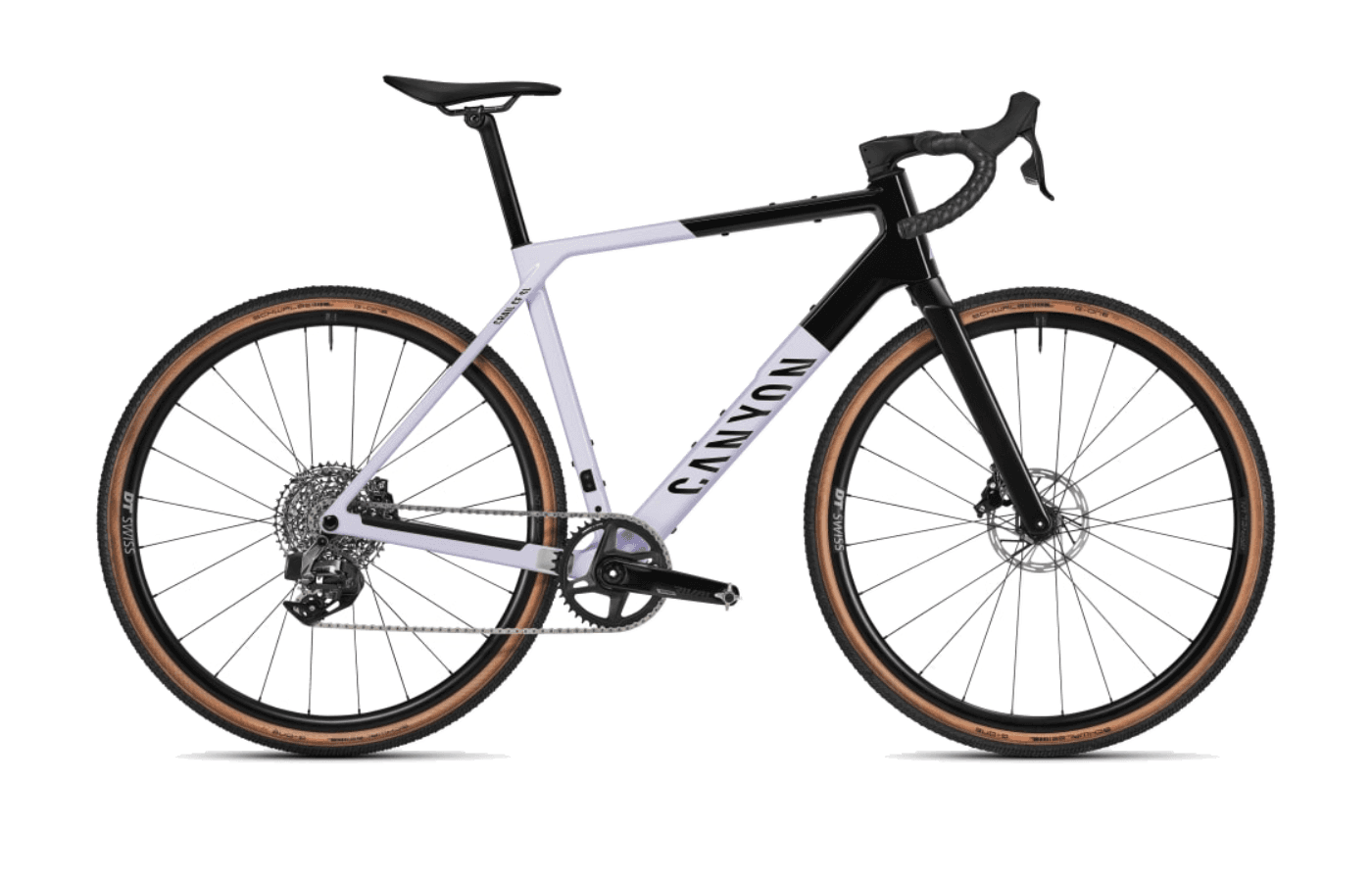

CF SL 7 AXS

$3,299

SKU 3576; Light Cream / Stone Grind / Quicksand

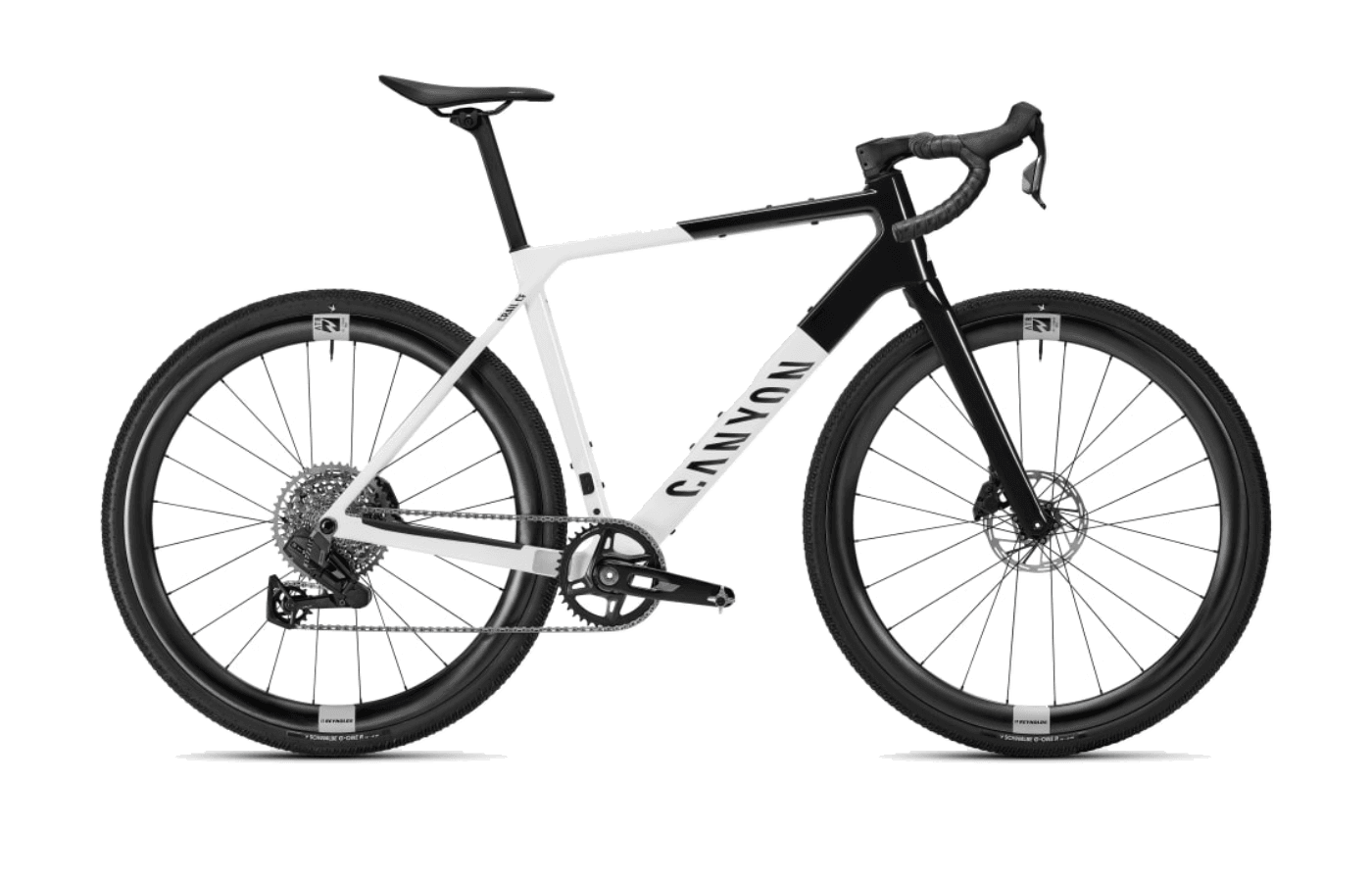

CF SL 7 Aero SRAM Rival XPLR AXS 13s

$4,099

SKU 4150; White Sprint / Blazing Mustard

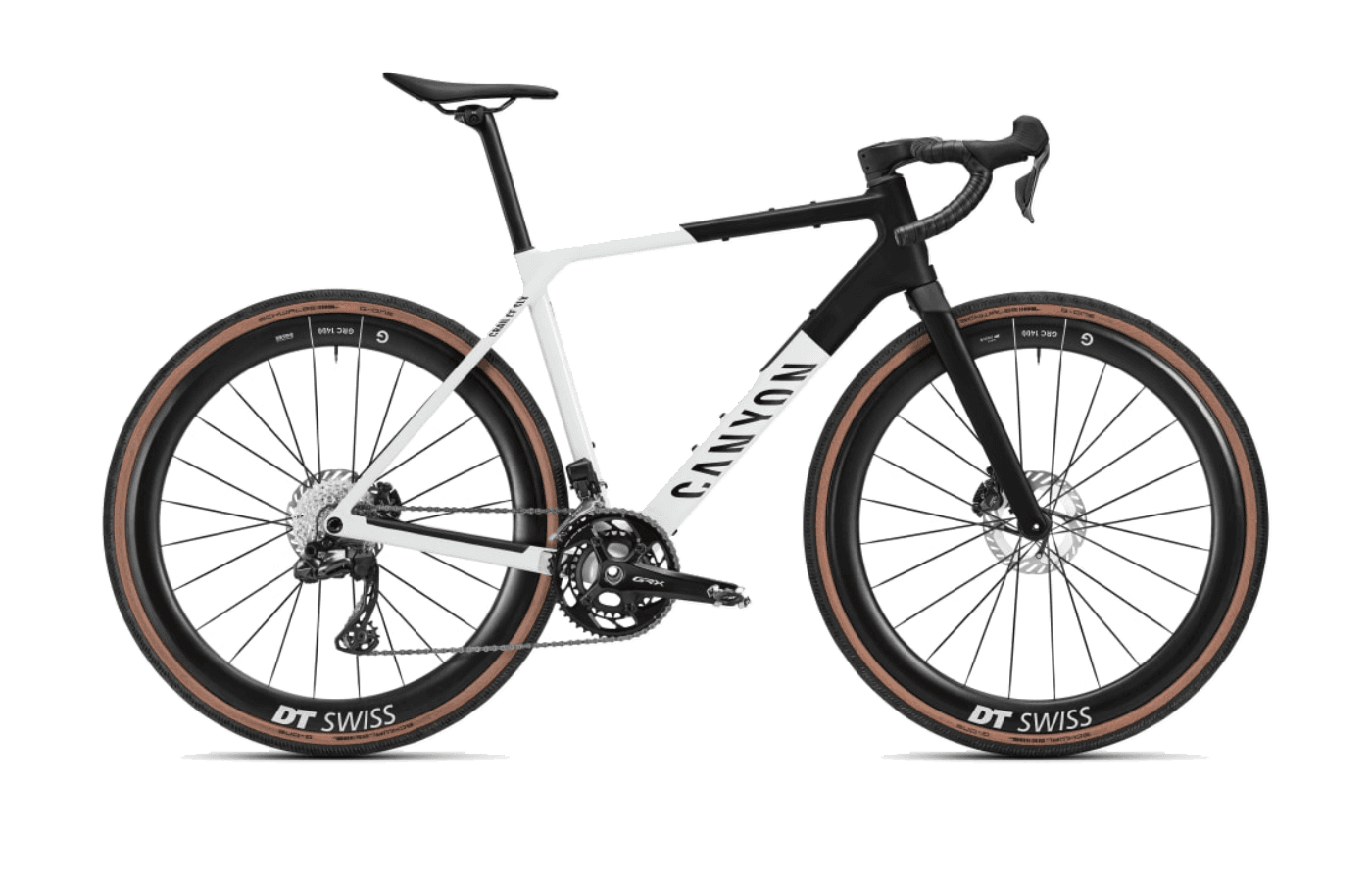

CF SLX 8 Di2 RS Shimano GRX Di2

$5,599

SKU 4474; Chrome Whisper; Powermeter

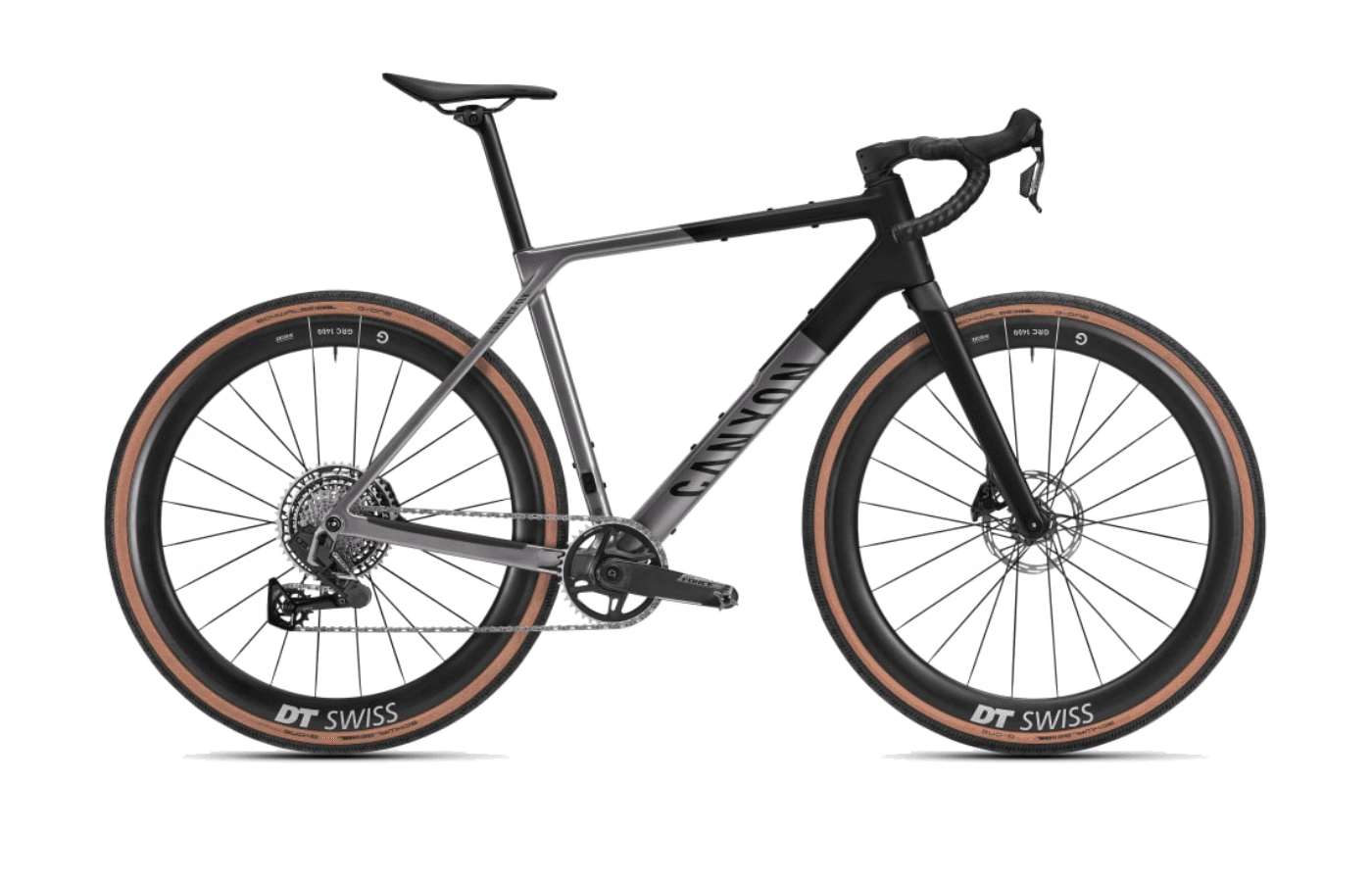

CF SLX 8 AXS RS SRAM Force XPLR eTap AXS E1

$6,099

SKU 4475; Obsidian Bloom; Powermeter

Reviews

Reviewers consistently characterize the Grail as a remarkably fast and efficient machine that excels on open, high-speed courses. The stiff chassis translates power immediately, making the bike feel "amazingly quick out the gate" (Granfondo) and highly responsive when accelerating out of the saddle. On smooth dirt and hardpacked surfaces, it holds momentum effortlessly.

However, this unwavering focus on speed comes with a distinct tradeoff in comfort. The frame and integrated cockpit transmit significant feedback on rougher terrain. Testers noted that the bike "transmits more shock to a rider’s hands and butt/legs than I expected" (Bicycling), making it less suited for heavily rutted or rocky trails. While the D-shaped seatpost offers some flex, it lacks the deep cushioning of Canyon's older leaf-spring design.

Handling is widely praised for its composure at speed. The revised geometry keeps the bike tracking straight through fast, loose sections, allowing riders to maintain their line without nervous steering corrections. While it is highly capable on fast descents, the longer footprint means it requires more deliberate input in tight, technical corners. Ultimately, reviewers view it as a highly effective race tool that "ploughs through rattly gravel roads, with no urge to wander" (BikeRadar), provided the rider accepts a firm ride quality.
