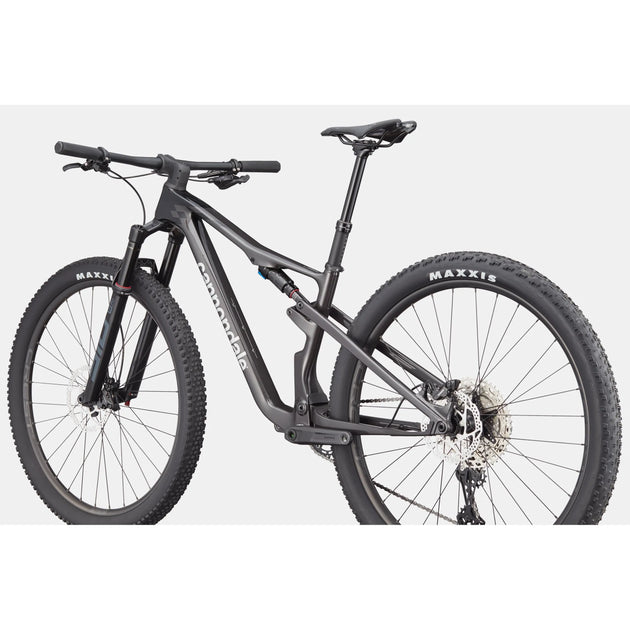

Cannondale

Scalpel4

FrameScalpel, lightweight carb…RockShox SID, 120mm, Debona…

GroupsetShimano Deore 6100, 12-…Shimano Deore, 10-51T, 12…

WheelsStan's NoTubes Crest S2…Maxxis Rekon Race WT, 29x2.…

The 2024 Cannondale Scalpel marks a significant shift for the storied cross-country platform. Moving away from the previous split between a dedicated short-travel race bike and a longer-travel variant, the current generation unifies the lineup around 120mm of suspension front and rear. It retains Cannondale's signature FlexPivot carbon chainstays to deliver a lightweight, four-bar suspension feel, but modernizes the chassis to handle increasingly technical race courses and aggressive trail riding.

Crucially, Cannondale has abandoned several of its proprietary standards. The frame now utilizes a threaded BSA bottom bracket, a standard 55mm chainline, and a Universal Derailleur Hanger, making it far easier to live with and service. Aimed squarely at competitive racers and fast-paced trail riders, the Scalpel balances its World Cup pedigree with a newfound appetite for rougher terrain.

Cannondale Scalpel

Build

Size

$3,349See deal

01 / Buy

Where to get it.

1 retailer · size M.

Size

1 retailer · Size M

Online retailerThe Path Bike ShopBest price

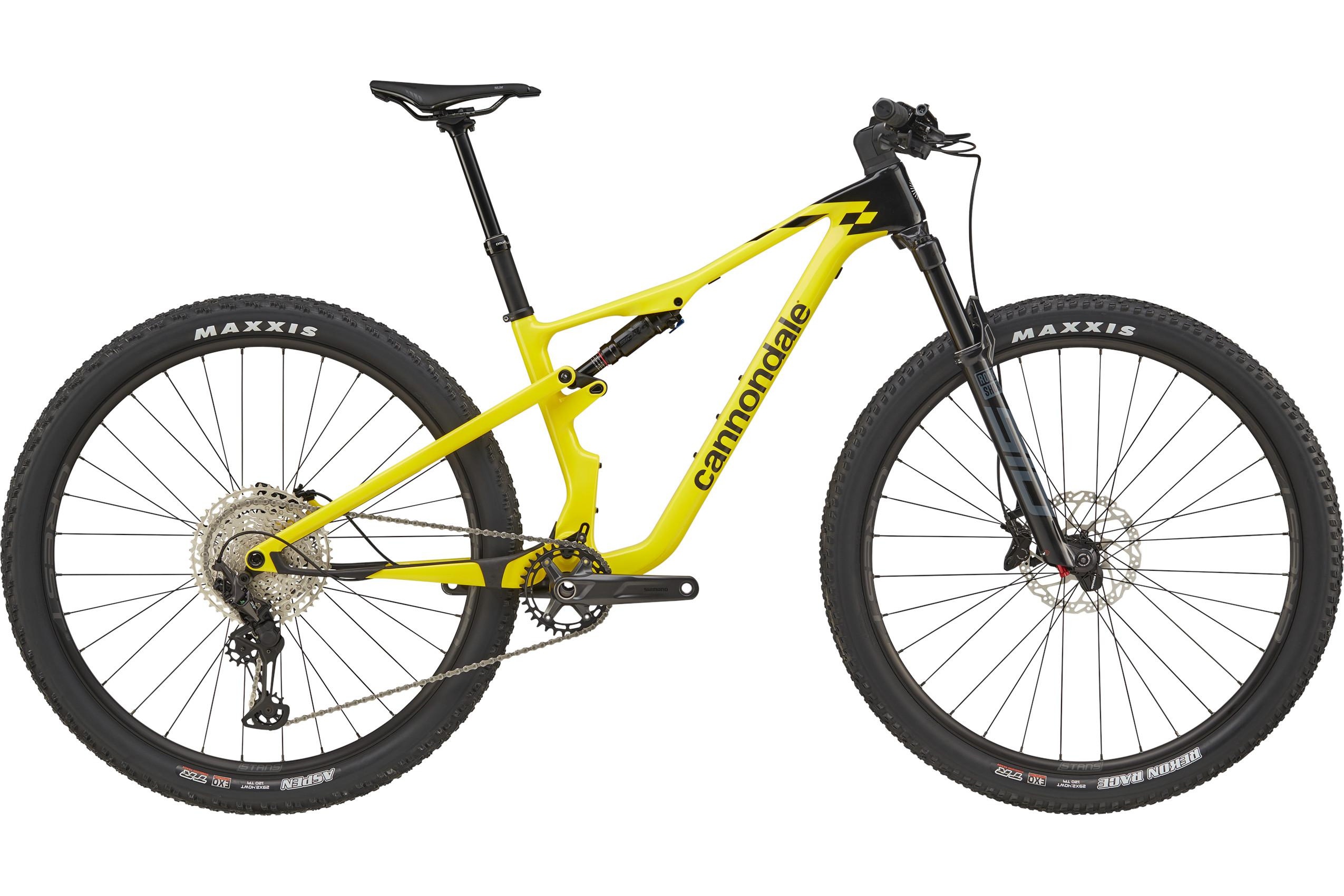

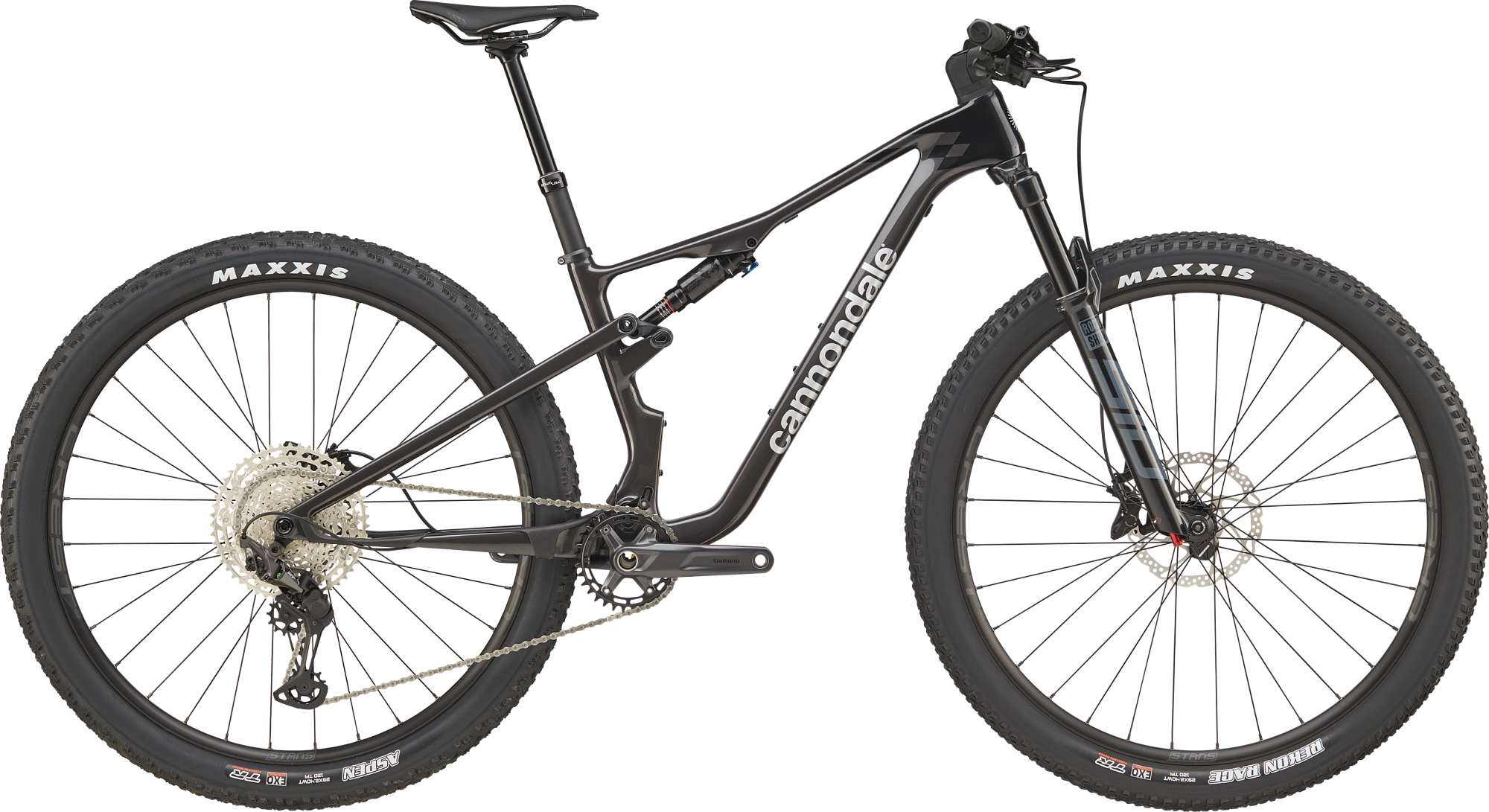

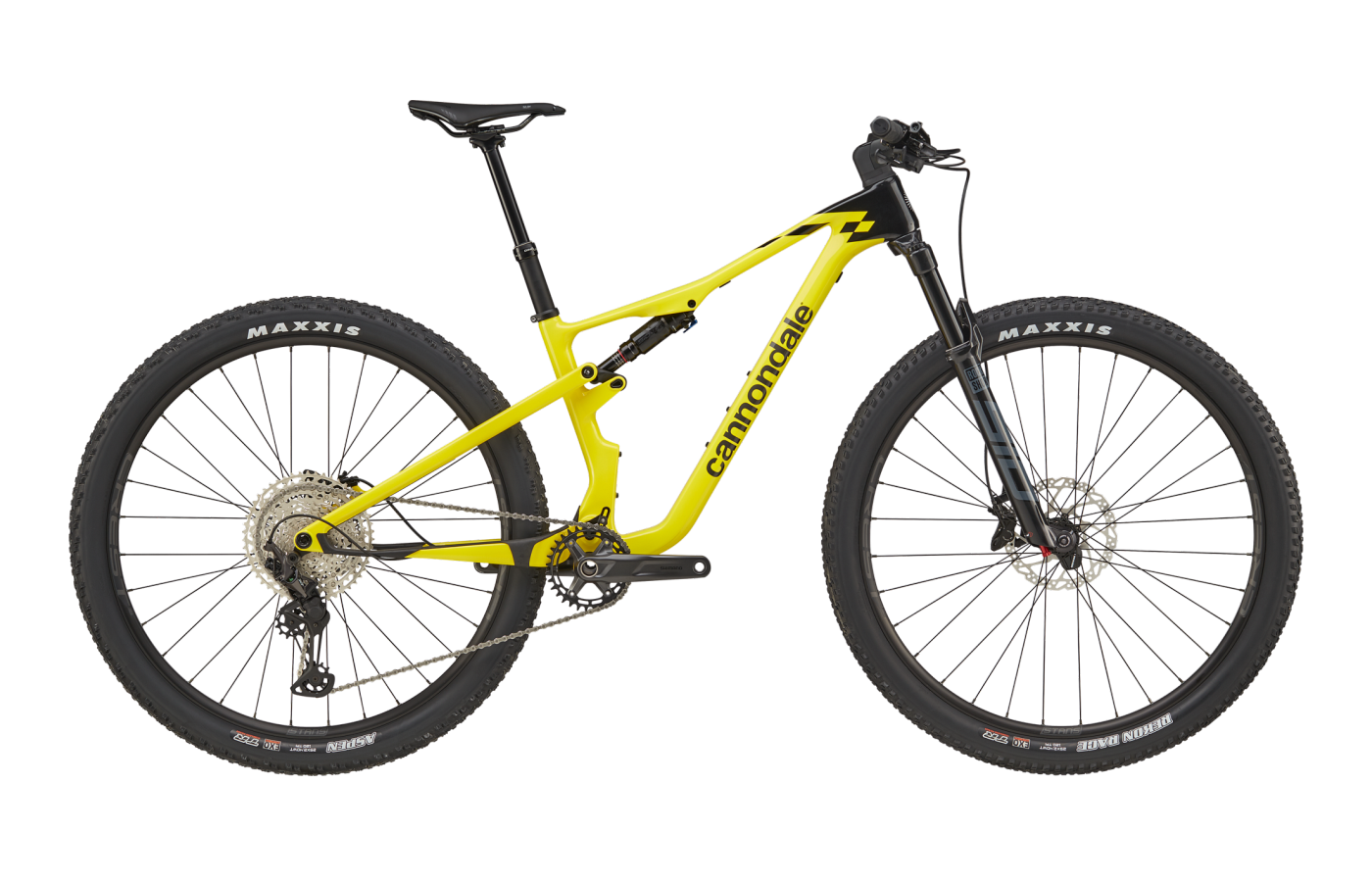

Cannondale Scalpel Carbon 4

In stock

$3,349

02 / Specifications

Spec sheet.

Every component shipped with this build.

01Frameset

3 components

FrameScalpel, lightweight carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native

ForkRockShox SID, 120mm, Debonair, 15x110mm thru-axle, tapered steerer, 44mm offset

Rear shockRockShox SIDLuxe Select+, 2-Pos mode adjust, adjustable rebound, 190x45

02Drivetrain & brakes

10 components

Shift leversShimano Deore 6100, 12-speed

Rear derailleurShimano XT

CassetteShimano Deore, 10-51T, 12-speed

ChainShimano Deore, 12-speed

CranksetShimano M5121, 32T

Bottom bracketShimano BSA 73mm

Front brakeShimano MT501 hydraulic disc

Rear brakeShimano MT501 hydraulic disc

Front rotor180mm Shimano RT54

Rear rotor160mm Shimano RT54

03Wheels & tires

4 components

Front wheelStan's NoTubes Crest S2, 32h, tubeless ready; Shimano TC-500, 15x110mm thru-axle; Stainless Steel, 14g

Rear wheelStan's NoTubes Crest S2, 32h, tubeless ready; Shimano MT410B, 12x148mm thru-axle; Stainless Steel, 14g

Front tireMaxxis Rekon Race WT, 29x2.4, EXO Protection, tubeless ready

Rear tireMaxxis Aspen WT, 29x2.4, EXO Protection, tubeless ready

04Cockpit & contact

5 components

StemCannondale C1 Conceal, Alloy, 31.8mm, -6°

HandlebarsCannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm

SaddlePrologo Dimension NDR, STN rails

SeatpostCannondale DownLow Dropper, internal routing, 31.6mm, 125mm (S), 150mm (M-XL)

Grips/TapeCannondale XC Silicone

03 / Geometry

Geometry & fit.

5 sizes published.

The Scalpel’s geometry reflects the demands of modern cross-country riding without tipping fully into trail bike territory. A 66.6-degree head tube angle provides stability at speed, while the 75.5-degree seat tube angle keeps the rider positioned efficiently over the pedals. To ensure consistent handling across the size run, Cannondale employs size-specific chainstays, which grow incrementally from the small to the extra-large frames. This approach helps maintain a balanced weight distribution between the wheels regardless of rider height.

Rider posture is decidedly aggressive and forward-biased, characterized by a low stack height and a relatively long reach. This setup naturally weights the front wheel, aiding traction on steep, technical ascents. Cockpit integration varies by build; higher-end models feature a one-piece carbon bar and stem that dictates a fixed roll and stem angle, while lower-tier models use a traditional two-piece setup that allows for easier fit adjustments. Across all sizes, the frame design accommodates longer-travel dropper posts and provides ample room for two water bottles inside the front triangle.

Reach × Stack · size Mmm

Where the handlebar sits relative to the bottom bracket — the single most important fit pair.

01Fit geometry6 values

Stack597 mm

Reach450 mm

Top tube597 mm

Headtube length90 mm

Standover height744 mm

Seat tube length400 mm

03Handling geometry9 values

Headtube angle66.6°

Seat tube angle75.5°

BB height334 mm

BB drop42 mm

Trail112 mm

Offset44 mm

Front center734 mm

Wheelbase1169 mm

Chainstay length438 mm

Which size should I buy?

Slide your height to see the recommended size. GearWise's fit algorithm works from the published stack, reach, and ETT — the brand's own recommendation may differ.

Your height

5'8"173 cm

5'0"5'5"5'10"6'3"6'7"

Recommended sizeMBased on stack, reach & ETT for your height · score 84/100.

→Calculated from GearWise's own stack / reach / ETT algorithm — the brand's size chart may recommend a different size, and a proper bike fit beats any calculator.

04 / Other builds

The lineup.

4 builds, ranging $3,349 – $8,499.

The Scalpel lineup is built around Cannondale’s Series 1 carbon frame, meaning riders get the exact same chassis whether they choose the entry-level Scalpel 4 or the high-end Scalpel 1. The primary differences lie in the drivetrain, suspension, and wheel specifications. It is worth noting that North American models feature standard forks from Fox or RockShox and omit remote lockouts, whereas European builds often include Cannondale’s single-sided Lefty fork and handlebar-mounted suspension remotes.

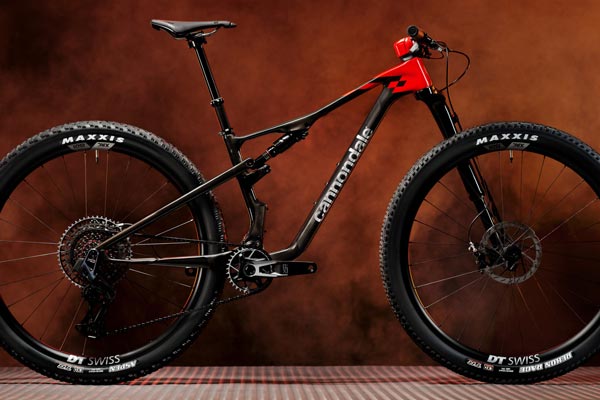

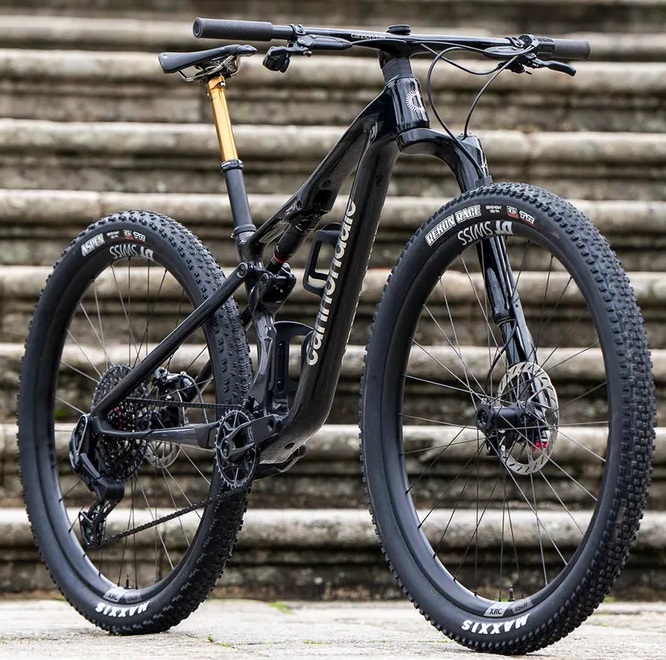

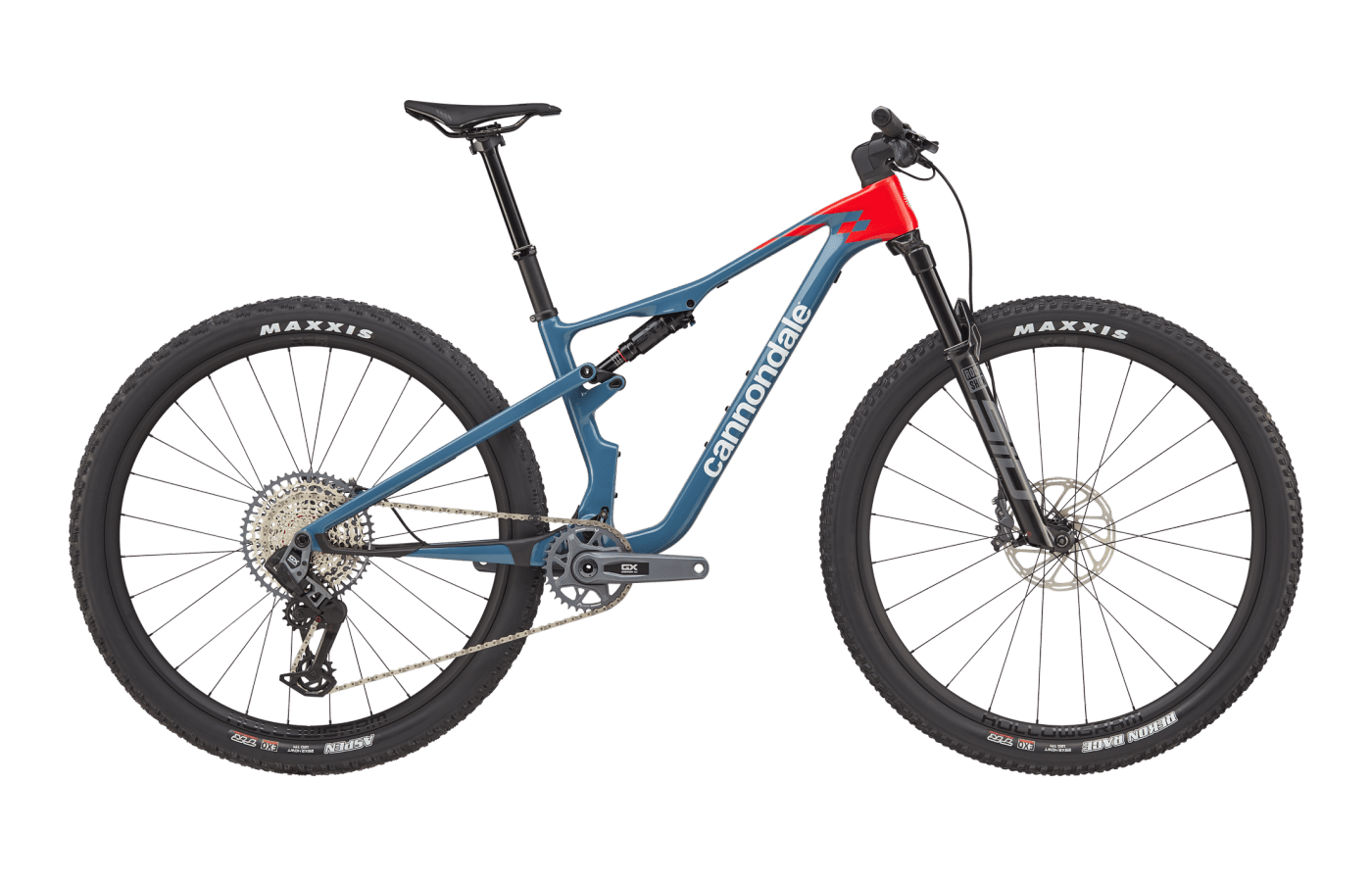

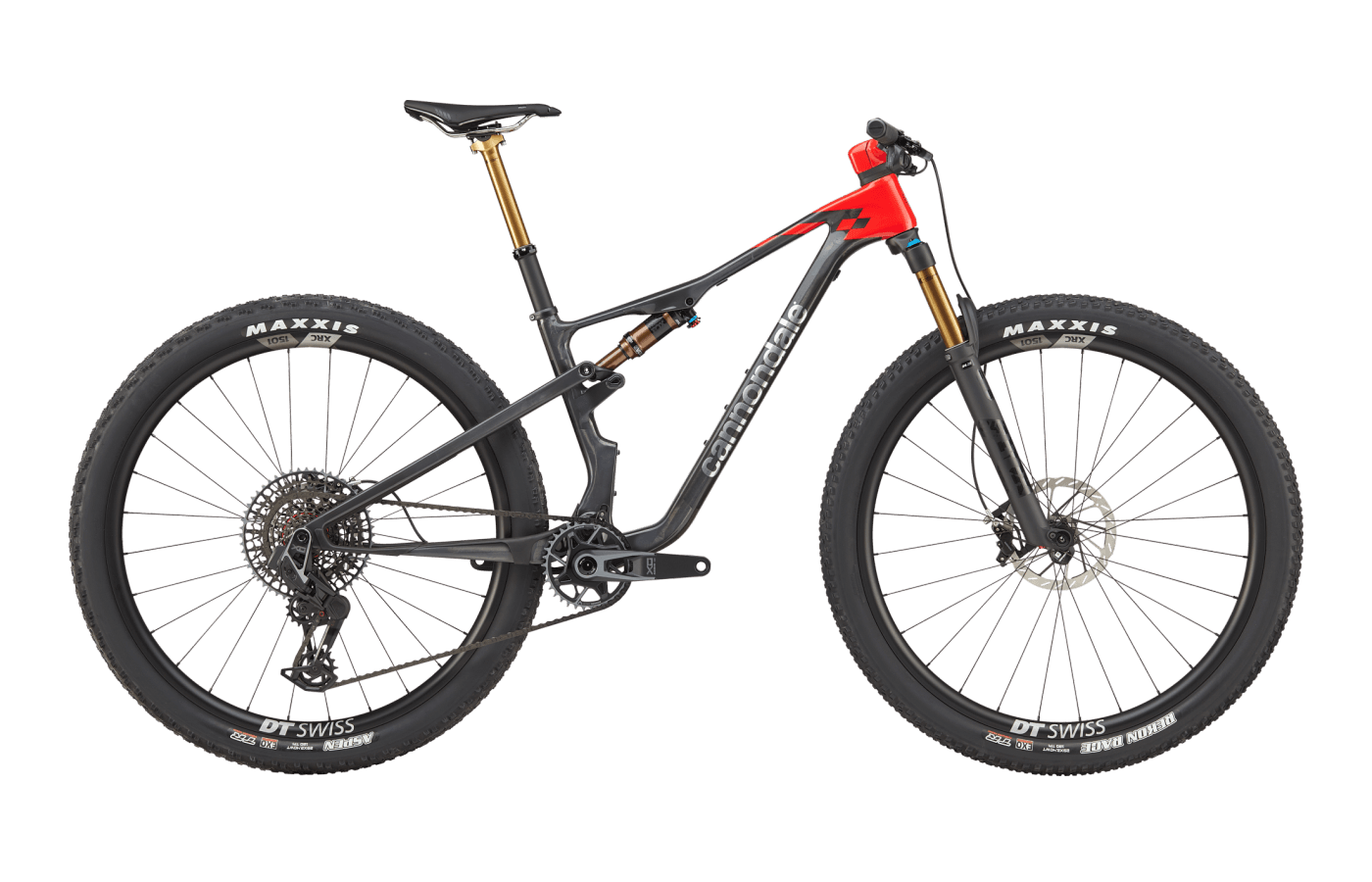

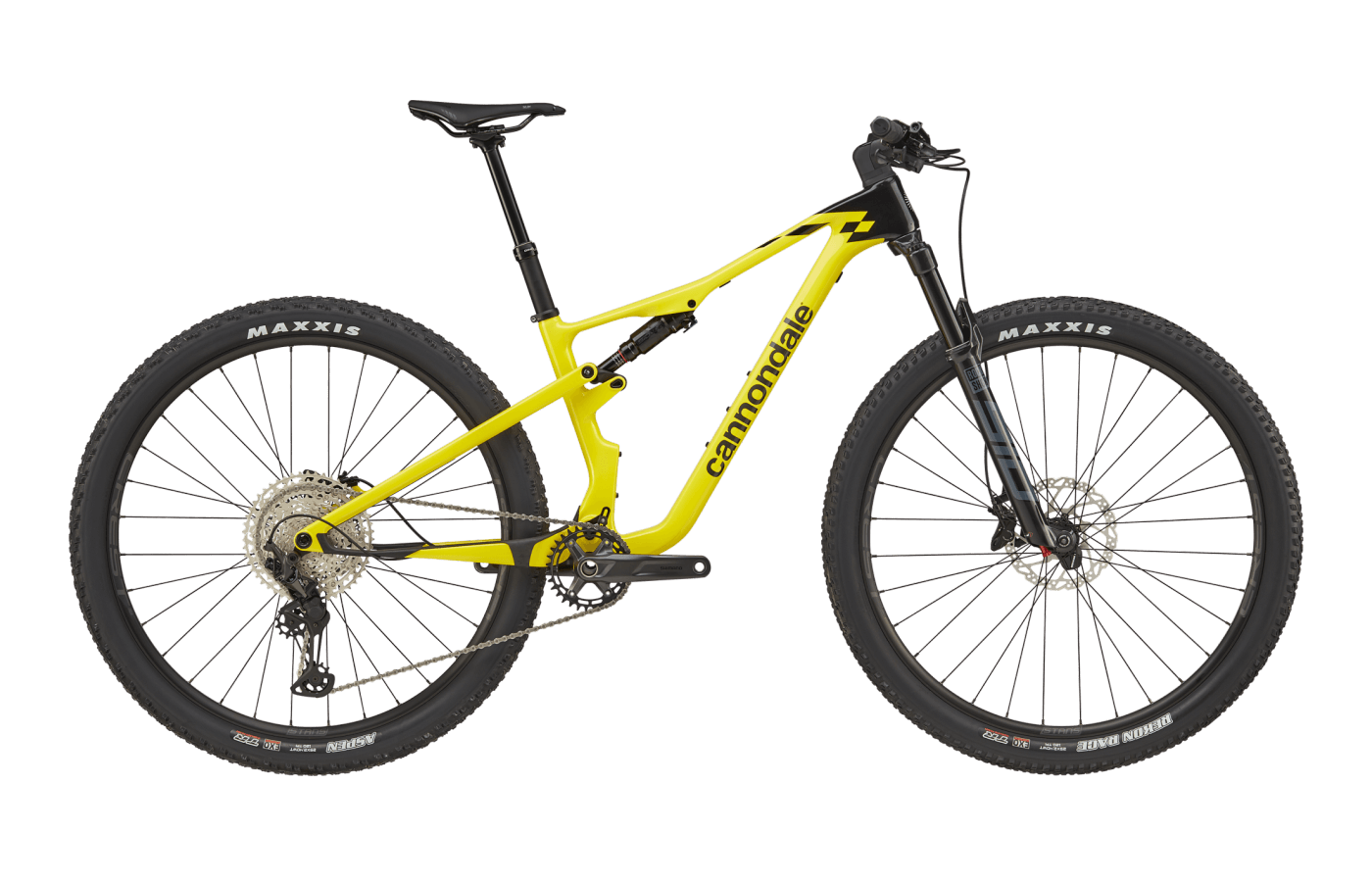

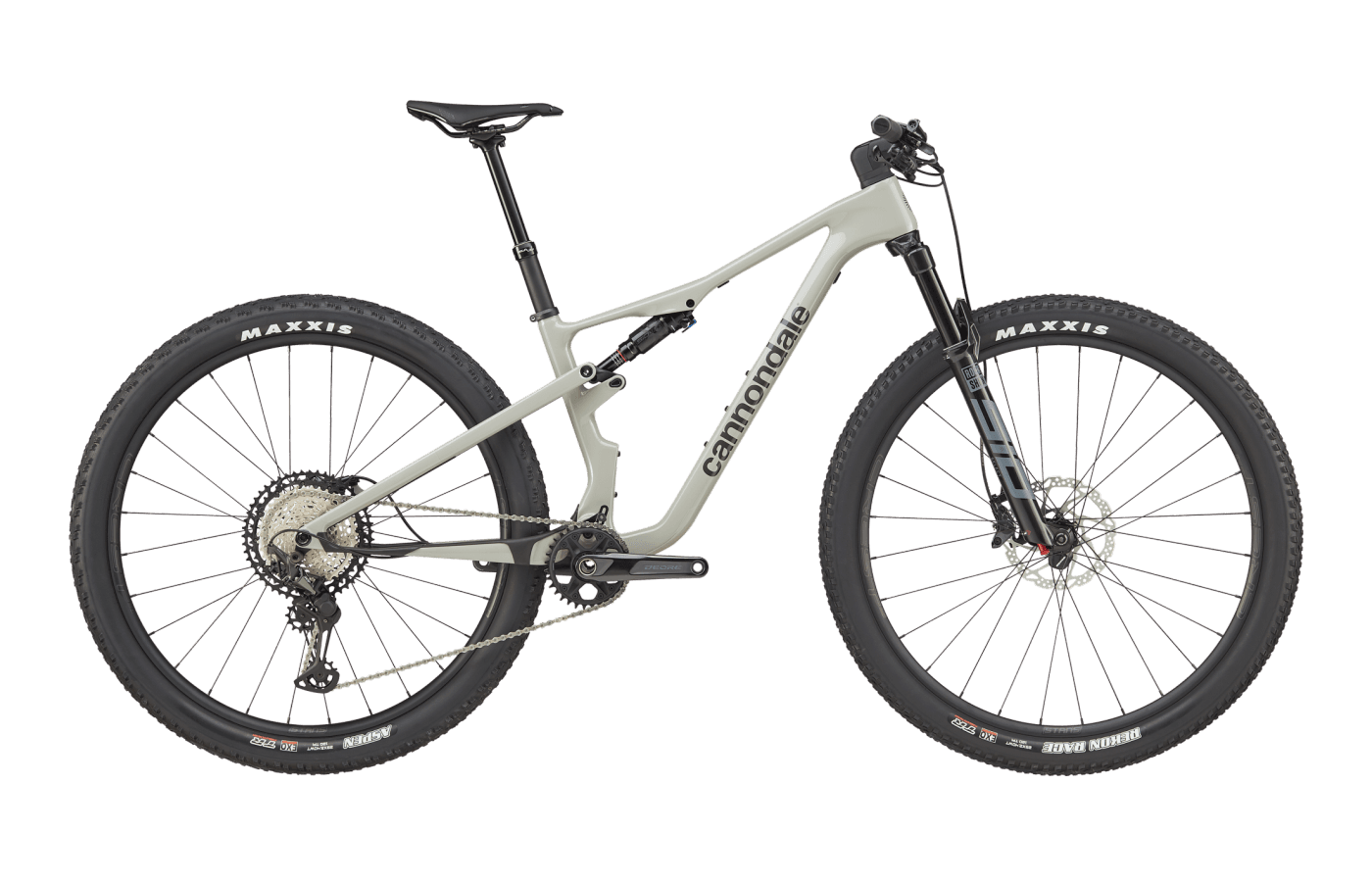

The Scalpel 1 tops this specific range with a SRAM X0 AXS Transmission, Fox Factory suspension, and DT Swiss carbon wheels. Stepping down to the Scalpel 2 yields what many consider the sweet spot for value. It utilizes a SRAM GX AXS Transmission, RockShox SID Select+ suspension, and Cannondale’s own HollowGram carbon wheels, delivering high-end electronic shifting and carbon hoops at a more accessible price. The Scalpel 3 and 4 move to mechanical Shimano drivetrains and alloy Stan's NoTubes rims. The Scalpel 3 features a mix of XT and Deore components with a RockShox SID Select fork, while the Scalpel 4 relies on a full Deore group and a base-level SID, offering a solid entry point for privateer racers.

— · Currently viewing4

C24554U

$3,349On this page

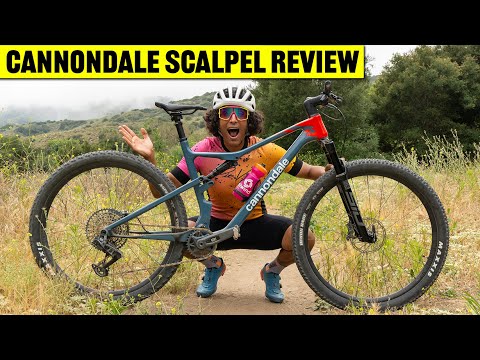

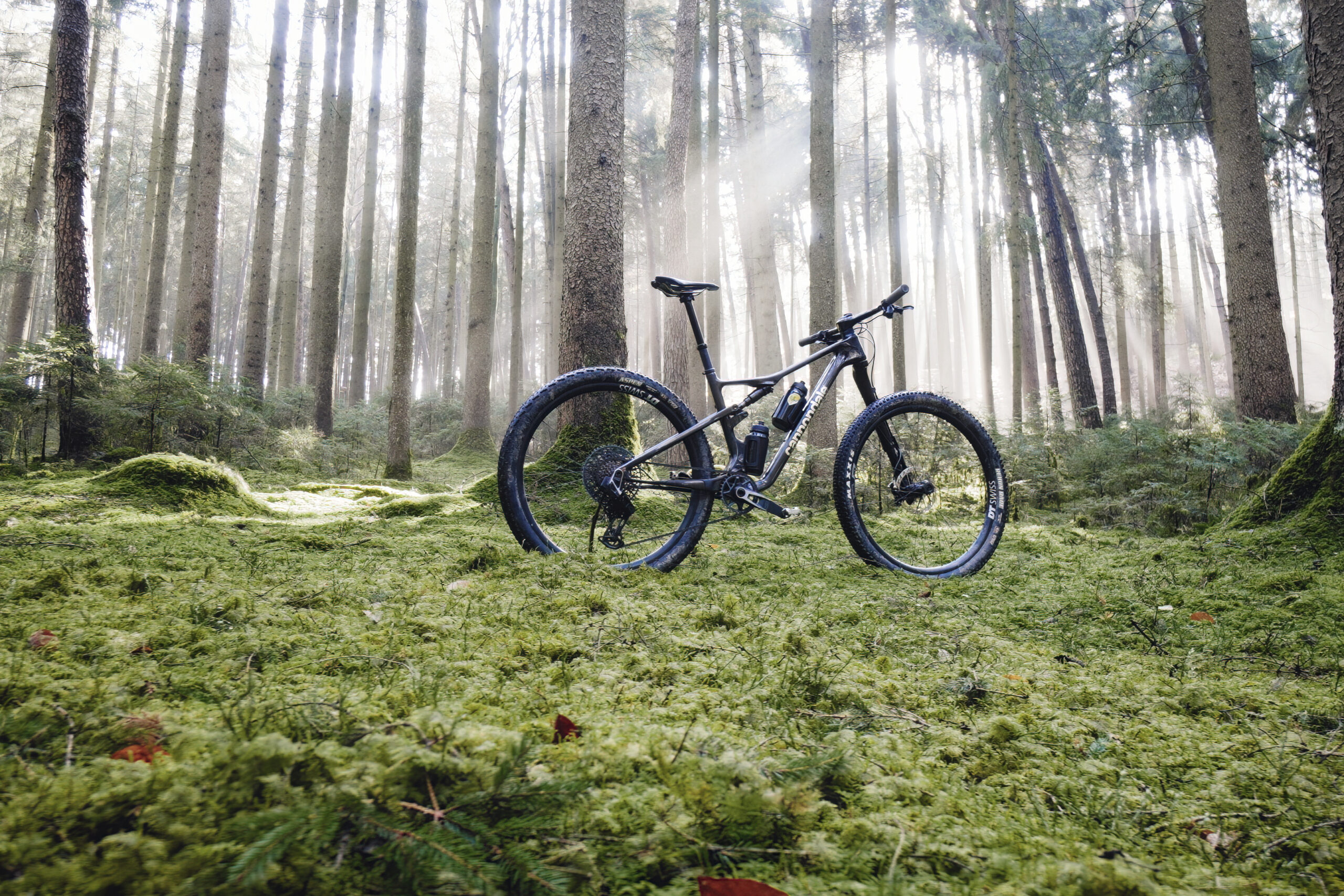

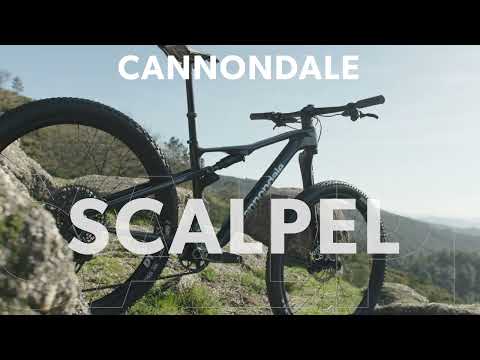

05 / Reviews

From the press.

18 reviews from the cycling press.

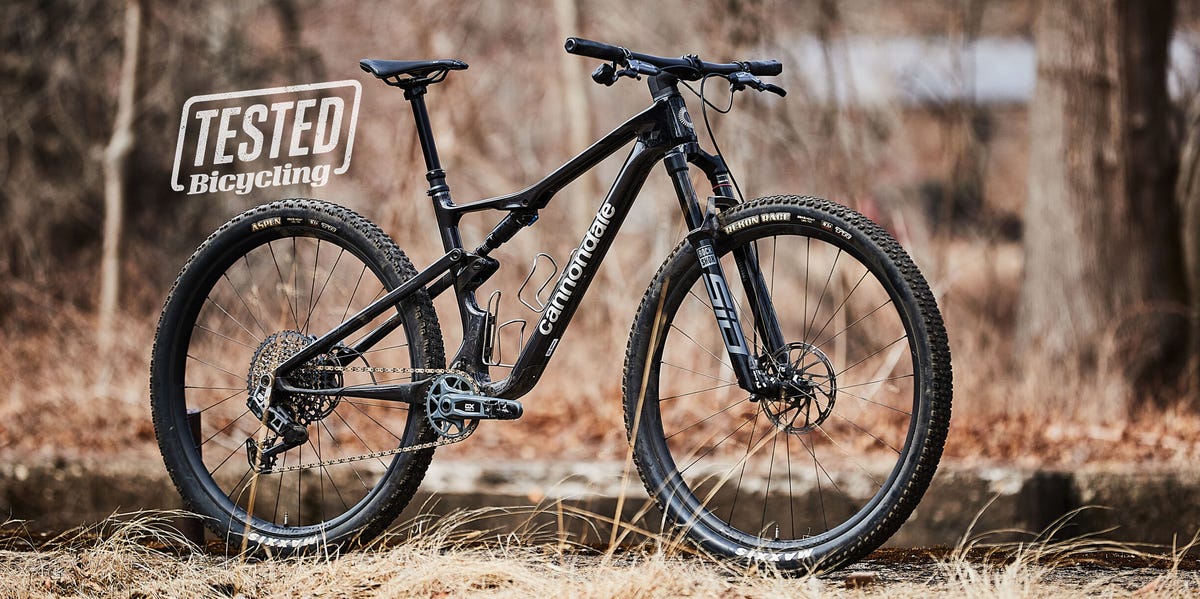

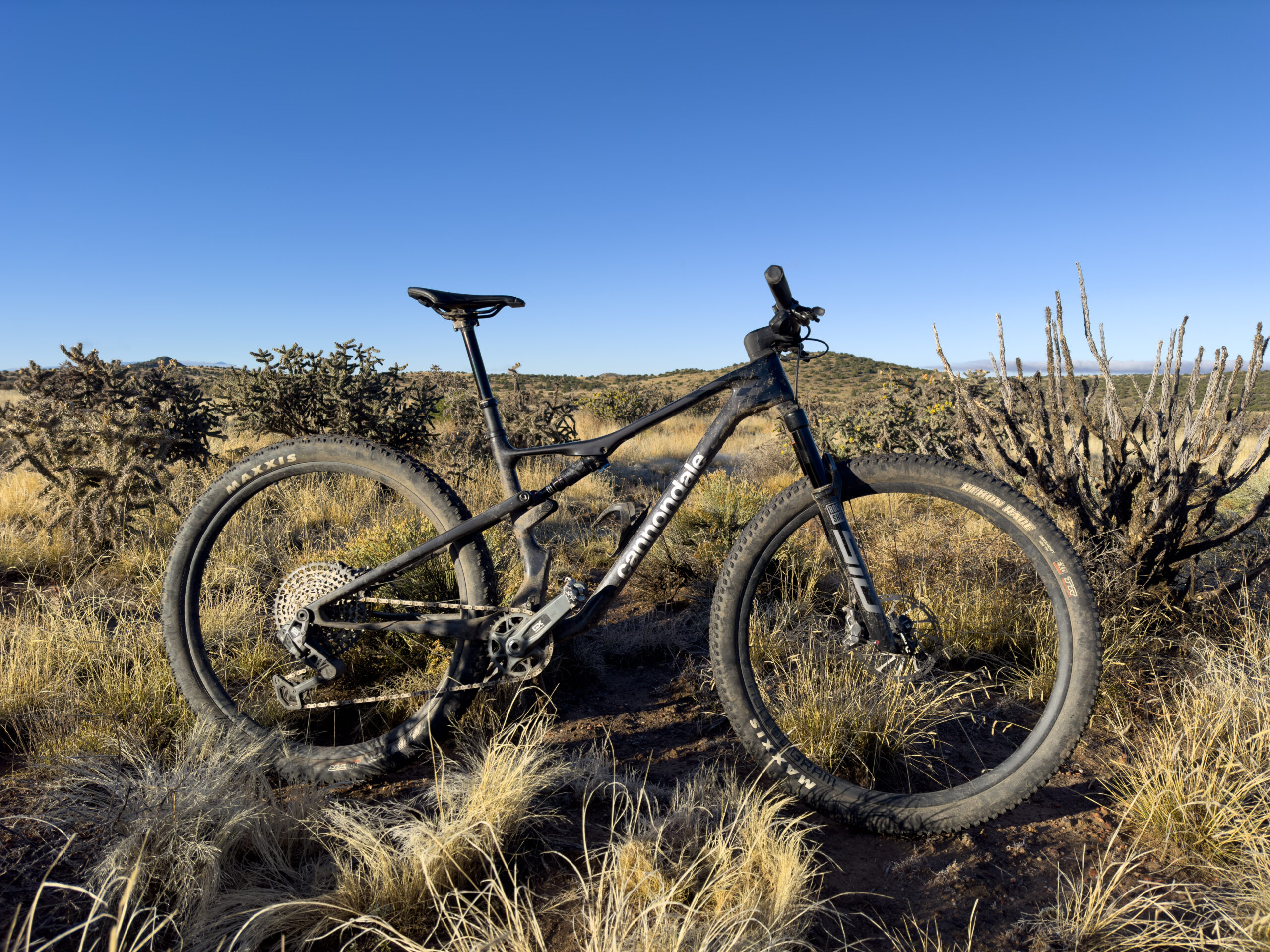

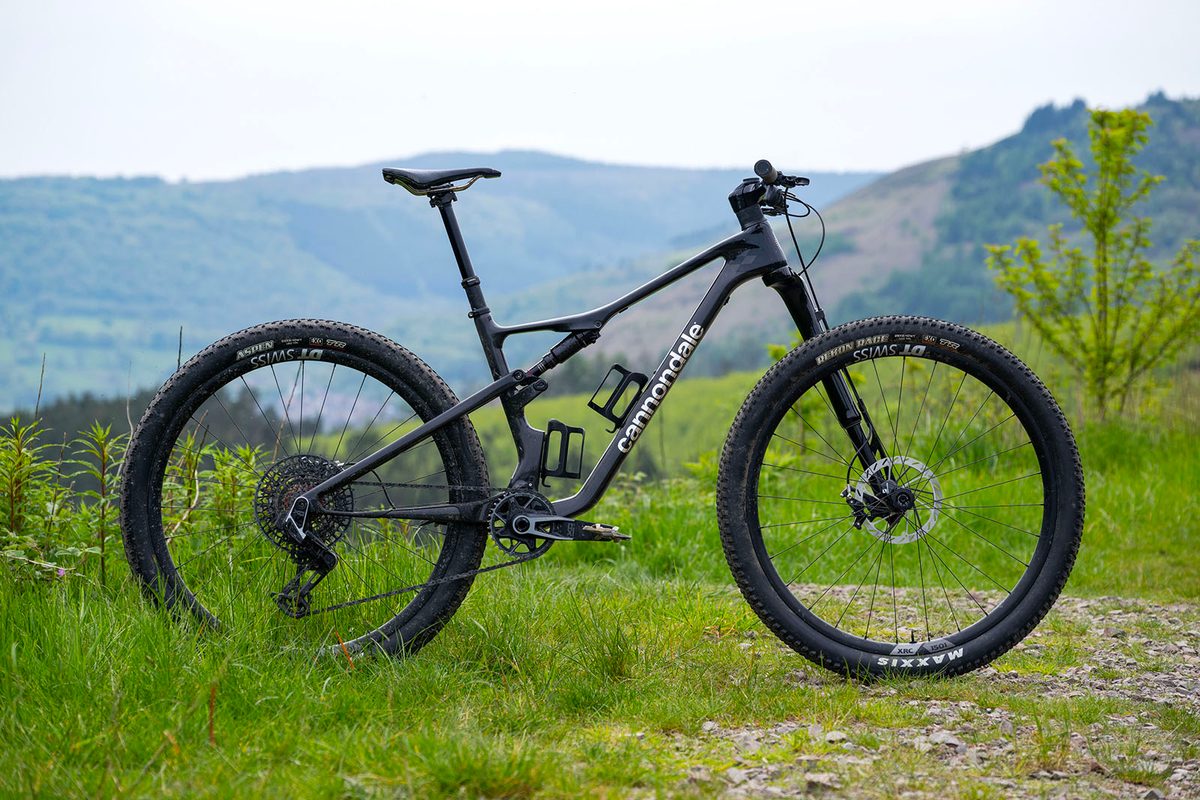

Reviewers consistently praise the Scalpel for maintaining its elite climbing efficiency while vastly improving its descending manners. The suspension platform is highly supportive under power, yet active enough to track the ground effectively. Out on the trail, the bike feels like a "rocket ship on the climbs" (Pinkbike), rewarding hard efforts with immediate acceleration. When the trail points down, the increased travel and revised kinematics make it "noticeably more pleasant to ride in rocky and bumpy terrain" (Bicycling) compared to older, steeper cross-country machines.

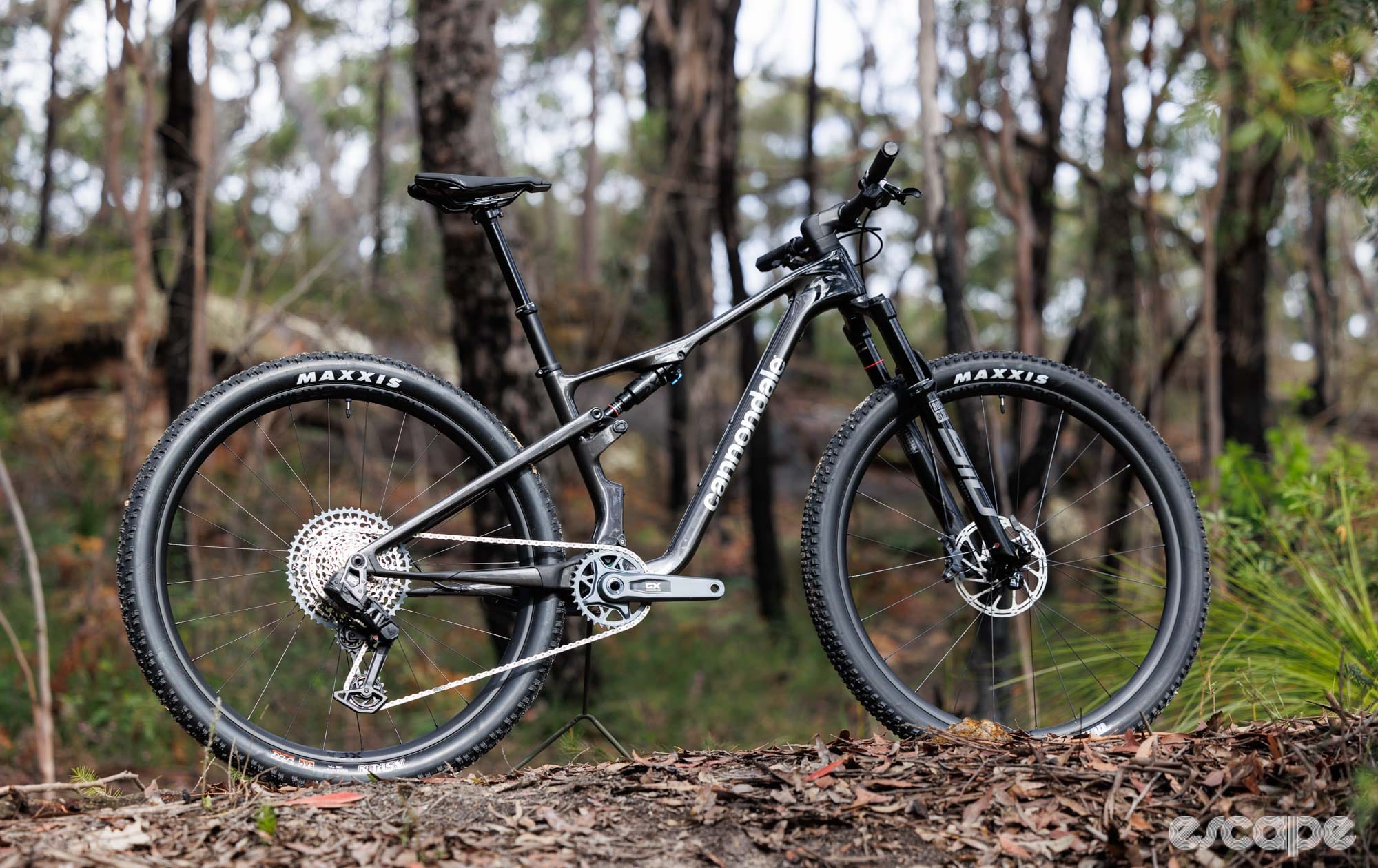

However, the bike is not without its polarizing elements. The move to through-headset cable routing drew widespread criticism from mechanics and testers alike, with one noting the system is "vastly more complicated for questionable benefit" (Escape Collective). Additionally, while the stock Maxxis Aspen rear tire rolls exceptionally fast, multiple reviewers found it broke traction easily under braking or in loose conditions. The two-position Fox Transfer SL dropper post equipped on upper-tier builds also frustrated some riders who missed having infinite height adjustment. Despite these spec quirks, the consensus points to a highly capable chassis that excels both between the tape and on fast backcountry loops.
