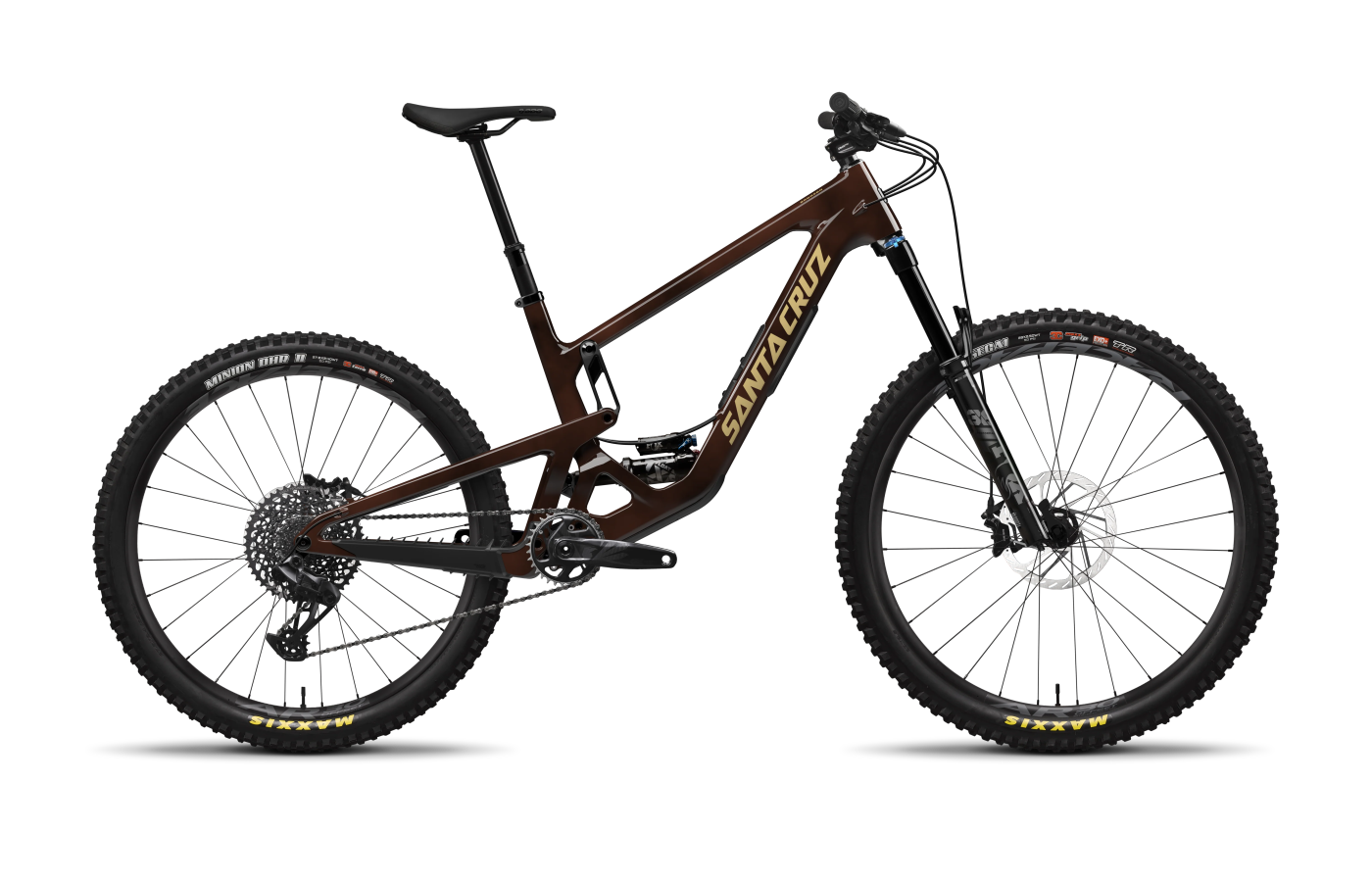

Santa Cruz

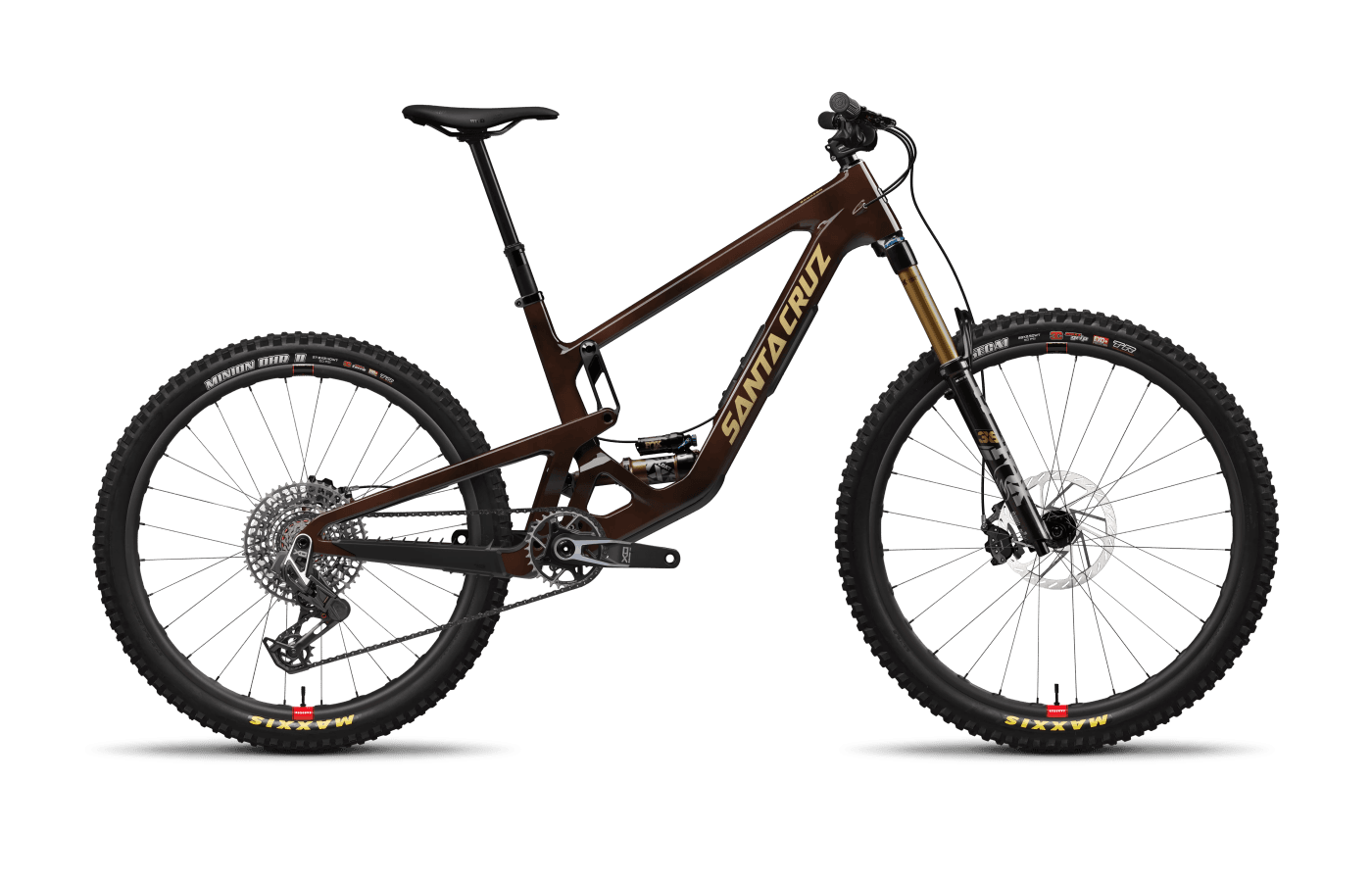

BronsonX0 AXS RSV

Claimed weight32.41 lbs / 14.7 kgComplete bike

FrameSanta Cruz Carbon CC (VPP…Fox 36 Float Factory, GRIP…

GroupsetSRAM AXS Pod Controller…SRAM X0 Eagle T-Type, 10-…

WheelsReserve 30|HD Carbon; I…Maxxis Assegai 29x2.5, 3C M…

The fourth-generation Santa Cruz Bronson marks a structural shift for the model, moving from a dedicated 27.5-inch platform to a mixed-wheel configuration. Pairing a 29-inch front wheel with a 27.5-inch rear (except on the extra-small size, which remains dual 27.5), the bike retains its 150mm of rear Virtual Pivot Point travel and 160mm fork. This redesign positions the Bronson squarely between the brand's dedicated trail and enduro offerings, aiming to balance high-speed stability with cornering agility.

Available exclusively in carbon fiber, the frame features a low-mounted shock driven by the lower link, a threaded bottom bracket, and universal derailleur hanger compatibility. While the fundamental geometry and suspension layout have remained consistent since the generation's introduction, later model years integrate Santa Cruz's Glovebox down-tube storage system.

Santa Cruz Bronson

Build

Size

$8,399See deal

01 / Buy

Where to get it.

No retailers stocking size m.

Size

0 retailers · Size m

No retailers carrying size m right now.

02 / Specifications

Spec sheet.

Every component shipped with this build.

01Frameset

4 components

FrameSanta Cruz Carbon CC (VPP suspension), 150mm travel, MX wheel size

ForkFox 36 Float Factory, GRIP X2, 160mm

Rear shockFOX Float X Factory, 230x57.5

Weight32.41 lbs / 14.7 kg

02Drivetrain & brakes

10 components

Shift leversSRAM AXS Pod Controller (Rocker Paddle)

Rear derailleurSRAM X0 Eagle AXS T-Type, 12-speed

CassetteSRAM X0 Eagle T-Type, 10-52T

ChainSRAM X0 Eagle T-Type, Flattop, 12-speed

CranksetSRAM X0 Eagle DUB T-Type Crankset, 32T

Bottom bracketSRAM DUB 73mm MTB Wide BB

Front brakeSRAM Maven Silver Stealth

Rear brakeSRAM Maven Silver Stealth

Front rotorSRAM HS2 200mm

Rear rotorSRAM HS2 180mm

03Wheels & tires

4 components

Front wheelReserve 30|HD Carbon; Industry Nine 1/1, 15x110mm, 6-bolt, 28h

Rear wheelReserve 30|HD Carbon; Industry Nine 1/1, 12x148mm, XD, 6-bolt, 28h

Front tireMaxxis Assegai 29x2.5, 3C MaxxGrip, EXO+

Rear tireMaxxis Minion DHR II 27.5x2.4, 3C MaxxTerra, EXO+

04Cockpit & contact

5 components

StemOneUp Stem, 42mm OR Burgtec Enduro Stem, 42mm

HandlebarsSanta Cruz 35 Carbon Bar, 800mm

SaddleWTB Silverado Medium Fusion, CroMo SL

SeatpostOneUp Dropper Post, 31.6

Grips/TapeSanta Cruz Bicycles House Grips

03 / Geometry

Geometry & fit.

5 sizes published.

The Bronson’s geometry balances modern length with a distinctly upright rider posture. Reach measurements are moderate for the category, sitting at 472mm on a size large in the low setting. A flip-chip at the lower shock mount allows for minor adjustments, altering the head tube angle by a fraction of a degree and shifting the bottom bracket height slightly, though most riders leave it in the lower, slacker position.

A defining characteristic of the fit is the exceptionally high front end. The combination of a long fork, a 29-inch front wheel, and riser handlebars creates a tall stack height that pushes the rider's weight rearward. While this provides security on steep descents, it requires a conscious effort to weight the front tire in flat corners to prevent understeer. To compensate, many riders opt to lower their stem or swap to a flatter handlebar.

Santa Cruz utilizes size-specific chainstays across the size run, growing the rear center proportionally to maintain a consistent weight distribution for taller and shorter riders alike. The steep seat tube angle keeps the rider centered over the bottom bracket, aiding the bike's strong climbing posture.

Reach × Stack · size mmm

Where the handlebar sits relative to the bottom bracket — the single most important fit pair.

01Fit geometry6 values

Stack632 mm

Reach460 mm

Top tube595 mm

Headtube length120 mm

Standover height723 mm

Seat tube length405 mm

02Component geometry2 values

Handlebar width800 mm

Stem length42 mm

03Handling geometry7 values

Headtube angle64.2°

Seat tube angle77.9°

BB height344 mm

BB drop29 mm

Front center800 mm

Wheelbase1240 mm

Chainstay length439 mm

Which size should I buy?

Slide your height to see the recommended size. GearWise's fit algorithm works from the published stack, reach, and ETT — the brand's own recommendation may differ.

Your height

5'8"173 cm

5'0"5'5"5'10"6'3"6'7"

Recommended sizemBased on stack, reach & ETT for your height · score 87/100.

→Calculated from GearWise's own stack / reach / ETT algorithm — the brand's size chart may recommend a different size, and a proper bike fit beats any calculator.

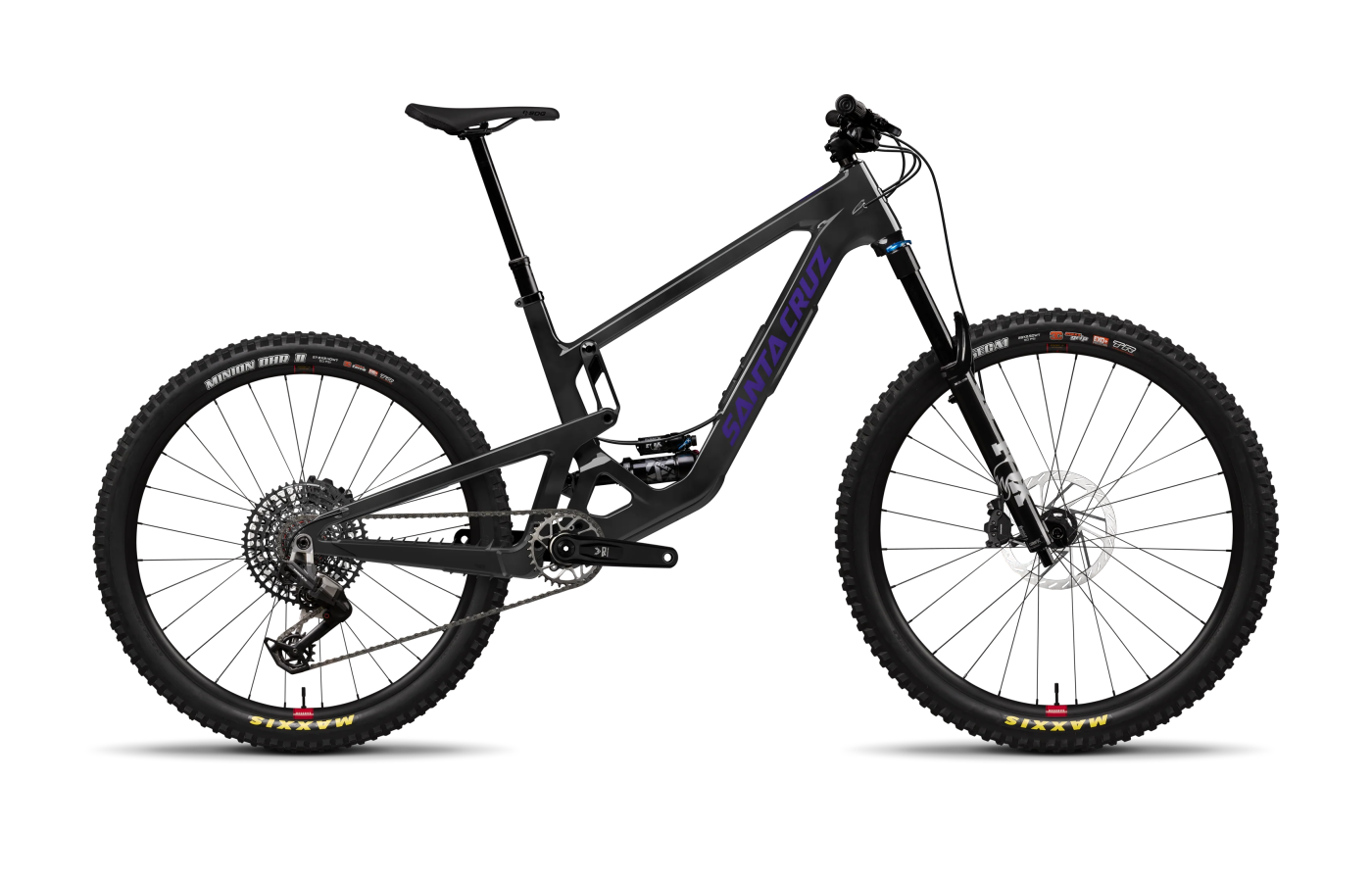

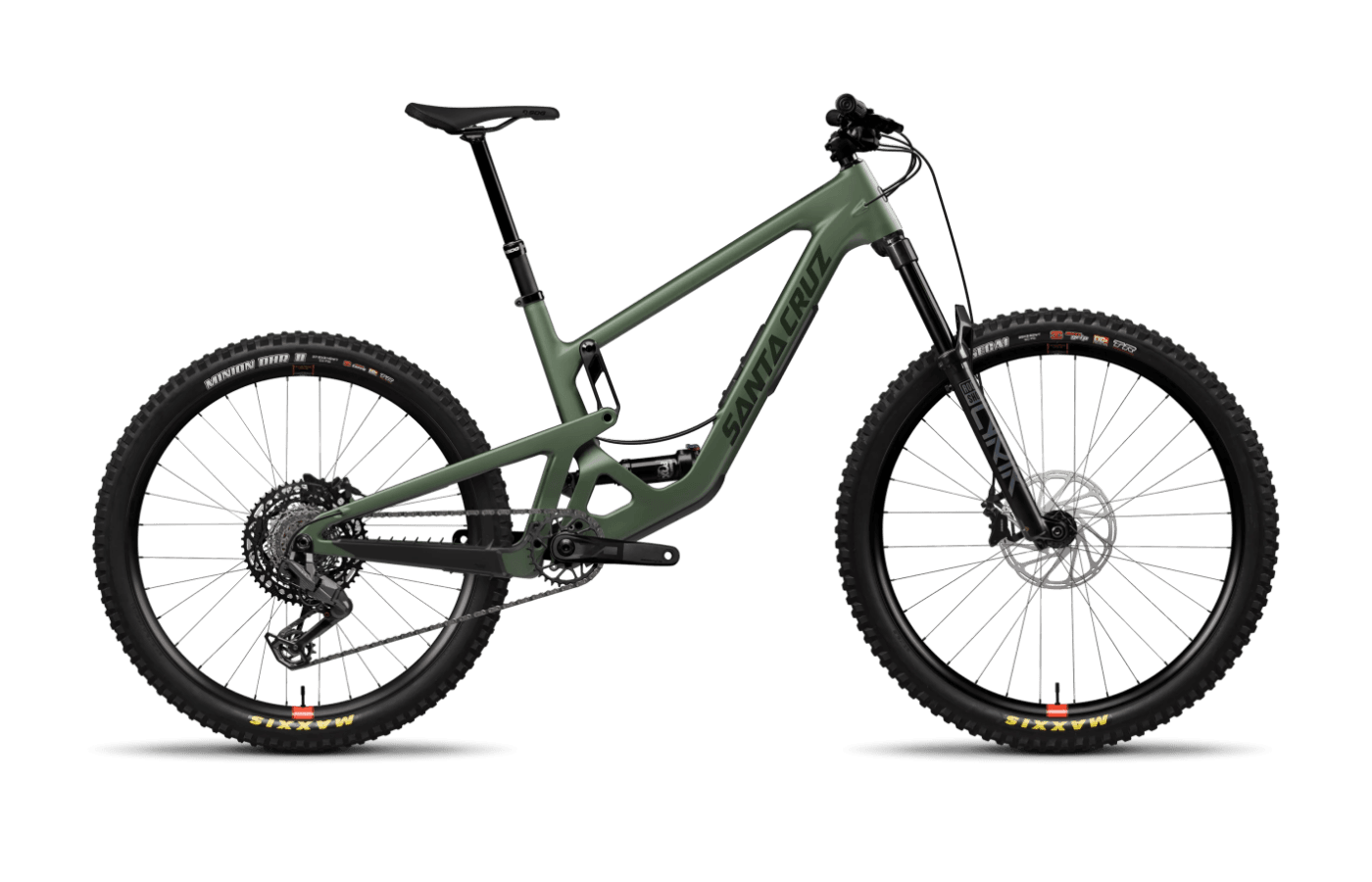

04 / Other builds

The lineup.

7 builds, ranging $4,999 – $9,349.

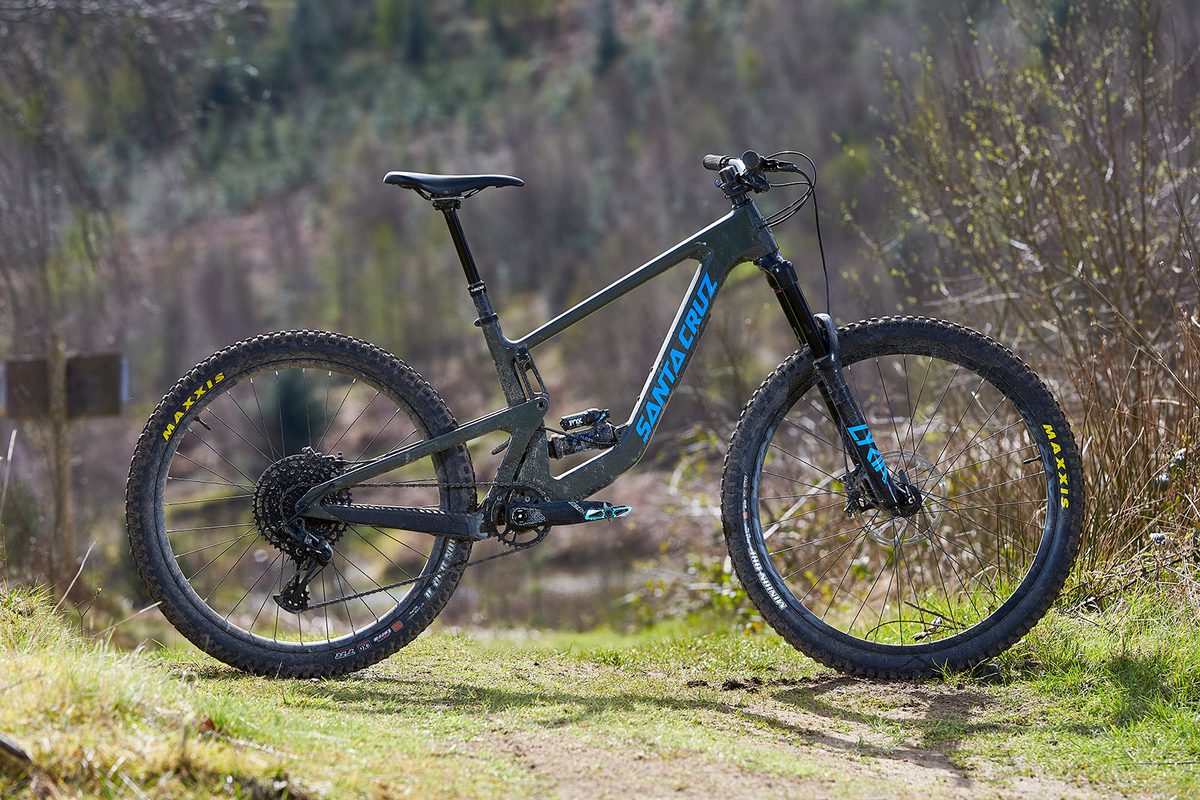

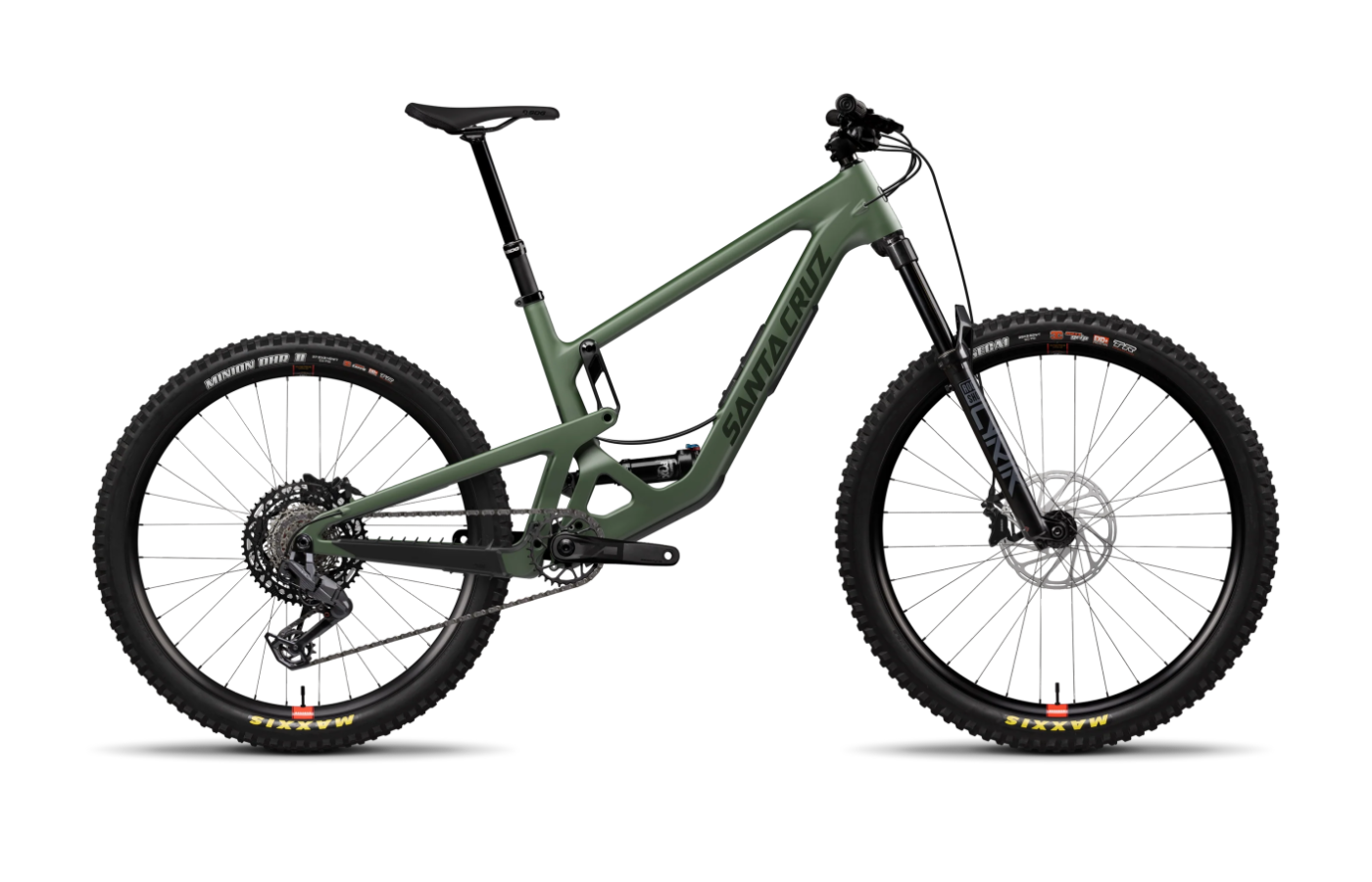

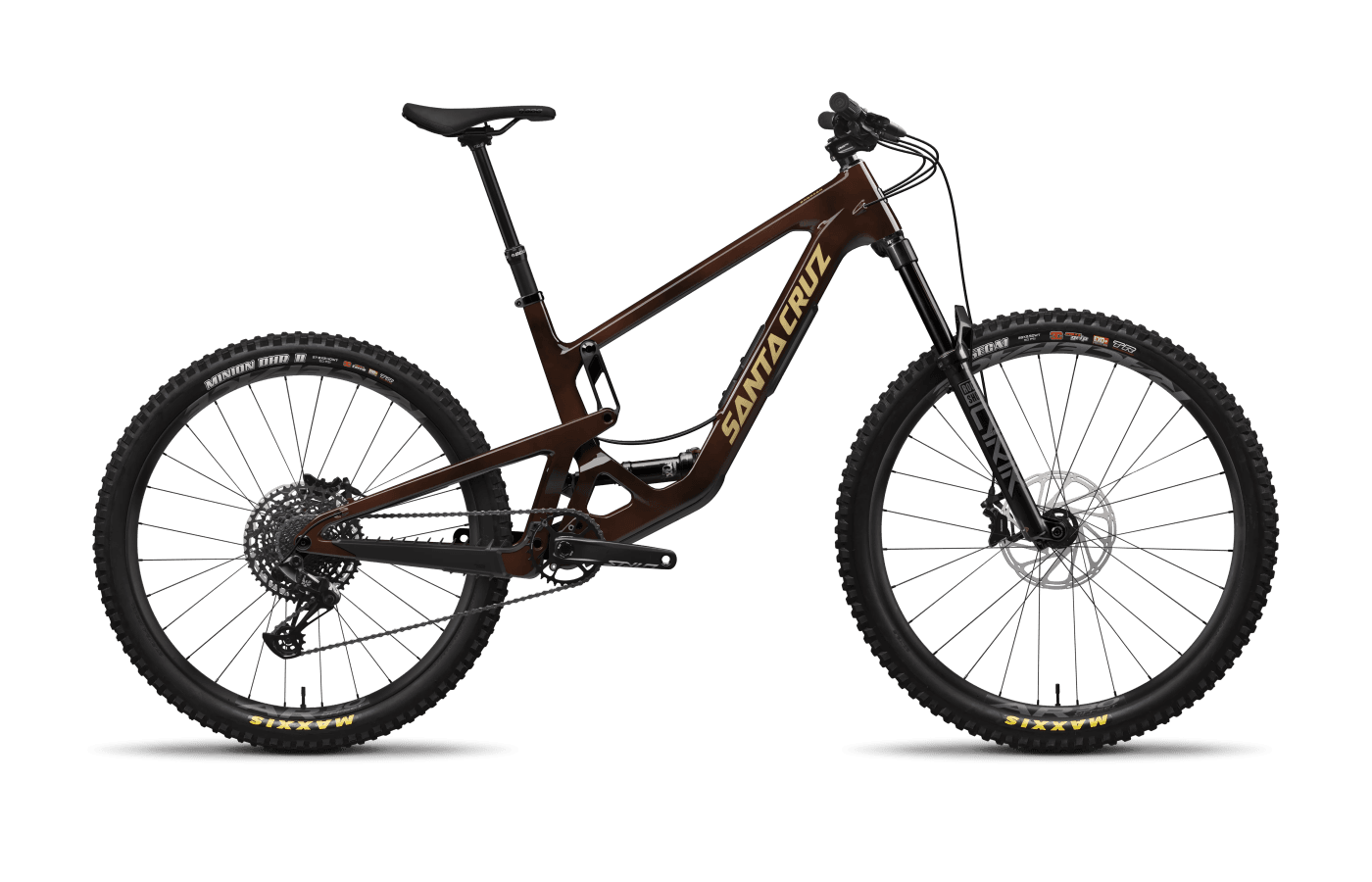

The Bronson lineup is split between Santa Cruz’s standard C carbon frames and the lighter, premium CC carbon frames. Because there is no aluminum option for this generation, the entry price is relatively high. The base R build starts the range with a RockShox Lyrik Base fork, a Fox Float Rhythm shock, and a mechanical SRAM NX Eagle drivetrain.

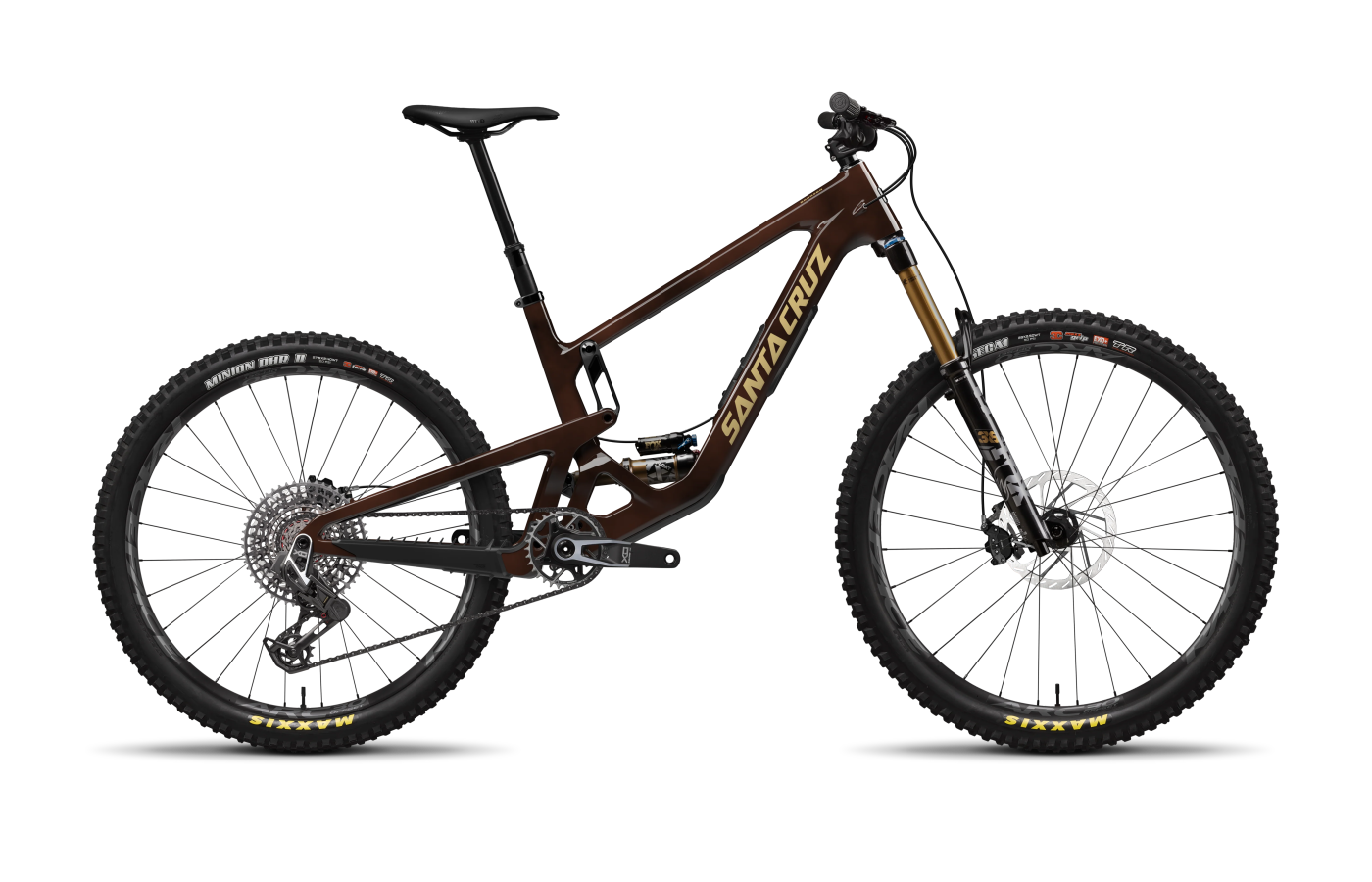

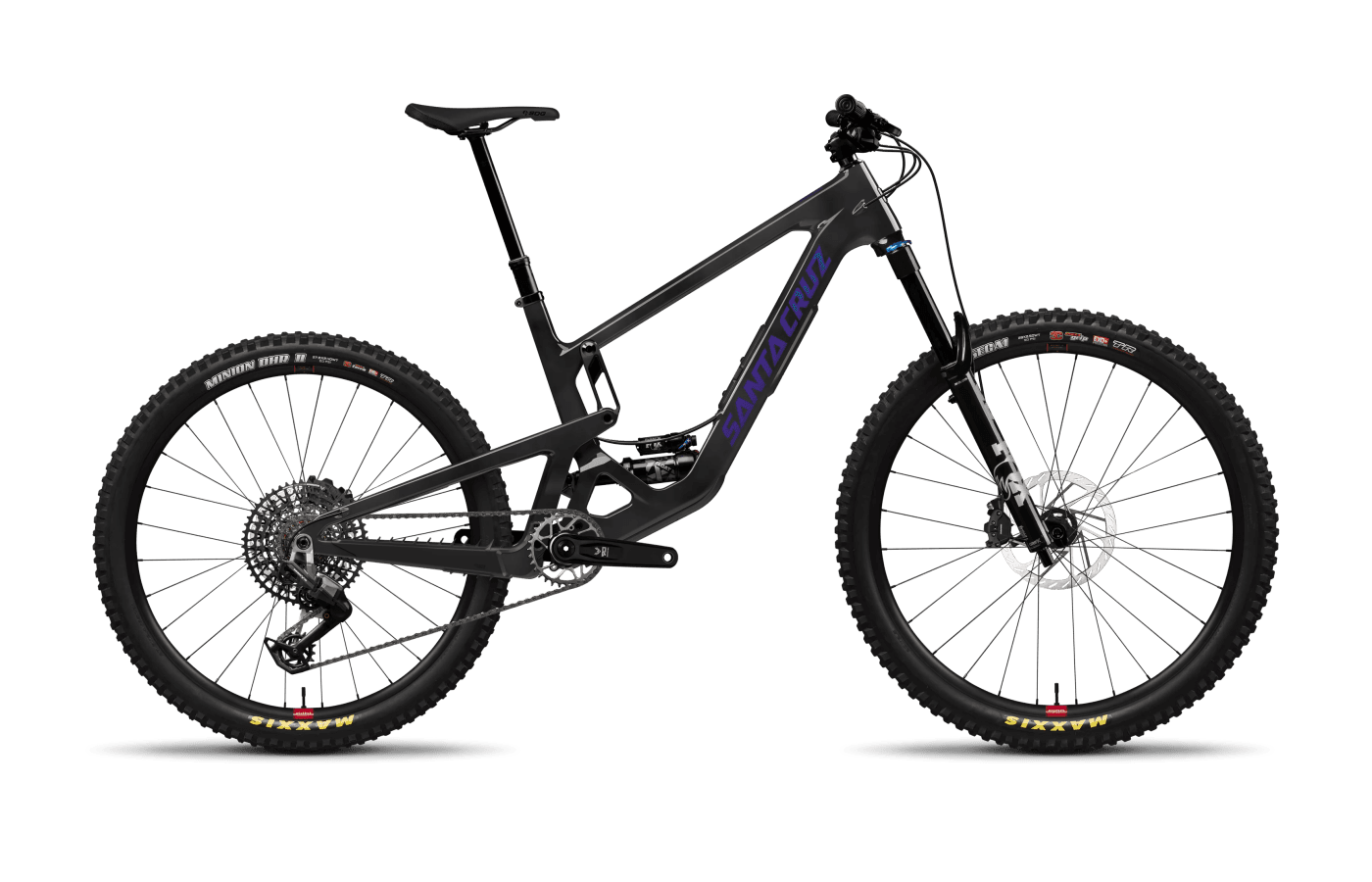

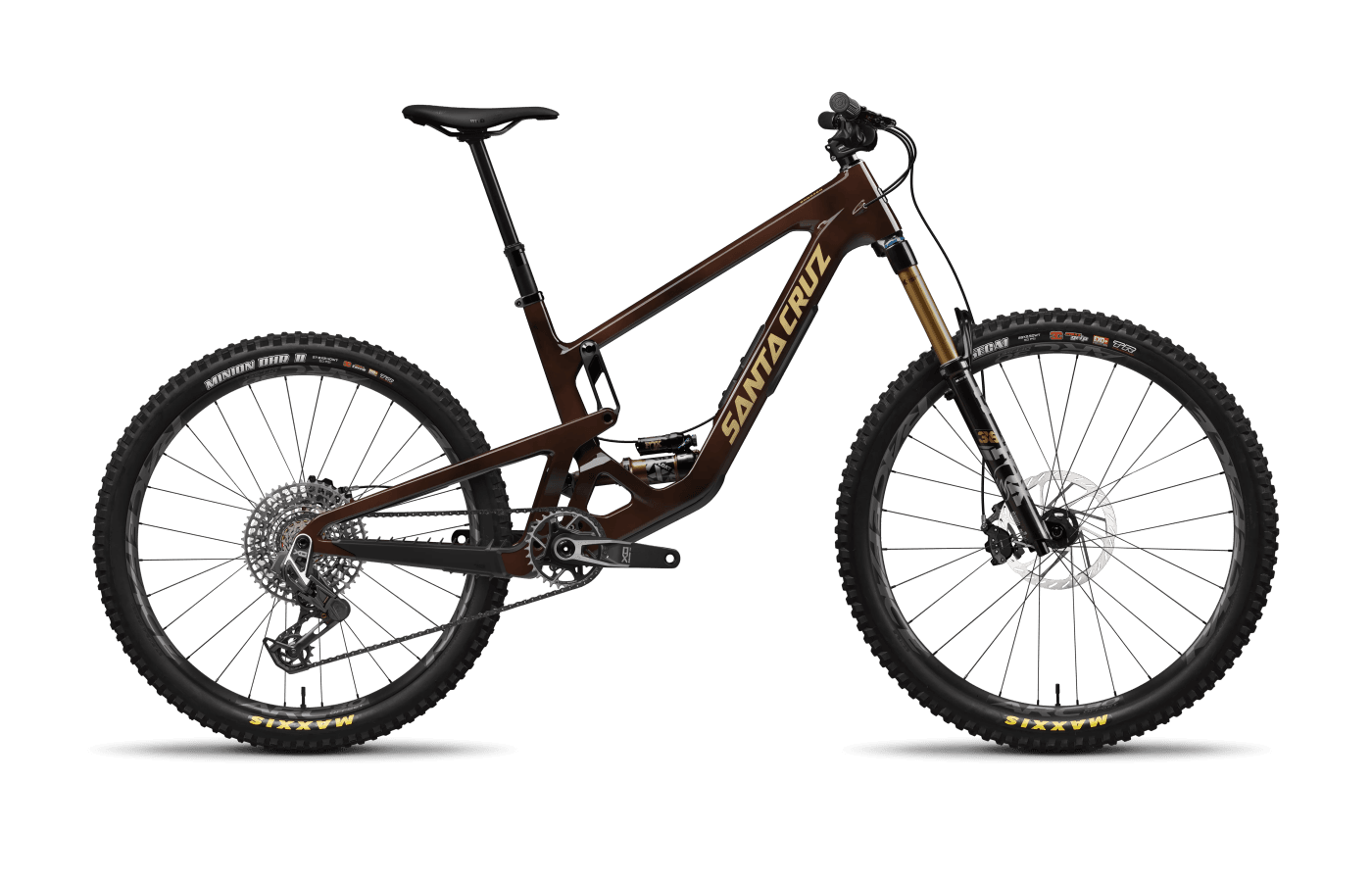

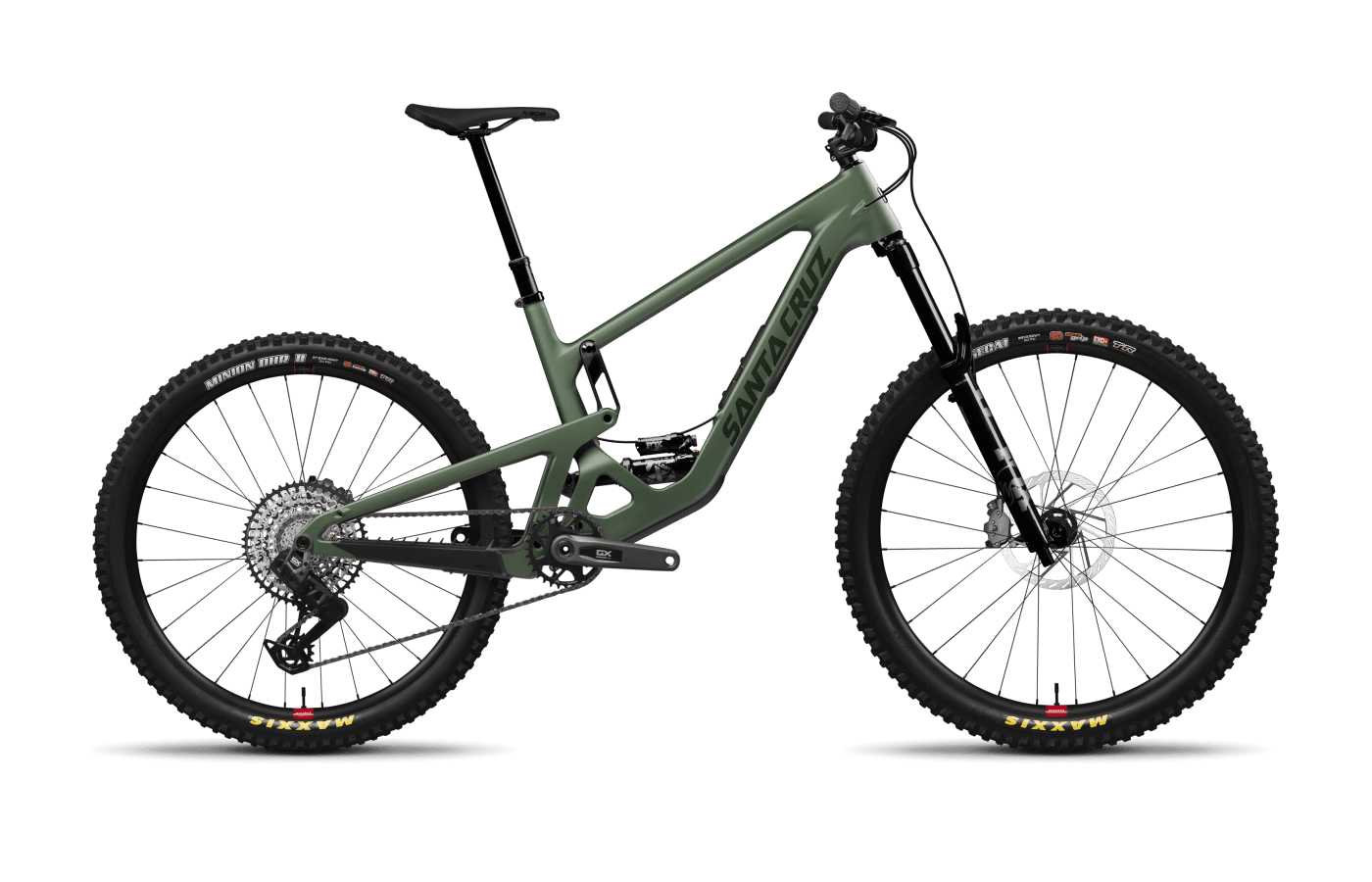

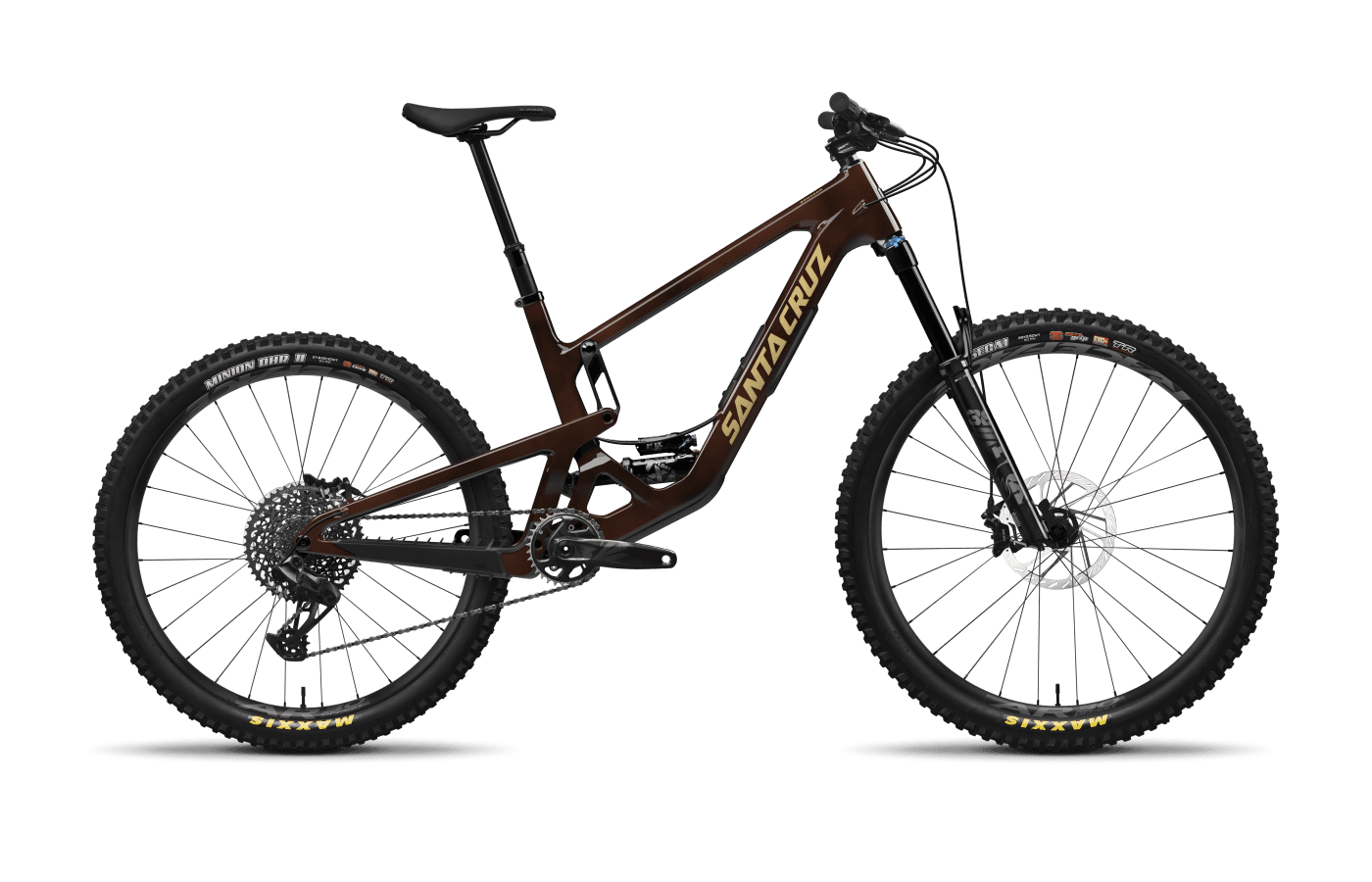

Moving up the ladder introduces significant suspension and drivetrain upgrades. Mid-tier S and 90 builds transition to Fox 36 Performance forks and SRAM GX Eagle or T-Type transmissions. The upper-tier CC frames are reserved for the X0 AXS and X0 AXS RSV models, which feature Fox Factory suspension with Grip X2 dampers, wireless SRAM X0 Eagle T-Type drivetrains, and SRAM Maven Silver Stealth brakes.

Wheel specifications shift from RaceFace or Reserve aluminum rims on the lower and middle builds to Reserve carbon rims on the flagship models. Across the entire range, Santa Cruz specifies Maxxis EXO+ casing tires. Given the bike's aggressive intentions, riders frequently note that these lighter-duty casings may need to be swapped for thicker alternatives to prevent flats and protect the rims on rocky trails.

— · Currently viewingX0 AXS RSV

Carbon CC

$9,349On this page

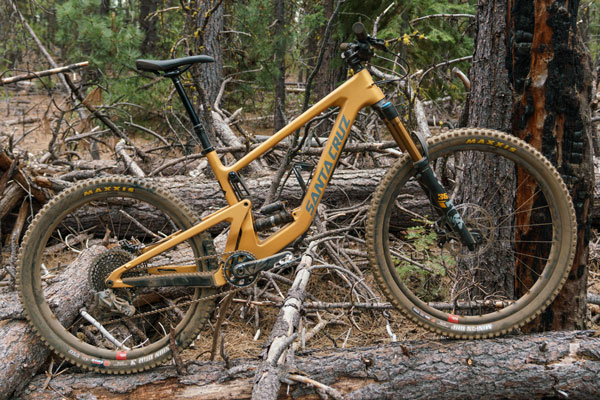

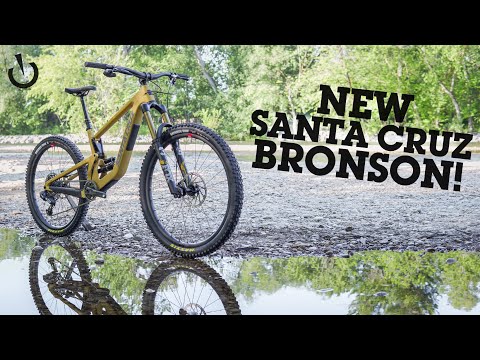

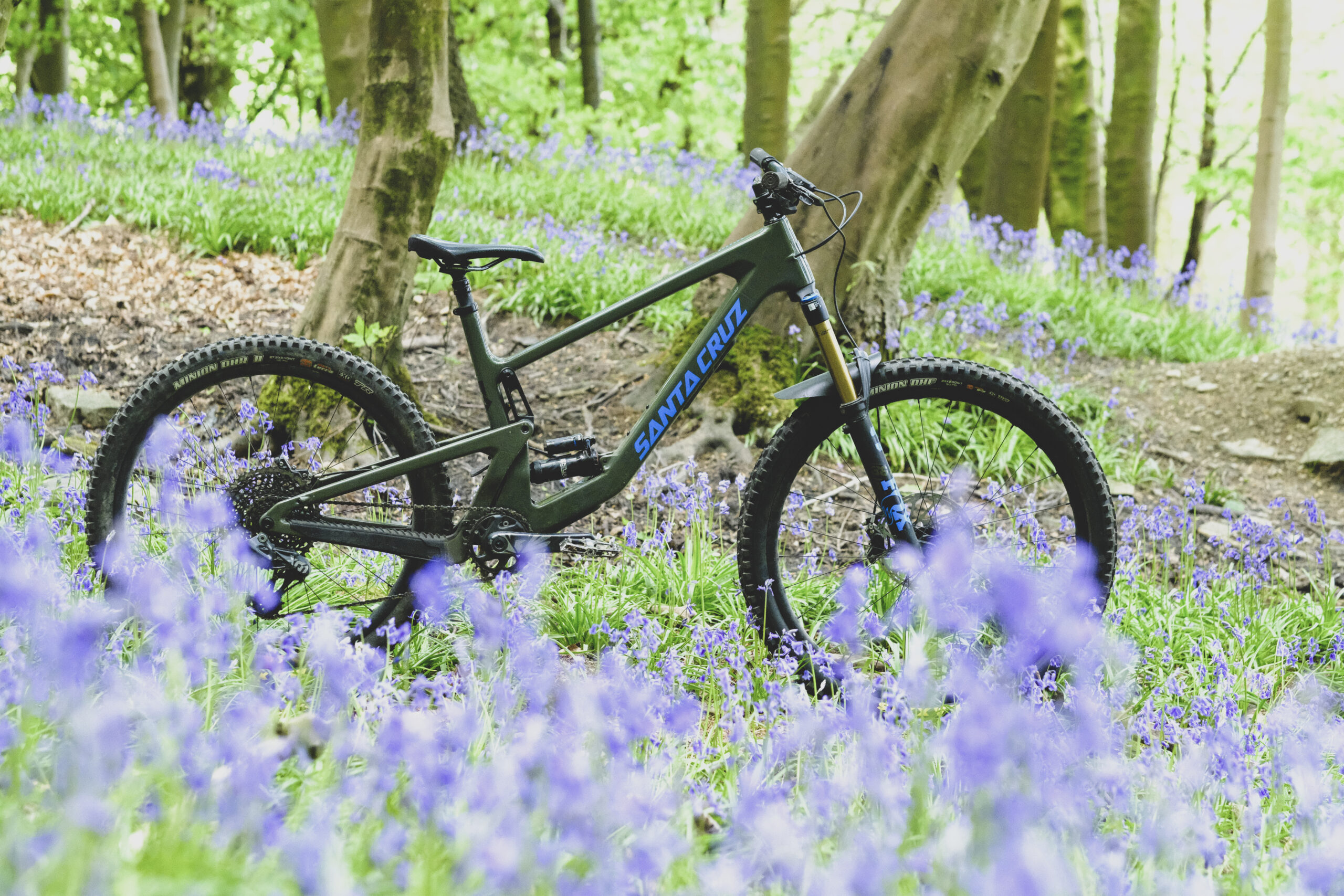

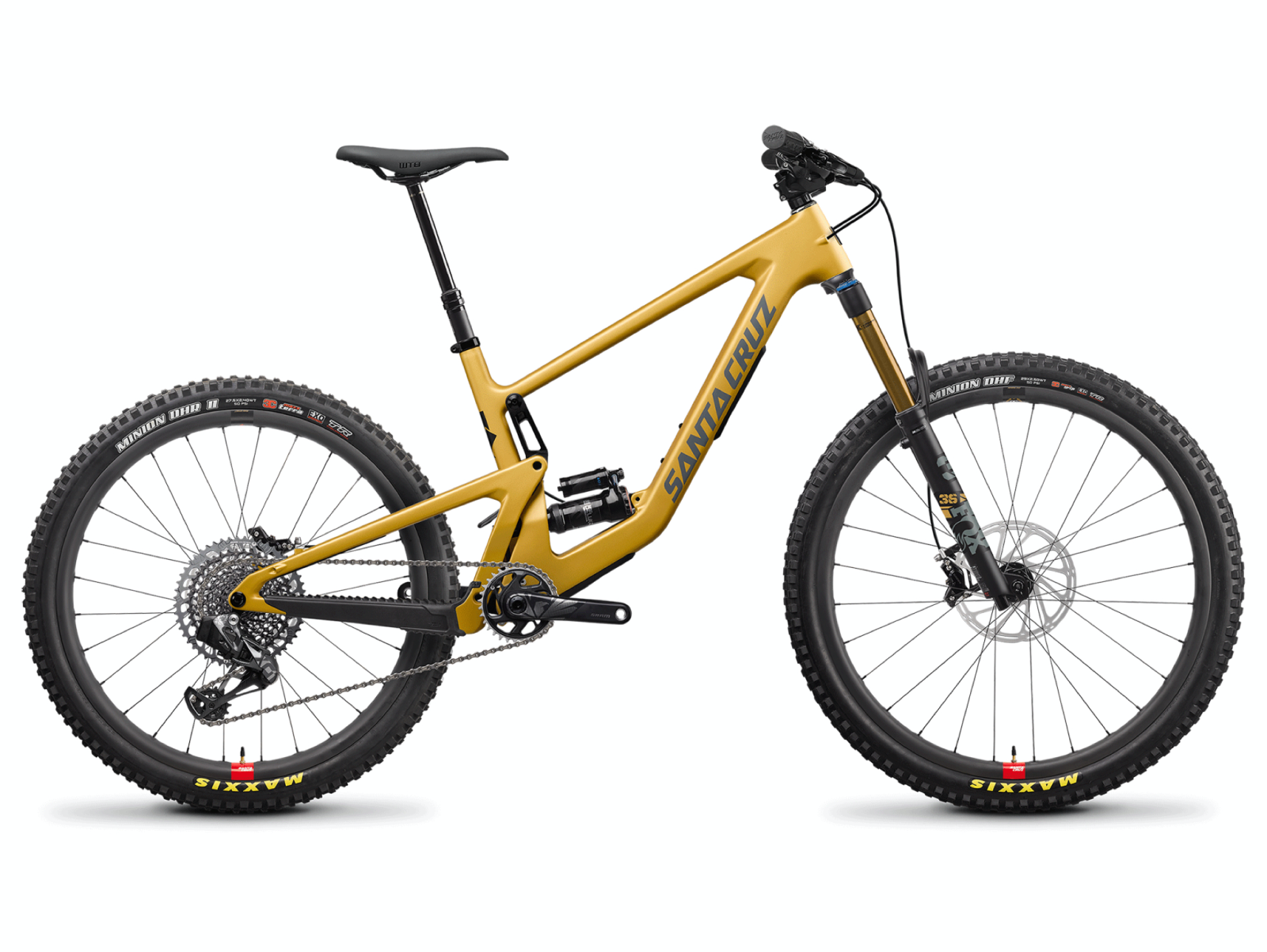

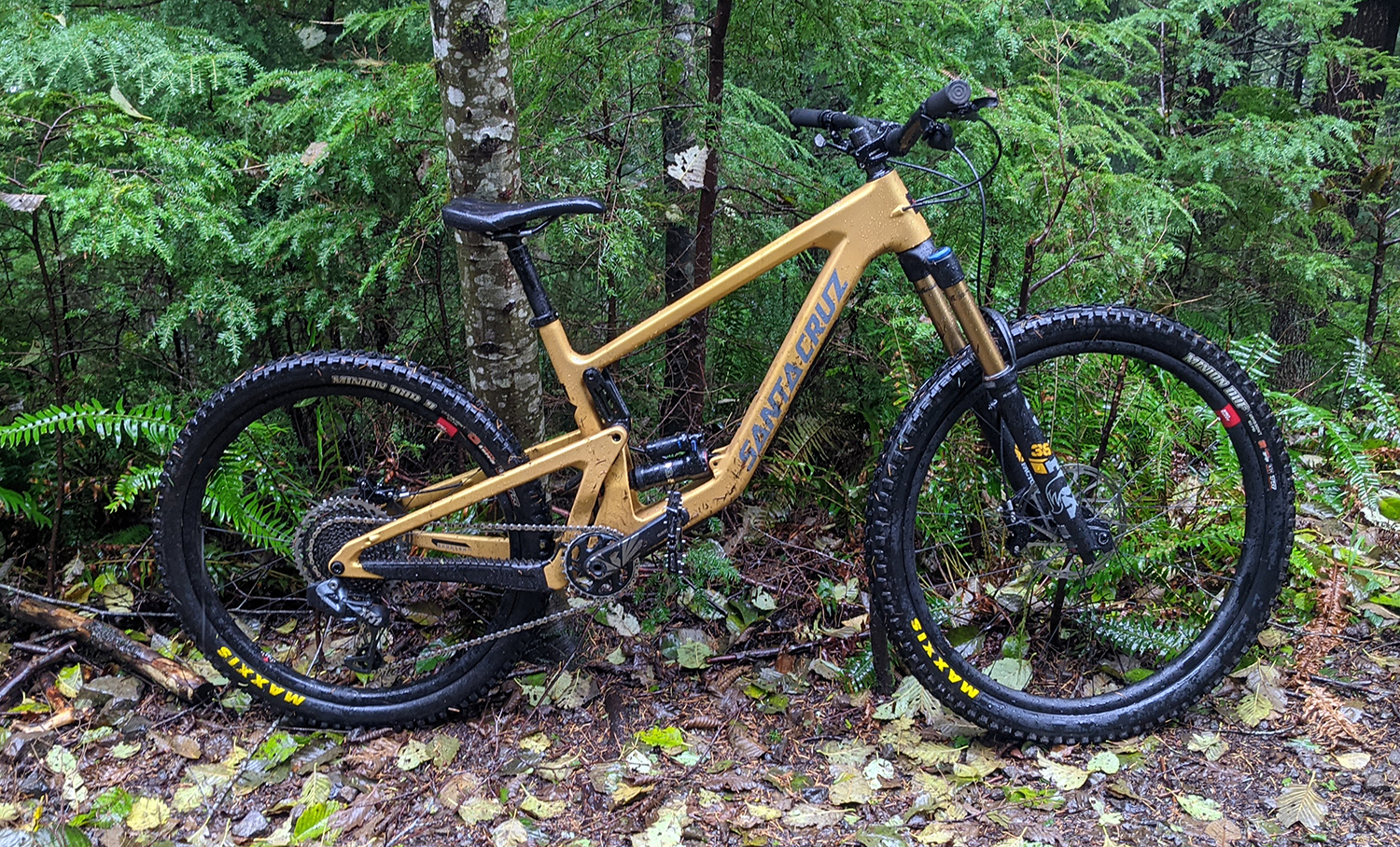

05 / Reviews

From the press.

14 reviews from the cycling press.

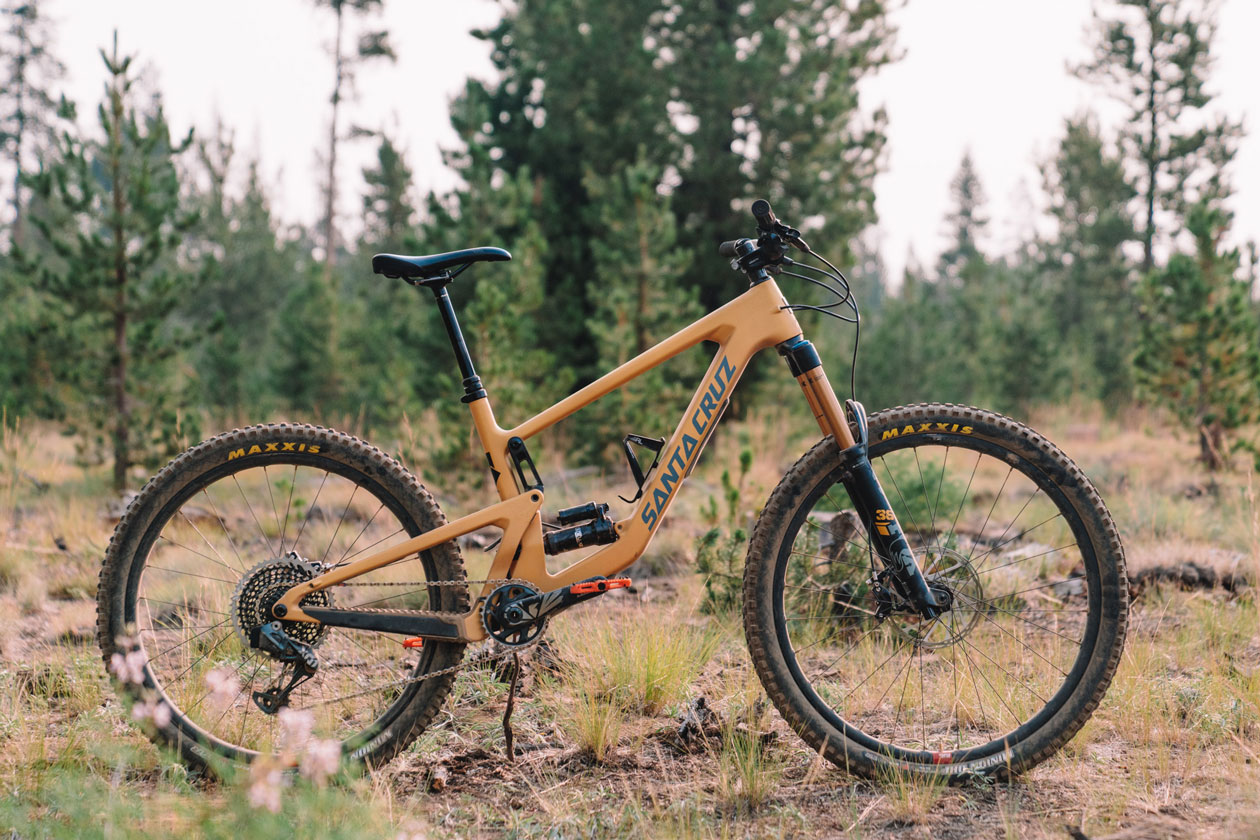

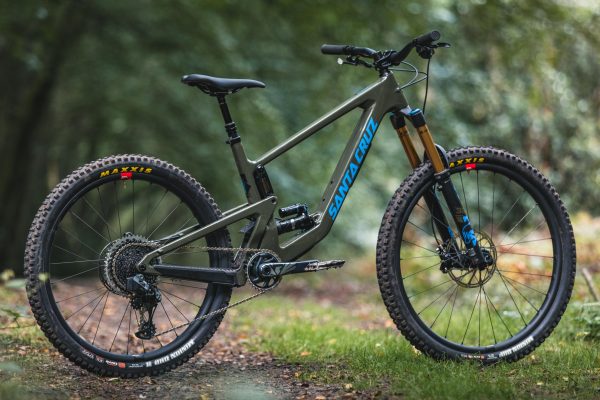

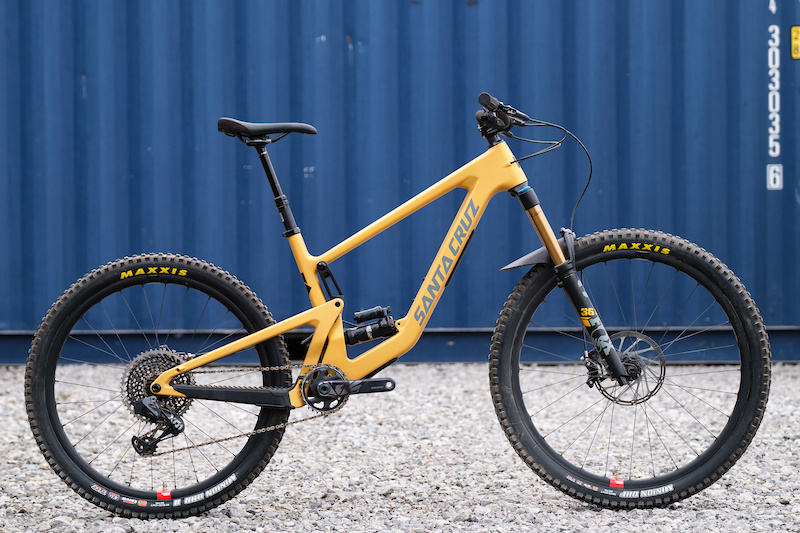

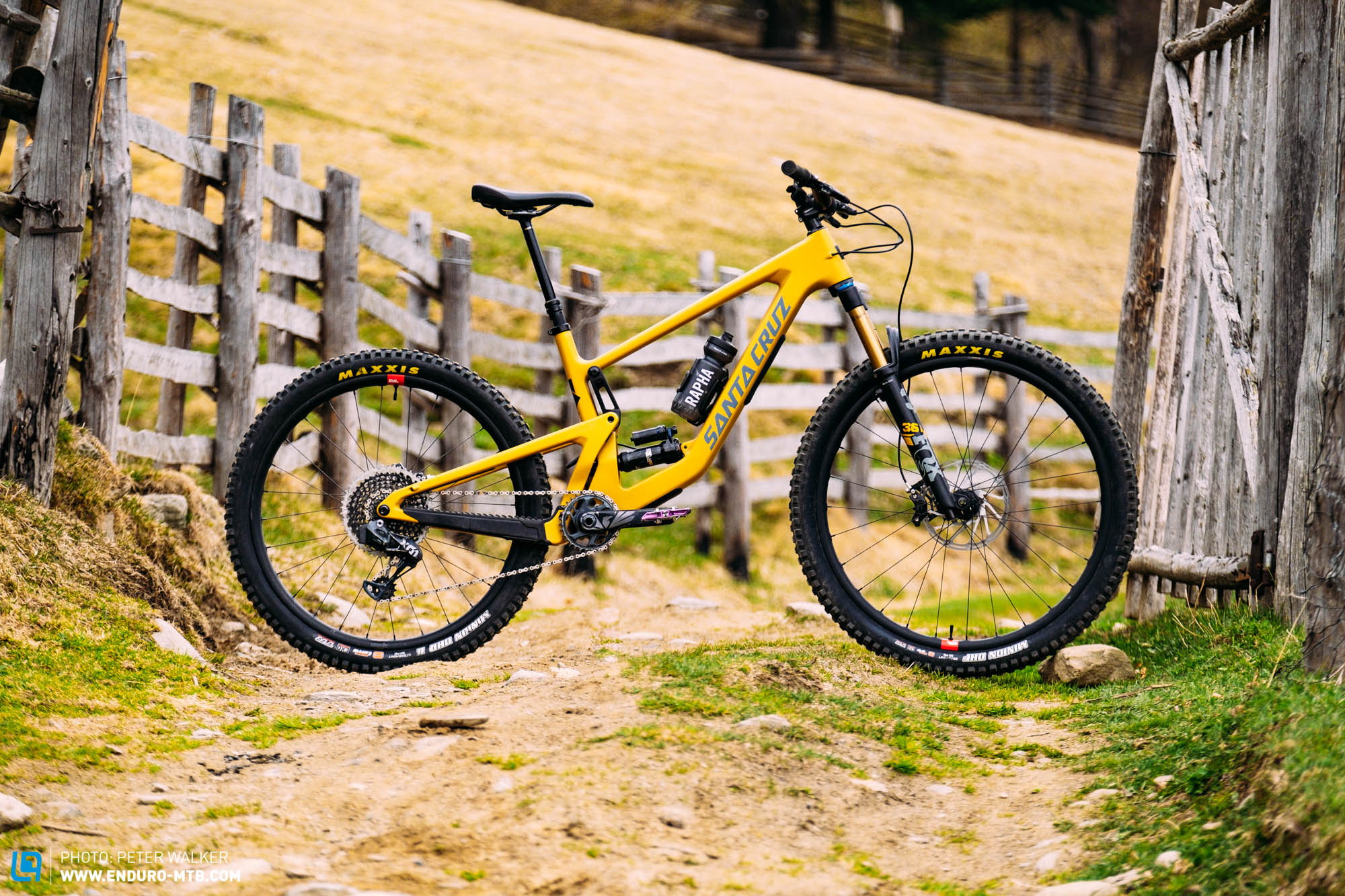

Reviewers consistently characterize the Bronson as a highly capable all-rounder that rewards an active, playful riding style. The mixed-wheel setup defines the experience on the trail, blending the rollover advantages of a larger front wheel with a rear end that is eager to change direction. Testers found the bike excels in tight corners and jump lines, describing the ride as a place where "party meets performance" (Theloamwolf).

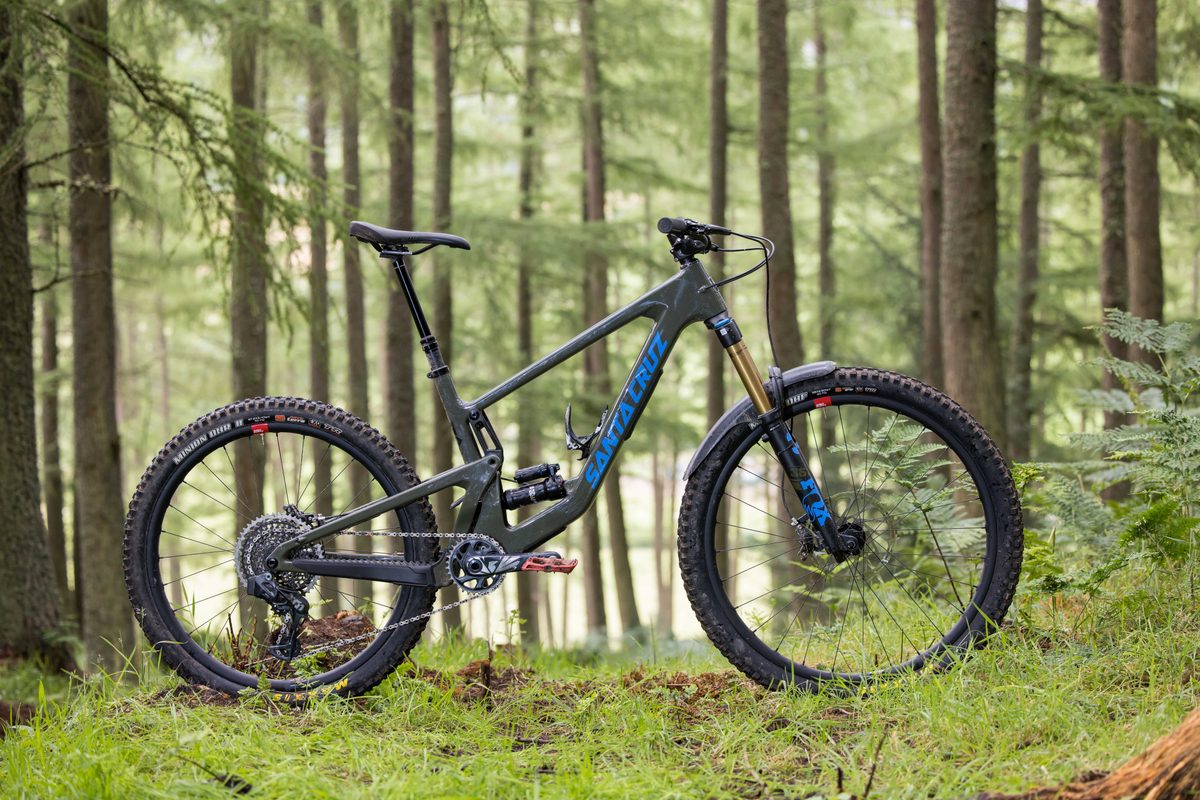

Pedaling efficiency is a standout trait. The revised suspension kinematics provide a firm platform that resists bobbing, allowing the bike to accelerate quickly on steep, seated climbs without requiring riders to reach for the shock's lockout lever. However, the suspension tune and smaller rear wheel do present a distinct tradeoff on rougher descents. Multiple reviewers noted that the rear end can occasionally "thud over bumps" (BikeRadar) rather than absorbing them smoothly. In particularly chunky, square-edged terrain, the 27.5-inch rear tire sometimes "cannot cash the cheques that the 29in front wheel writes" (Singletrackworld), requiring the rider to actively pump and unweight the bike rather than simply plowing through rock gardens. Despite this firm feel, the chassis offers excellent mid-stroke support and bottom-out resistance for larger impacts.
