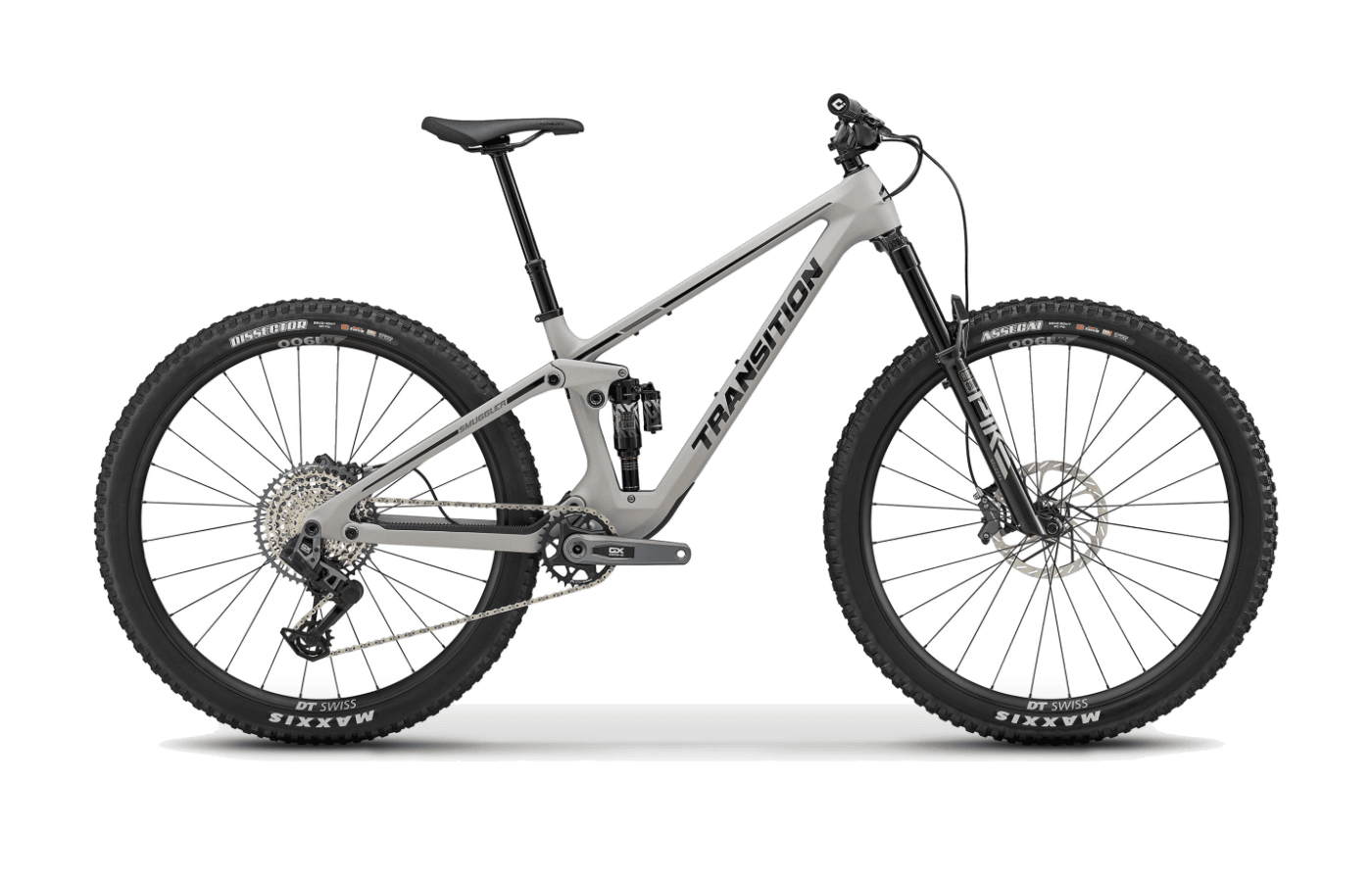

Transition Smuggler Carbon GX AXS

Transition

SmugglerCarbon GX AXS

Claimed weight30.7 lbs / 13.91 kg (Size MD)Complete bike
FrameSmuggler Carbon 130mmRockShox Pike Select+ (140m…
GroupsetSRAM POD Bridge MMXSRAM XS 1275 T-Type (10-5…
WheelsDT Swiss M 1900 Spline…Maxxis Assegai EXO+ (2.5)

The Transition Smuggler returns for its third generation as a mid-travel 29er trail bike, slotting neatly between the brand's short-travel Spur and the enduro-focused Sentinel. Built around 130mm of rear travel and a 140mm fork, the V3 frame is offered in both carbon and aluminum. It utilizes Transition's familiar Horst-link suspension design, but with a highly progressive leverage curve designed to handle aggressive riding without requiring a massive shock. Transition modernized the frame packaging for this generation, moving to drop-in headset bearings and routing cables through the head tube. The bike is aimed squarely at riders who want a versatile, everyday platform that pedals efficiently enough for long backcountry loops but retains the structural composure to handle steep descents. For those looking to push the bike further, the frame easily accepts a 150mm fork and can be bumped to 140mm of rear travel by removing a shock spacer.

Transition Smuggler
Build
Size
01 / Buy

Where to get it.

No retailers stocking size MD.

Size
0 retailers · Size MD

No retailers carrying size MD right now.

02 / Specifications

Spec sheet.

Every component shipped with this build.

01Frameset
4 components
FrameSmuggler Carbon 130mm
Weight30.7 lbs / 13.91 kg (Size MD)
02Drivetrain & brakes
10 components
Shift leversSRAM POD Bridge MMX
CranksetSRAM GX Eagle DUB T-Type (32t/170mm)
Bottom bracketSRAM DUB
Front rotorSRAM HS2 200mm
Rear rotorSRAM HS2 180mm
04Cockpit & contact
5 components
StemANVL Swage (40mm)
HandlebarsANVL Mandrel Alloy 35; SM (800x20mm); MD/LG/XL (800x30mm); XXL (800x40mm)
SeatpostOneUp Dropper Post; SM (150mm); MD (180mm); LG (210mm); XL/XXL (240mm)
03 / Geometry

Geometry & fit.

5 sizes published.

The Smuggler’s geometry is built around a slack 65-degree head tube angle and a notably steep effective seat tube angle that hovers around 78 degrees, depending on the frame size. This combination creates a highly centered, upright seated position that naturally weights the front wheel on steep climbs without requiring the rider to aggressively shift their body forward. Because the seat tube is so steep, the seated cockpit can feel slightly shorter than the generous reach numbers might suggest.

To maintain consistent handling across the size run, Transition utilizes size-specific chainstays. The Small and Medium frames feature a 435mm rear center, while the Large, X-Large, and XX-Large frames move to 440mm. This approach helps keep the rider’s weight balanced between the wheels regardless of their height.

The frame features a low 35mm bottom bracket drop, which contributes heavily to the bike’s praised cornering stability and low center of gravity through sweeping turns. However, this low-slung chassis does demand precise ratcheting and crank awareness to avoid pedal strikes on technical, ledgy climbs. Short seat tubes across the board allow riders to run exceptionally long-travel dropper posts, maximizing clearance for descending.

Reach × Stack · size MDmm

Where the handlebar sits relative to the bottom bracket — the single most important fit pair.

710669628586545STACK ↑385428470513555REACH →UPRIGHTLONG / LOWSize MD460 · 616
01Fit geometry4 values
Stack616 mm
Reach460 mm
Top tube588 mm
Headtube length110 mm
02Component geometry4 values
Crank length170 mm
Handlebar width800 mm
Stem length40 mm
Dropper travel180 mm
03Handling geometry4 values
Headtube angle65°
Seat tube angle78.6°
BB height340 mm
BB drop35 mm

Which size should I buy?

Slide your height to see the recommended size. GearWise's fit algorithm works from the published stack, reach, and ETT — the brand's own recommendation may differ.

Your height
5'8"173 cm
5'0"5'5"5'10"6'3"6'7"
Recommended sizeMDBased on stack, reach & ETT for your height · score 96/100.

Calculated from GearWise's own stack / reach / ETT algorithm — the brand's size chart may recommend a different size, and a proper bike fit beats any calculator.

04 / Other builds

The lineup.

5 builds, ranging $3,499 – $7,799.

The Smuggler lineup spans five complete builds, starting with an aluminum frame option and scaling up to premium carbon configurations. The entry-level Alloy Deore build pairs a RockShox Psylo Gold RC fork with a Shimano Deore 12-speed drivetrain, offering a functional starting point for riders prioritizing the frame's geometry over high-end dampers.

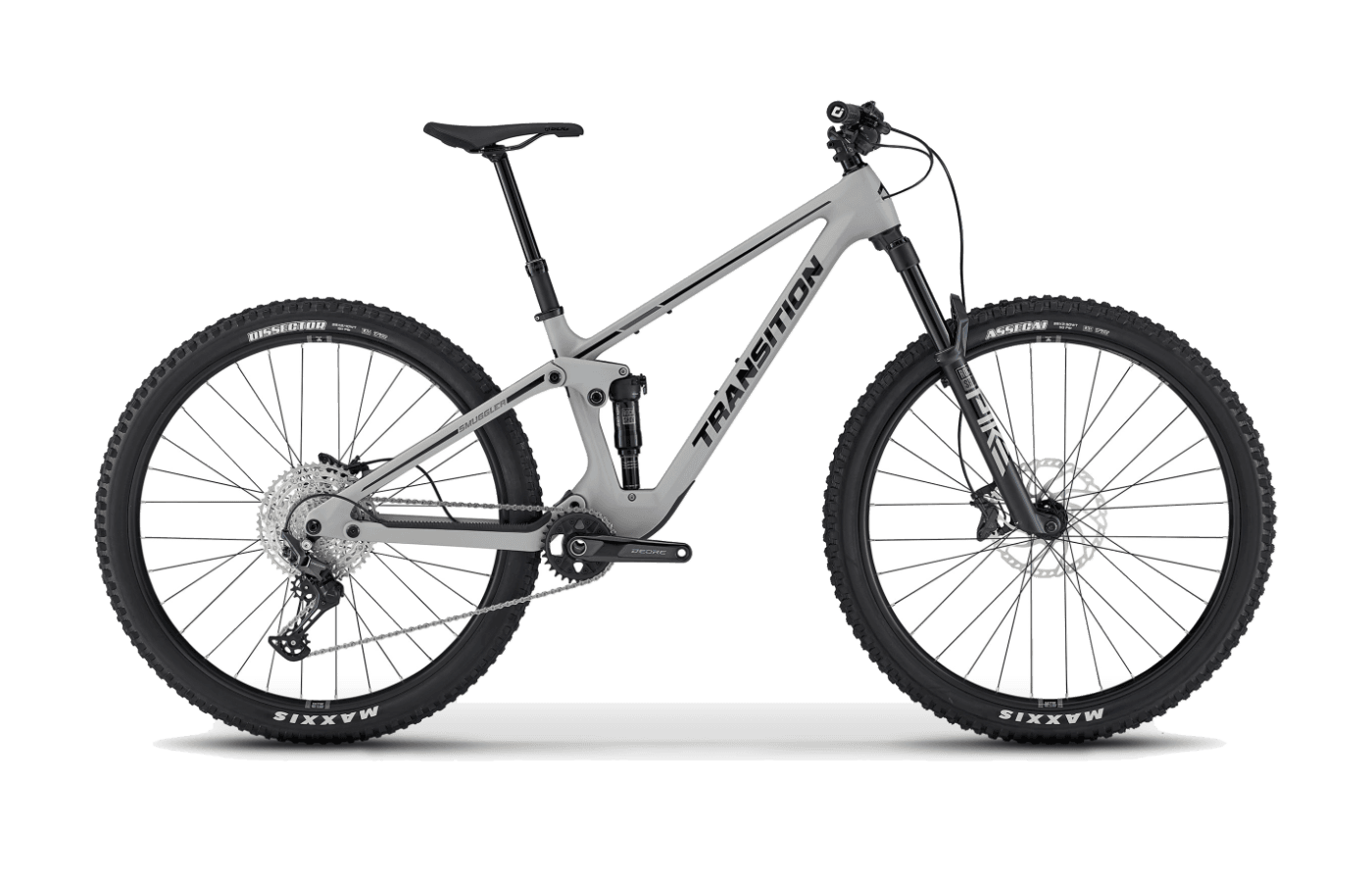

Moving into the carbon frames, the Carbon Deore build upgrades the fork to a RockShox Pike Base while retaining the reliable Shimano Deore drivetrain and 4-piston brakes. The mid-tier Carbon Eagle 90 and Carbon GX AXS builds introduce wireless electronic shifting and step up to RockShox Select+ suspension. The GX AXS model specifically features SRAM's robust Transmission drivetrain and Code Bronze Stealth brakes, rolling on DT Swiss M 1900 wheels.

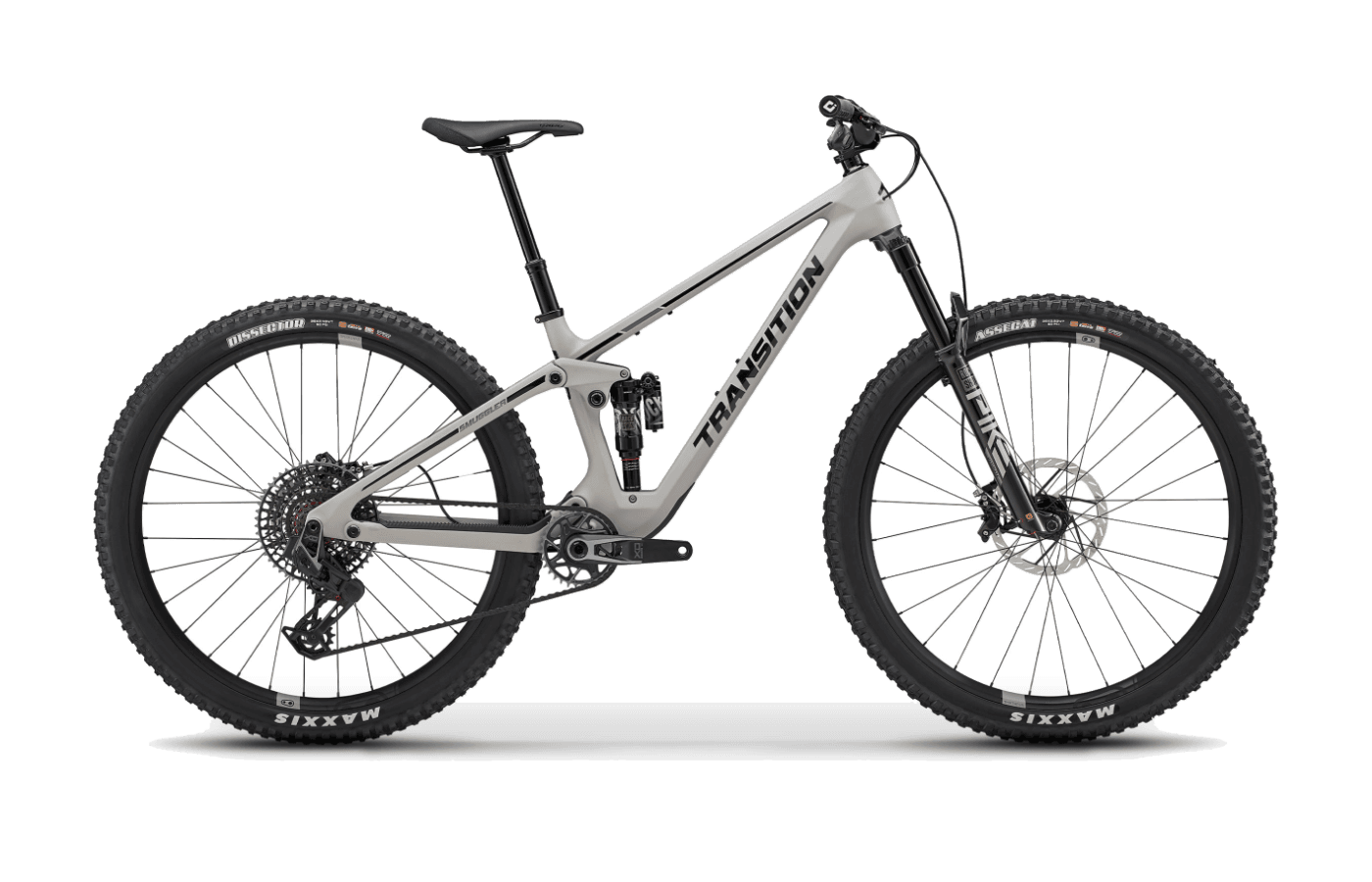

At the top of the range, the Carbon XO AXS build maximizes performance with RockShox Ultimate-level suspension, a SRAM XO Transmission, Code Silver Stealth brakes, and Crankbrothers Synthesis Enduro Alloy wheels. Across all builds, Transition specs aggressive Maxxis rubber and includes long-travel dropper posts. Reviewers frequently note that while the Smuggler carries a premium price tag, the lower-tier alloy and base carbon models often represent the most practical value for riders willing to upgrade components over time.

05 / Reviews

From the press.

15 reviews from the cycling press.

Reviewers consistently praise the Smuggler for its exceptional cornering and high-speed stability, noting that it often feels like a much larger bike on the descents. The progressive suspension provides excellent bottom-out resistance, allowing riders to push hard into compressions and jump faces. However, this high progression means the rear end can sometimes "deflect and pinball around in loose rocks" (NSMB) if the shock volume is not carefully tuned. While it lacks the absolute plushness of some competitors, testers found that it rewards an "active riding style" (PinkBike) where the rider pumps the terrain to generate speed.

On the climbs, the steep seat tube angle keeps rider weight centered, making the bike "nimble on technical climbs" (Mountain Bike Rider) and highly capable on steep, loose ascents. The active suspension design generates massive traction, though several reviewers noted it can feel slightly sluggish on smooth fire roads compared to firmer, cross-country-leaning trail bikes. Testers also emphasized that the low bottom bracket requires careful pedal timing in rocky terrain, especially if the rear shock is set with too much sag.

The most common critique across publications centers on frame details and maintenance. Multiple reviewers reported a distracting amount of cable rattle inside the frame. Additionally, the routing port above the bottom bracket acts as a funnel for trail debris, which testers linked to premature wear on the lower main pivot bearings.
