Dogma X SRAM Red eTap AXS

The Pinarello Dogma X is a premium endurance road bike designed to blend the race-focused pedigree of the Dogma F with a more forgiving ride quality for long distances. Introduced in late 2023 as a first-generation platform, it targets riders who want top-tier performance and construction but prefer a slightly more relaxed posture and the ability to run wider tires.

The defining visual and structural feature is the X-Stays rear triangle, a lattice-like design engineered to damp vibration without relying on heavy suspension systems. Built from the same high-grade Toray T1100 1K carbon fiber as Pinarello’s flagship race bikes, the Dogma X maintains a distinctively aggressive aesthetic while accommodating up to 35mm tires. It sits at the absolute top of the endurance market, offering a highly refined, fast, and stable platform for riders willing to invest in a luxury Italian superbike.

$15,500
Pinarello Dogma X SRAM Red eTap AXS
Build
Size
Stack559mm
Reach379.4mm
Top tube545mm
Headtube length138mm
Seat tube length500mm

Fit and geometry

Pinarello offers the Dogma X in an impressive 11 frame sizes, allowing riders to dial in their fit with precision. The geometry sits squarely between a traditional aggressive race posture and a fully upright endurance stance. Compared to the brand's flagship race models, the Dogma X features a slightly taller stack and a slacker head tube angle, which relieves pressure on the lower back and wrists during long days in the saddle.

This relaxed front end is paired with longer chainstays and an extended wheelbase, prioritizing straight-line stability and predictable descending over twitchy, immediate steering. The handling is deliberate and secure, requiring less rider input to maintain a line on rough roads or fast sweepers.

Fit adjustments require some planning due to the proprietary Most Talon Ultra Light integrated cockpit. The one-piece carbon bar and stem routes cables fully internally, creating a clean aesthetic but complicating stem length or handlebar width changes. Adjusting the stack height also relies on Pinarello's specific aero spacers, meaning riders should be confident in their fit coordinates before cutting the steerer tube.

Full specs

Frameset

Frame

TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved

Fork

TorayCa T1100 1K Dream Carbon (disc), internal cable routing (not further specified)

Groupset

Shift levers

SRAM Red eTap AXS HRD (wireless electronic) shift/brake levers

Front derailleur

SRAM Red eTap AXS 12-speed front derailleur

Rear derailleur

SRAM Red eTap AXS 12-speed rear derailleur

Cassette

SRAM Red eTap AXS 12-speed cassette

Chain

SRAM Red eTap AXS 12-speed chain

Crankset

SRAM Red eTap AXS 12-speed crankset and chainrings

Bottom bracket

SRAM Red bottom bracket (Italian-threaded)

Front brake

SRAM Red 12-speed hydraulic disc brake, 2-piston caliper

Rear brake

SRAM Red 12-speed hydraulic disc brake, 2-piston caliper

Front rotor

160mm

Rear rotor

160mm

Wheelset

Front wheel

Princeton GRIT 4540 DB (front)

Rear wheel

Princeton GRIT 4540 DB (rear)

Front tire

Pirelli P ZERO Race TLR 35-622

Rear tire

Pirelli P ZERO Race TLR 35-622

Cockpit

Stem

MOST Talon Ultra Light (integrated)

Handlebars

MOST Talon Ultra Light (integrated)

Saddle

Most Lynx Ultrafast Superflow L Carbon, Large, 145mm

Seatpost

Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts

Builds

The Dogma X is positioned exclusively at the absolute top of the market, offered only in premium builds or as a standalone frameset. Complete bikes feature flagship electronic groupsets, with options for Shimano Dura-Ace Di2 or SRAM Red eTap AXS. Both of these primary builds roll on Princeton CarbonWorks Grit 4540 wheelsets, which feature a wide internal rim profile that pairs excellently with the frame's 35mm tire clearance.

Across all builds, the touchpoints remain consistent, utilizing Pinarello's in-house Most Talon Ultra Light integrated cockpit, an aero carbon seatpost with titanium hardware, and a Most Lynx Ultrafast saddle.

Value is a difficult metric for the Dogma X. It carries a luxury price tag that exceeds even some WorldTour race bikes, and reviewers frequently note that buyers are paying a significant premium for the Pinarello name and the distinctive Dogma silhouette. For riders who want the specific aesthetic and prestige of a Dogma but require a more forgiving ride and wider tires, the premium may be justified. Otherwise, the frameset option provides a pathway for custom builds, allowing buyers to select their preferred gearing and potentially soften the stiff front end with a two-piece handlebar setup.

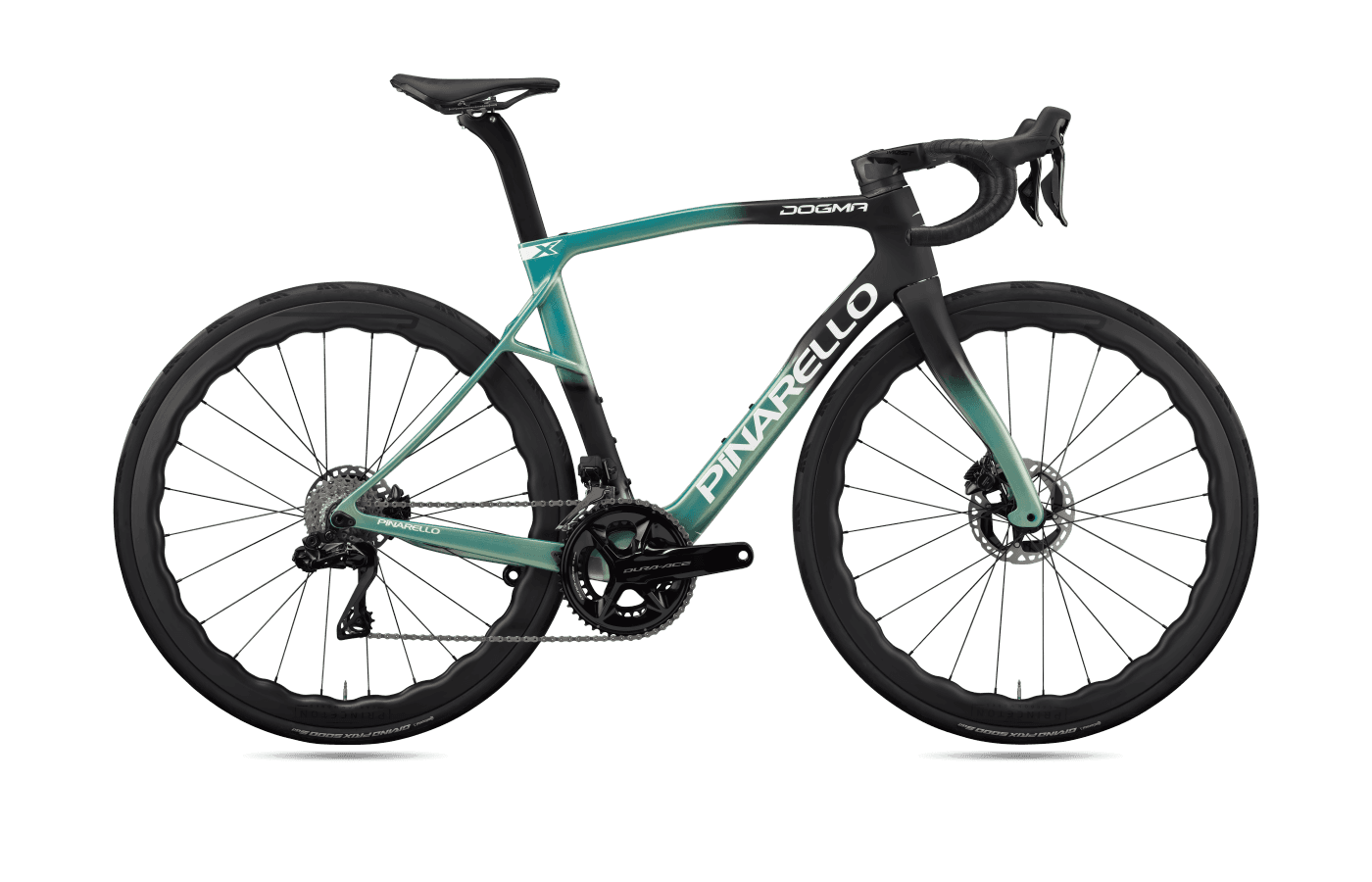

Dura-Ace Di2

Dura-Ace Di2

$15,500

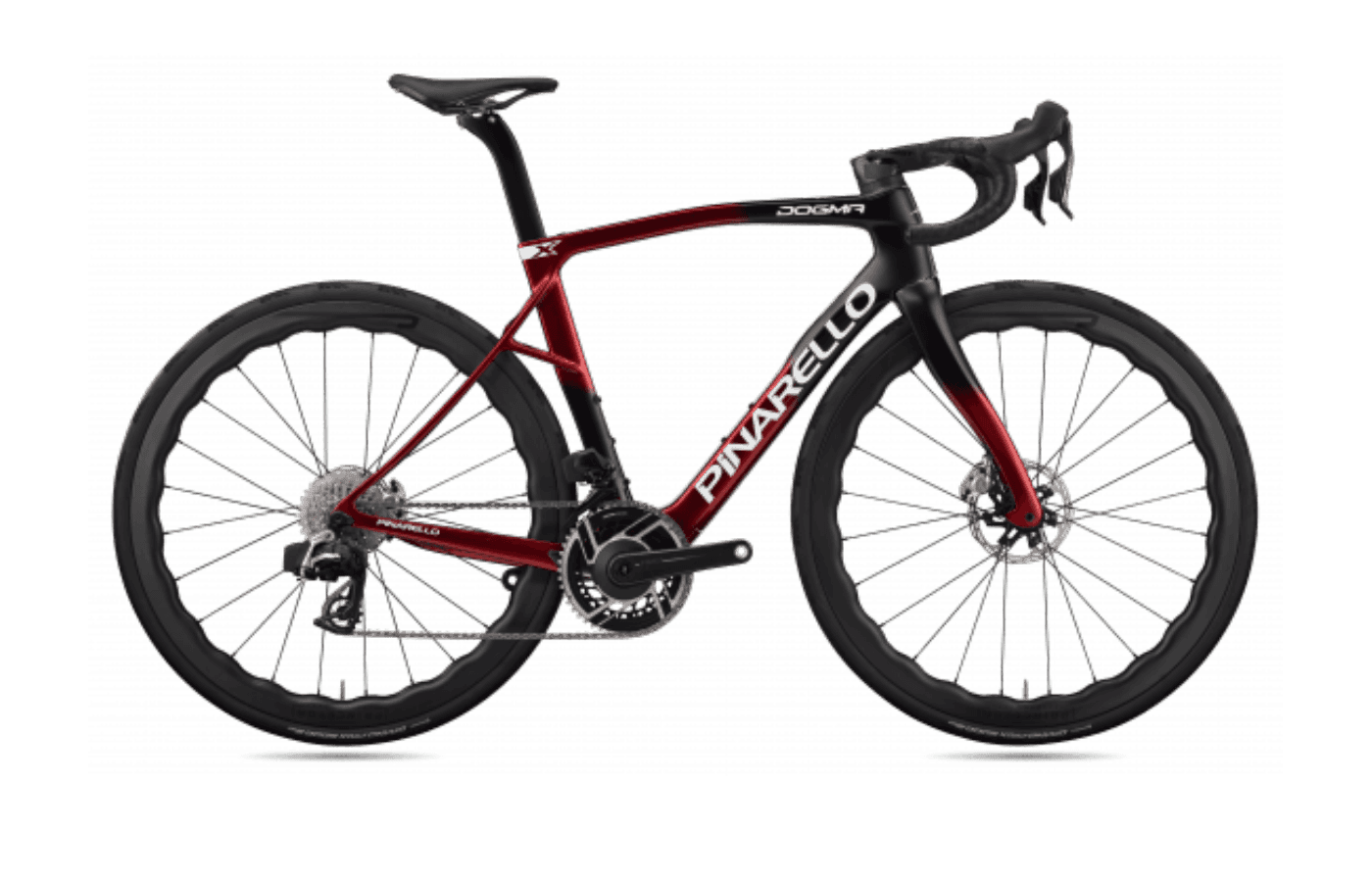

SRAM Red eTap AXS

SRAM Red eTap AXS

$15,500

Selected

Reviews

Reviewers consistently praise the Dogma X for its exceptional high-speed stability and descending prowess, though opinions vary on its absolute comfort. The generous tire clearance is widely viewed as the primary source of the bike's smooth ride. Testing the bike with 32mm tires, one reviewer called it the "most comfortable bike I've ever ridden" (Road.cc), noting that it easily absorbs broken pavement. The frame's lateral stiffness ensures excellent power transfer on the flats, with testers finding it "undeniably quick" (Cycling Weekly) and highly efficient during seated efforts.

However, the ride quality is not universally plush. Several testers noted that the rigid Most Talon integrated cockpit transmits "plenty of road buzz and vibration" (Cycling News) to the rider's hands, making the front end feel noticeably harsher than the compliant rear. Additionally, the X-Stays and longer chainstays create a slight tradeoff during aggressive, out-of-the-saddle climbing or sprinting, where some riders detected a "loose" (Pezcyclingnews) sensation under maximum load.

Despite these nuances, the consensus points to a highly capable machine that excels on long, demanding rides. It corners predictably, tracking beautifully through sweeping descents, even if its longer wheelbase makes it less agile in tight, low-speed situations.
