Ultimate

The fifth-generation Canyon Ultimate refines the brand's signature lightweight race platform, blending its traditional climbing pedigree with modern aerodynamic and integration updates. Positioned as a versatile all-rounder, it borrows heavily from the Aeroad's design language while maintaining a classic road silhouette. Canyon developed this iteration with a focus on real-world durability and aerodynamic efficiency, introducing a proprietary D-shaped seatpost and a cleaner, integrated front end.

Aimed at competitive racers and fast-paced enthusiasts, the Ultimate balances rigidity and low weight without chasing absolute minimums at the expense of structural robustness. A notable practical upgrade is the expanded 32 mm tire clearance, which broadens the bike's capability on varied road surfaces. By adopting a more integrated approach and reinforcing key frame junctions, Canyon has modernized its flagship climbing bike into a highly capable, multi-dimensional race machine.

Gen Gen 5

Canyon Ultimate

Build

Size

03 / Geometry

Geometry & fit.

7 sizes published.

The Ultimate shares its geometry with the Aeroad, utilizing Canyon’s Sport Pro fit. This translates to a relatively long reach and low stack, placing the rider in an aggressive, aerodynamic posture suited for racing. While it demands a degree of flexibility, the position is not overly extreme for seasoned road riders.

Handling is sharp and precise, driven by a steep head tube angle and a short wheelbase that makes the bike eager to change direction. To ensure this agility feels consistent across the entire size run, Canyon implements size-dependent chainstay lengths. Larger frames receive slightly longer stays, which helps maintain stability and predictable steering for taller riders.

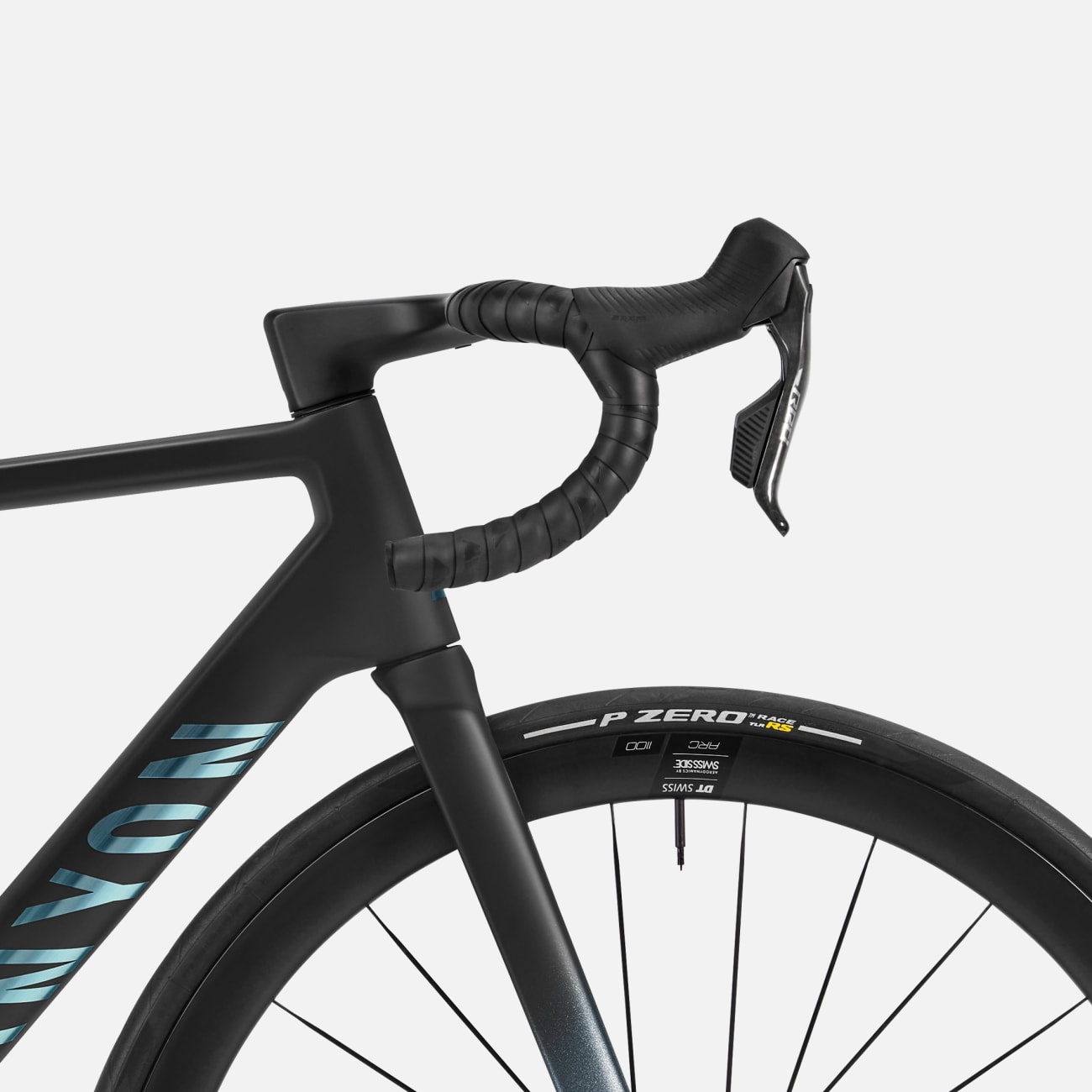

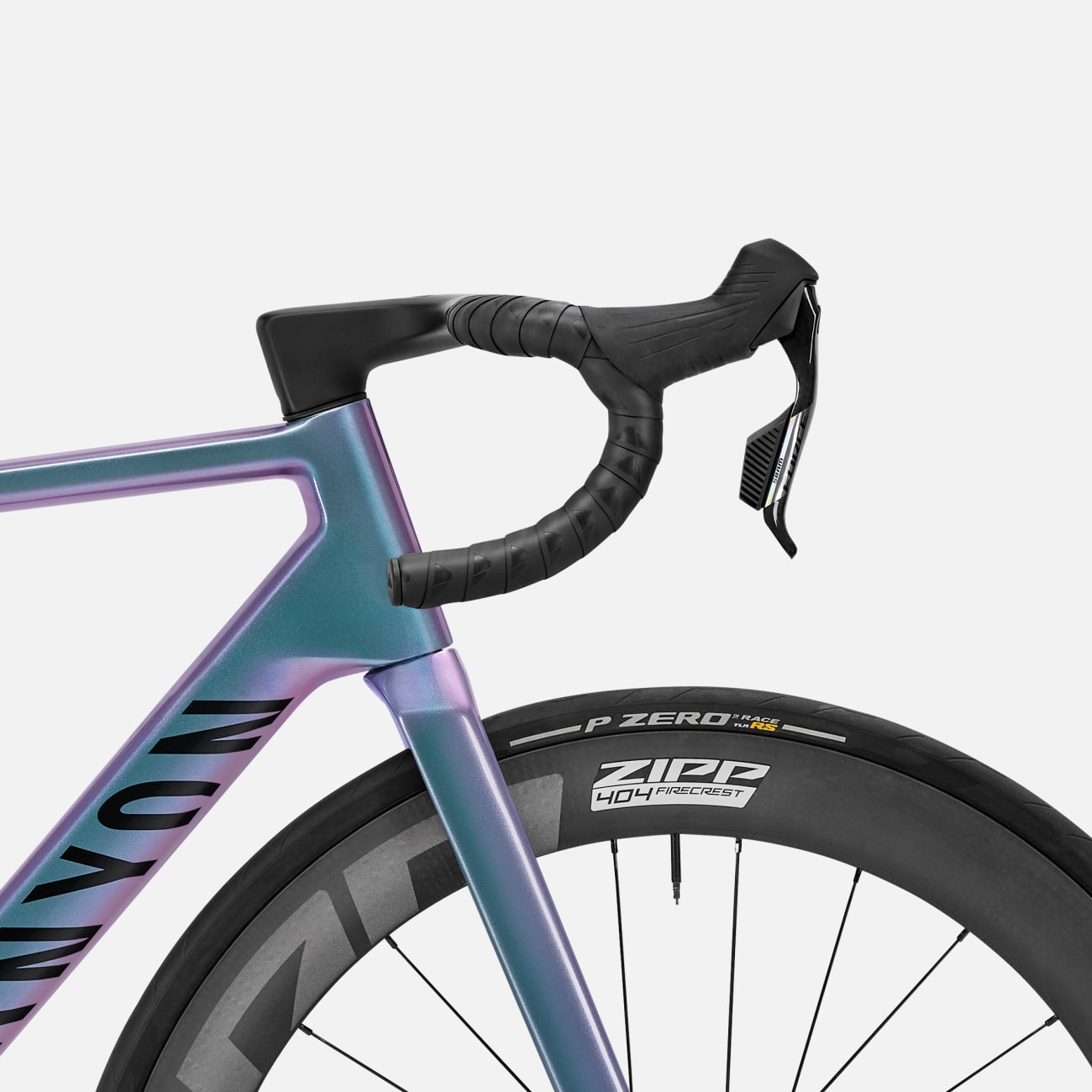

Up front, the integrated Aerocockpit features a unique design that allows for width and height adjustment without cutting the steerer tube. However, because the bar and stem are a single piece with fully internal routing, adjusting the reach requires replacing the entire cockpit assembly, making pre-purchase sizing critical.

Reach × Stack · size 2XLmm

Where the handlebar sits relative to the bottom bracket — the single most important fit pair.

01Fit geometry6 values

Stack624 mm

Reach429 mm

Top tube610 mm

Headtube length206 mm

Standover height874 mm

Seat tube length600 mm

03Handling geometry5 values

Headtube angle73.8°

Seat tube angle73.5°

BB drop73 mm

Wheelbase1042 mm

Chainstay length415 mm

Which size should I buy?

Slide your height to see the recommended size. GearWise's fit algorithm works from the published stack, reach, and ETT — the brand's own recommendation may differ.

Your height

5'8"173 cm

5'0"5'5"5'10"6'3"6'7"

Recommended sizeSBased on stack, reach & ETT for your height · score 69/100.

→Calculated from GearWise's own stack / reach / ETT algorithm — the brand's size chart may recommend a different size, and a proper bike fit beats any calculator.

04 / Other builds

The lineup.

7 builds, ranging $2,899 – $10,499.

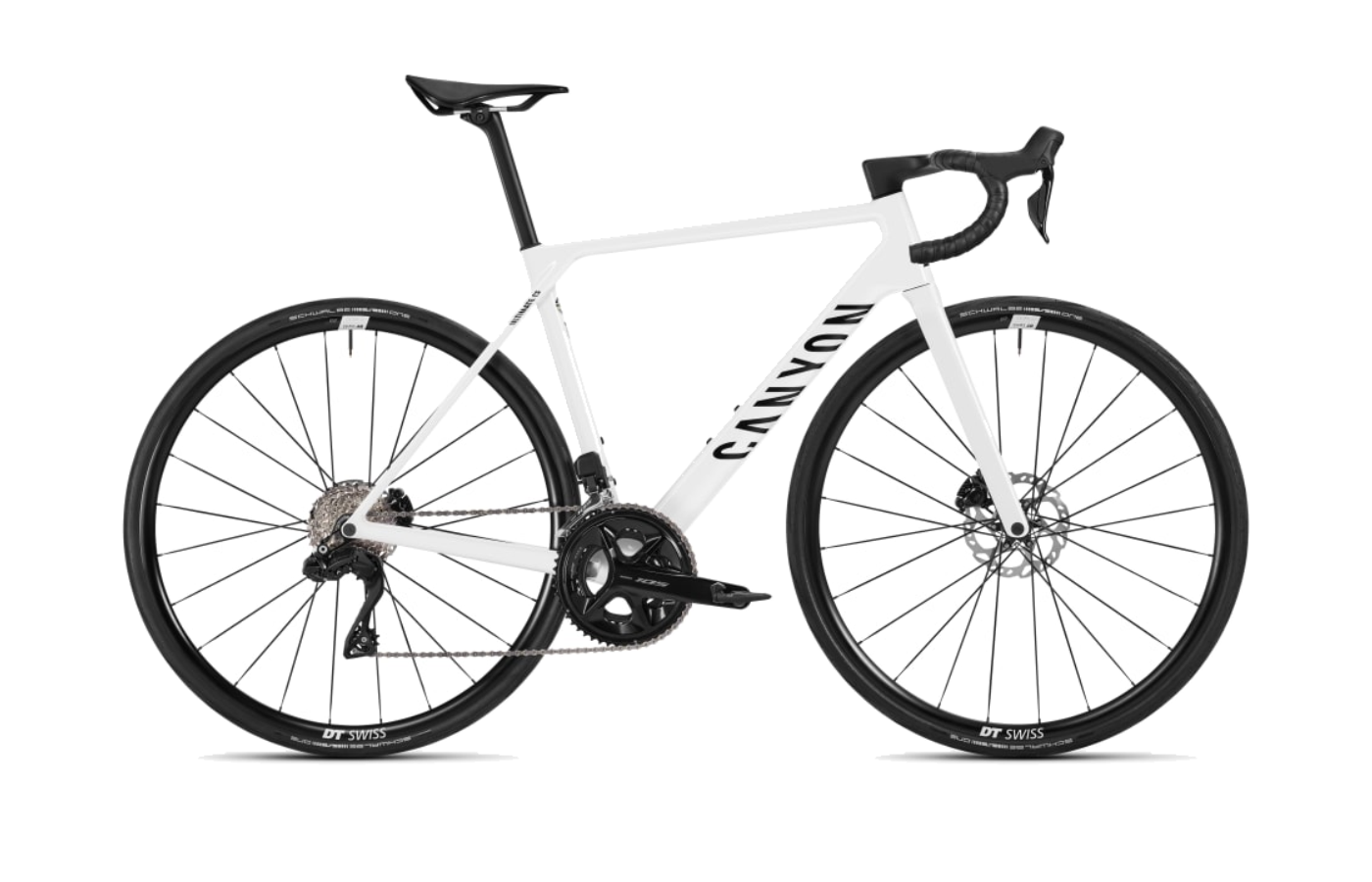

The Ultimate lineup is split across three carbon frame tiers: CF, CF SLX, and CFR. The entry-level CF models deliver the core handling and aesthetic of the platform at a highly accessible price, utilizing slightly heavier carbon layups and standard two-piece cockpits on the most affordable mechanical builds.

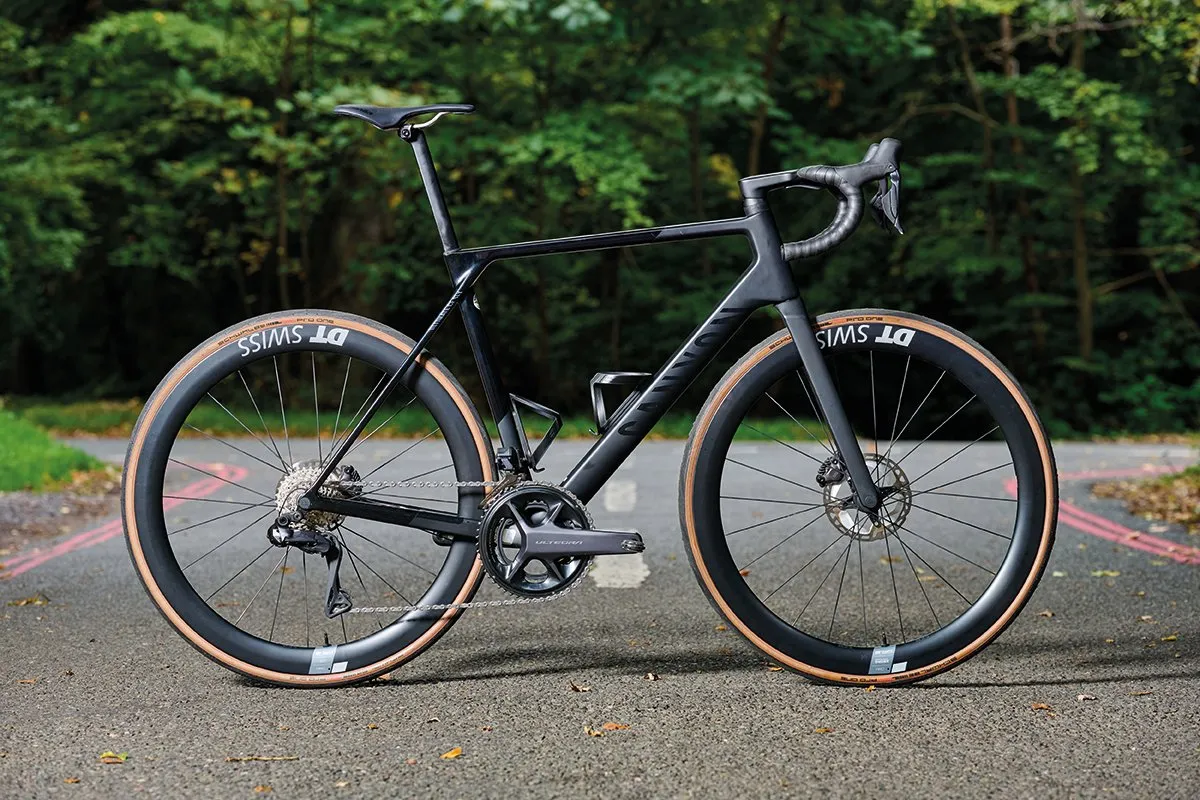

The CF SLX tier represents the sweet spot for competitive riders, shedding frame weight while upgrading to deep-section carbon wheels and electronic drivetrains from Shimano and SRAM. These mid-range builds also introduce the integrated Aerocockpit and frequently include power meters, making them race-ready out of the box.

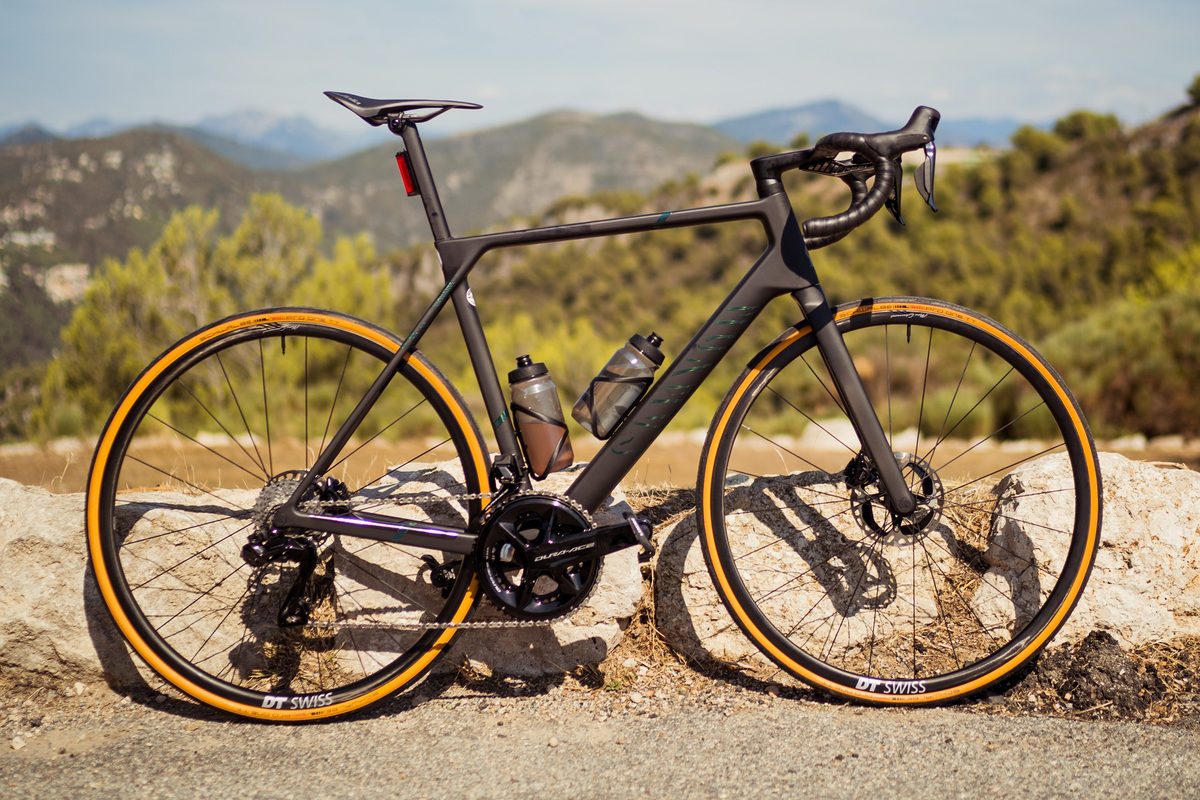

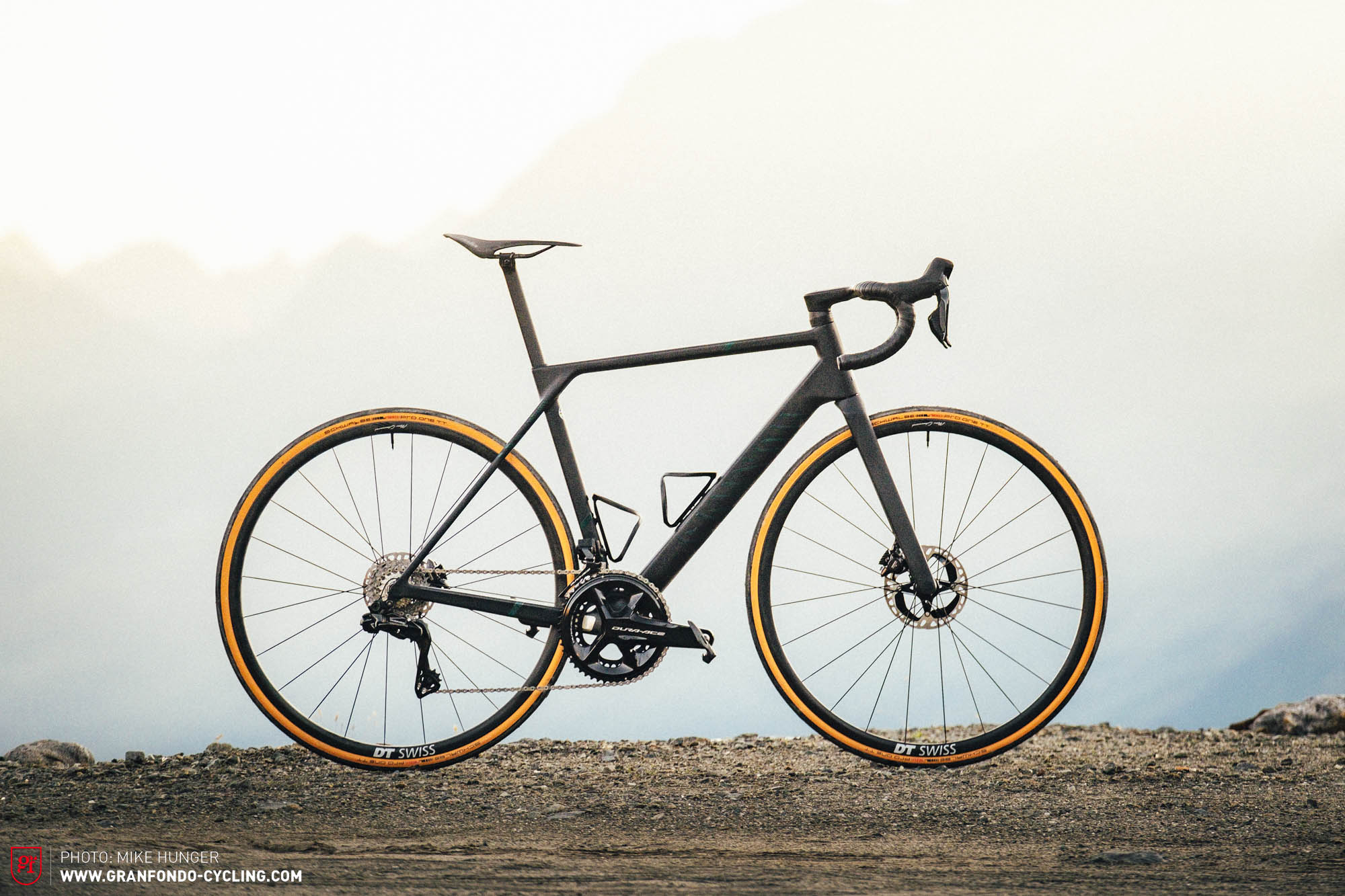

At the top, the CFR models utilize ultra-high modulus carbon to achieve the lowest possible system weight. These premium builds are outfitted with flagship electronic groupsets and ultralight, shallow-profile wheels tailored specifically for climbing. Across the range, Canyon equips the Ultimate with a staggered tire setup or 28 mm rubber, though the frame easily accommodates wider tires for riders looking to maximize comfort and grip on rougher pavement.

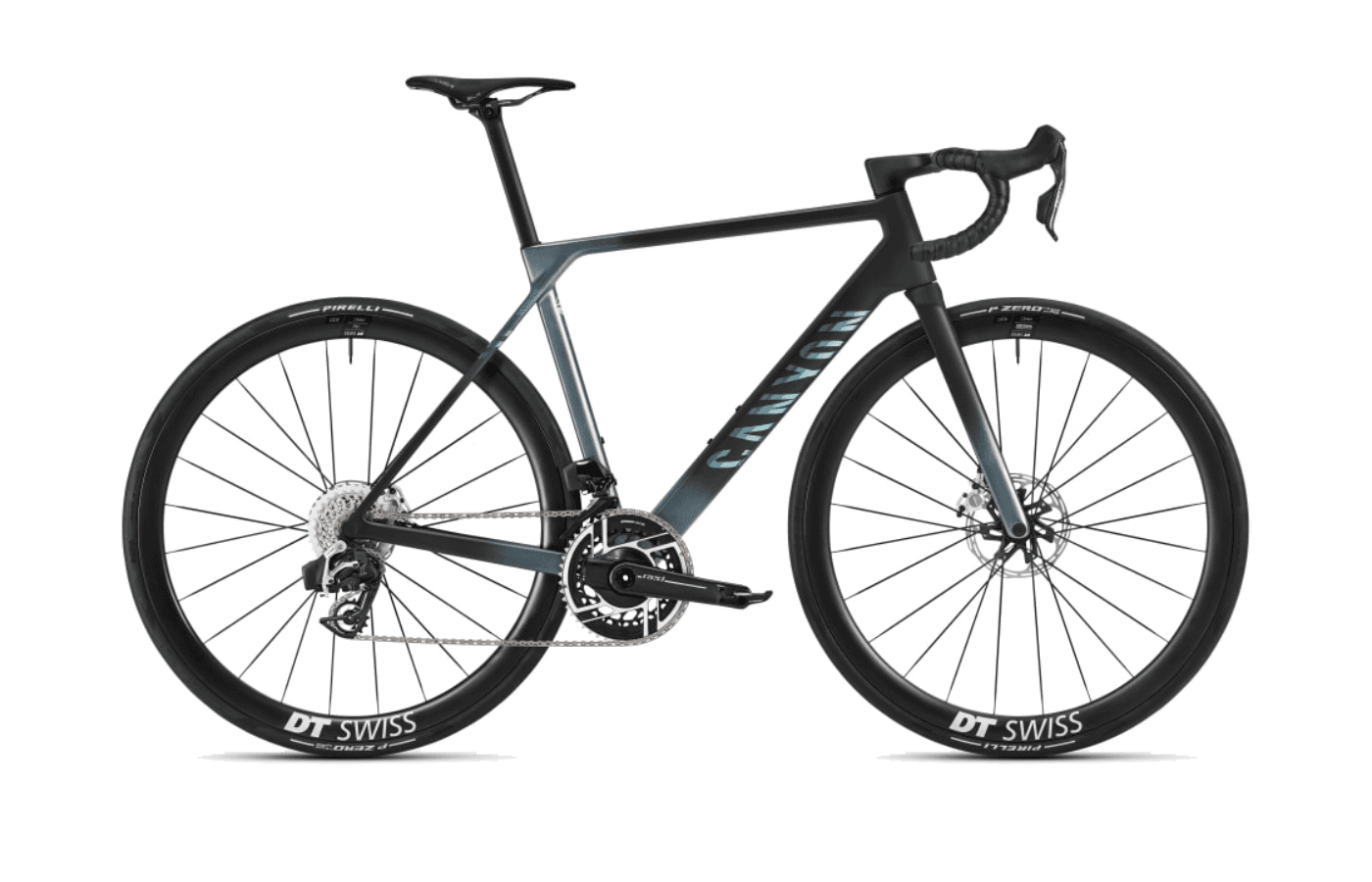

—CFR SRAM Red AXS

SKU 4071; Powermeter; Carbon Sky

$10,499

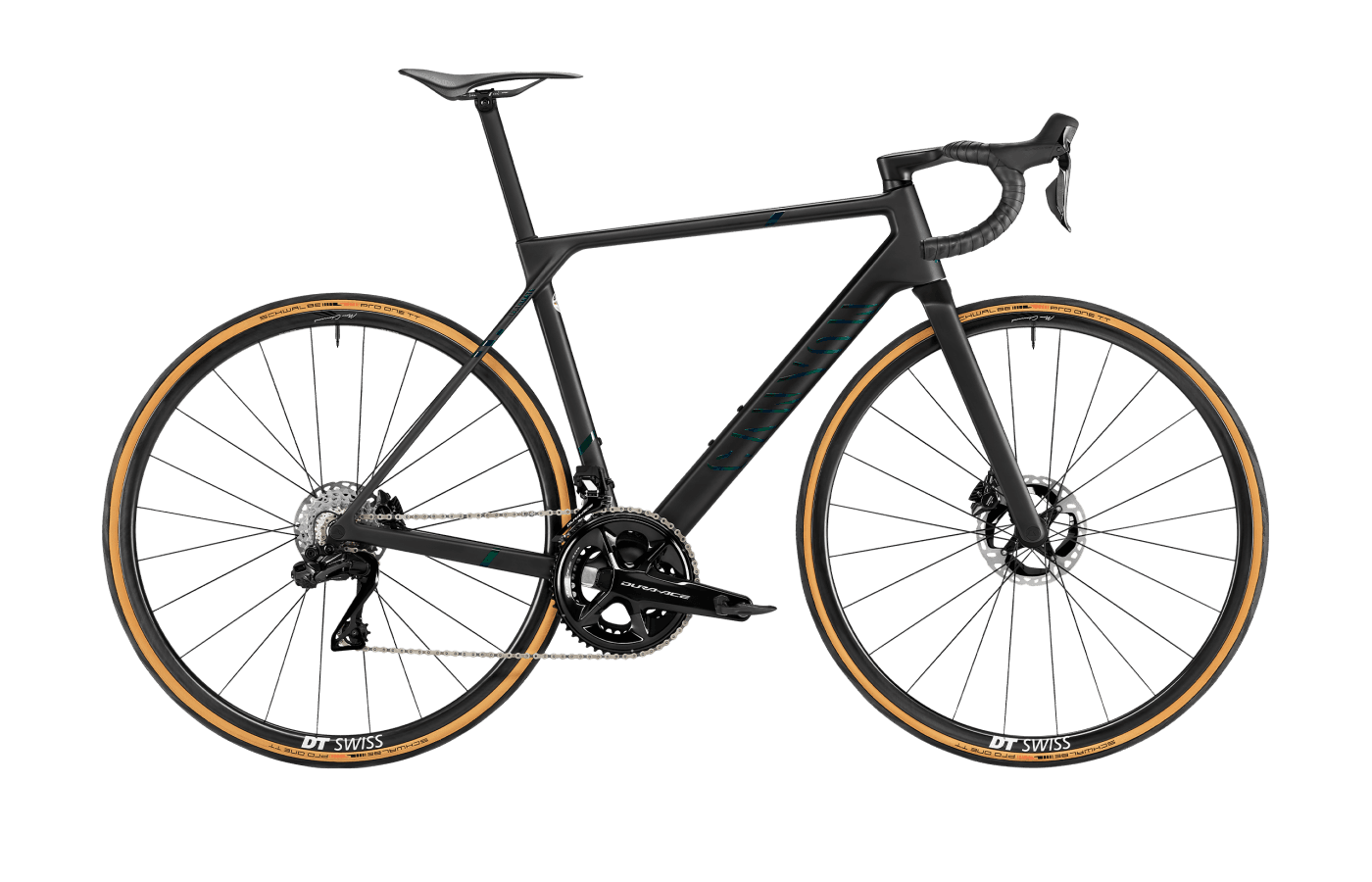

—CFR Dura-Ace Di2

SKU 3325; Powermeter; CFR Stealth; -15% (was $10,499)

$8,899

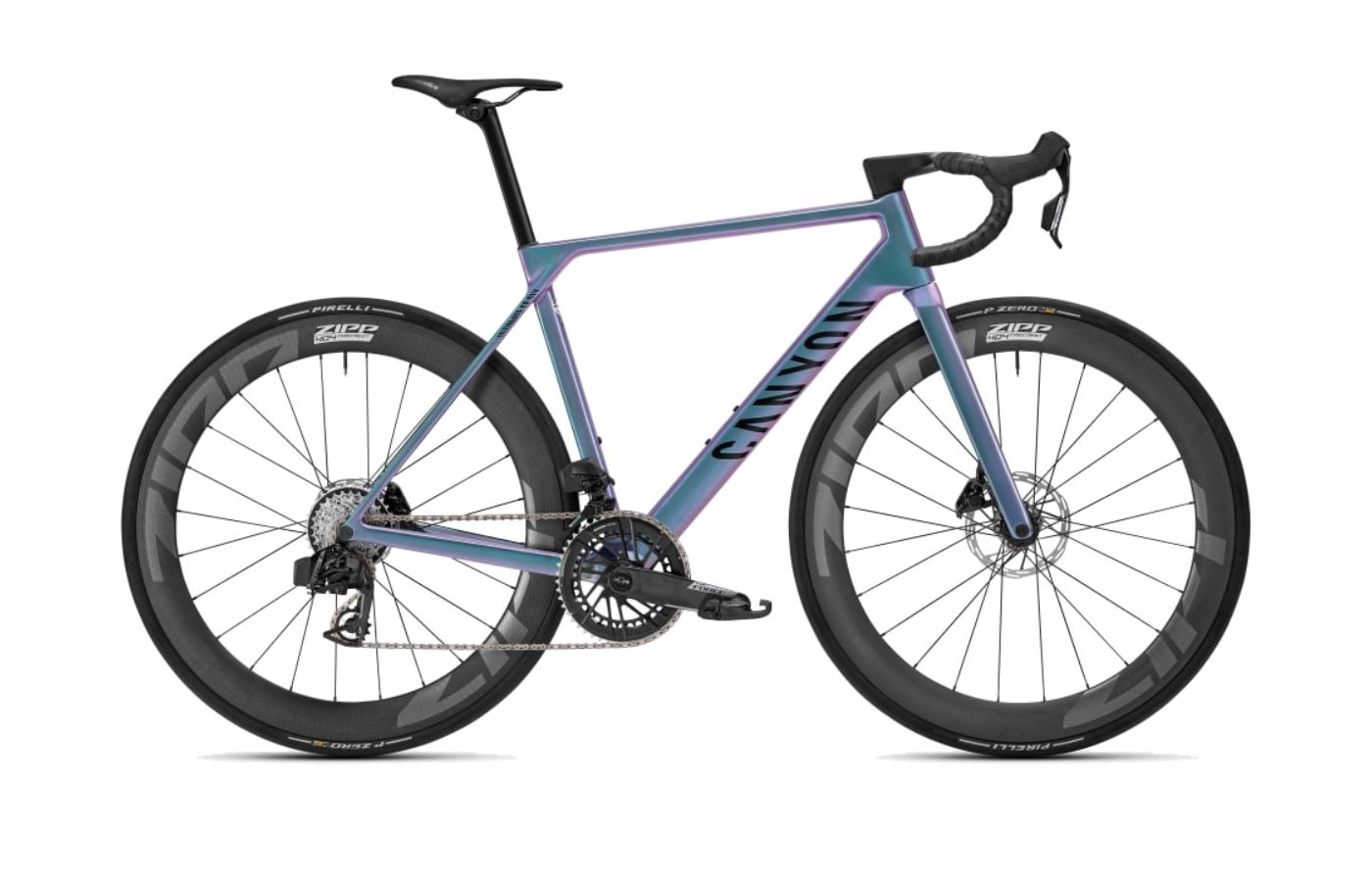

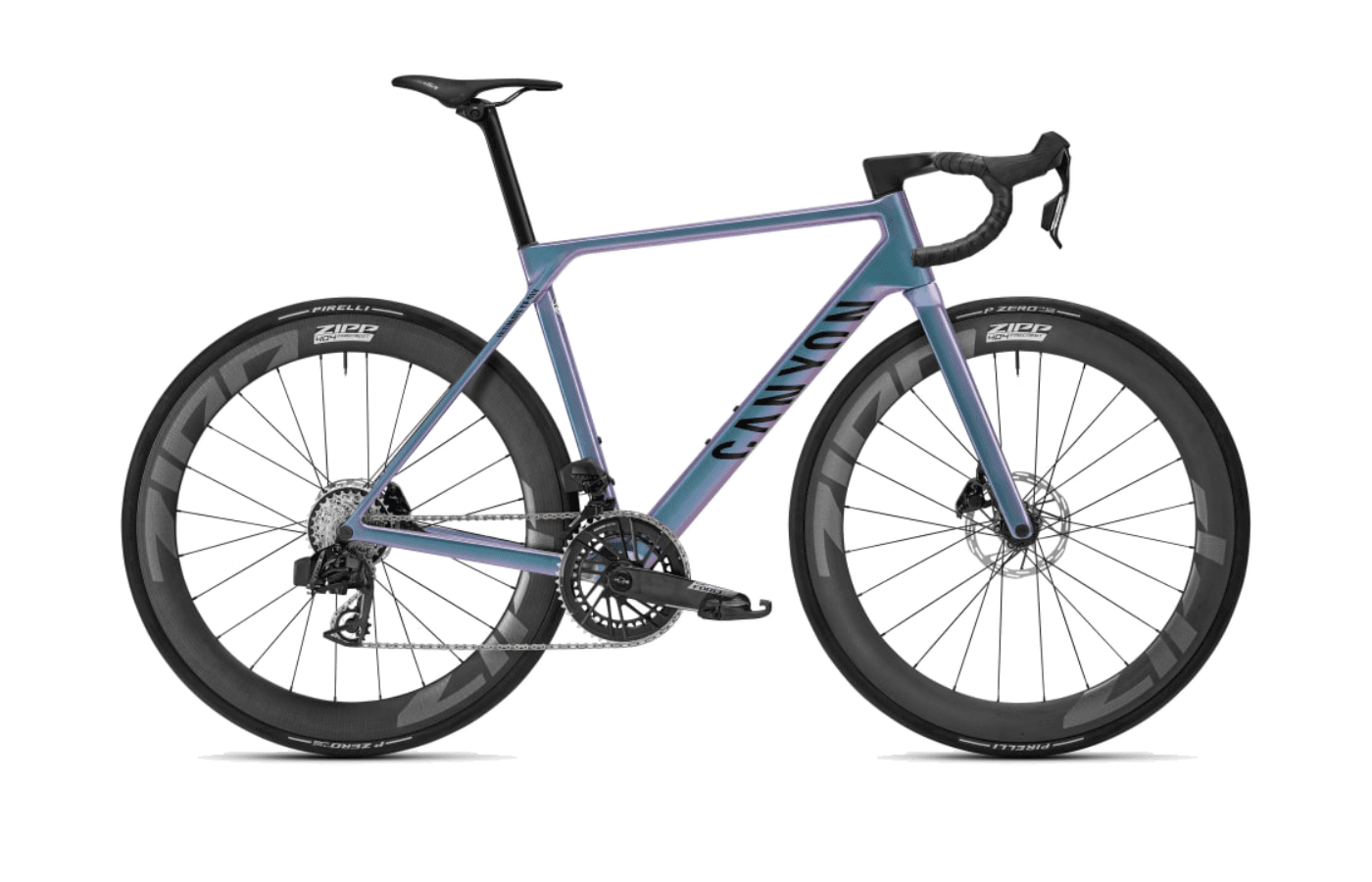

—CF SLX 8 SRAM Force AXS E1

SKU 4067; Powermeter; Metallic Black/Metallic Acid

$6,499

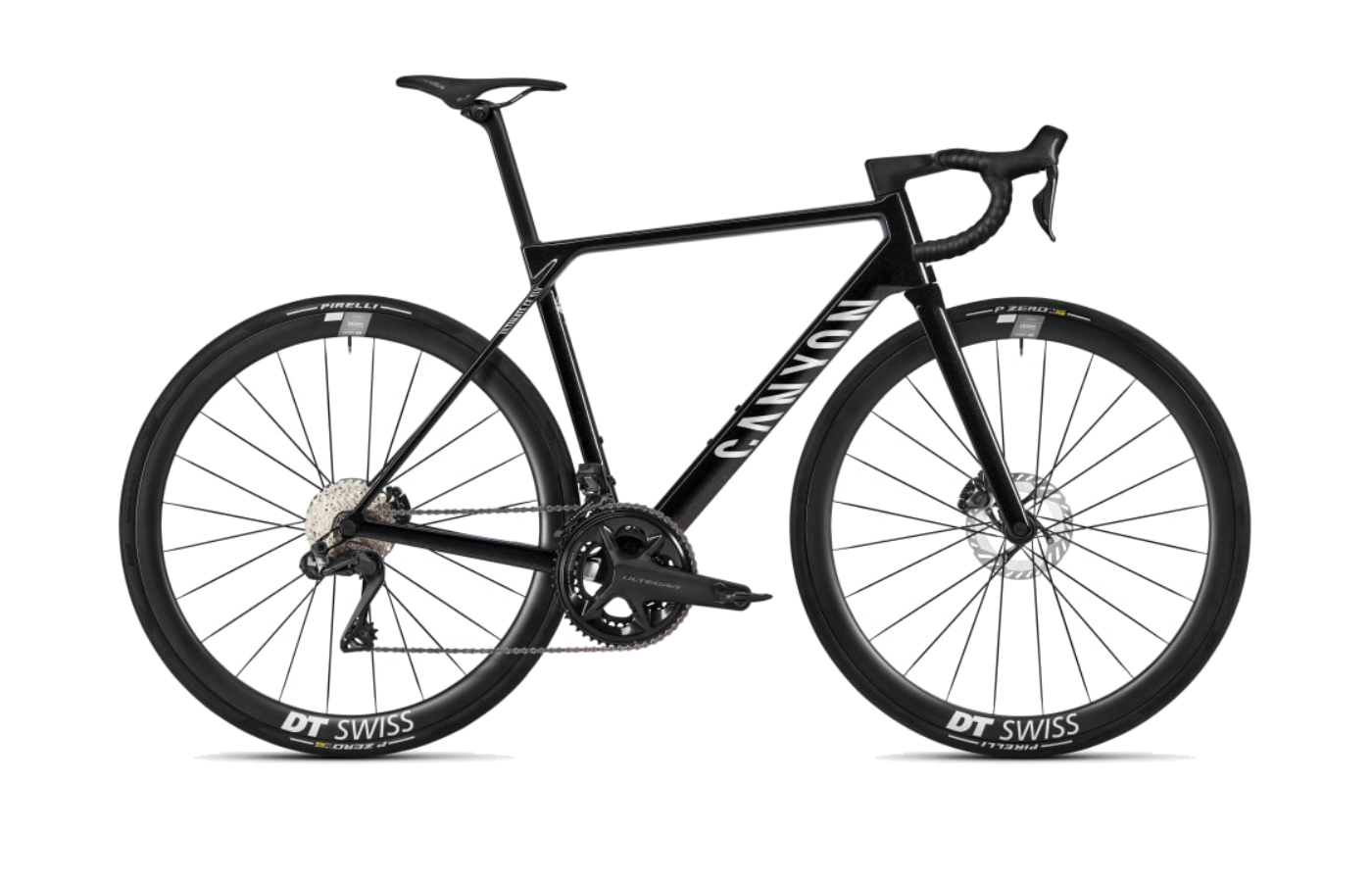

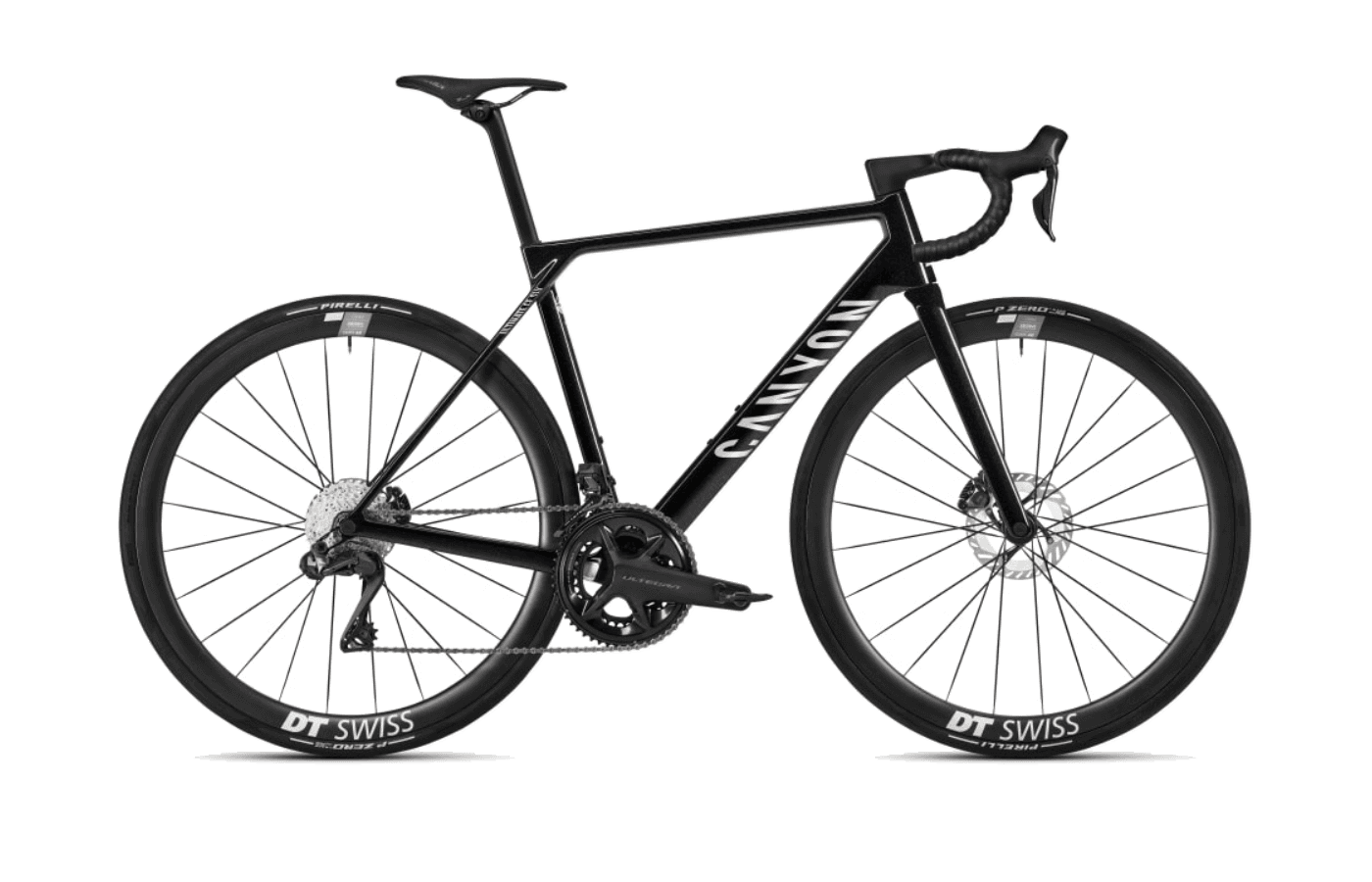

—CF SLX 8 Ultegra Di2

SKU 4066; Powermeter; Metallic Black/Metallic Acid

$5,999

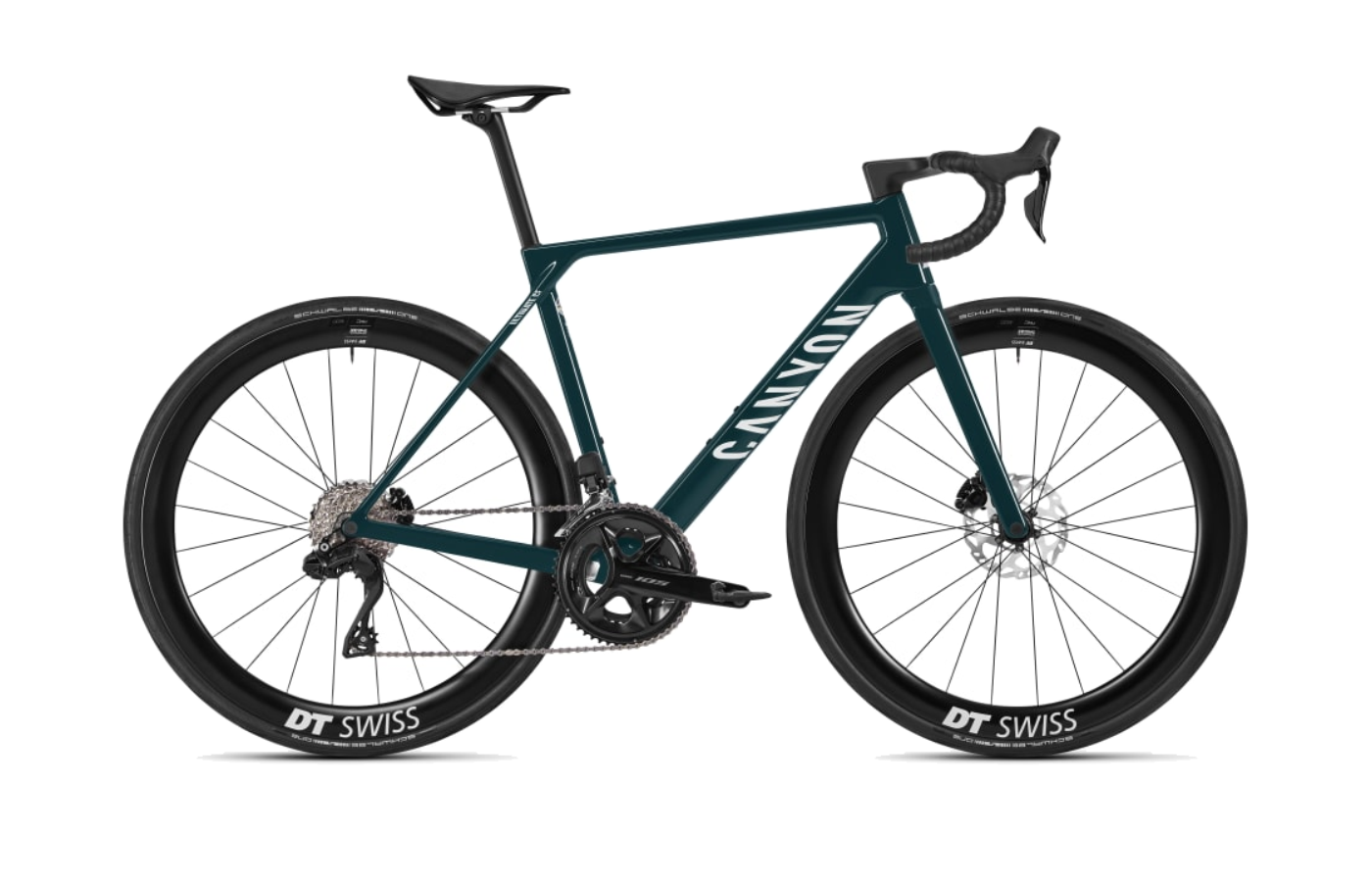

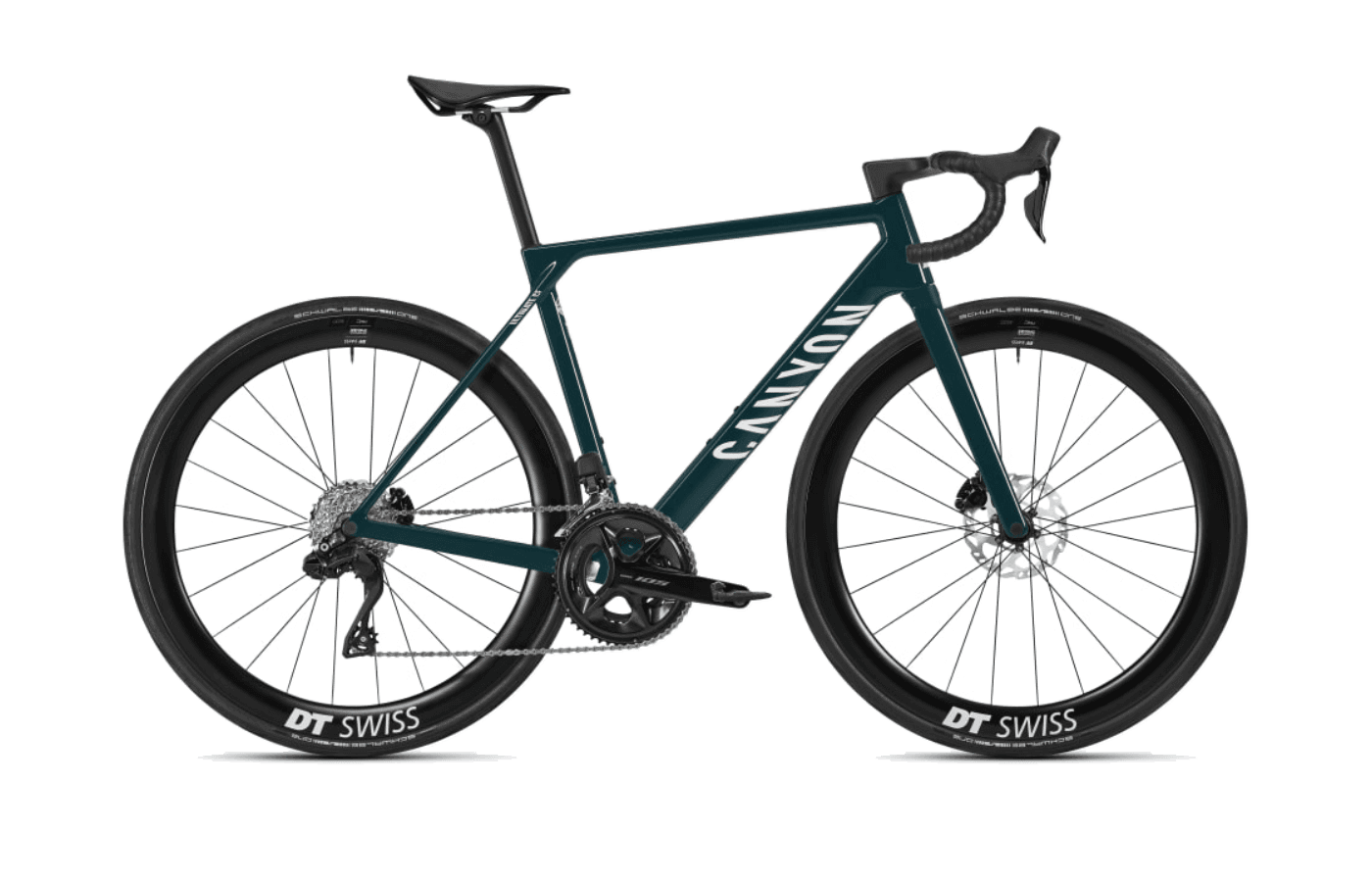

—CF 7 105 Di2 Aero

SKU 4064; Teal; -11% (was $4,699)

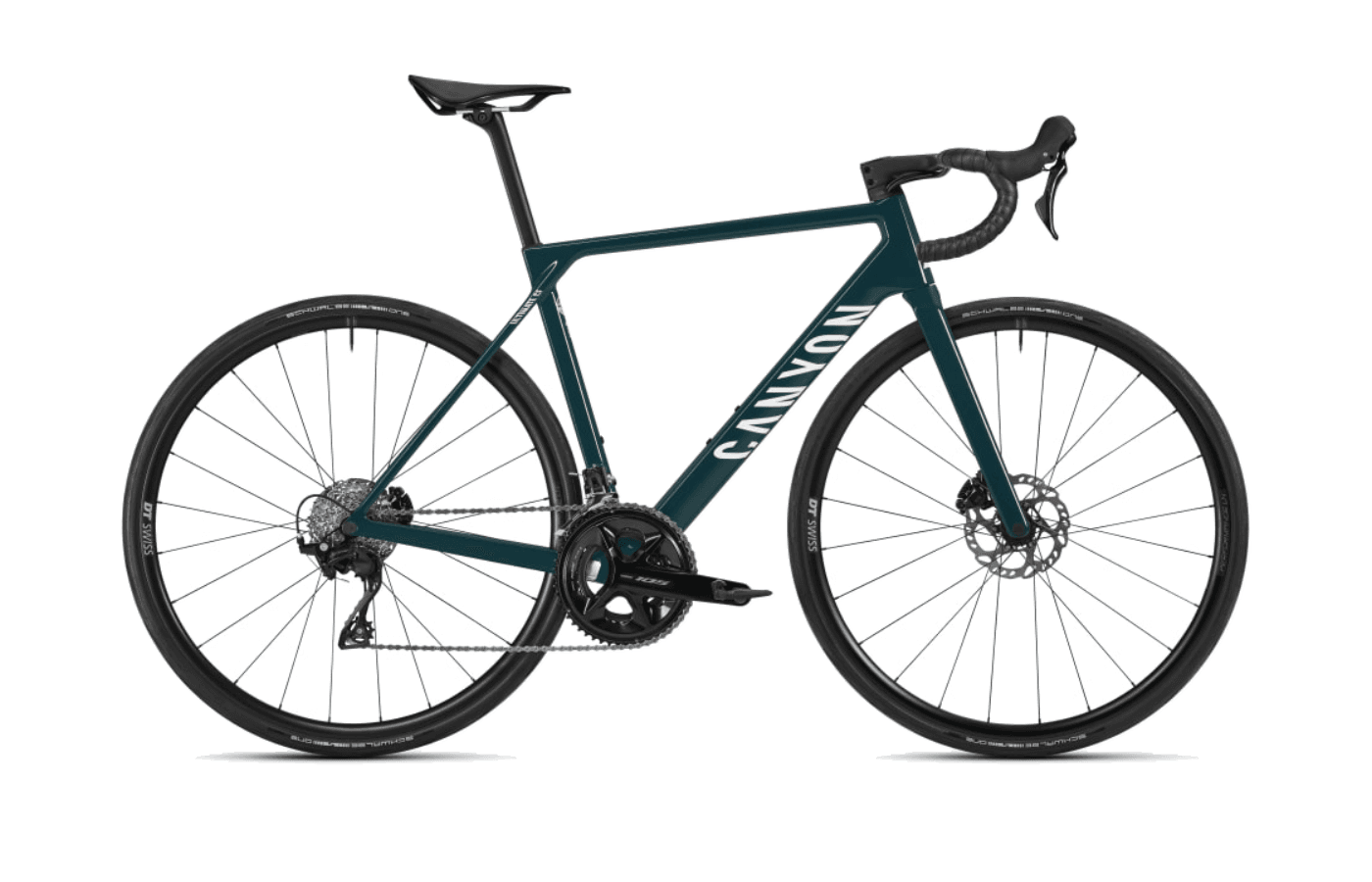

—CF 7 Shimano 105 12s

SKU 4063; White/Teal

$2,899

05 / Reviews

From the press.

12 reviews from the cycling press.

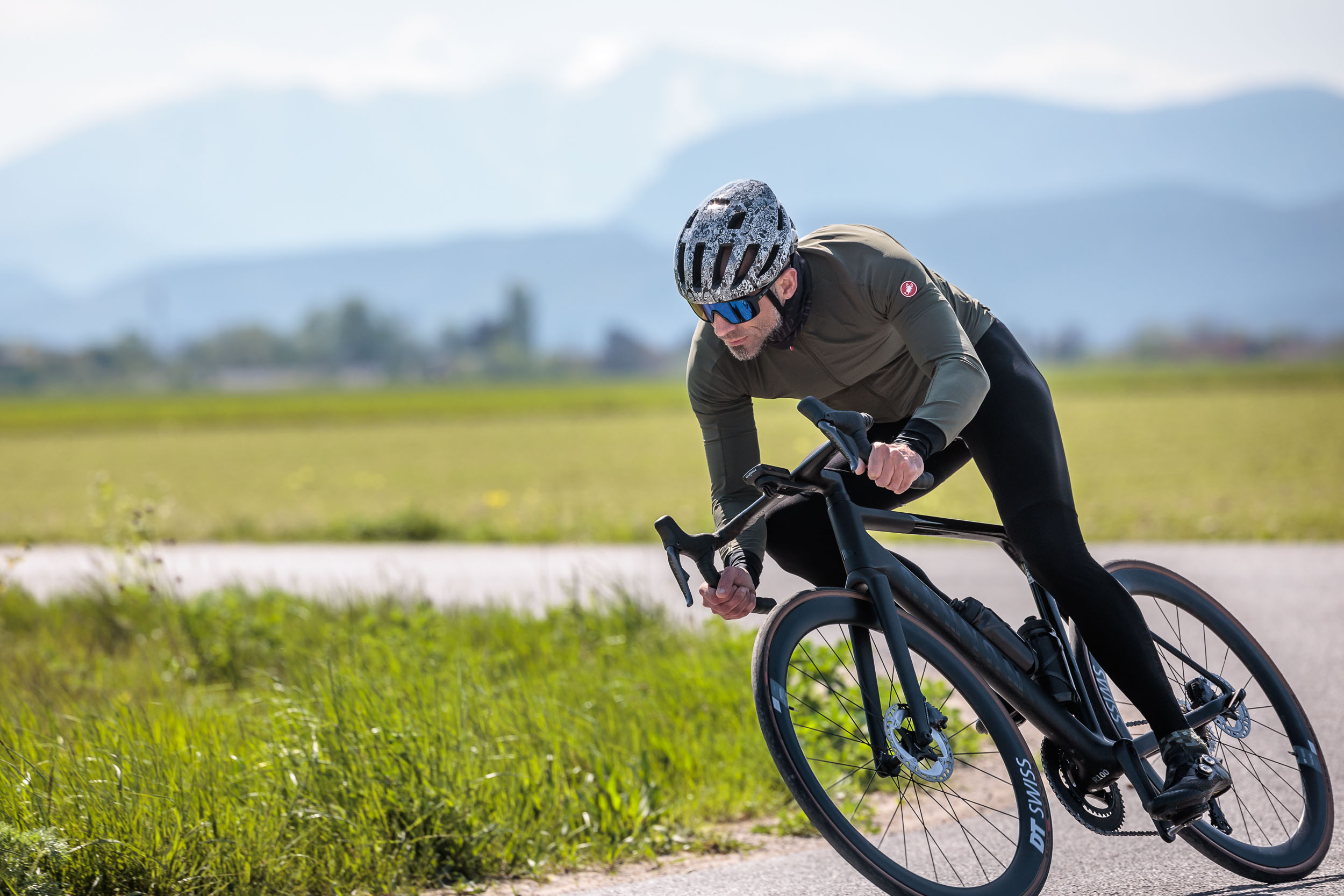

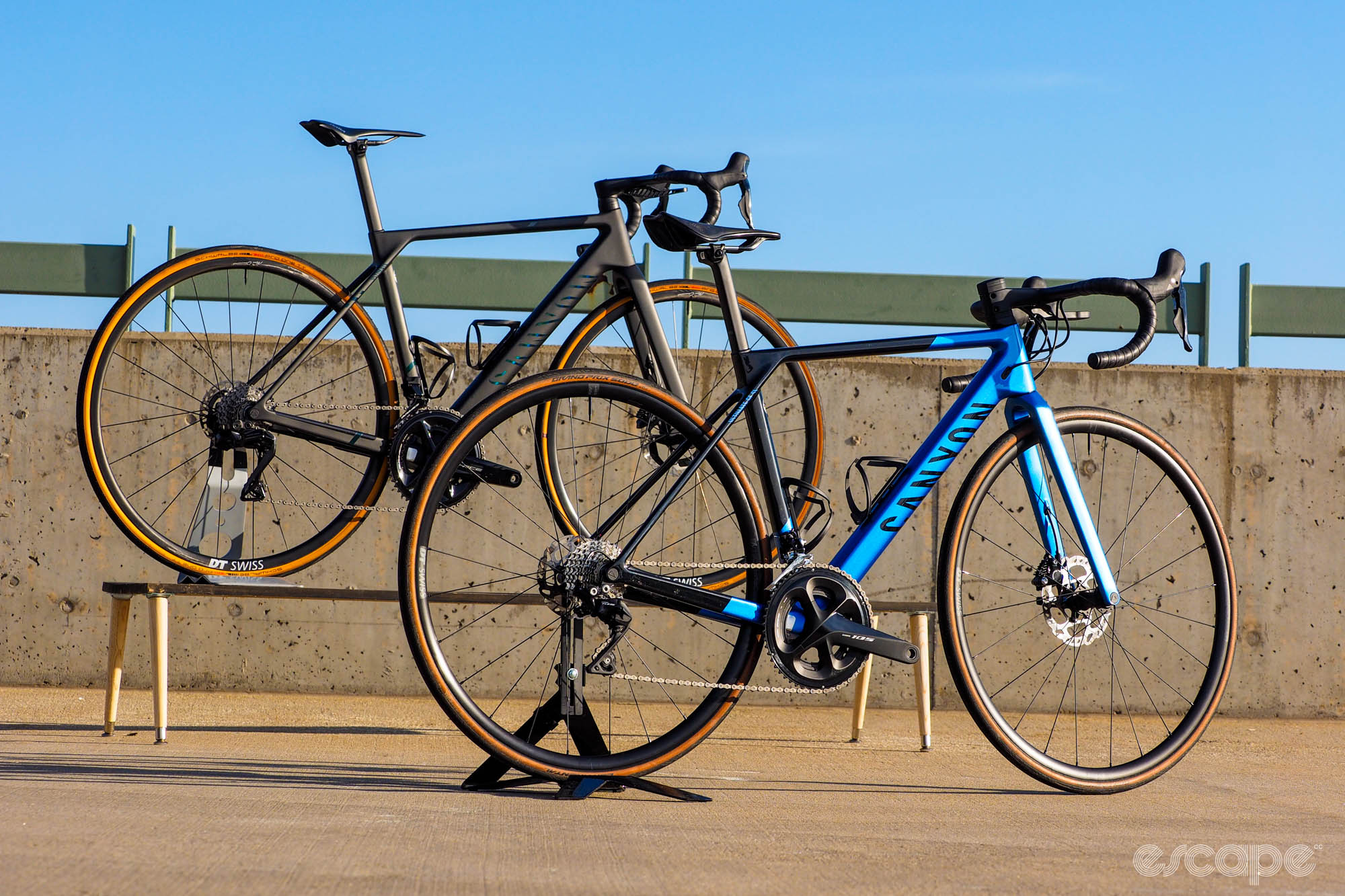

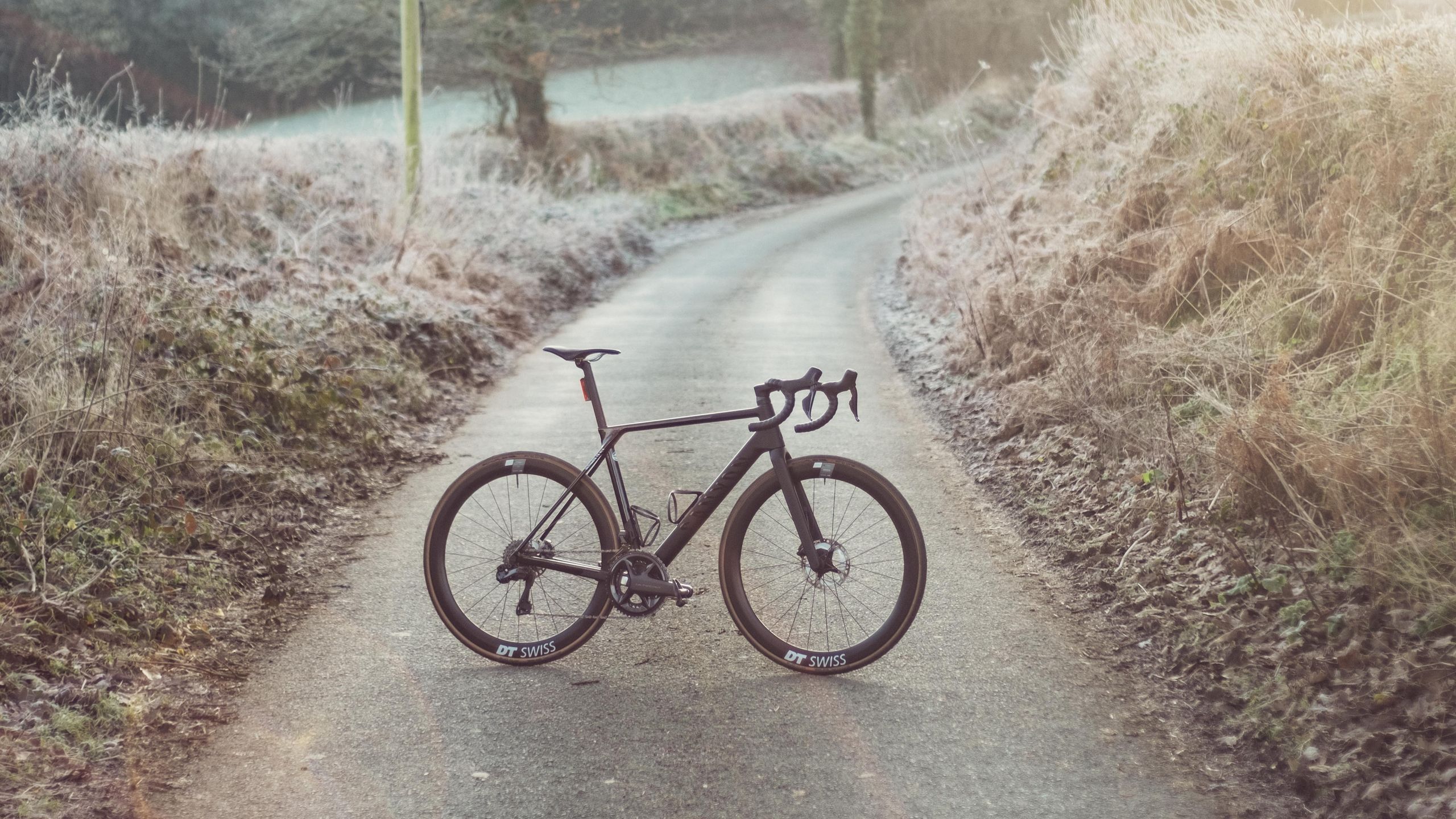

Reviewers consistently praise the Ultimate for its exceptional climbing efficiency and immediate power transfer. The frame's rigidity, particularly around the bottom bracket and head tube, translates into a highly responsive ride that "accelerates willingly from the get-go" (Granfondo). Testers note that the chassis feels "reassuringly stout" (Escape Collective) during out-of-the-saddle efforts, making it an eager companion on steep gradients and tight switchbacks.

While the bike excels in the hills, its performance on flat terrain draws more nuanced feedback depending on the wheel specification. The flagship climbing builds, equipped with shallow rims, are sometimes "left a little wanting versus a more aero-optimised system" (BikeRadar) at higher cruising speeds. Conversely, models fitted with deeper wheels strike a better balance for rolling terrain.

The ride quality is generally viewed as firm but compliant enough for long days, though some testers point out that the zero-offset seatpost on the top-tier models transmits more road feedback than the setback versions found lower in the range. Additionally, while the integrated cockpit offers clever width adjustment, reviewers frequently highlight the fixed stem length as a potential frustration for dialing in the perfect fit.
