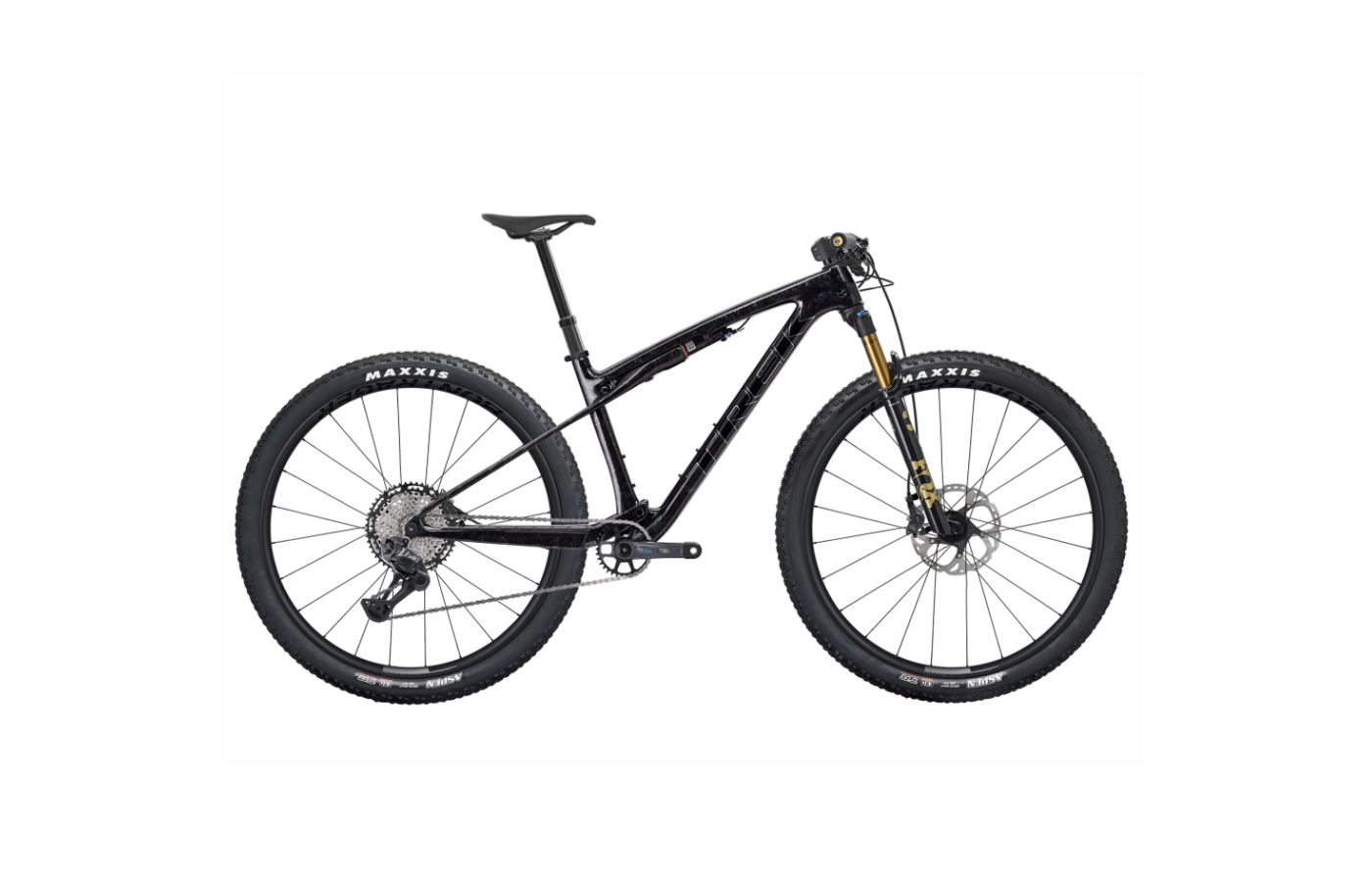

Supercaliber SLR 9.8 XT Di2 Gen 2

Trek’s second-generation Supercaliber is a highly focused cross-country race bike designed to bridge the gap between a hardtail and a traditional full-suspension platform. Built around the signature frame-integrated IsoStrut suspension layout, the Gen 2 platform evolves to meet the demands of modern World Cup courses. Rear travel increases to 80 millimeters, paired with a 110-millimeter fork on stock builds, giving the bike a broader capability profile without dulling its pedaling response. For this generation, Trek partnered with RockShox to redesign the IsoStrut unit, aiming for improved sensitivity and easier serviceability. The platform also splits into two distinct carbon frame tiers: the standard SL and the lighter SLR, which omits internal cable guide tubes to shed weight. It remains an uncompromising tool for dedicated racers who prioritize efficiency and speed above all else.

$9,000Gen Gen 2
Trek Supercaliber SLR 9.8 XT Di2 Gen 2
Build
Size

Inventory

Stack590mm
Reach450mm
Top tube605mm
Headtube length90mm
Standover height772mm
Seat tube length440mm

Fit and geometry

The Gen 2 geometry shifts toward stability without losing its aggressive cross-country posture. Trek slackened the head tube angle to 67.5 degrees and extended the reach, pushing the front center outward to calm the steering at high speeds. To offset the deeper sag of the increased rear travel, the bottom bracket sits slightly higher than the previous generation, which helps maintain ground clearance and reduces pedal strikes on technical climbs.

Despite the longer wheelbase, the bike requires deliberate front-wheel weighting to maintain traction in flat corners. Rider positioning is stretched and low, emphasizing power output. On SLR models, the cockpit features a one-piece Bontrager carbon bar and stem. While this setup saves weight and increases steering stiffness, it prevents riders from adjusting handlebar roll, which may frustrate those with specific ergonomic preferences. To aid descending control, Trek now includes a dropper post as standard equipment across the entire size run, allowing riders to lower their center of gravity and maneuver more freely when the trail points down.

Full specs

Frameset

Frame

SLR OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel

Fork

Fox Factory 34 SL, Float EVOL air spring, GRIP SL 2-position damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 110mm travel

Rear shock

Trek IsoStrut (RockShox SIDLuxe, 2-position remote damper)

Weight

11.18 kg / 24.65 lbs (size M, with TLR sealant, no tubes)

Groupset

Shift levers

Shimano XT Di2 M8250, 12-speed

Rear derailleur

Shimano XT M8250, long cage

Cassette

Shimano XT M8200, 12-speed, 10-51T

Chain

Shimano Ultegra/XT M8100

Crankset

E*thirteen Helix Race Carbon, 34T, 55mm chainline (170mm length: S, M, ML; 175mm length: L, XL)

Bottom bracket

E*thirteen BB20-92

Front brake

Shimano XT M8200 2-piston hydraulic disc

Rear brake

Shimano XT M8200 2-piston hydraulic disc

Front rotor

Shimano RT86, 6-bolt, 160mm

Rear rotor

Shimano RT86, 6-bolt, 160mm (S/M/ML/L/XL) or 180mm (size-dependent as listed)

Wheelset

Front wheel

Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 29", Boost110, 15mm thru-axle, 6-bolt

Rear wheel

Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 29", Boost148, 12mm thru-axle, Rapid Drive 108, Shimano Micro Spline freehub, 6-bolt

Front tire

Maxxis Aspen, Tubeless Ready, EXO casing, folding bead, 29x2.4

Rear tire

Maxxis Aspen, Tubeless Ready, EXO casing, folding bead, 29x2.4

Cockpit

Stem

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, -13° stem rise (70mm: S/M/ML; 80mm: L; 90mm: XL)

Handlebars

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm rise, 750mm width

Saddle

Verse Short Elite, hollow magnesium rails, 145mm width

Seatpost

Bontrager Line Elite Dropper, MaxFlow, internal routing, 31.6mm (100mm/340mm: S; 150mm/440mm: M/ML; 170mm/480mm: L/XL)

Grips

ESI Chunky

Builds

The Supercaliber lineup is divided by its two frame tiers. The SL models serve as the entry point, utilizing a slightly heavier carbon layup but featuring molded-in guide tubes that simplify cable maintenance. The premium SLR models shed weight by using higher-modulus carbon and omitting those internal tubes, catering directly to weight-conscious racers.

Mid-range builds equipped with SRAM GX Eagle Transmission are widely considered the value sweet spot, offering robust electronic shifting under load despite a slight weight penalty compared to top-tier groupsets. At the high end, the flagship SLR 9.9 models feature premium RockShox Flight Attendant or Fox Factory suspension, carbon wheels, and SRAM XX or Shimano XTR drivetrains.

A notable spec variation occurs with the tires. While most of the range ships with high-volume 2.4-inch tires that complement the bike's descending capabilities, the absolute lightest flagship builds are specced with narrower 2.2-inch tires to maximize weight savings. Riders frequently swap these out for wider rubber to improve cornering grip and braking traction on loose courses.

Reviews

Reviewers consistently praise the Supercaliber for its exceptional pedaling response and climbing speed. The high anti-squat kinematics and structural rigidity of the IsoStrut design translate power immediately, delivering an "ego boosting pedal response" (Mountain Bike Rider) that excels on steep pitches and sprints. While the suspension is highly effective under power, multiple testers noted that the RockShox-made IsoStrut requires a bedding-in period. Out of the box, the rear end can feel harsh until the seals and bushings loosen up, sometimes requiring additional lubrication to achieve its intended sensitivity.

Once broken in, the suspension provides excellent seated traction and feels "taut and reactive" (BikeRadar) over trail chatter, though it remains a firm race tune. On descents, the updated platform is noticeably more stable than its predecessor. The chassis rigidity translates to "pinpoint magic" (Feedthehabit) in smooth corners, allowing riders to hold tight lines with minimal steering lag. However, testers caution that the short travel limit is still apparent on rougher terrain. Pushing the bike into chunky rock gardens or flat landings can result in a harsh bottom-out. Ultimately, reviewers agree that the bike retains its "ruthless efficiency" (Flow Mountain Bike), rewarding aggressive, precise riders while feeling unforgiving if the pace drops or the trail becomes excessively rowdy.

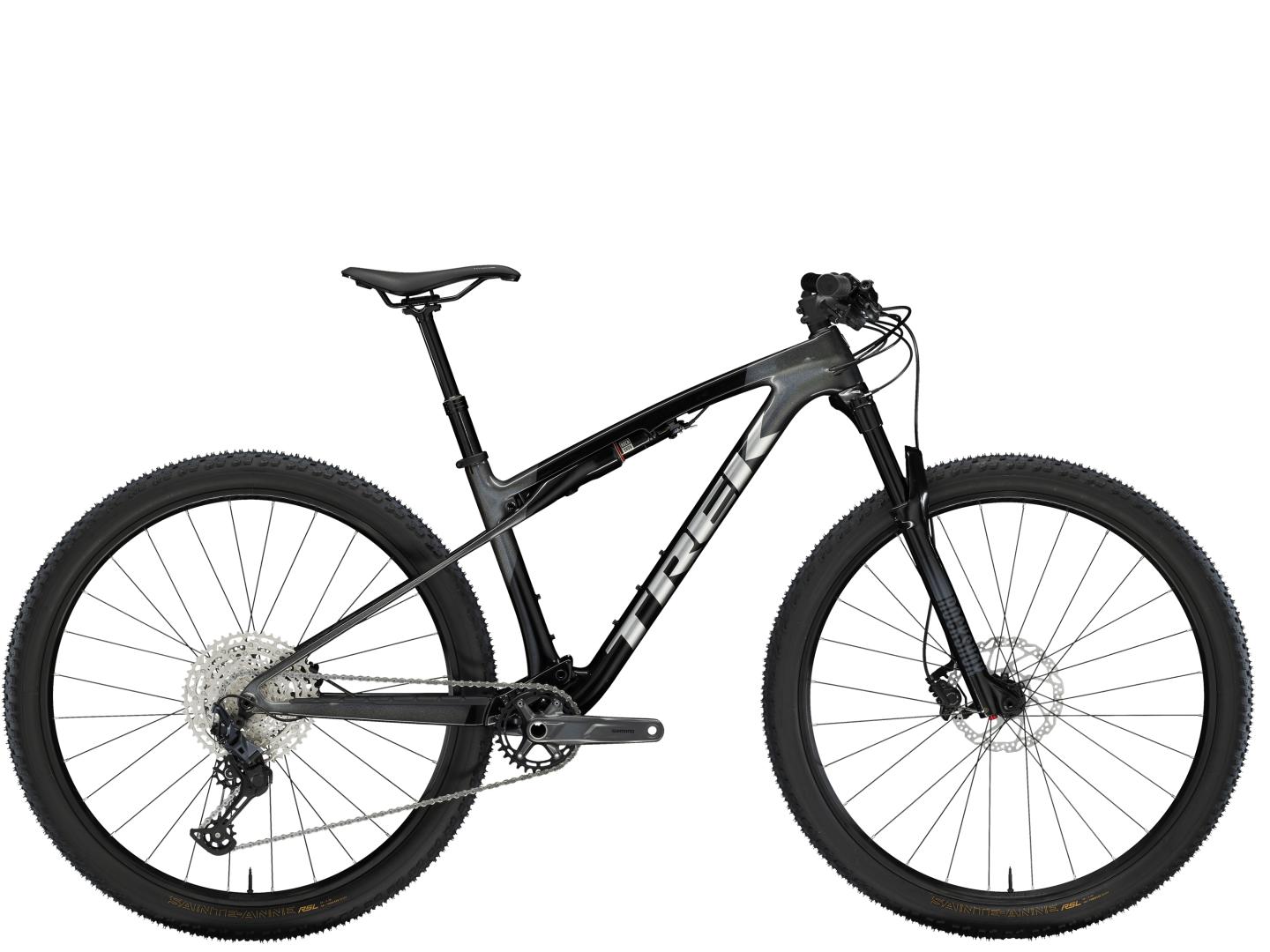

Trek Supercaliber SL 9.6 Gen 2 2024 Review

Bike-test

Trek Supercaliber SL 9.6 Gen 2 2024 Review

About the author·Aug 2024

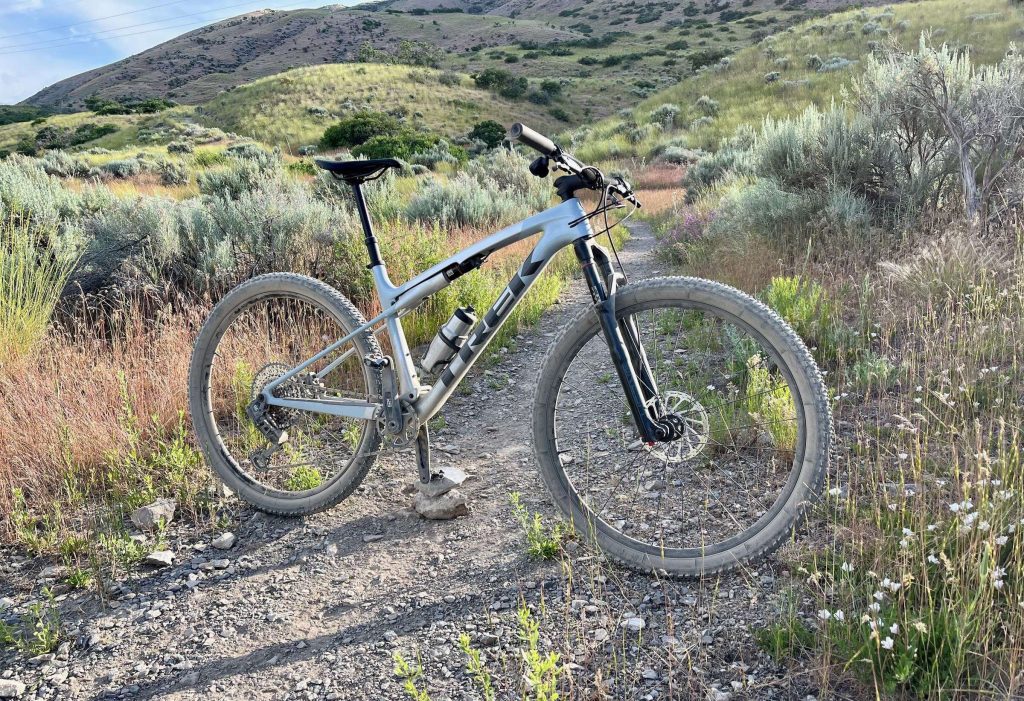

Trek Supercaliber SL 9.7 Gen 2 Review - The Climbing Machine

Feedthehabit

Trek Supercaliber SL 9.7 Gen 2 Review - The Climbing Machine

Jason Mitchell·Aug 2024

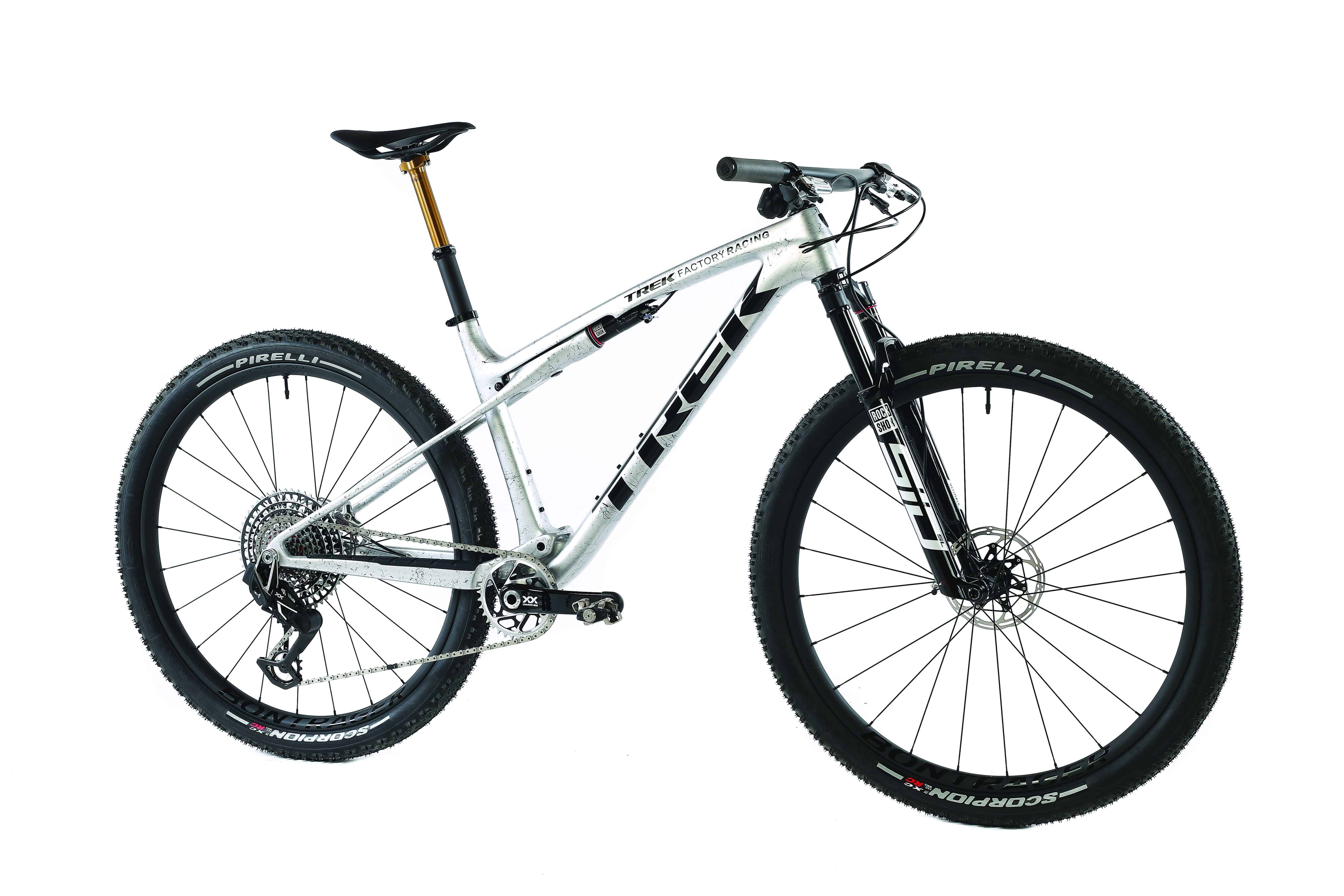

TREK SUPERCALIBER SLR CROSS COUNTRY RACE BIKE

Mountain Bike Action

TREK SUPERCALIBER SLR CROSS COUNTRY RACE BIKE

nelson·Jul 2024

Cyclonline

TREK Supercaliber SLR 2024 off road test review pros, defects, problems everything you need to know...

Luca·Jun 2024

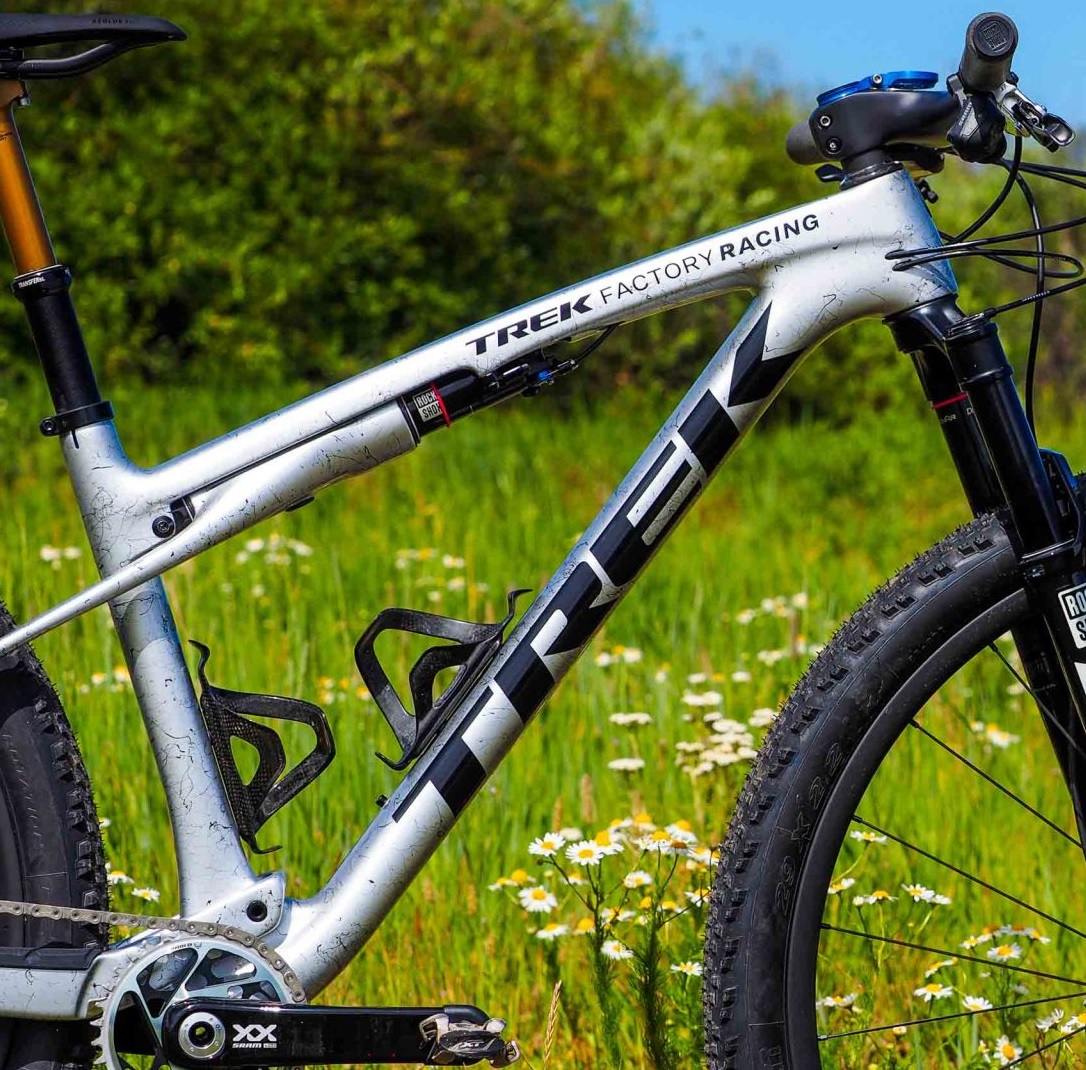

TREK Supercaliber SLR 2023 2024 test review pros and cons all you need to know and (maybe) don't know

Cyclonline

TREK Supercaliber SLR 2023 2024 test review pros and cons all you need to know and (maybe) don't know

Luca·Jun 2024
Trek Supercaliber Gen 2 - First Ride Review

YouTube

Trek Supercaliber Gen 2 - First Ride Review

Jan 2024

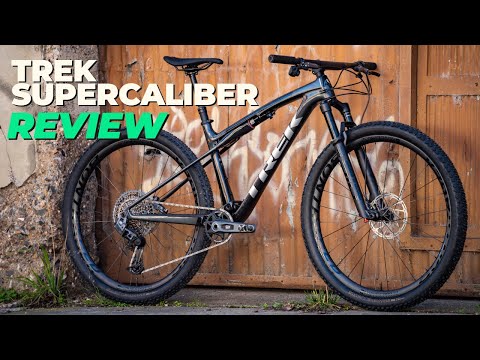

2024 Trek Supercaliber Review | A Striking & Deadly Efficient ...

YouTube

2024 Trek Supercaliber Review | A Striking & Deadly Efficient ...

Jan 2024

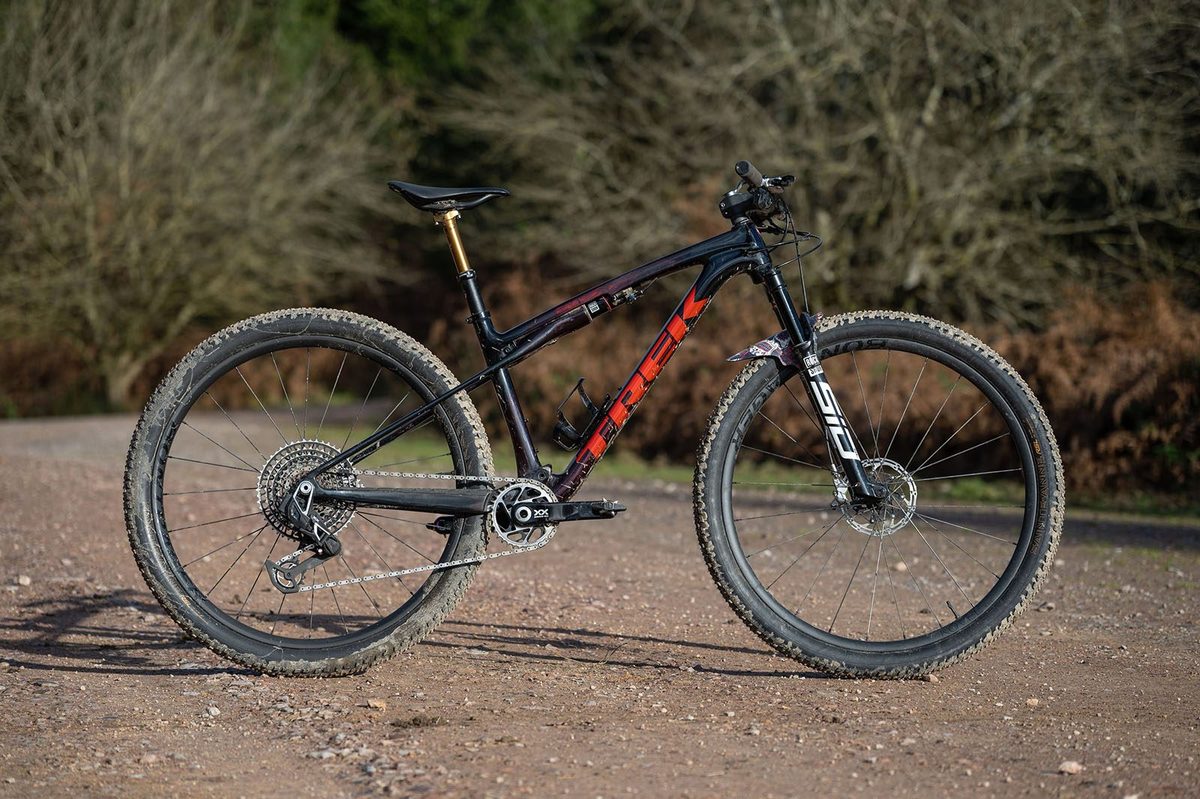

Trek Supercaliber SLR 9.9 XX AXS Gen 2 review

BikeRadar

Trek Supercaliber SLR 9.9 XX AXS Gen 2 review

Dec 2023
Trek Supercaliber SLR Vs Specialized Epic World Cup: Which is the ultimate cross-country speed machine?

Mountain Bike Rider

Trek Supercaliber SLR Vs Specialized Epic World Cup: Which is the ultimate cross-country speed machine?

Guy Kesteven·Nov 2023

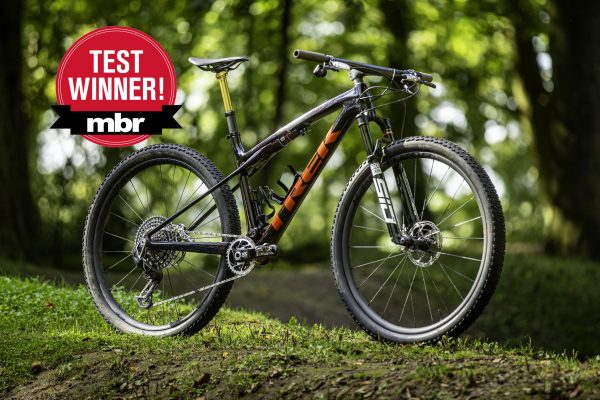

Trek Supercaliber SLR 9.9 XX AXS Gen 2 review - MBR

Mountain Bike Rider

Trek Supercaliber SLR 9.9 XX AXS Gen 2 review - MBR

Guy Kesteven·Oct 2023

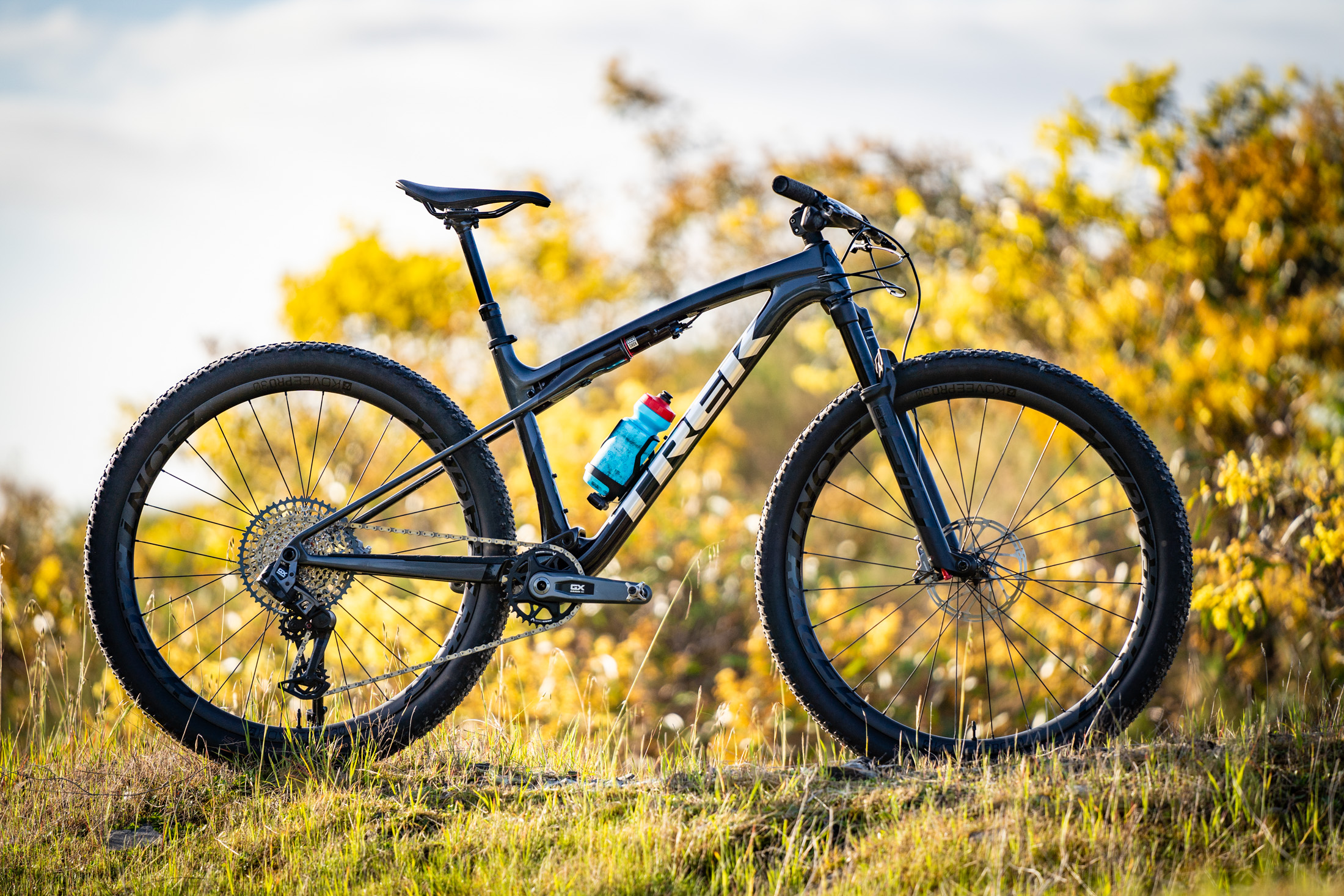

2024 Trek Supercaliber Review | A striking short-travel XC ...

Flow Mountain Bike

2024 Trek Supercaliber Review | A striking short-travel XC ...

Sep 2023
Trek Supercaliber Review: Lightweight Full Suspension MTB For XC Racing

Bigbearbikes

Trek Supercaliber Review: Lightweight Full Suspension MTB For XC Racing

PushRetail·Aug 2023

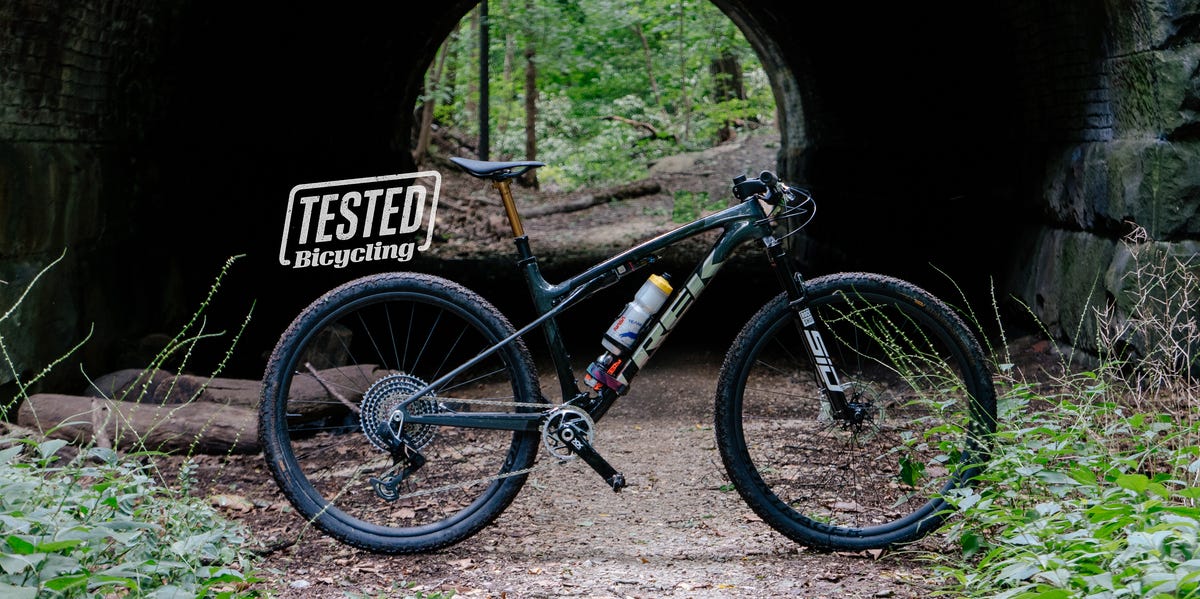

Trek’s New Supercaliber Sets the Benchmark for XC Race Bike Performance

Bicycling

Trek’s New Supercaliber Sets the Benchmark for XC Race Bike Performance

Aug 2023

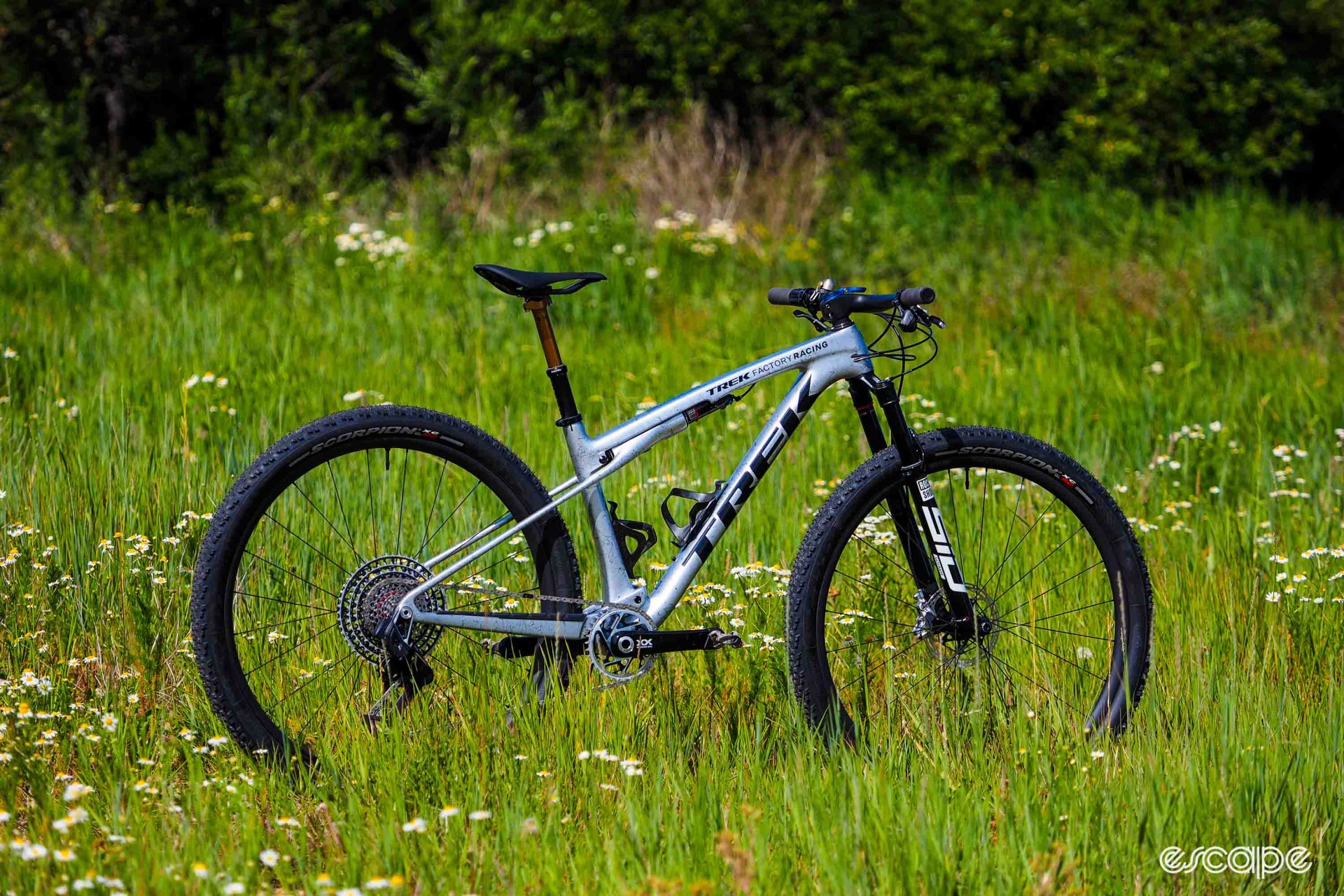

2024 Trek Supercaliber review

Escape Collective

2024 Trek Supercaliber review

James Huang·Aug 2023

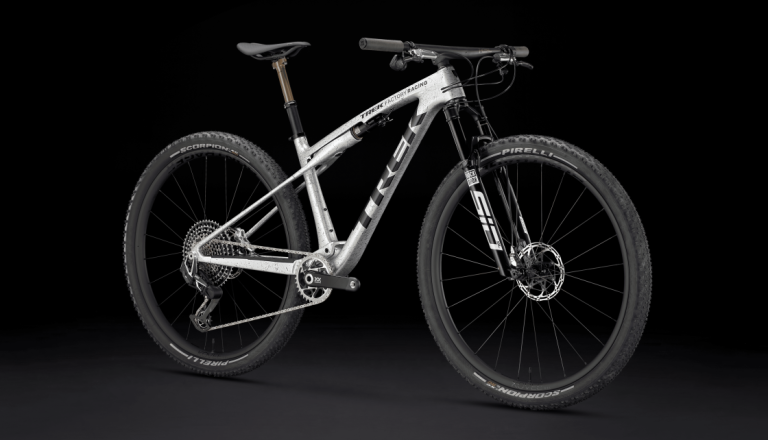

TREK SUPERCALIBER GEN 2 FIRST RIDE REVIEW

Mountain Bike Action

TREK SUPERCALIBER GEN 2 FIRST RIDE REVIEW

Ron Koch·Aug 2023

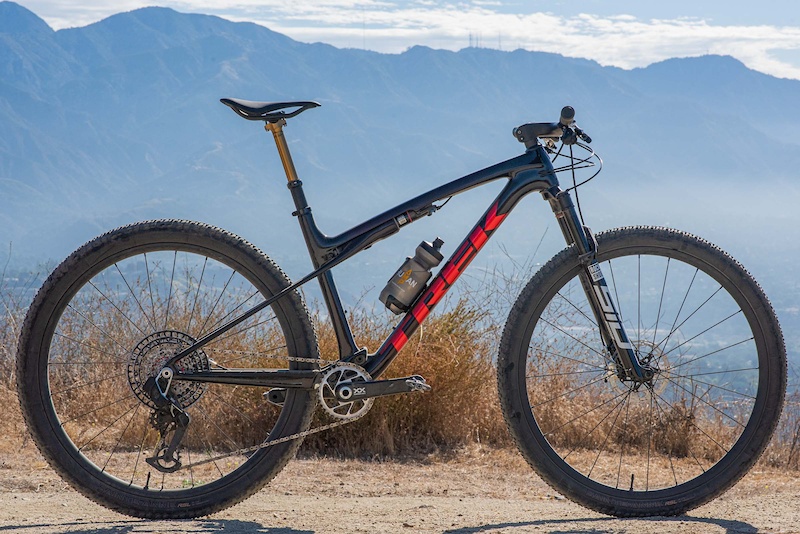

First Ride: 2024 Trek Supercaliber G2
