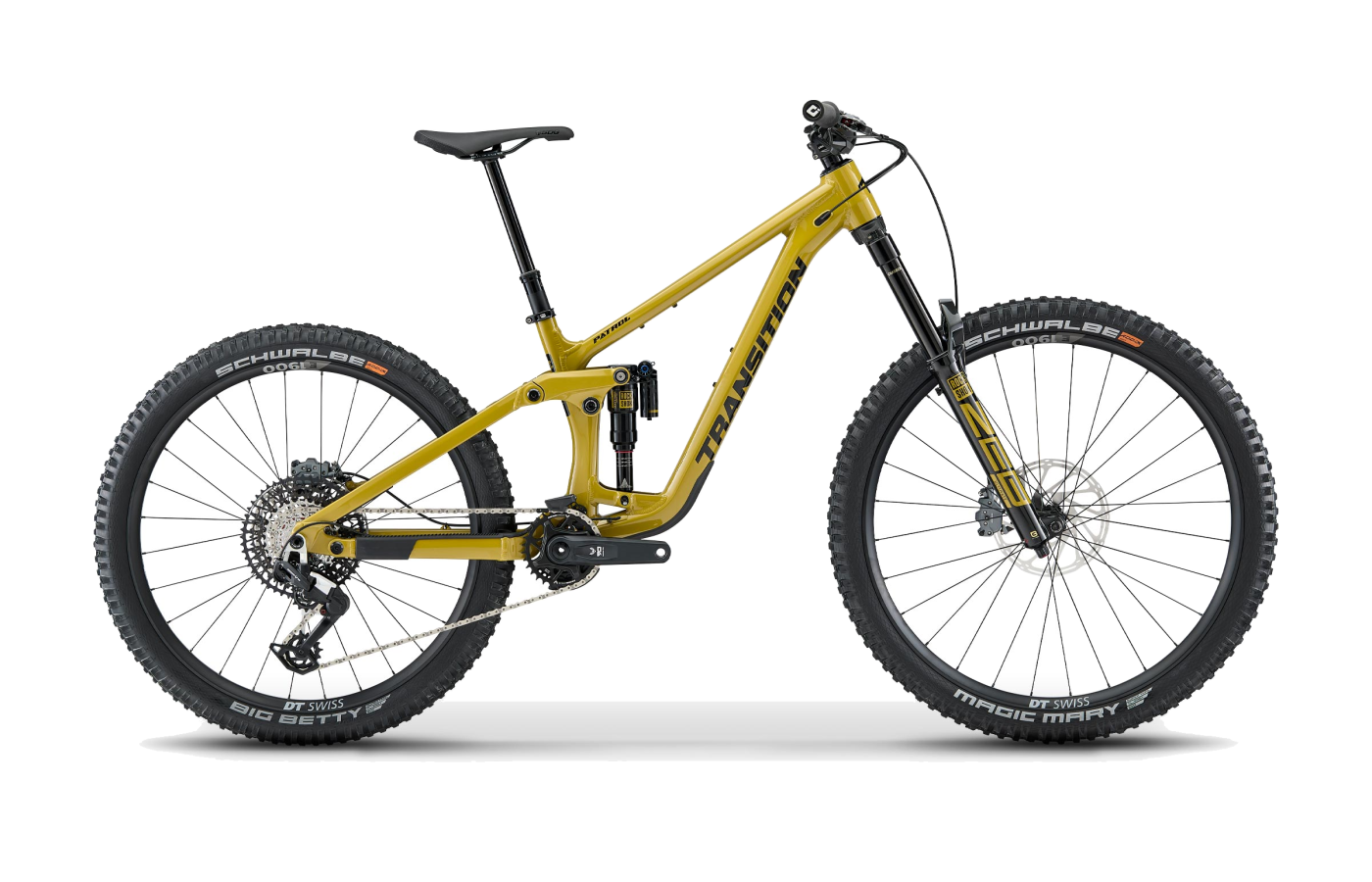

Patrol Alloy Eagle 90

The Transition Patrol is a dedicated mixed-wheel enduro and park bike designed for riders who prioritize agility and airtime over raw race speed. Built around a 29-inch front and 27.5-inch rear wheel, the current generation delivers 160mm of travel out of the box. Transition designed the platform with heavy modification in mind, officially supporting longer-stroke shocks to bump rear travel to 170mm and approving the frame for dual-crown forks.

Available in both alloy and carbon frames, the Patrol shares the same underlying kinematic and geometry across materials. The alloy version is notably overbuilt, favoring durability over weight savings, while the carbon frame sheds significant mass for a more responsive feel. Across both materials, a revised suspension layout provides a highly progressive leverage curve to support aggressive riding, coil shocks, and flat landings. It is a platform built specifically for steep, loamy, and jump-heavy terrain.

$5,299

Build

Size

Stack	623mm
Reach	455mm
Top tube	578mm
Headtube length	100mm
Standover height	690mm
Seat tube length	390mm

Fit and geometry

The Patrol is built around Transition’s Speed Balanced Geometry, which pairs a very slack front end with a steep seat tube angle to keep the rider centered. A lower shock mount flip chip allows riders to toggle the head tube angle between a slack setting and an even slacker downhill-oriented position. Despite the aggressive front end, the reach remains relatively moderate, which prevents the bike from feeling overly stretched out or cumbersome in tight terrain.

To maintain consistent handling across the size run, Transition utilizes size-specific chainstays, keeping the rear center shorter on small and medium frames and lengthening it for large and extra-large models. The steep effective seat tube angle places the rider in an upright, efficient pedaling posture that naturally weights the front wheel, mitigating the front-end wander often associated with slack head angles. The defining fit characteristic, however, is the exceptionally low bottom bracket. This drops the rider's center of gravity deep between the wheels for aggressive cornering, though it requires mindful pedal placement to avoid strikes in uneven terrain.

Full specs

Frameset

Frame

Patrol Alloy 160mm

Fork

RockShox ZEB Ultimate (160mm)

Rear shock

RockShox Super Deluxe Ultimate (205x60mm)

Weight

36.6 lbs / 16.60 kg (Size MD)

Groupset

Shift levers

SRAM Eagle 90 MMX

Rear derailleur

SRAM Eagle 90

Cassette

SRAM XS 1275 (10-52t)

Chain

SRAM Eagle 90

Crankset

SRAM Eagle 90 DUB (32t/165mm)

Bottom bracket

SRAM DUB

Front brake

SRAM Maven Bronze

Rear brake

SRAM Maven Bronze

Front rotor

SRAM Centerline (200mm)

Rear rotor

SRAM Centerline (200mm)

Wheelset

Front wheel

DT Swiss E 1900 Spline 30; DT Swiss 370 Ratchet LN; DT Swiss Champion

Rear wheel

DT Swiss E 1900 Spline 30; DT Swiss 370 Ratchet LN; DT Swiss Champion

Front tire

Schwalbe Magic Mary Super Trail, Soft (2.4)

Rear tire

Schwalbe Big Betty Super Trail, Soft (2.4)

Cockpit

Stem

Burgtec Enduro MK3 35 (35mm)

Handlebars

Burgtec Ride Wide Alloy Enduro; SM (780x20mm); MD (780x30mm); LG/XL (800x38mm)

Saddle

SDG Bel Air 3

Seatpost

OneUp Dropper Post; SM (150mm); MD (190mm); LG (210mm); XL (240mm)

Grips

ODI Longneck V2.1 Lock-On

Builds

The Patrol lineup spans four builds, split evenly between carbon and alloy frames. The entry-level Alloy Eagle 70 focuses on accessibility, pairing a RockShox Domain fork and Super Deluxe Base shock with a mechanical SRAM Eagle 70 drivetrain. Stepping up to the Alloy Eagle 90 upgrades the suspension to a RockShox ZEB Ultimate and Super Deluxe Ultimate, while moving to the Eagle 90 drivetrain.

The carbon models mirror this progression but introduce lighter frames and different shock specifications. The Eagle 90 Carbon features a ZEB Select fork and Vivid Select rear shock. At the top of the range, the GX AXS Carbon build utilizes a ZEB Ultimate and Vivid Ultimate, alongside SRAM’s wireless GX Eagle Transmission for precise shifting under load.

Across all builds, Transition prioritizes descending capability with four-piston SRAM Maven brakes, utilizing Base, Bronze, or Silver tiers depending on the model. Dropper posts from OneUp or SDG are scaled by frame size to maximize travel. Rolling stock consists of durable aluminum wheelsets from WTB, DT Swiss, or RaceFace, wrapped in aggressive Schwalbe or Maxxis tires suited for loose and steep conditions.

Alloy Eagle 70

$3,999

Alloy Eagle 90

$5,299

Selected

Eagle 90 Carbon

$6,299

GX AXS Carbon

$6,999

Reviews

Reviewers consistently characterize the Patrol as an energetic, highly engaging descender that favors playfulness over muted plowing. The mixed-wheel setup defines the ride, allowing the bike to snap through tight corners while the larger front wheel maintains momentum. Testers noted that the smaller rear wheel makes it easy to "steer with your hips" (Vital MTB) and quickly change direction. The progressive suspension tune provides a supportive platform that encourages jumping, with one reviewer describing the bike as "freakishly boosty" (Mtb-mag) off trail features.

This active ride quality means the Patrol communicates plenty of trail feedback, giving it a "pilot, not passenger" (YouTube) feel. However, this agility comes with tradeoffs at absolute top speed. In timed testing, the bike occasionally lost momentum in high-speed, choppy straightaways compared to full 29-inch race bikes, with one tester noting it "makes you think you're going faster than you are" (PinkBike).

Additionally, the exceptionally low bottom bracket was a frequent point of discussion; while it anchors the bike in corners, multiple riders reported frequent pedal strikes when navigating technical, rocky climbs. Despite the heavy alloy frame option, testers were pleasantly surprised by the bike's climbing posture, noting that the steep seat tube keeps the front wheel manageable on steep ascents.
