Frameset
Fork
Cervélo All-Carbon, Tapered Caledonia-5 Fork

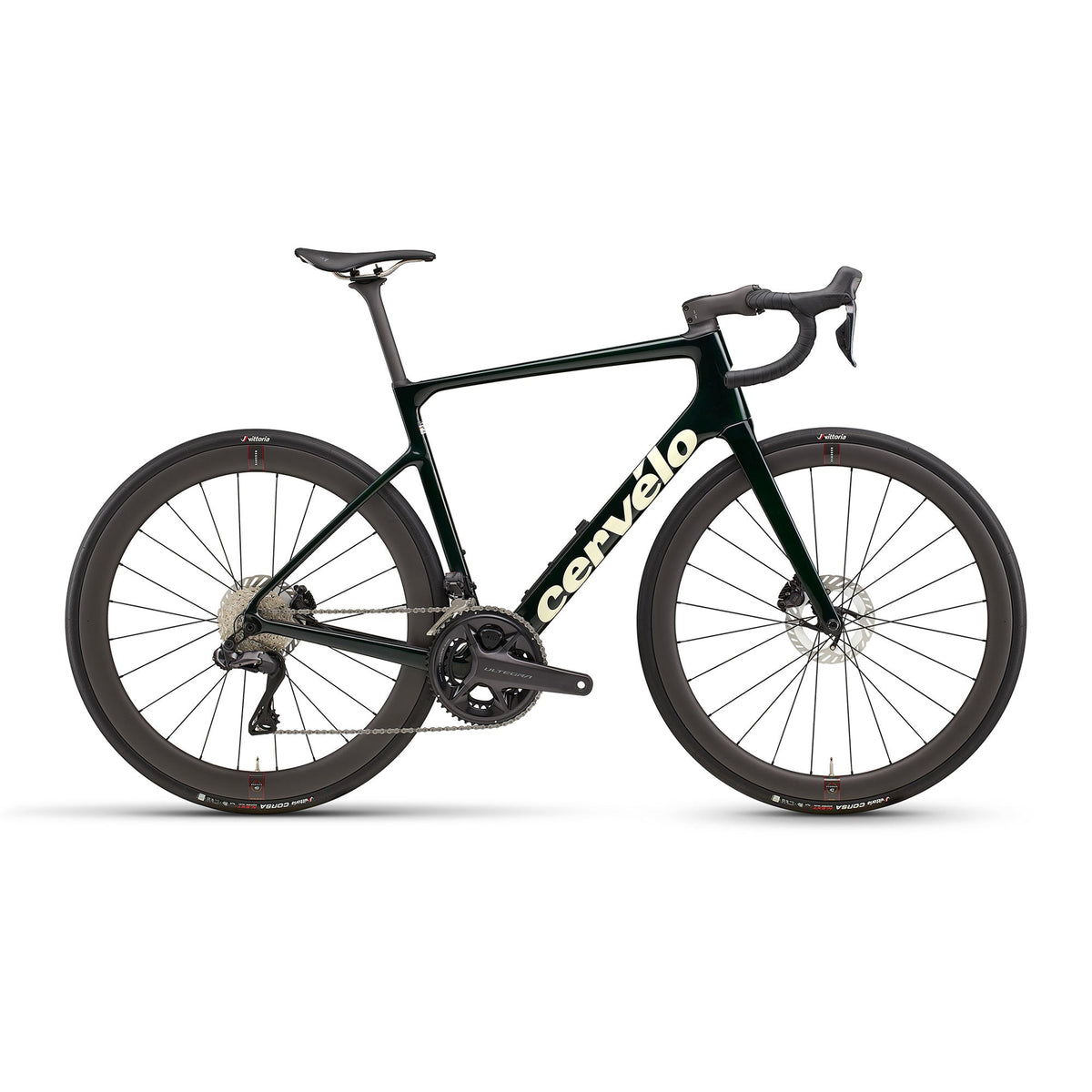

The Cervelo Caledonia-5 is a high-performance endurance road bike designed for riders who want the speed and aerodynamic efficiency of a dedicated race machine without the punishing ride quality. Positioned between Cervelo’s featherweight R5 and aerodynamic S5, the Caledonia-5 targets long-distance events, fast group rides, and broken pavement. For this updated generation, Cervelo retained the bike's core identity while integrating practical updates for extended days in the saddle. The most prominent addition is a downtube storage compartment hidden beneath the bottle cage, providing space for a flat kit and tools. The frame also sees subtle structural revisions, including slimmer, dropped seatstays to improve rear-end compliance and a stiffer downtube to maintain pedaling efficiency. With tire clearance expanded to accommodate wider rubber, the Caledonia-5 leans further into modern all-road capability while remaining firmly rooted in its fast-paced tarmac origins.

| Stack | 555mm |
| Reach | 378mm |
| Top tube | 543mm |
| Headtube length | 136.3mm |
| Standover height | 775mm |
The Caledonia-5 utilizes an endurance-oriented geometry that places the rider in a slightly more upright posture than a traditional race bike, reducing strain on the lower back during long efforts. However, the fit remains decidedly sporty. Cervelo pairs a taller stack and slacker head tube angle with relatively short chainstays, keeping the rear wheel tucked in for responsive power transfer. This combination yields a longer wheelbase and increased trail, which slows down the steering input just enough to provide stability on fast descents and rough surfaces without feeling sluggish.
At the front end, the bike features a fully integrated carbon cockpit with internal cable routing. To simplify fit adjustments, Cervelo introduced a split bearing cap design, allowing mechanics and riders to alter the stack height without needing to disconnect brake hoses or bleed the system. The frame also includes hidden fender mounts, and the expanded fork and stay dimensions now clear tires up to 36mm wide, giving riders ample room to tune the bike's footprint and comfort level for varying road conditions.
Frameset
Fork
Cervélo All-Carbon, Tapered Caledonia-5 Fork
Groupset
Shift levers
Shimano Ultegra, R8170
Front derailleur
Shimano Ultegra, R8150
Rear derailleur
Shimano Ultegra, R8150
Cassette
Shimano Ultegra, R8100, 11-34T, 12-Speed
Chain
Shimano M8100
Crankset
Shimano Ultegra, R8100, 52/36T
Bottom bracket
FSA, BBright thread together for 24mm spindle
Front rotor
Shimano CL800 Centerlock
Rear rotor
Shimano CL800 Centerlock
Wheelset
Front wheel
Reserve 42TA, DT Swiss 350, 12x100mm, 24H, centerlock, tubeless compatible
Rear wheel
Reserve 49TA, DT Swiss 350, 12x142mm, HG freehub 24H, centerlock, tubeless compatible
Front tire
Vittoria Corsa N.EXT TLR G2.0 700x30c
Rear tire
Vittoria Corsa N.EXT TLR G2.0 700x30c
Cockpit
Stem
Cervélo ST31 Carbon
Handlebars
Cervélo HB13 Carbon, 31.8mm clamp
Saddle
Selle Italia NOVUS BOOST EVO SuperFlow Ti
Seatpost
Cervélo SP24 Carbon
The Caledonia-5 lineup spans five electronic-only builds, split between SRAM and Shimano groupsets. The tier begins with the SRAM Rival AXS model, which establishes a high baseline by including a crank-based power meter and Reserve carbon wheels. Moving up the ladder, the mid-tier Shimano Ultegra Di2 and SRAM Force AXS builds offer weight savings and refined shifting. The Force AXS model includes a power meter, while the Ultegra Di2 build utilizes a thread-together FSA bottom bracket.
At the top of the range, the Shimano Dura-Ace Di2 and SRAM Red AXS models command premium pricing for flagship components. The Red AXS build features a power meter and a ceramic bottom bracket, while the Dura-Ace model receives a Ceramic Speed SL bottom bracket. Across all five builds, Cervelo specifies Reserve 42/49 carbon wheels—featuring a shallower front rim for crosswind stability and a deeper rear rim for aerodynamics—paired with 30mm Vittoria tubeless-compatible tires. While the entry-level Rival build represents the most accessible entry point, the Force and Ultegra models sit as the practical sweet spot for riders balancing high-end performance with overall cost.

Rival AXS
$7,400

Ultegra Di2
$8,950

Force AXS
$9,000

Dura-Ace Di2
$12,500

Red AXS
$12,750
Reviewers consistently praise the Caledonia-5 for balancing long-distance comfort with the aggressive responsiveness typical of Cervelo’s race heritage. On the road, the bike accelerates eagerly and holds speed well, with testers noting an "incredibly free-rolling feel" (Cycling Weekly) that makes it highly efficient on fast, flat sections. The revised carbon layup and wider tires effectively mute harsh pavement, delivering a "wonderful blend of pace, reactive handling and rut-reducing smoothness" (BikeRadar).
While the frame absorbs road chatter admirably, it remains stiffer than many dedicated comfort bikes. This rigidity pays off during hard efforts, as the bike "accelerates willingly" (Velomotion) and feels highly capable on climbs, though a few riders found it slightly heavy when accelerating from a standstill. The handling is generally described as stable and predictable rather than hyper-reactive, offering "great straight-line stability" (Velo) that requires a bit more rider input to carve through tight corners.
The primary criticism across reviews centers on the new downtube storage hatch. Multiple testers found the latch mechanism overly complex and frustrating to operate, noting that it requires specific bottle cage designs to open fully without interference. Additionally, several reviewers pointed out the steep pricing, noting that the bike demands a premium compared to similarly equipped competitors.
