Checkmate

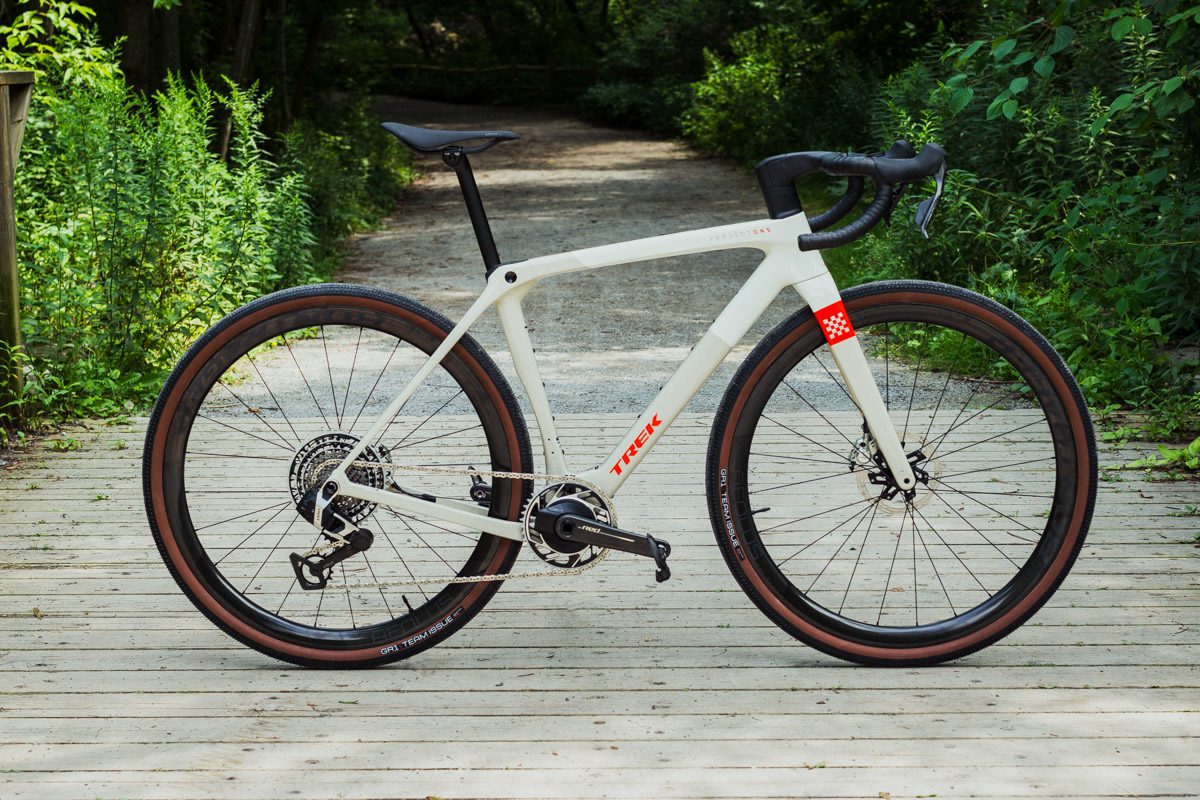

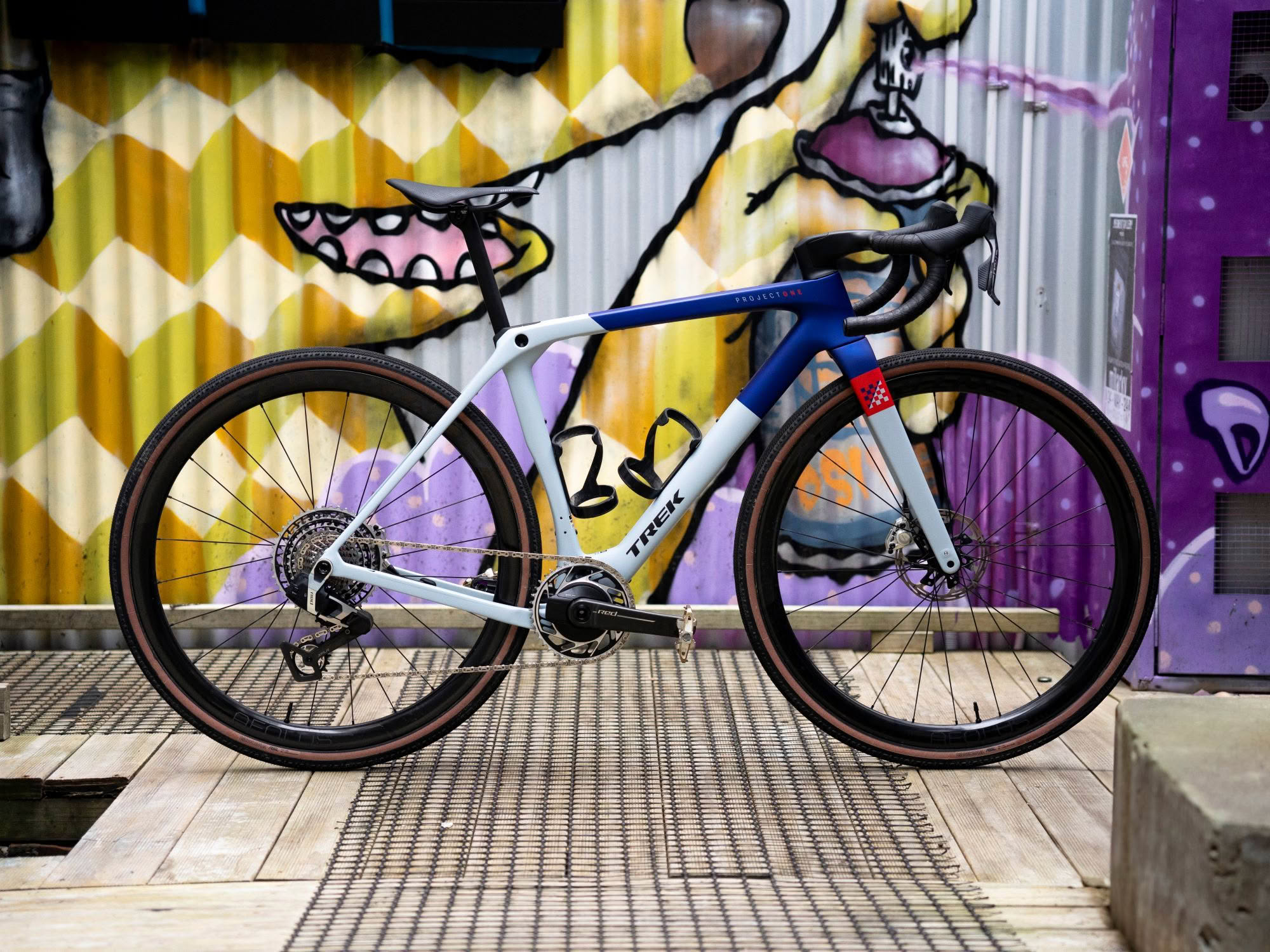

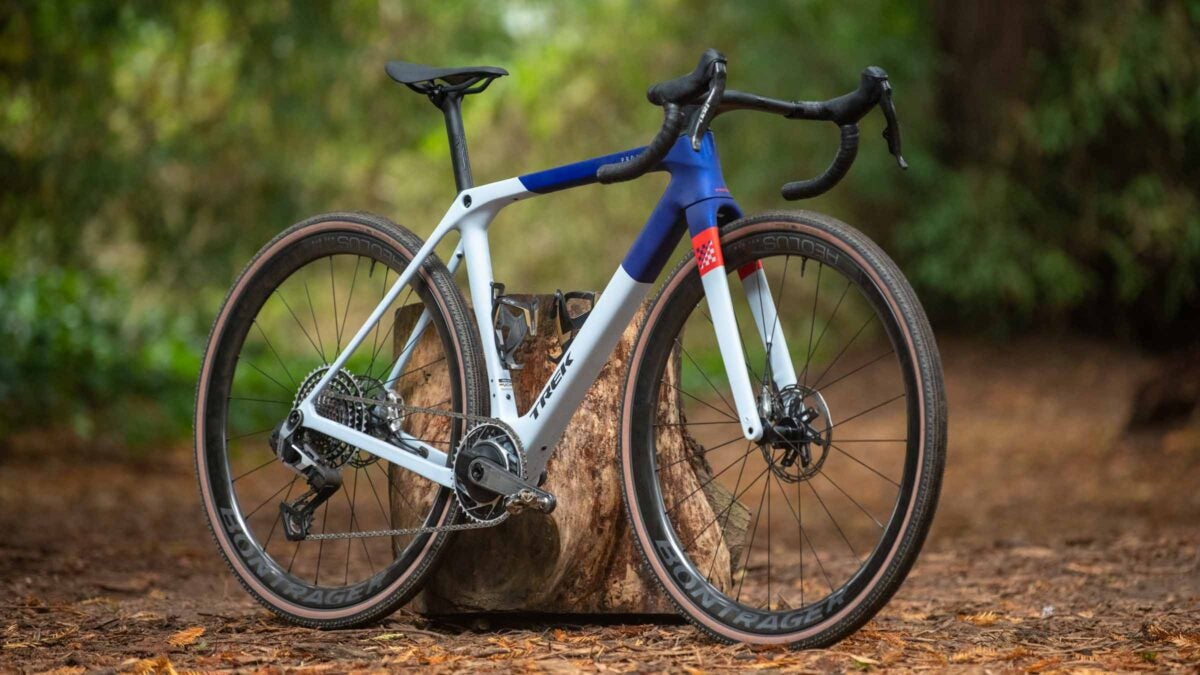

The Trek Checkmate is the brand's first dedicated gravel race platform, splitting away from the Checkpoint line to serve the pointy end of the competitive field. Built around a lightweight 800-series OCLV carbon frame, it borrows heavily from Trek's aerodynamic road bikes, utilizing similar tube shapes and a fully integrated cockpit to minimize drag. It is a highly specialized tool designed for maximum efficiency on hardpack and smooth dirt. By stripping away heavy cargo features and internal storage, Trek created a stripped-down machine that prioritizes forward momentum and low weight over all-terrain versatility or bikepacking utility.

Trek Checkmate

Build

Size

03 / Geometry

Geometry & fit.

6 sizes published.

The Checkmate introduces Trek's Gravel Race geometry, which pulls the rider into a lower, more aerodynamic posture compared to traditional adventure bikes. The stack is notably reduced, encouraging an aggressive tuck that closely mirrors a road racing position. Handling is shaped by a low bottom bracket drop, which keeps the rider's center of gravity close to the ground for stability during high-speed efforts.

The front end relies on the integrated Aero RSL bar and stem. This one-piece carbon cockpit features hoods that are narrower than the drops, forcing a tucked aerodynamic stance on the flats while offering a flared position for descending control. While the short chainstays keep the rear wheel tucked in for quick directional changes, the overall handling leans toward straight-line speed rather than nimble low-speed technical maneuvering. The low bottom bracket also requires riders to be mindful of pedal strikes on uneven terrain.

Reach × Stack · size Lmm

Where the handlebar sits relative to the bottom bracket — the single most important fit pair.

01Fit geometry6 values

Stack608 mm

Reach404 mm

Top tube581 mm

Headtube length174 mm

Standover height851 mm

Seat tube length537 mm

03Handling geometry7 values

Headtube angle72°

Seat tube angle73.6°

BB drop80 mm

Trail65 mm

Offset49 mm

Wheelbase1045 mm

Chainstay length426 mm

Which size should I buy?

Slide your height to see the recommended size. GearWise's fit algorithm works from the published stack, reach, and ETT — the brand's own recommendation may differ.

Your height

5'8"173 cm

5'0"5'5"5'10"6'3"6'7"

Recommended sizeSBased on stack, reach & ETT for your height · score 51/100.

→Calculated from GearWise's own stack / reach / ETT algorithm — the brand's size chart may recommend a different size, and a proper bike fit beats any calculator.

04 / Other builds

The lineup.

2 builds, ranging $8,200 – $12,000.

The Checkmate lineup is strictly premium, offering only two high-end carbon builds centered around SRAM's wireless 1x drivetrains. Both models share the exact same frameset and integrated cockpit, and both include dual-sided power meters and carbon wheels, cementing the bike's race-day intentions.

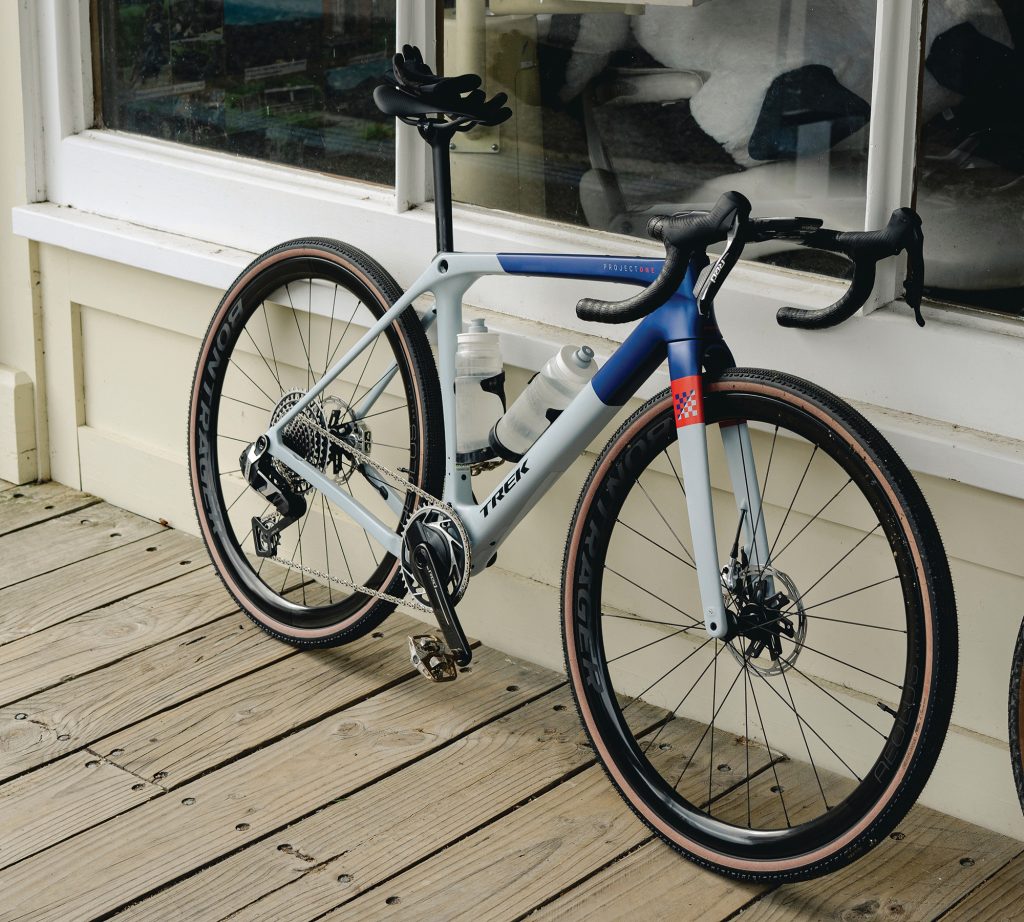

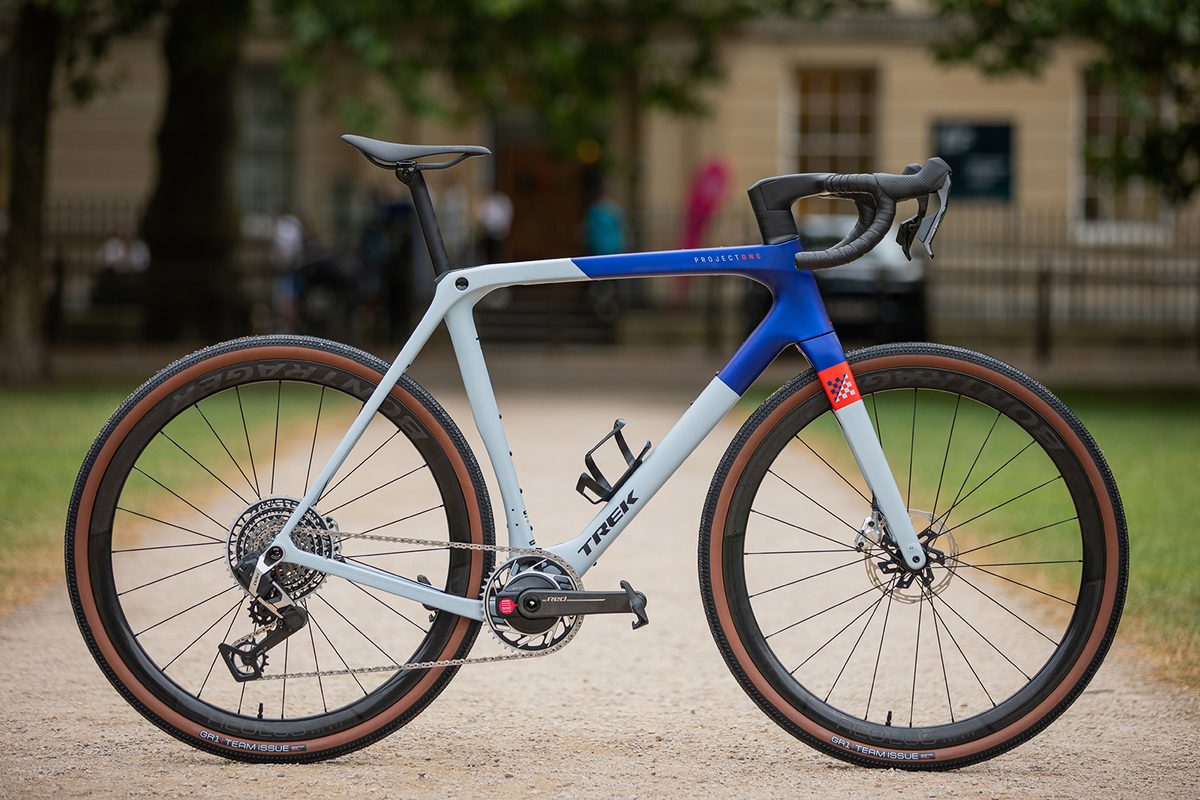

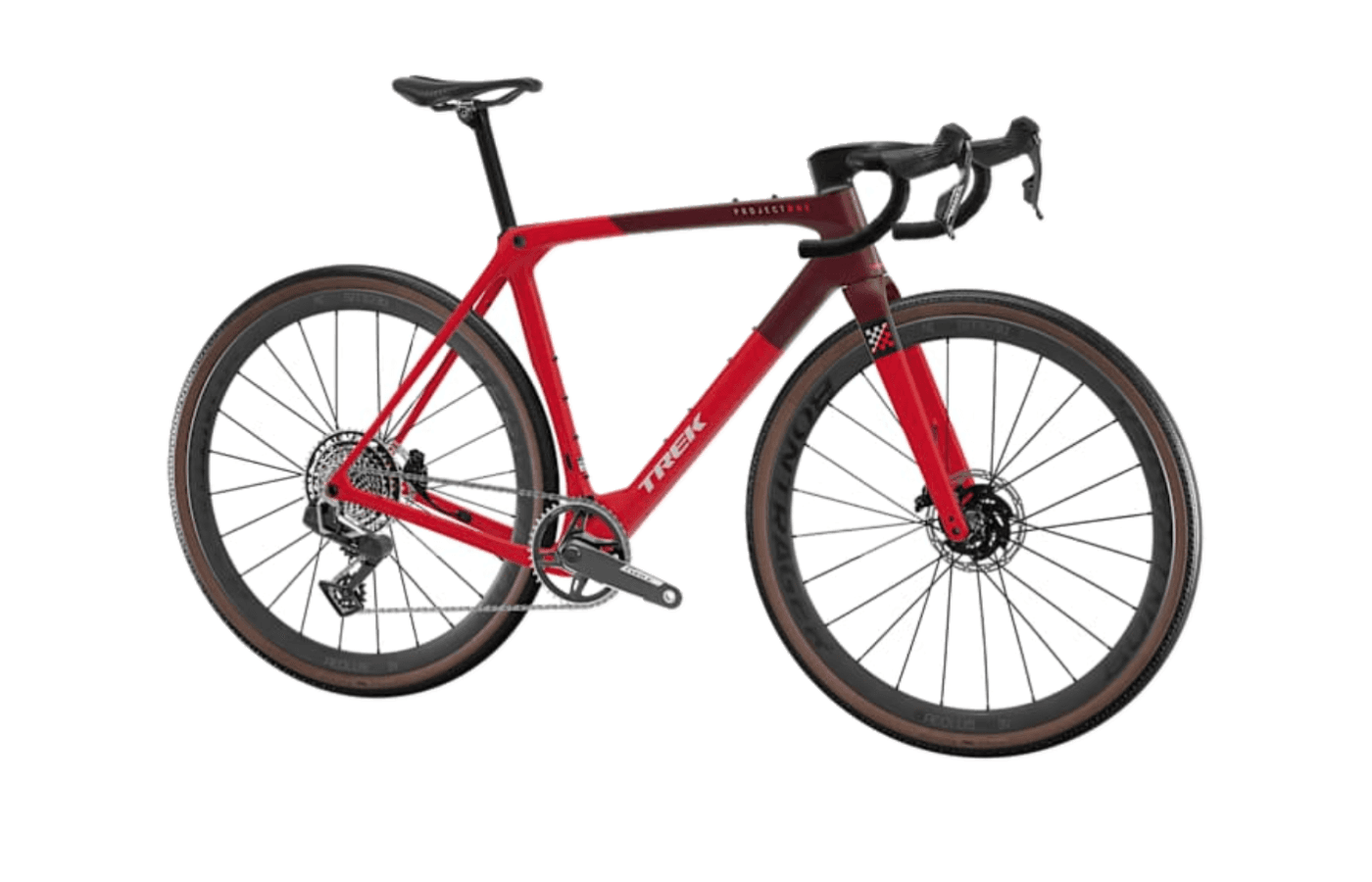

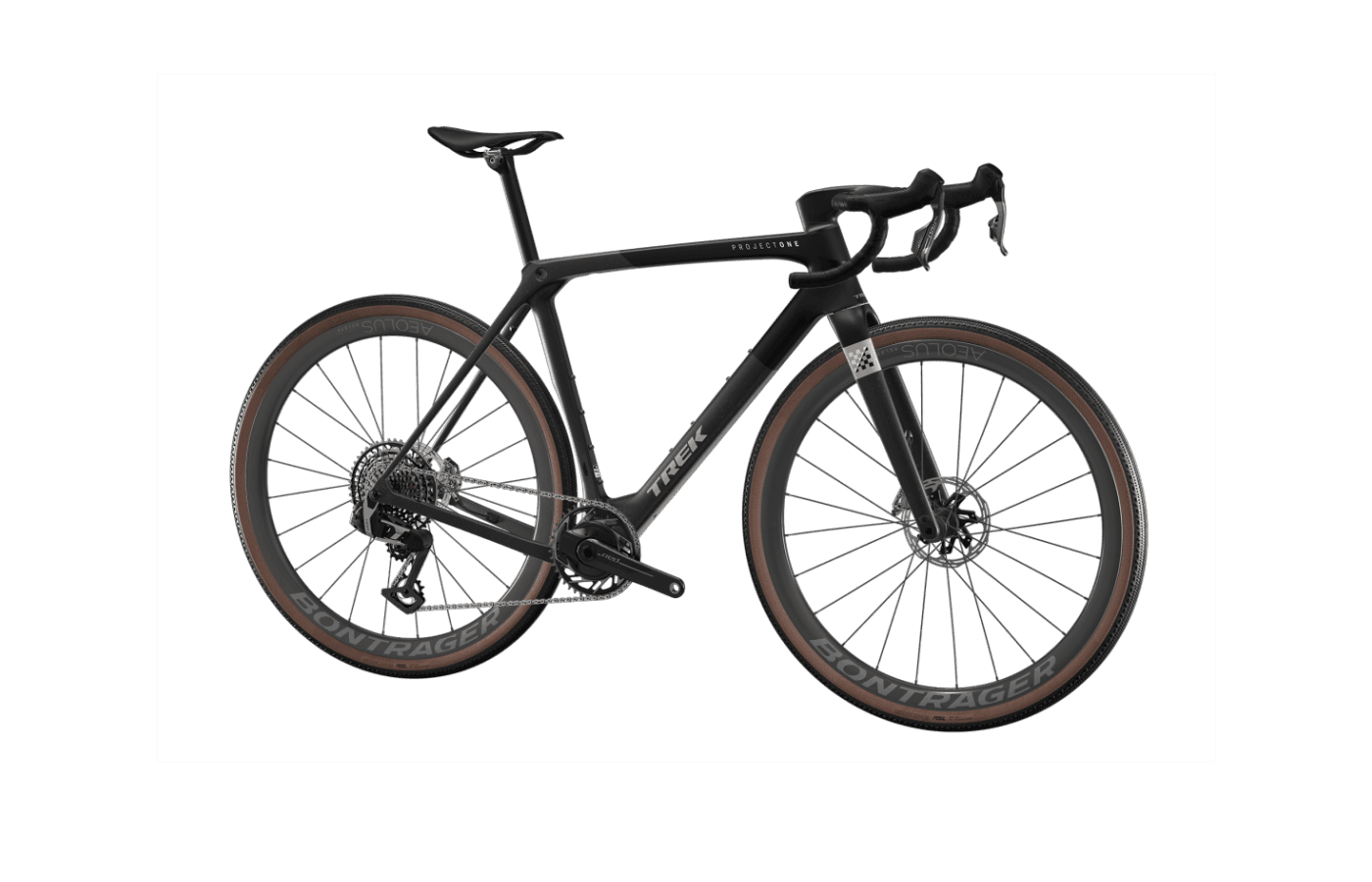

The entry point is the SLR 7 AXS, equipped with a 12-speed SRAM Force XPLR groupset and Bontrager Aeolus Pro 3V wheels. Stepping up to the flagship SLR 9 AXS introduces the 13-speed SRAM Red XPLR drivetrain and upgrades the rolling stock to the lighter Aeolus RSL 37V wheelset. The SLR 9 ships with fast-rolling 38mm tires, while the SLR 7 comes with slightly wider 42mm rubber. The frame clears up to 45mm across all builds. The lack of mid-tier or mechanical options keeps the price floor high, positioning the Checkmate exclusively for dedicated racers willing to invest in top-tier aerodynamic and weight savings.

05 / Reviews

From the press.

13 reviews from the cycling press.

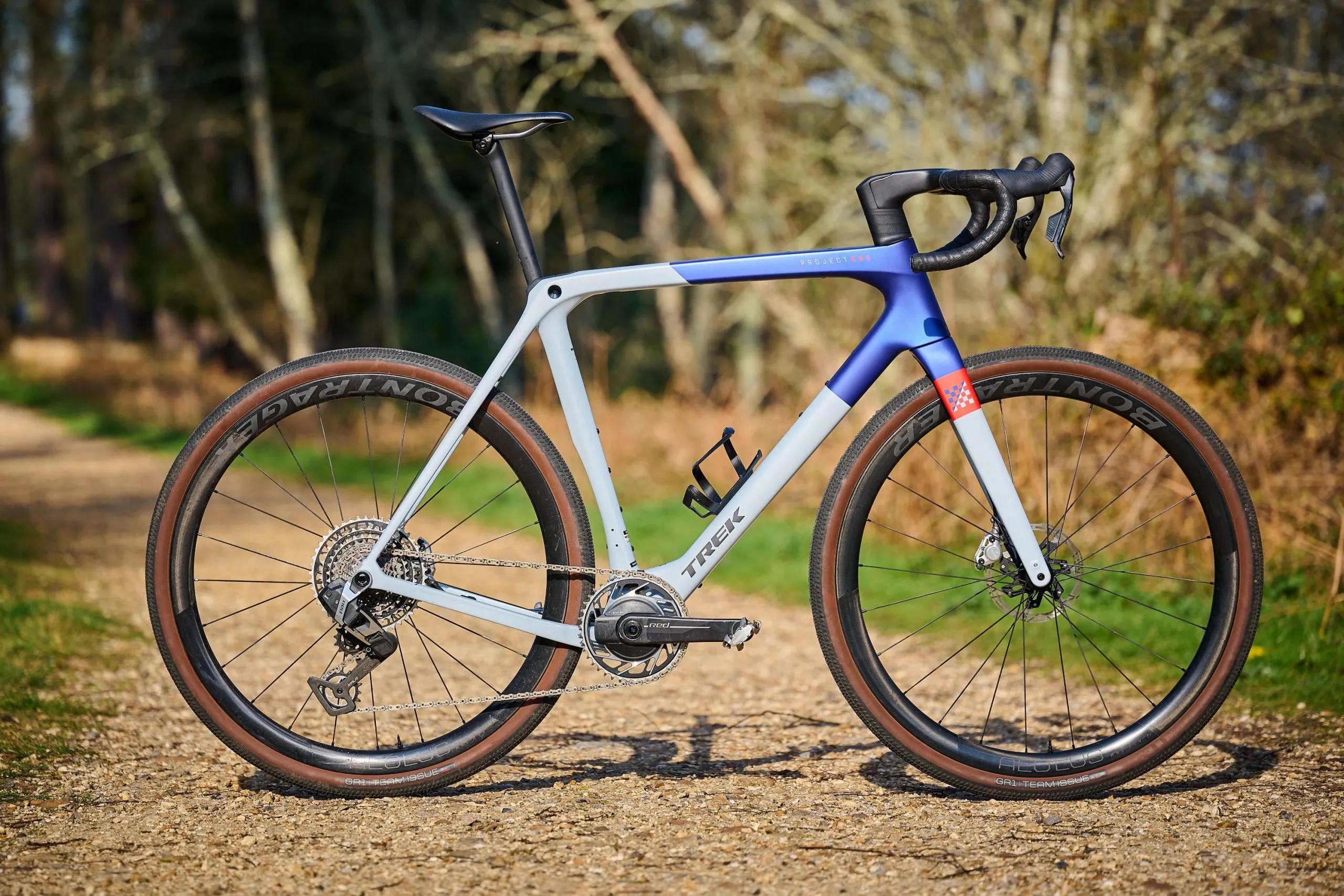

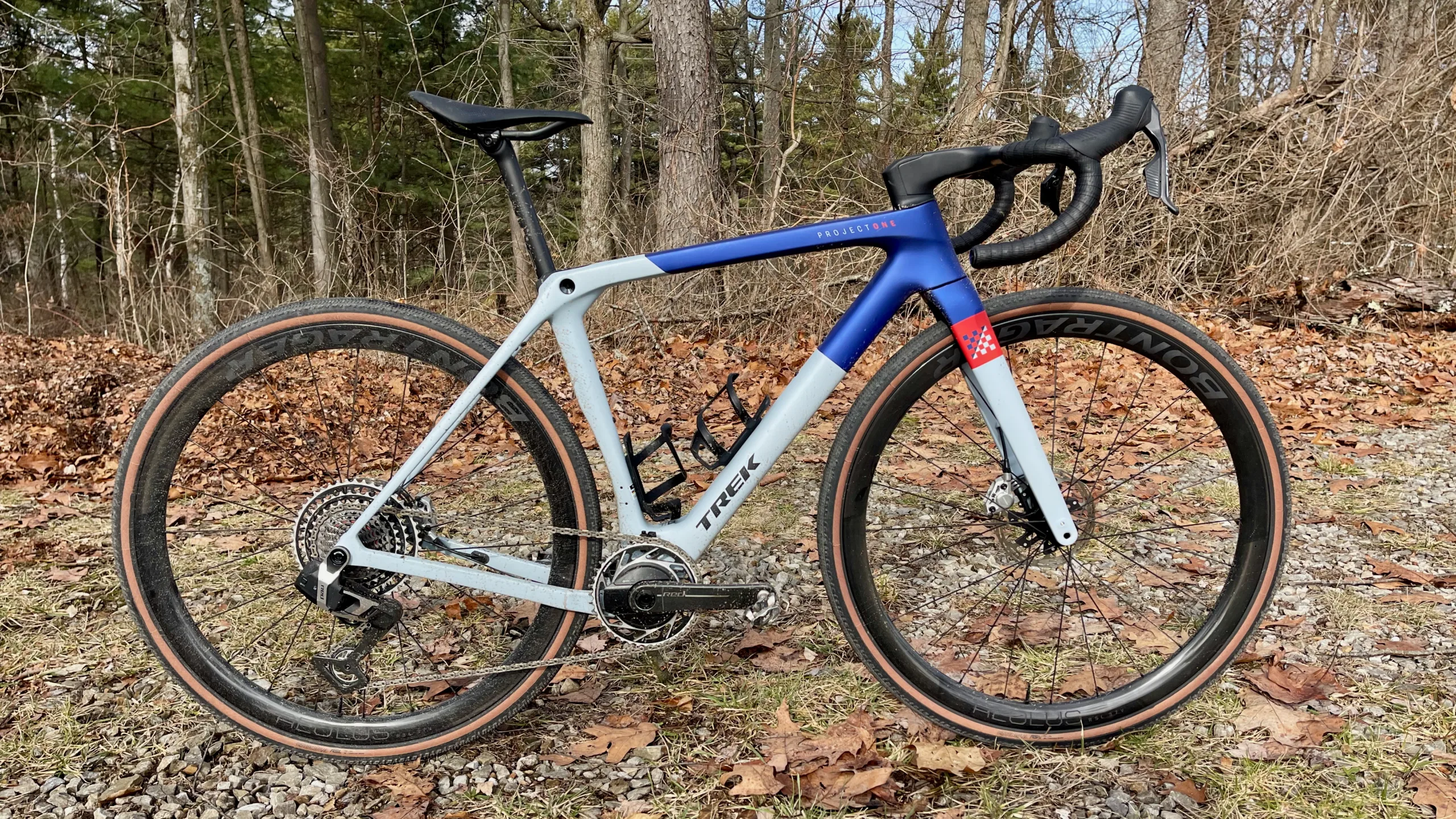

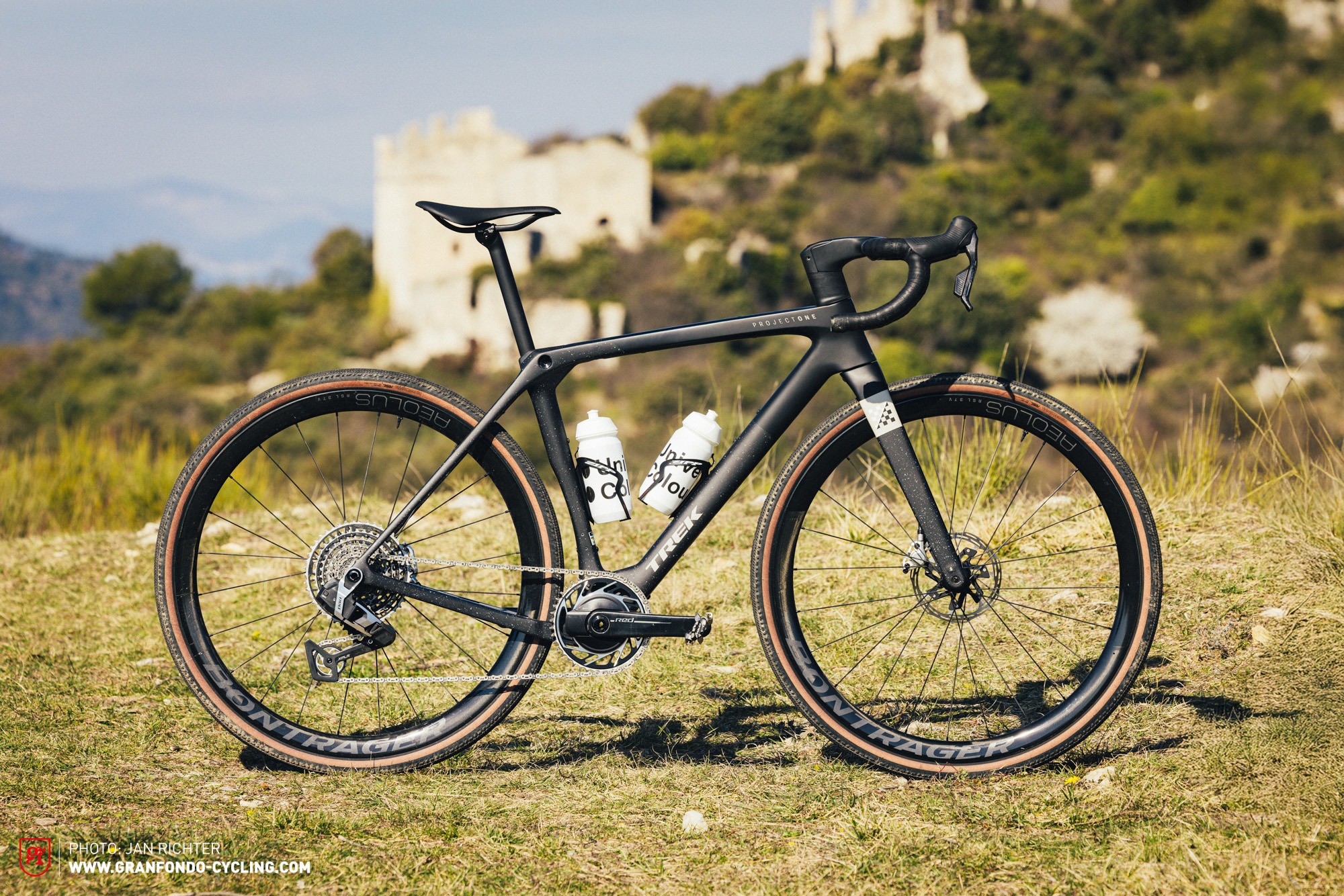

Reviewers consistently note the Checkmate's road-racing DNA, highlighting its rapid acceleration and efficiency on smooth surfaces. The bike excels on hardpack and pavement, where testers praise the "zippiness on sealed roads" (Nzcyclingjournal). The rear IsoSpeed decoupler earns high marks for maintaining traction and comfort, allowing riders to stay seated for a "smooth power transfer" (Nzcyclingjournal) over washboard sections.

However, testers point out a distinct imbalance in compliance between the front and rear. The integrated carbon cockpit is highly aerodynamic but transmits significant feedback, with one reviewer noting it feels "bordering on unforgiving" (BikeRadar) on rougher impacts. When the terrain transitions from champagne gravel to chunky rocks or technical singletrack, the stiff frame and narrow stock tires can produce "a bit of a jittery feeling" (Nzcyclingjournal). Pushed hard into loose corners, the geometry's focus on straight-line speed can occasionally result in "overrunning turns and fishtailing" (Velo). Ultimately, critics agree the bike is a specialized racing tool that trades plush, go-anywhere capability for uncompromising speed.
