Rift Zone 1

The 2023 Marin Rift Zone represents a thoughtful refinement of the brand’s aluminum trail platform, standardizing rear travel at 130mm across all adult wheel sizes. Rather than reinventing the bike's aggressive, do-it-all intent, Marin focused on modernizing the chassis. The Series 3 alloy frame now features a SRAM Universal Derailleur Hanger, improved chainstay protection, and reworked internal routing that passes cleanly through the forged main-pivot yoke to minimize cable movement.

Positioned as an accessible mid-travel option, the Rift Zone caters to riders who prioritize downhill capability and durability over cross-country efficiency. With its updated MultiTrac suspension kinematics designed to offer more progression and better support for modern air shocks, the bike is built to handle rougher terrain than its travel numbers might suggest. It serves as a robust foundation for aggressive trail riding, appealing to budget-conscious buyers who want a dependable frame that can grow with their skills.

$1,899
Marin Rift Zone 1
Build
Size
Stack628.2mm
Reach460mm
Top tube605mm
Headtube length115mm
Standover height691.2mm
Seat tube length400mm

Fit and geometry

The Rift Zone’s geometry heavily influences its aggressive trail character, blending a slack front end with a compact rear. A 65.5-degree head tube angle and a generous reach push the front wheel far forward, creating a stable platform for steep descents. To balance this, Marin utilizes short 430mm chainstays across all frame sizes. This tight rear center makes the bike eager to change direction and easy to manual, though it requires the rider to maintain an active, forward-biased posture to keep the front tire gripping in flat or sweeping corners.

For climbing, the steep 77-degree seat tube angle places the rider in an upright, centered position over the bottom bracket. This forward seating arrangement helps maintain power transfer and keeps the front wheel planted on most ascents, though the high stack and short chainstays can still lead to some front-end wander on the steepest pitches. A low bottom bracket further integrates the rider into the bike, contributing to a secure, centered feel when navigating technical terrain.

Full specs

Frameset

Frame

Series 3 6061 Aluminum, 27.5 or 29" wheels, 130mm travel, MultiTrac suspension platform, 148x12mm Boost thru-axle, 73mm threaded BB w/ ISCG05 tabs

Fork

X-Fusion Slide (29) or Sweep (27.5) Boost RC, 140mm travel, compression and rebound adjustment, 44mm offset

Rear shock

X-Fusion O2 Pro R, custom tune, 210x55mm, M8x25mm hardware (top and bottom)

Groupset

Shift levers

Shimano SL-U6000-11R, 11-speed

Rear derailleur

Shimano RD-U6000, 11-speed GS

Cassette

Shimano CS-LG400-11, 11-speed, 11-50T

Chain

Shimano LG-500, 11-speed

Crankset

Marin forged alloy crankset, integrated steel 32T narrow-wide chainring, 170mm crank length, Boost spacing

Bottom bracket

External sealed cartridge bearing (73mm threaded)

Front brake

Tektro HD-M280 hydraulic disc

Rear brake

Tektro HD-M280 hydraulic disc

Front rotor

180mm

Rear rotor

180mm

Wheelset

Front wheel

Marin aluminum double wall, 29mm internal, pinned joint, disc-specific, tubeless compatible; Shimano HF-MT400B, 110x15mm, Centerlock; 14g black stainless steel

Rear wheel

Marin aluminum double wall, 29mm internal, pinned joint, disc-specific, tubeless compatible; Shimano HB-MT200B, 141 QR, Centerlock, standard freehub body; 14g black stainless steel

Front tire

Vee Tire Snap WCE 2.35", Top 40 compound, GXE core, 90 TPI, tubeless compatible

Rear tire

Vee Tire Snap WCE 2.35", Top 40 compound, GXE core, 90 TPI, tubeless compatible

Cockpit

Stem

Marin 3D forged alloy, 35mm

Handlebars

Marin Mini-Riser, 6061 double-butted aluminum, 780mm width, 28mm rise, 5° up, 9° back

Saddle

Marin Speed Concept

Seatpost

X-Fusion Manic dropper, 30.9mm, 1x composite remote (XS–S: 150mm travel; M–XL: 170mm travel)

Grips

Marin MTN, closed end

Builds

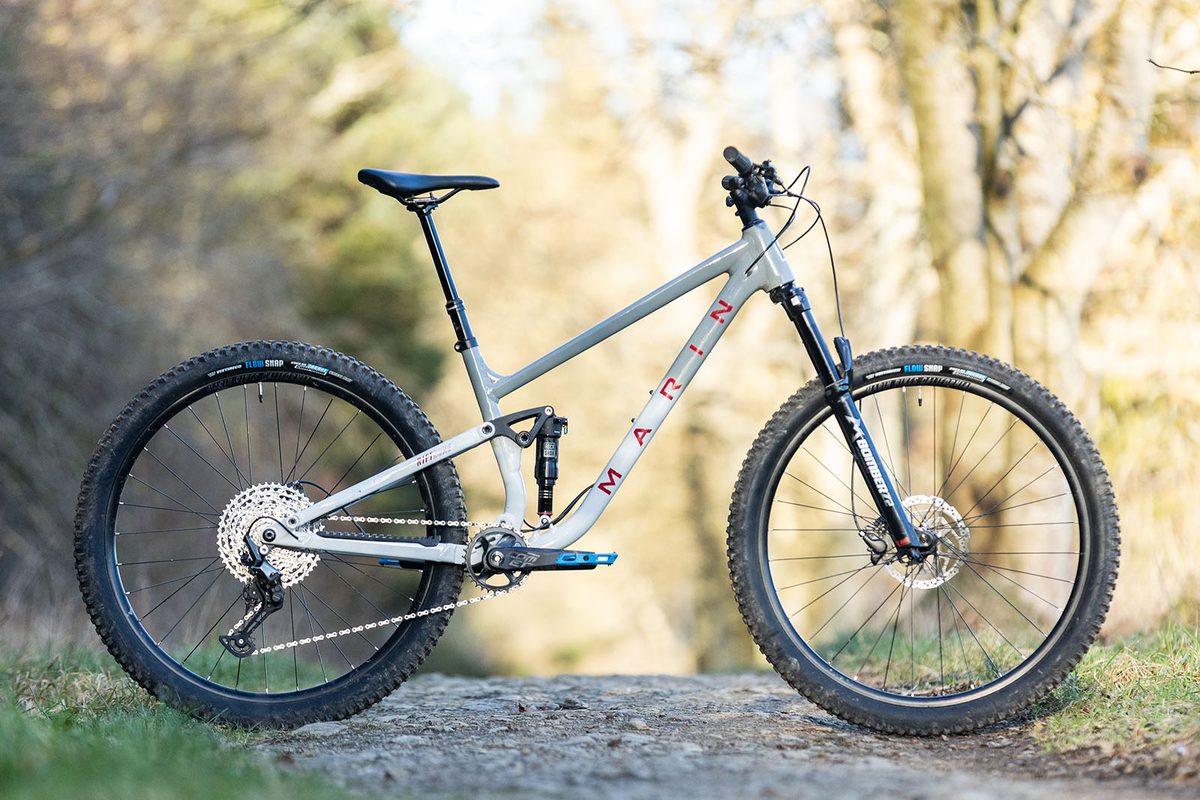

The Rift Zone lineup spans four aluminum builds, ranging from the entry-level 1 to the premium XR AXS. The lower-tier 1 and 2 models offer an accessible entry point but come with notable component compromises. Reviewers frequently criticized the Shimano MT200 two-piston brakes found on the Rift Zone 2 as underpowered for the bike's capabilities, and the stock Vee tires were often cited for their heavy drag and unpredictable wet grip.

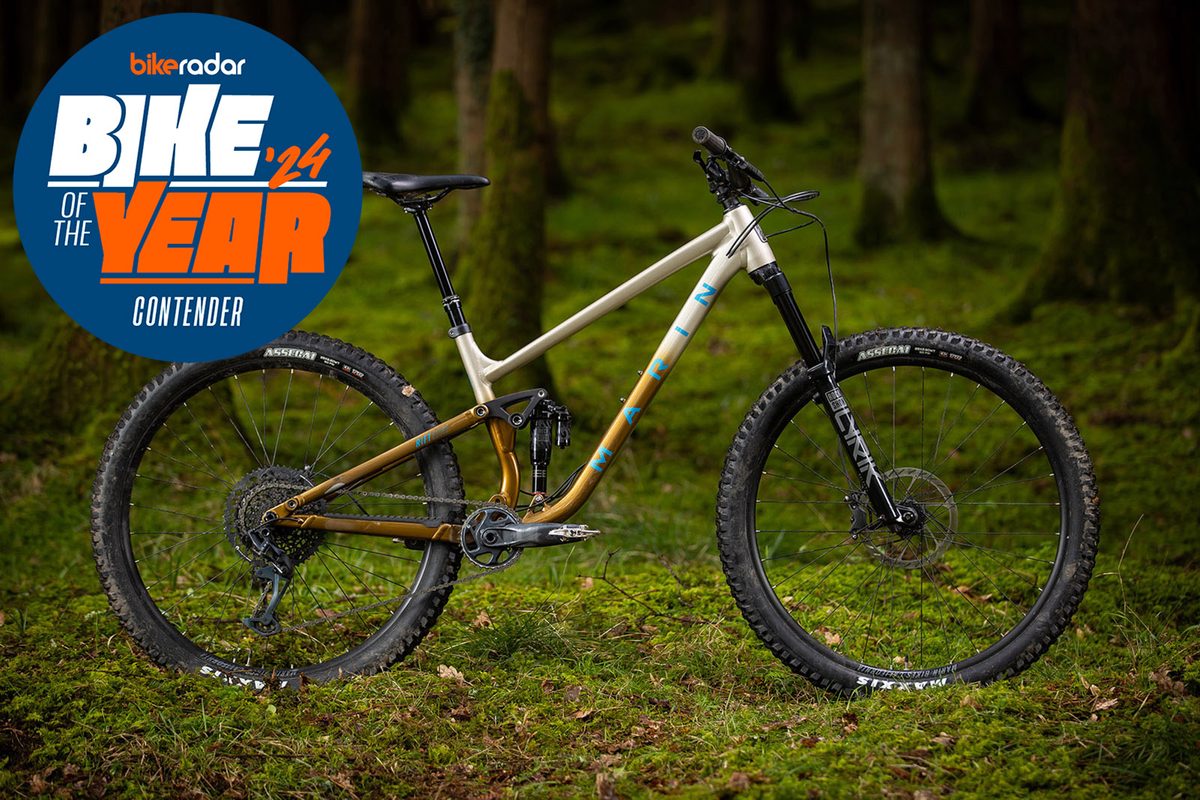

Stepping up to the XR and XR AXS builds materially changes the bike's performance ceiling. These models upgrade to longer 150mm forks—such as the Marzocchi Bomber Z1 or RockShox Lyrik Select+—and feature piggyback rear shocks that better handle sustained, rough descents. The XR builds also introduce four-piston brakes, which testers found essential for managing the bike's downhill speed.

Across all price points, the Series 3 frame remains identical, making the lower-tier models viable platforms for gradual upgrades. While the base builds require some immediate component swaps to maximize the frame's capabilities, the XR models are widely regarded as offering a complete, trail-ready package with reliable drivetrains and robust suspension.

Reviews

Reviewers consistently characterize the Rift Zone as a highly capable descender that requires some extra effort on the climbs. The updated MultiTrac suspension earns praise for its progressive nature, providing excellent small-bump sensitivity while ramping up to handle larger impacts. This supportive kinematic leads many testers to note that the bike feels like a "mini-enduro rig" (Flow Mountain Bike) when pointed downhill.

However, that aggressive attitude comes with a noticeable penalty in rolling speed. Across the build range, the bike's overall weight and sticky stock tires make it sluggish on flat terrain and ascents. Testers frequently pointed out that the aggressive rubber puts a "serious dent into rolling speed" (Flow Mountain Bike), with several recommending a faster-rolling rear tire as an immediate upgrade for longer rides.

While the suspension tracks well through rough sections, a few reviewers observed that the rear end stiffens slightly under heavy braking, causing the rear wheel to skip over braking bumps. Despite this, the overall descending composure remains a highlight. The bike's handling is generally praised, though the short rear center means that on fast, flat turns, riders must "actively weight the front wheel to prevent washing out" (Theloamwolf). Ultimately, the consensus points to a fun, durable trail bike that trades some uphill efficiency for downhill stability.
