Frameset
Frame
Kona Race Light 6061 Aluminum Butted, 120mm travel
Fork
Fox 34 Float Rhythm, 130mm, tapered steerer, 110mm spacing
Rear shock
Fox Float Rhythm
The tenth-generation Kona Hei Hei marks a deliberate shift from its cross-country racing origins toward a more versatile light trail application. Moving away from the minimalist flex-stay designs common in modern XC, Kona redesigned the frame around a linkage-driven single pivot that prioritizes suspension performance and long-distance comfort over absolute weight savings. With a bump to 130mm of fork travel and 120mm at the rear, the bike is positioned for riders who want an efficient pedaling platform for massive backcountry days but need enough descending capability to handle rough, unpredictable terrain. The carbon frame also leans heavily into practicality, featuring a straighter seat tube to accommodate long-travel dropper posts and an expansive front triangle equipped with nine accessory mounts. It is a pragmatic, endurance-focused machine built to cover ground quickly without punishing the rider when the trail turns steep and technical.

| Stack | 620mm |
| Reach | 449mm |
| Top tube | 605mm |
| Headtube length | 120mm |
| Standover height | 752mm |
| Seat tube length | 410mm |
The Hei Hei’s geometry reflects its light trail intentions, utilizing a slack 66-degree head tube angle and a longer reach to generate high-speed stability. This stretched front center is balanced by a compact 435mm chainstay length across all sizes, which keeps the rear wheel tucked in for quick cornering and easy front-end lifts.
Rider posture is dictated by a moderately steep effective seat tube angle of roughly 76 degrees. This places the rider in a comfortable, upright pedaling position that works well for rolling terrain and long days in the saddle. However, the fit can feel slightly stretched on the largest sizes. Taller riders on the XL frame noted that the combination of a long top tube and relatively low stack height pulled their weight heavily over the front wheel, requiring more deliberate body English to maintain traction on steep climbs and awkward descents.
The frame’s straightened seat tube is a major functional update, allowing for massive dropper post insertion. Smaller frames can run up to a 225mm post, while the XL accommodates up to 330mm of insertion, ensuring riders can get the saddle completely out of the way when navigating steep, technical terrain.
Frameset
Frame
Kona Race Light 6061 Aluminum Butted, 120mm travel
Fork
Fox 34 Float Rhythm, 130mm, tapered steerer, 110mm spacing
Rear shock
Fox Float Rhythm
Groupset
Shift levers
SRAM Eagle 70
Rear derailleur
SRAM Eagle 70 Transmission
Cassette
SRAM 1270 Eagle T-TYPE, 10-52T, 12-speed
Chain
SRAM Eagle 70 Transmission
Crankset
SRAM Eagle DUB crankarms, 32T chainring
Bottom bracket
SRAM DUB WIDE PF92
Front brake
SRAM Motive Bronze, 4-piston (caliper/lever set)
Rear brake
SRAM Motive Bronze, 4-piston (caliper/lever set)
Front rotor
SRAM Centerline, 180mm
Rear rotor
SRAM Centerline, 180mm
Wheelset
Front wheel
WTB ST i30 TCS 2.0; Formula, 110x15mm; Stainless Black
Rear wheel
WTB ST i30 TCS 2.0; Formula, 148x12mm; Stainless Black
Front tire
Maxxis Dissector, EXO TR, 29x2.4"
Rear tire
Maxxis Dissector, EXO TR, 29x2.4"
Cockpit
Stem
Kona XC/BC 35
Handlebars
Kona XC/BC 35
Saddle
WTB Volt
Seatpost
TranzX Dropper +RAD Internal, 31.6mm, w/ SRAM lever
Grips
Kona Key Grip
Kona keeps the Hei Hei lineup exceptionally streamlined, offering just two complete builds alongside a standalone carbon frameset. Both complete bikes utilize mechanical SRAM drivetrains, a deliberate choice that prioritizes long-term reliability, lower replacement costs, and ease of maintenance over the complexity of electronic shifting.
The flagship CR G10 build is anchored by a premium RockShox suspension package, pairing a highly tunable Pike Ultimate fork with a Deluxe Ultimate rear shock. This top-tier damping is a major value add, elevating the bike's descending capability far beyond typical cross-country expectations. The drivetrain features SRAM's Eagle 90 mechanical transmission, while stopping duties are handled by SRAM Motive Bronze four-piston brakes. Rolling stock consists of WTB KOM Team i30 rims laced to DT Swiss 370 hubs, wrapped in aggressive Maxxis Dissector tires that favor cornering grip over pure rolling speed.
The more accessible G10 build swaps the carbon frame for aluminum and steps down to Fox Rhythm suspension. It utilizes a SRAM Eagle 70 mechanical drivetrain but retains the same dependable Motive Bronze four-piston brakes and Maxxis Dissector tires. Across both models, the component selection clearly favors durability and trail-ready performance over weight savings, resulting in complete bikes that hover just over the 30-pound mark.

G10
$3,999

CR G10
$6,299
Reviewers consistently characterize the Hei Hei as a highly capable endurance machine that trades a bit of climbing speed for significant descending composure. The transition to the new Swinger suspension layout is widely praised for its plush, active feel. On technical ascents, the rear wheel maintains excellent grip, providing "velcro traction on the ups" (Theradavist) to help riders clean rooty, awkward sections. While the active suspension does exhibit some pedal bob on smooth fire roads when left fully open, engaging the shock's lockout quickly firms up the platform for efficient power transfer.
When pointed downhill, the bike feels remarkably stable for its travel bracket. The longer wheelbase and robust suspension allow it to remain "composed while blasting through rough sections" (NSMB), though testers note it will eventually find its limit in high-speed, jarring rock gardens where a true enduro bike would plow through. Despite this stability, the relatively short rear end keeps the handling dynamic, making the bike "easy to flick around and maneuver in tight corners" (Blisterreview).
The consensus points to a low-fatigue ride quality that excels on multi-day trips and long backcountry loops. While its overall weight puts it at a disadvantage against dedicated cross-country race bikes on smooth climbs, the Hei Hei ultimately "gives the impression of a larger trail bike" (Bikepacking) while retaining the efficiency needed to cover massive distances.

Escape Collective

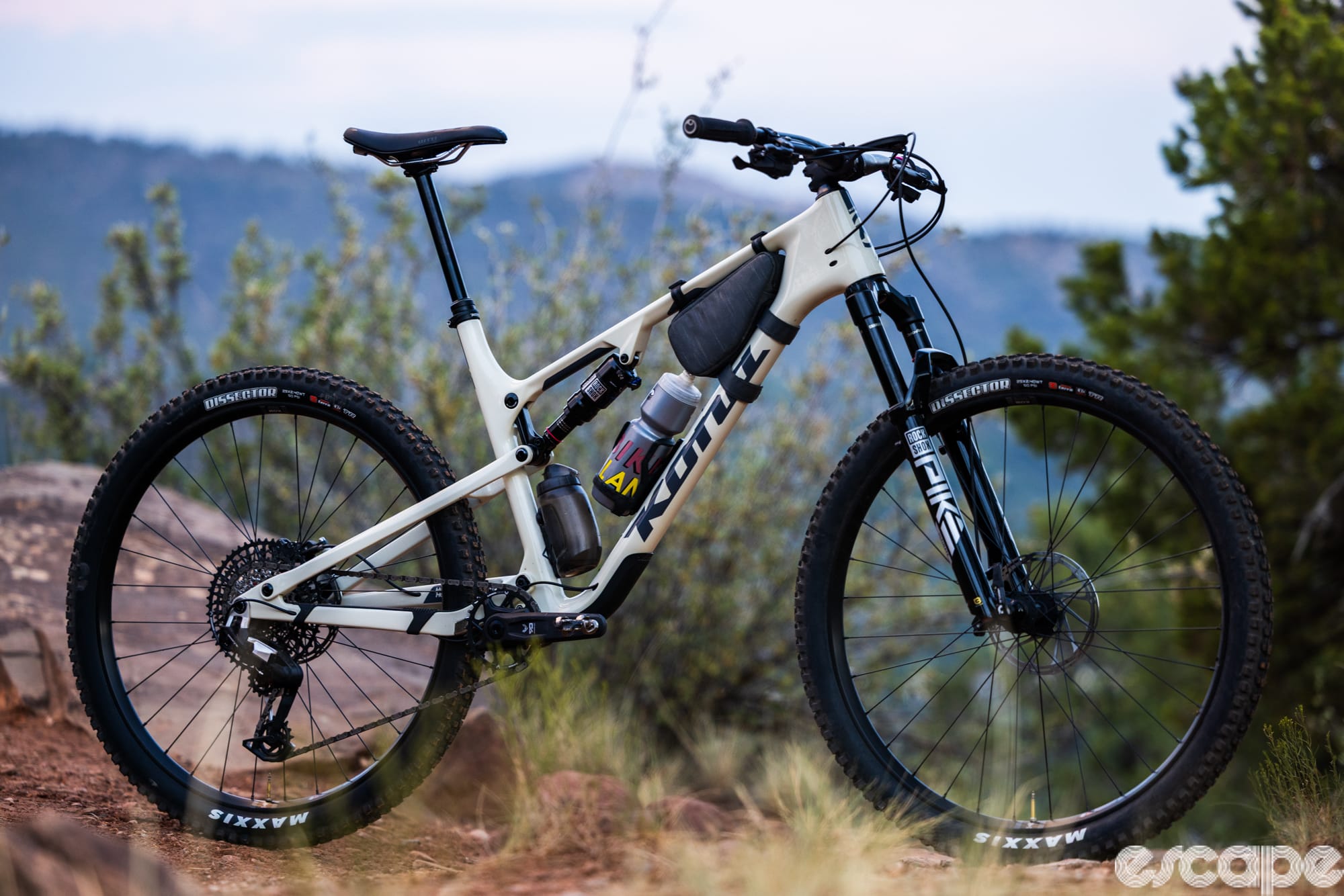

Kona Hei Hei review: Not your grandaddy's XC bike

YouTube
Norco Revolver vs. Kona Hei Hei in BC's Backcountry Nirvana

NSMB

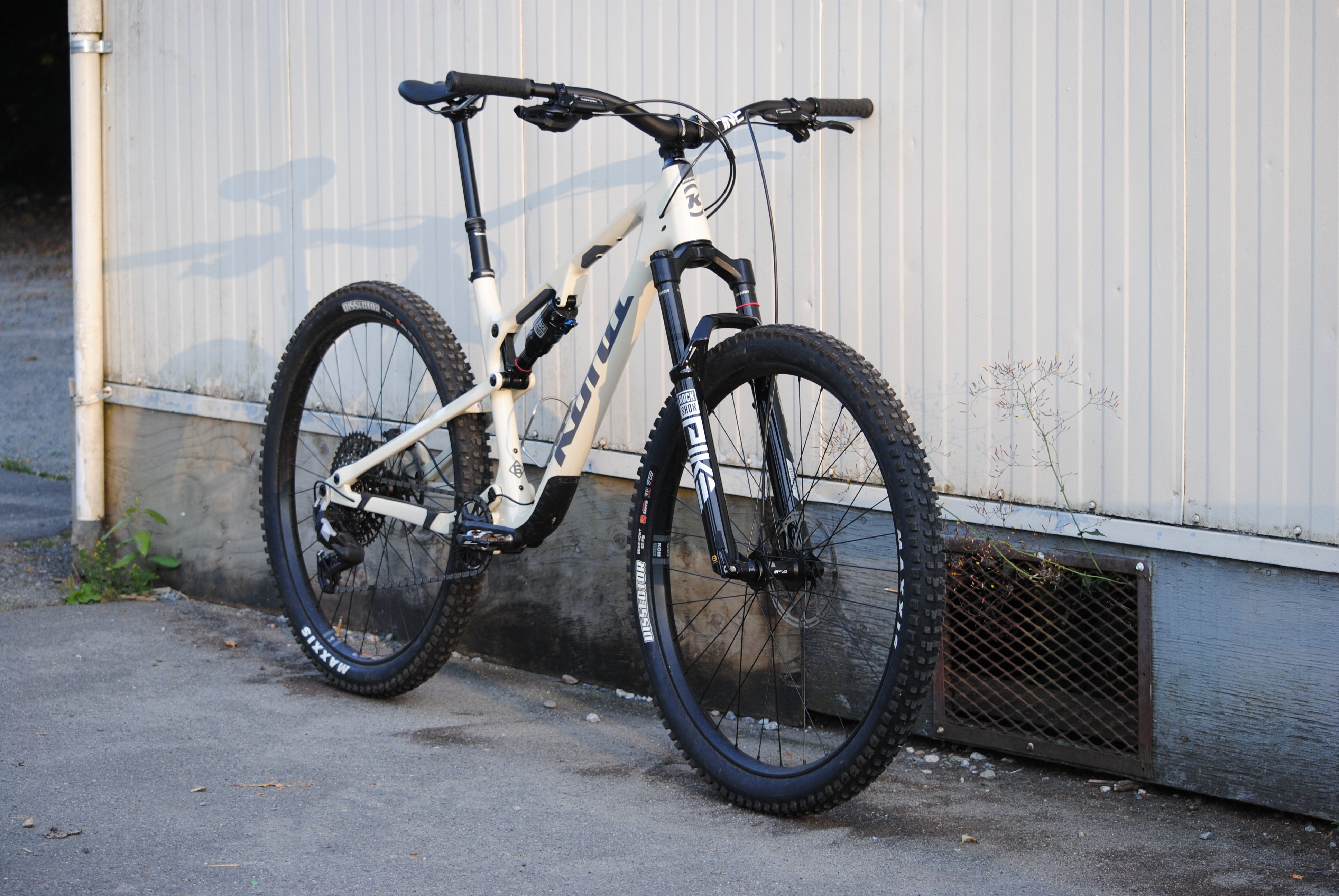

2025 Kona Hei Hei - Blurring Boundaries

Blisterreview
Deep Dive: Kona Hei Hei 10

Blisterreview
Deep Dive: Kona Hei Hei 10

Blisterreview

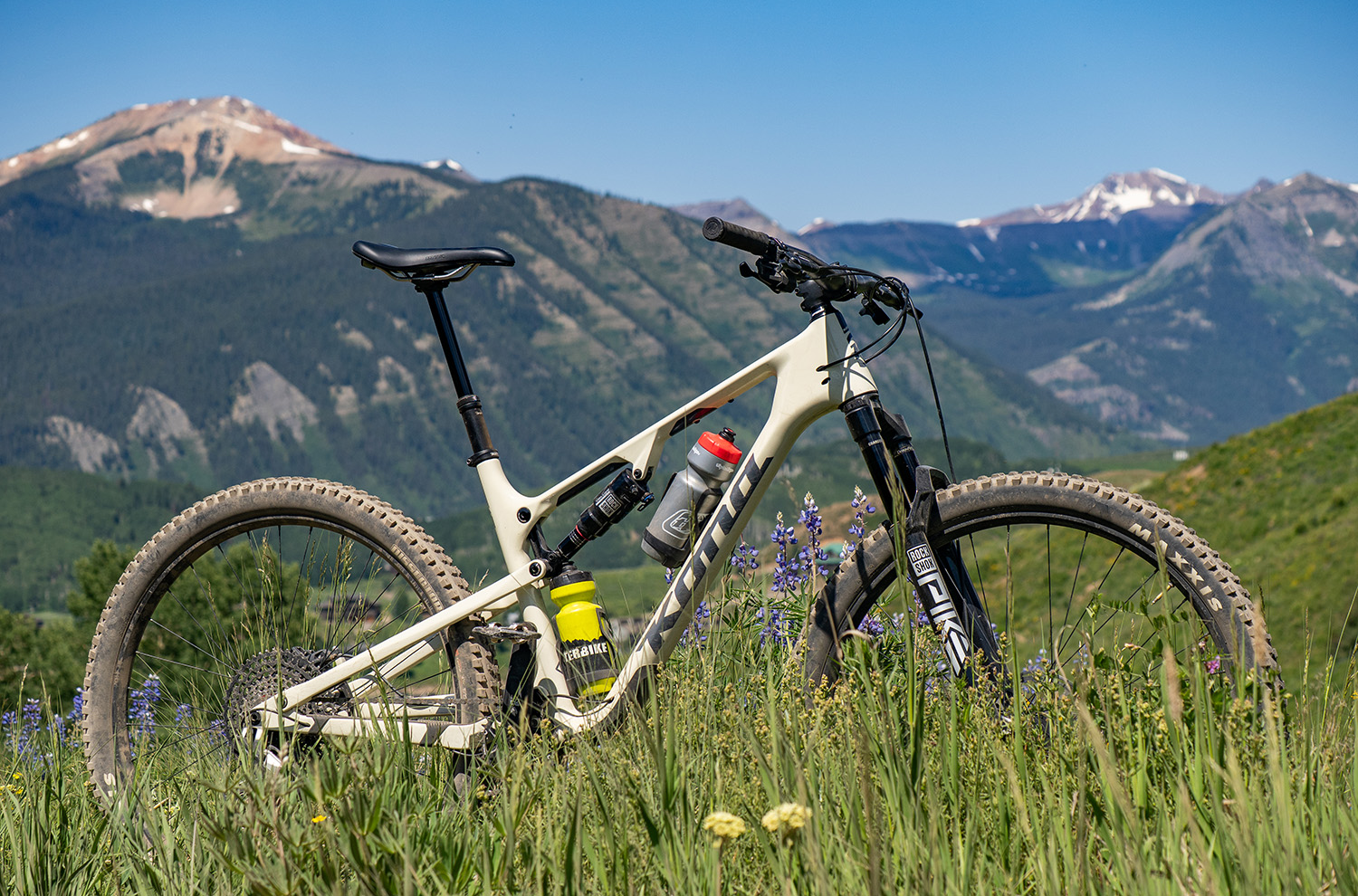

Kona Hei Hei 10 - Blister Review

Theradavist
2025 Kona Hei Hei CR Review: A Mountain Bike

Bike Rumor
Kona’s 2025 Hei Hei CR Can Chase Podiums or Charge Your Favorite Trails

Cyclonline

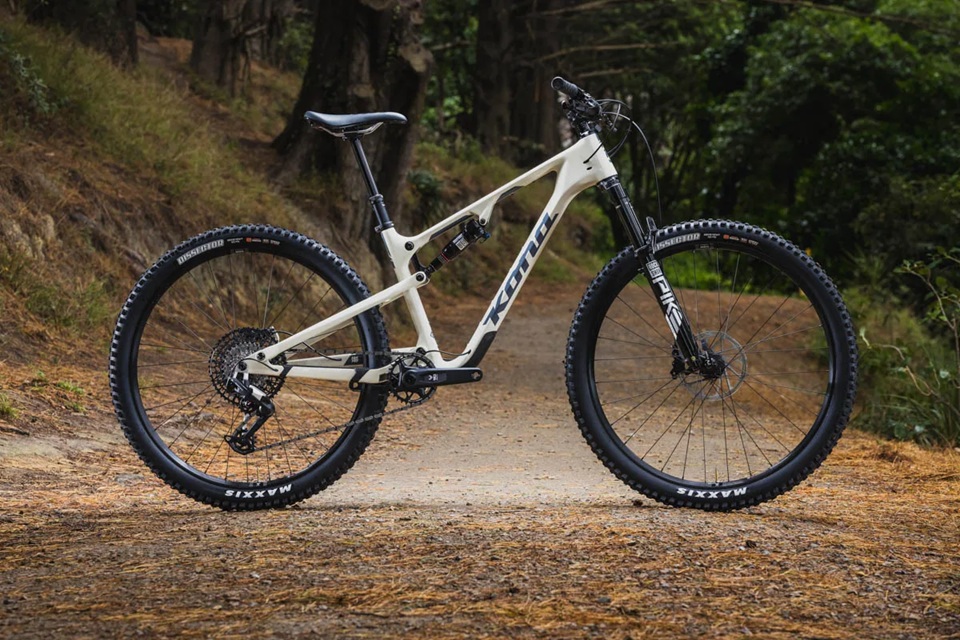

KONA HEI HEI 2025: Test, Review, First Impressions of the Professionals, Strengths, Weaknesses, Problems, Performance, Opinions, Everything You Need to Know (Really)

Bikepacking

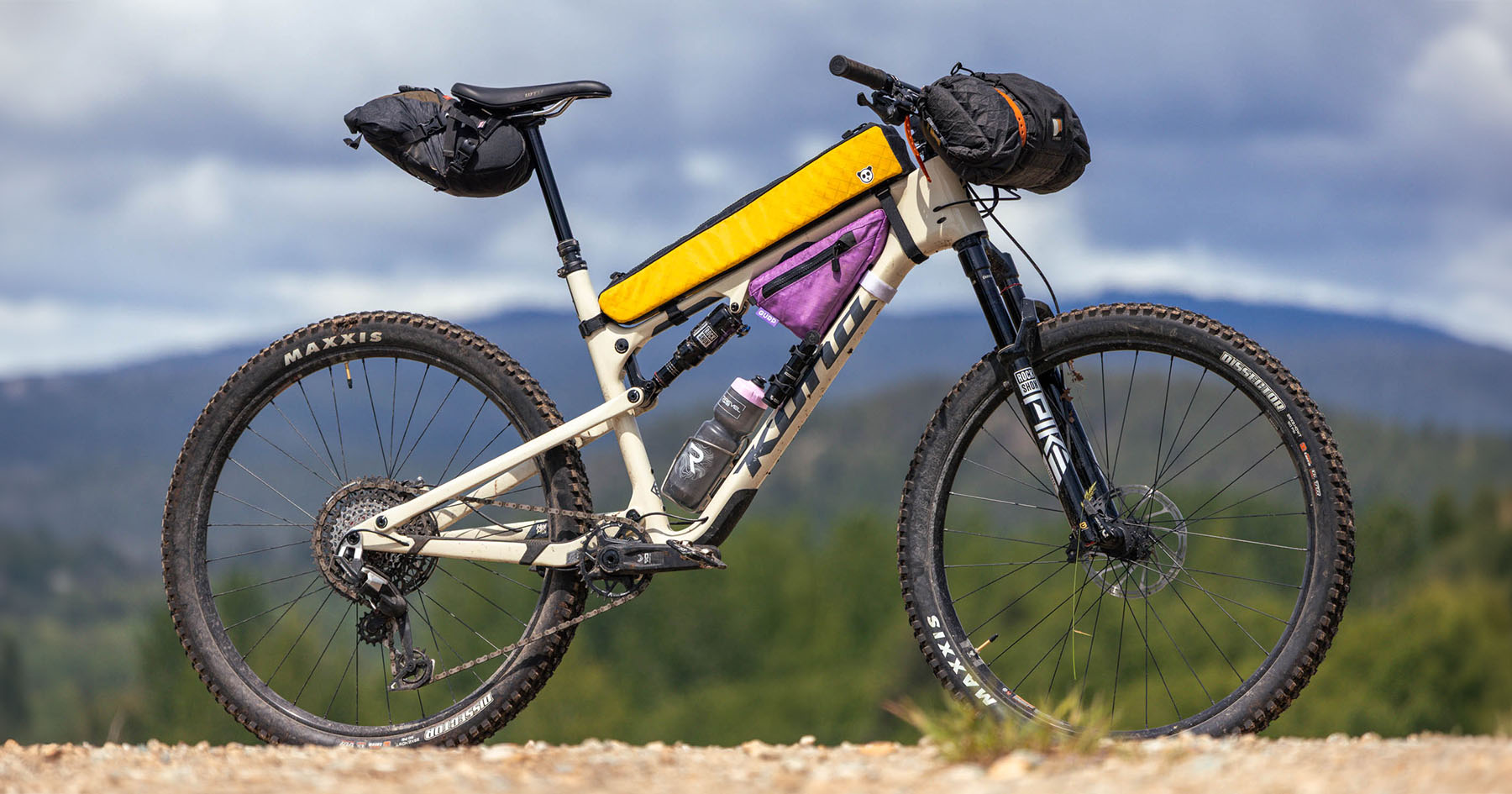

2025 Kona Hei Hei Review: Tenth Time's a Charm

Bikepacking

PinkBike

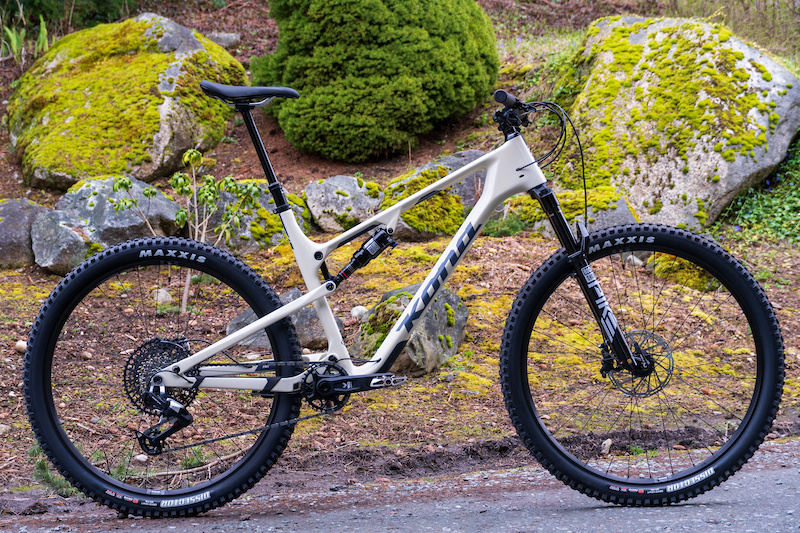

First Ride: Kona Hei Hei CR - The 10th Generation - Pinkbike

Mountain Bike Action

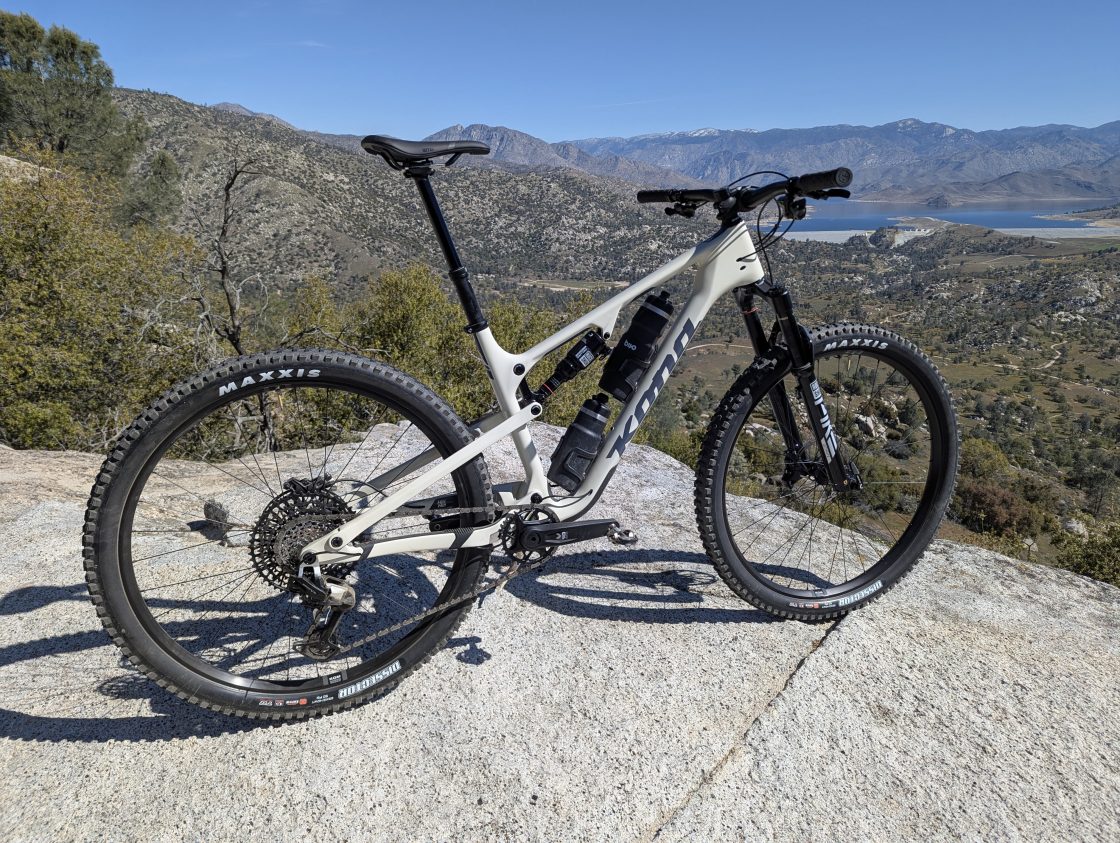

First Ride Review: Kona’s All-New Hei Hei Cross Country Bike Is the Fast Way to Fun
