Spectral CF 8 SRAM GX Eagle AXS Transmission

The 2024-on Canyon Spectral marks a deliberate repositioning of the model back into the heart of the modern trail category. Canyon trimmed travel to 150mm front and 140mm rear, kept the head angle at 64 degrees, and steepened the seat angle to 76.5 degrees, creating a bike that is meant to cover a wide range of riding rather than overlap too heavily with the brand’s enduro-focused Strive. The redesign is centered on a new carbon frame with updated suspension kinematics, a one-piece rocker link, and a more compliant rear end, while still allowing a 160mm fork for riders who want to push it slightly harder. In 2025, Canyon extended the same platform into the Spectral AL, carrying over the same core geometry and travel concept in aluminum.

$5,099SKU 4023; Color: Stealth

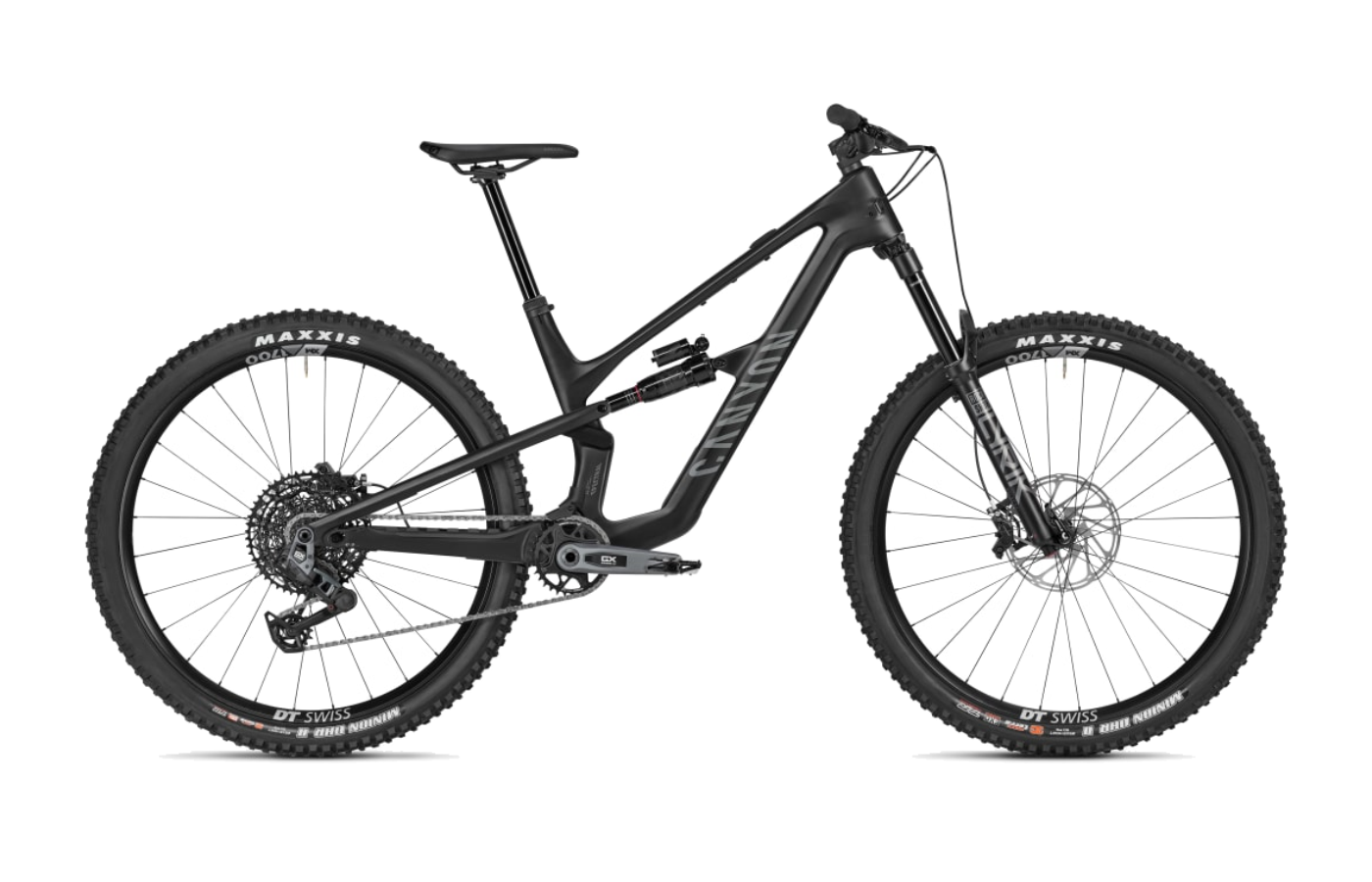

Canyon Spectral CF 8 SRAM GX Eagle AXS Transmission
Build
Size

Inventory

Stack621mm
Reach450mm
Top tube599mm
Headtube length110mm
Standover height749mm
Seat tube length400mm

Fit and geometry

The geometry is modern without being extreme, and the numbers point clearly to a stable, aggressive trail-bike fit. A 64-degree head angle is slack enough to give the Spectral strong front-end confidence on steep descents, while the 76.5-degree seat angle keeps the rider centered for seated climbing. Reach numbers are long by trail-bike standards—475mm in Medium and 500mm in Large—paired with a 630mm stack in Medium and 639mm in Large, which creates a roomy cockpit and a relatively tall front end. That combination tends to suit riders who want descending confidence and a centered standing position more than a compact, ultra-quick feel.

Full specs

Frameset

Frame

Canyon Spectral CF (carbon frame, Flip Chip, Category 4, 12x148mm)

Fork

RockShox Lyrik Select+ (150mm travel, 15x110mm, 44mm offset, tapered 1 1/8"–1.5")

Rear shock

RockShox Super Deluxe Select+

Groupset

Shift levers

SRAM AXS Pod

Rear derailleur

SRAM GX Eagle AXS Transmission

Cassette

SRAM XS-1270 Eagle Transmission, 12-speed, 10-52T

Chain

SRAM GX Eagle Transmission

Crankset

SRAM GX Eagle (1x)

Bottom bracket

SRAM DUB BSA (BSA 73)

Front brake

SRAM Code Bronze Stealth, 4-piston hydraulic disc

Rear brake

SRAM Code Bronze Stealth, 4-piston hydraulic disc

Front rotor

SRAM Centerline, 200mm

Rear rotor

SRAM Centerline, 200mm

Wheelset

Front wheel

DT Swiss XM1700 (15x110mm, 6-bolt)

Rear wheel

DT Swiss XM1700 (12x148mm, 6-bolt)

Front tire

Maxxis Minion DHR II EXO, 2.4"

Rear tire

Maxxis Minion DHR II EXO+, 2.4"

Cockpit

Stem

Canyon G5 (31.8mm clamp)

Handlebars

Canyon G5 (31.8mm clamp, 30mm rise)

Saddle

Ergon SM10 Enduro

Seatpost

Canyon SP0070-01 dropper (34.9mm, cable actuated; travel varies by size)

Grips

Canyon G5

Builds

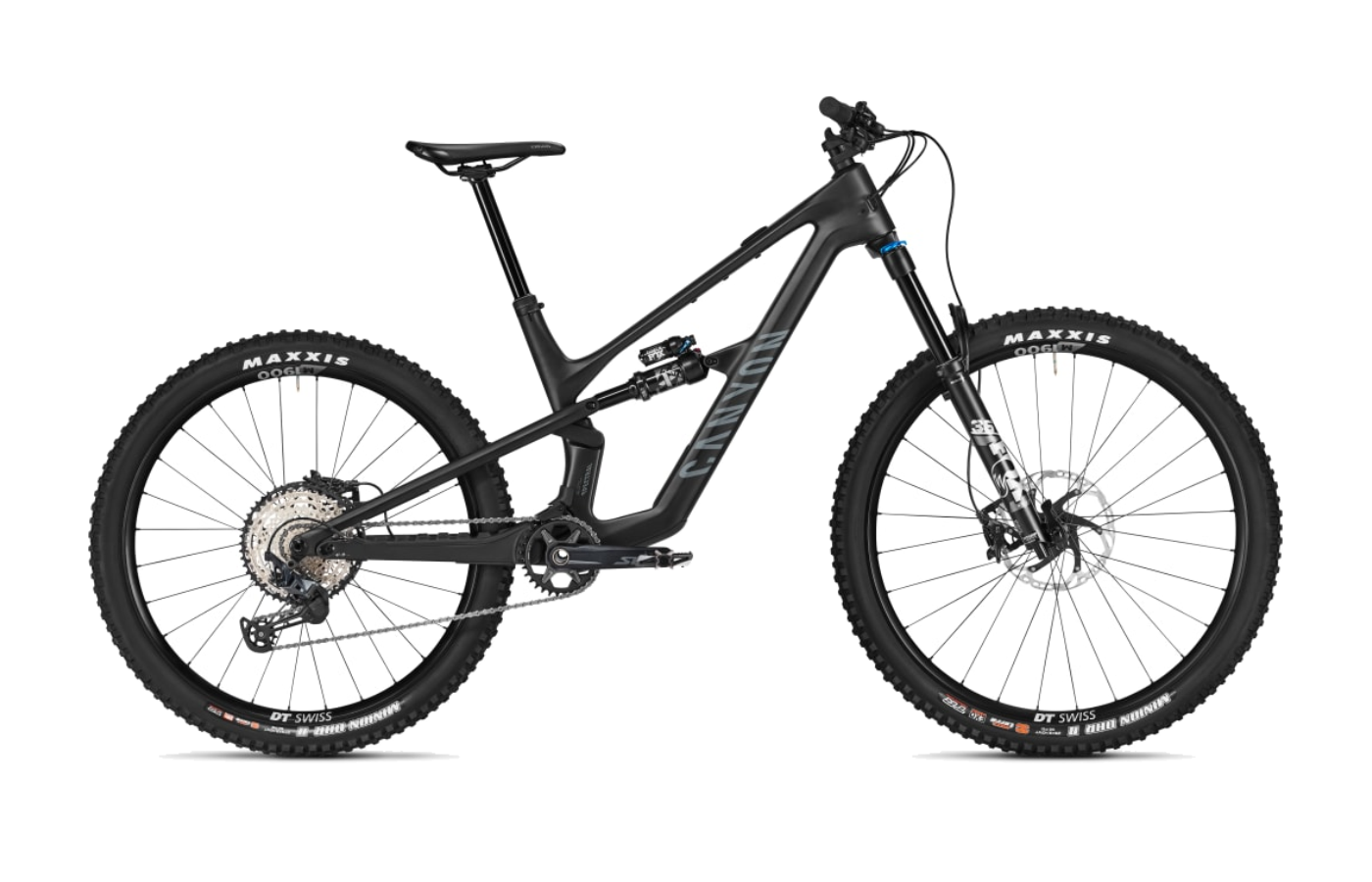

The available range spans from the alloy Spectral 6 at $3,099 to the carbon CF 9 SRAM X0 Eagle AXS Transmission at $5,799, with the CF 7 at $3,199 and CF 8 SRAM GX Eagle AXS Transmission at $5,099 in between. That pricing structure gives buyers a clear choice between low-cost entry, affordable carbon, and two wireless Transmission-equipped carbon builds. The CF 7 stands out as the obvious value carbon option, only $100 above the alloy 6, while the jump to the CF 8 and CF 9 is primarily about drivetrain tier and overall spec level rather than a change in frame concept.

At the top end, the difference between the $5,099 CF 8 GX AXS and the $5,799 CF 9 X0 AXS is relatively modest in price, so riders already shopping in that bracket may see the CF 9 as the stronger premium buy. More broadly, Canyon’s usual value proposition is intact here: even before getting into individual components, the range offers a modern frame platform with storage, mixed-wheel compatibility on the carbon chassis, and the same core geometry across the line rather than reserving the key ride character for only the most expensive model.

Reviews

Reviewers broadly agree that this generation Spectral succeeds at being a genuinely versatile trail bike with a notably lively character. Across outlets including Flow Mountain Bike, Pinkbike, The Loam Wolf, Off.road.cc, and BikeRadar, the recurring theme is that the new bike feels more playful and engaging than the previous Spectral, with a calmer and more compliant rear end that improves traction and reduces the harsh, pingy feel some testers associated with the older carbon frame. The revised suspension layout is widely praised for combining small-bump sensitivity with useful mid-stroke support, giving the bike strong grip on technical climbs and enough pop to reward pumping, jumping, and active riding. Several reviewers also noted that despite the reduced 140mm rear travel, it remains more capable than the numbers suggest on rough descents.

The main caveat is Canyon’s K.I.S. steering stabilizer, which is easily the most divisive part of the package. Some testers found it genuinely helpful in rough, steep, or loose terrain, saying it calmed the front end and even helped recover from deflections. Others, including reviewers at Pinkbike, Singletrackworld, BikeRadar, and Jeff Kendall-Weed, felt it dulled steering response, hindered turn initiation, or rattled enough that they removed it entirely. There were also a few setup-related criticisms: some riders found the rear shock a little too linear or easy to bottom out without extra volume spacers, the low bottom bracket could lead to pedal strikes in the low setting, and Canyon’s stock G5 grips were almost universally disliked for their harsh feel. Even so, the overall verdict is strongly positive: the Spectral is seen as a highly capable, unusually fun trail bike with excellent value and a broad performance envelope.

Canyon Spectral AL 6 Review | A Promising Package With ...

YouTube

Canyon Spectral AL 6 Review | A Promising Package With ...

Flow Mountain Bike·Aug 2025
There is A LOT to like about the Canyon Spectral | 2025 ...

YouTube

There is A LOT to like about the Canyon Spectral | 2025 ...

Pinkbike·Jan 2025
the 2024 Canyon Spectral surprised me (despite these things)

YouTube

the 2024 Canyon Spectral surprised me (despite these things)

Jeff Kendall-Weed·Jan 2025
Canyon Spectral 2024 Ride Review: What Makes It A Brilliant ...

YouTube

Canyon Spectral 2024 Ride Review: What Makes It A Brilliant ...

GuyKesTV·Jan 2025

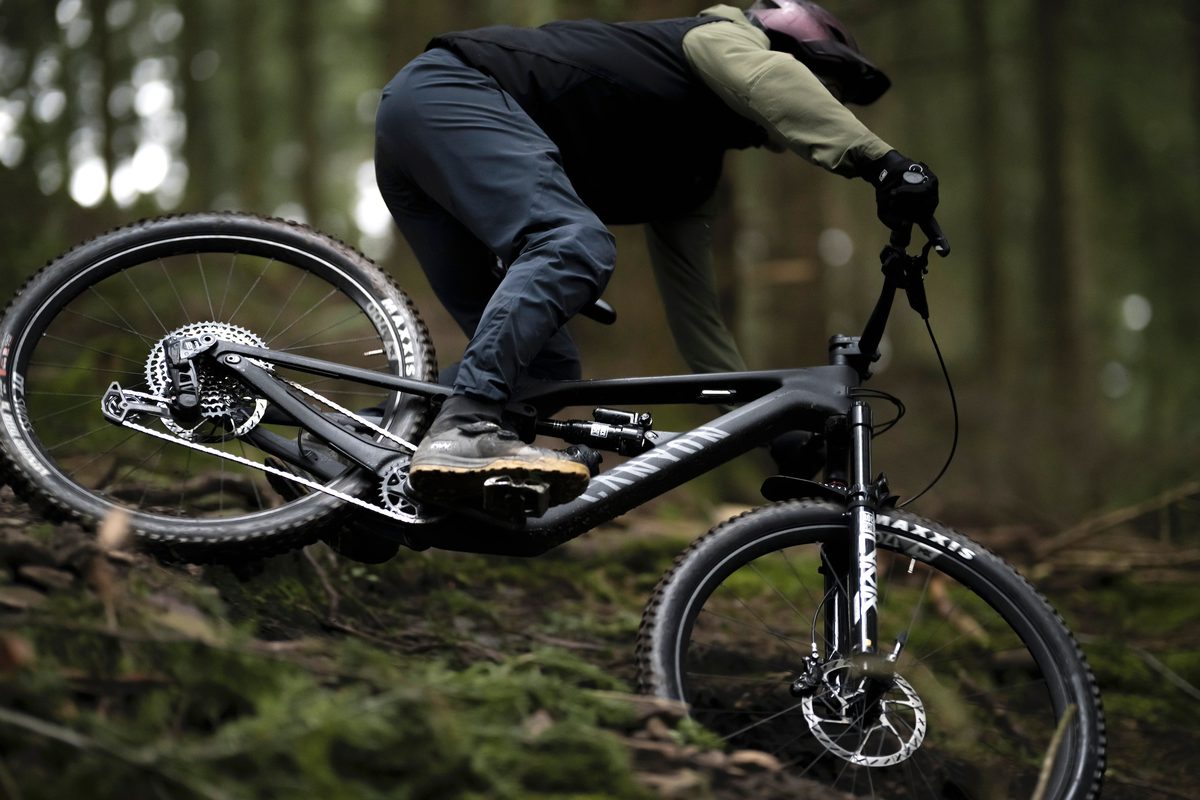

Canyon Spectral CF 9 first ride review | BikeRadar

BikeRadar

Canyon Spectral CF 9 first ride review | BikeRadar

Luke Marshall·Dec 2024

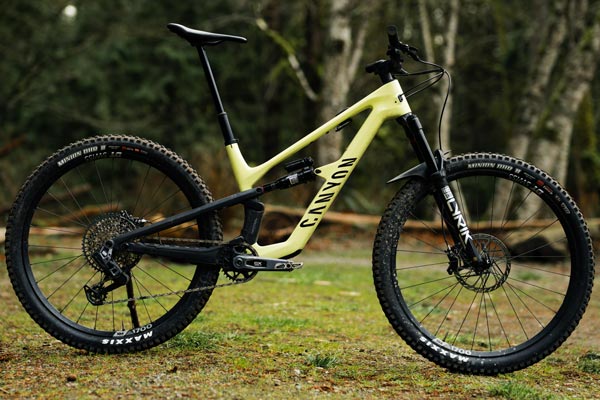

First Ride Review: The 2024 Canyon Spectral CF

Theloamwolf

First Ride Review: The 2024 Canyon Spectral CF

Sean Leicht·Dec 2024

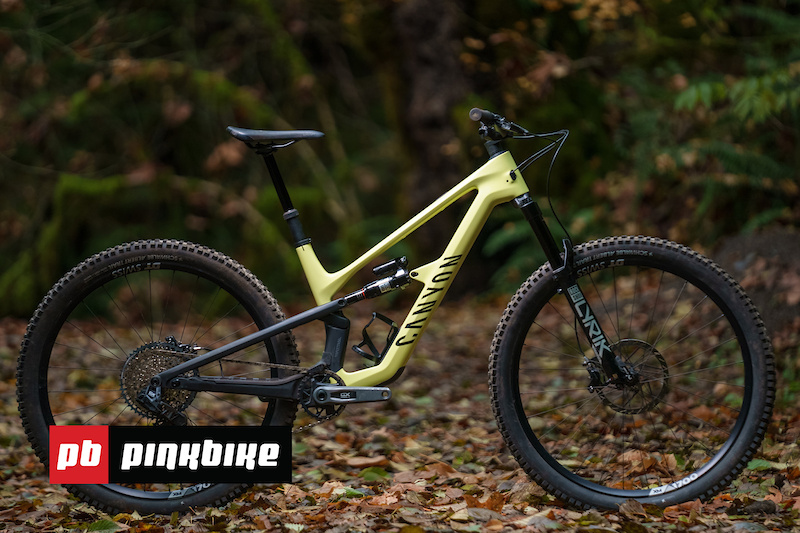

Field Test: Canyon Spectral - Focused on Fun

PinkBike

Field Test: Canyon Spectral - Focused on Fun

by Mike Kazimer FollowFollowing·Nov 2024

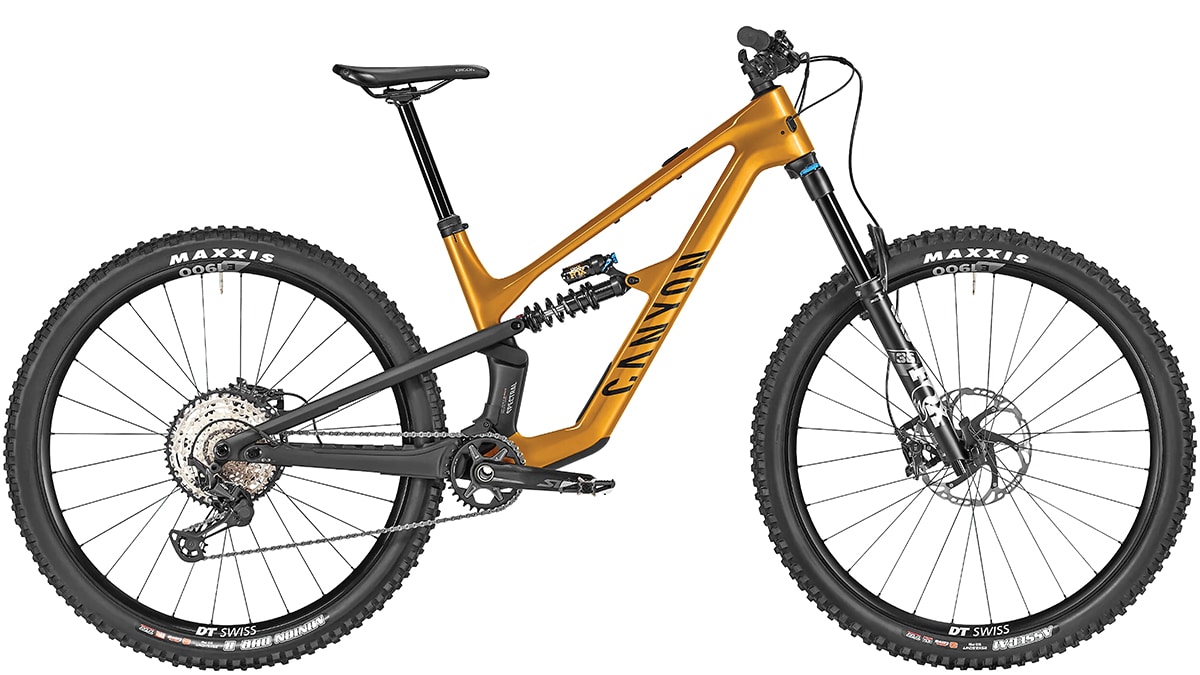

LONG TERM REVIEW: CANYON SPECTRAL CF 8 CLLCTV

Mountain Bike Action

LONG TERM REVIEW: CANYON SPECTRAL CF 8 CLLCTV

Ron Koch·Oct 2024

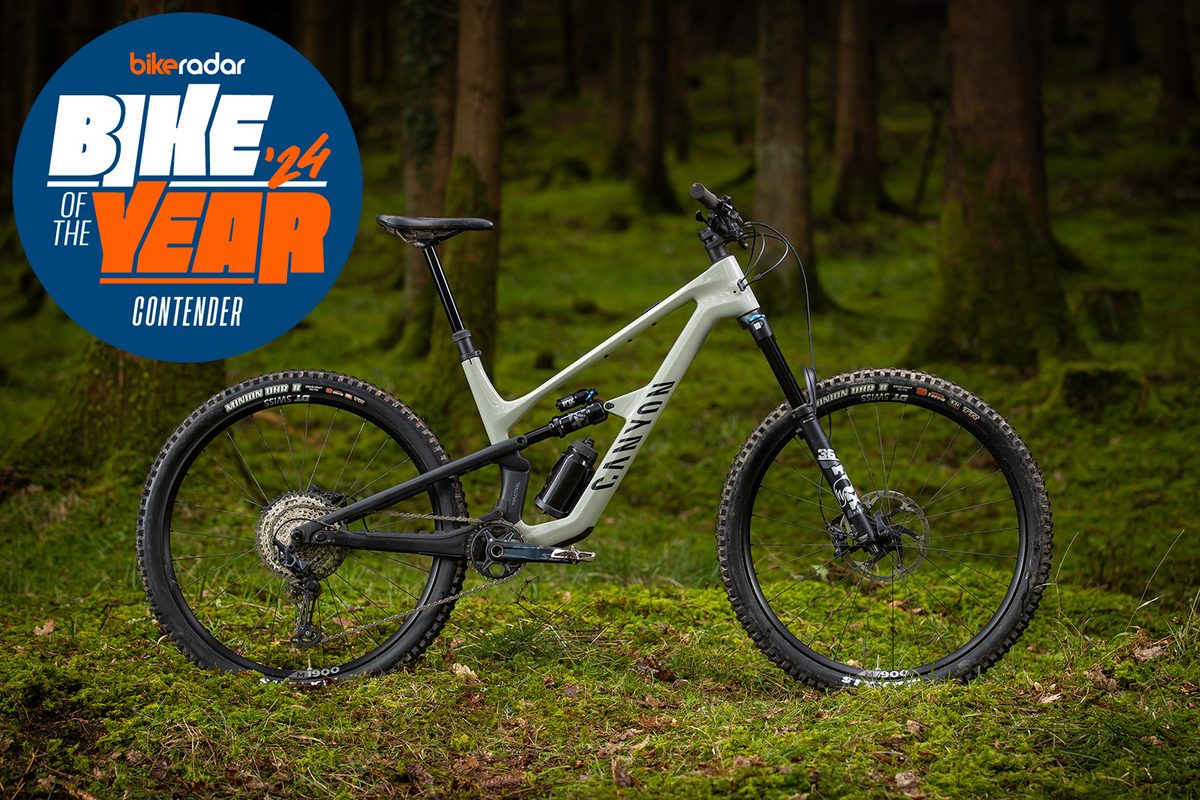

Canyon Spectral CF7 review | Trail Bike of the Year contender

BikeRadar

Canyon Spectral CF7 review | Trail Bike of the Year contender

Tom Marvin·May 2024
Canyon Spectral CF 9 mountain bike review - Top trail performance meets excellent value

Off

Canyon Spectral CF 9 mountain bike review - Top trail performance meets excellent value

Liam Mercer·May 2024

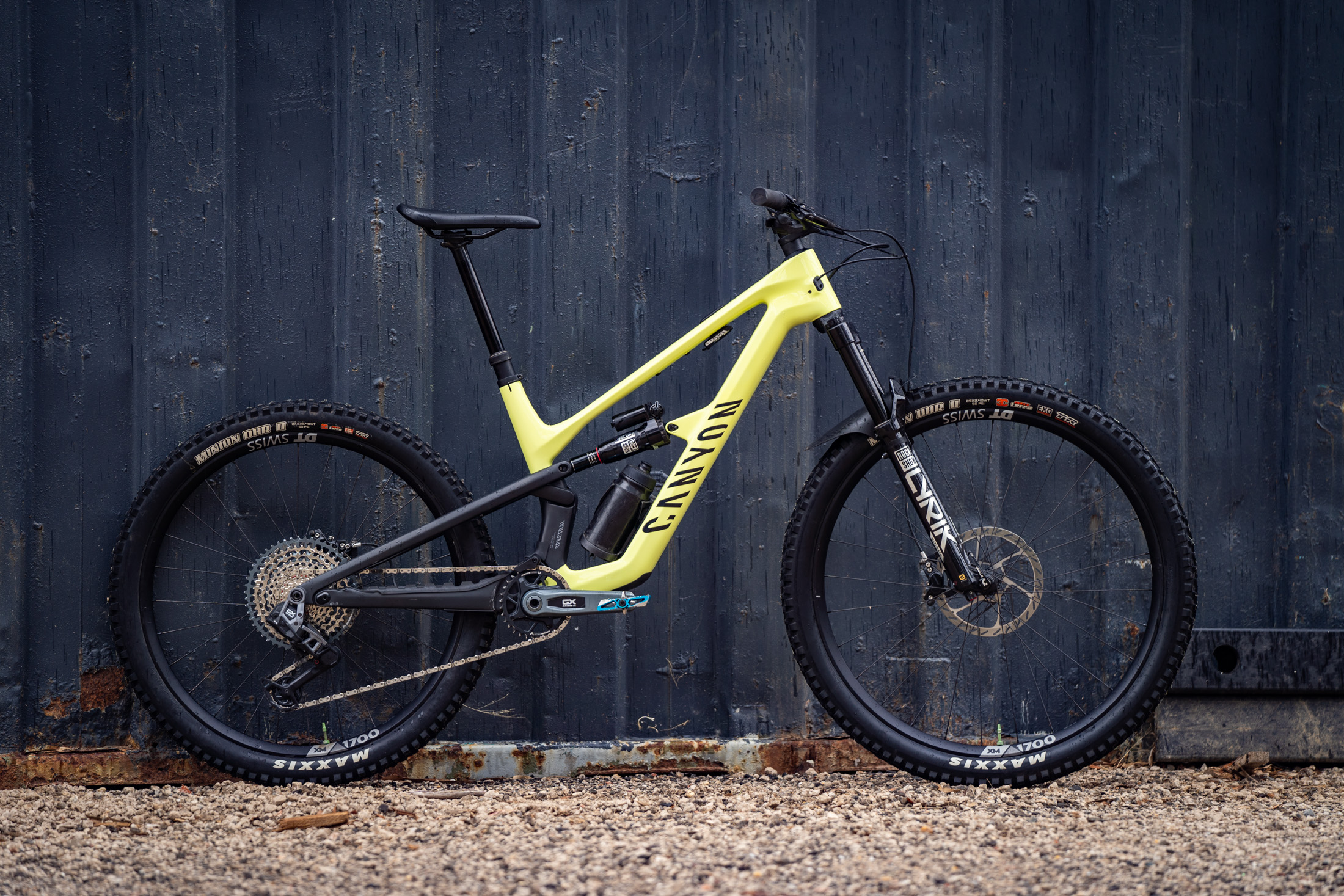

2024 Canyon Spectral Review | When less is actually more

Flow Mountain Bike

2024 Canyon Spectral Review | When less is actually more

May 2024

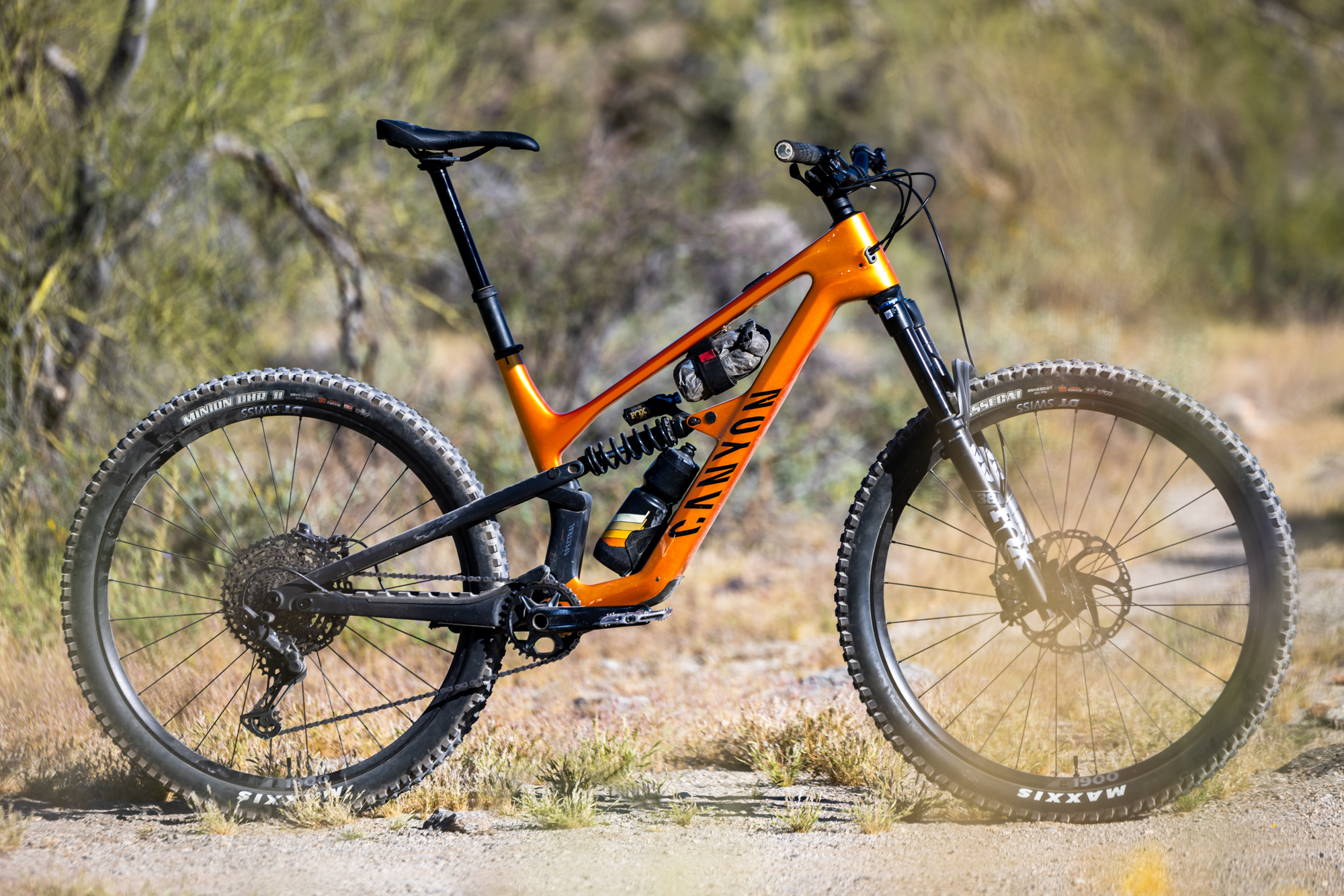

2024 Canyon Spectral Review: A Cult Classic for the Masses

Theradavist

2024 Canyon Spectral Review: A Cult Classic for the Masses

Josh Weinberg·May 2024

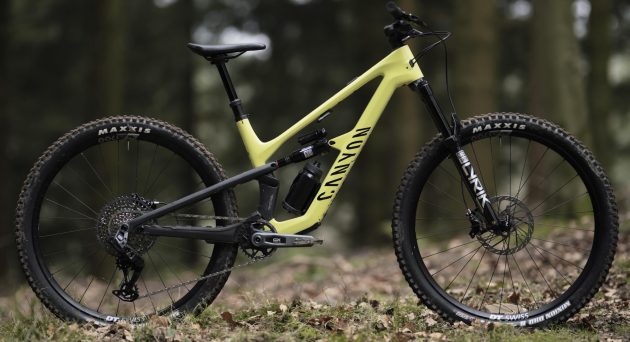

Canyon pulls out all the stops on the new 2024 Spectral CF 9 trail bike with less travel, more sizes, internal storage and steering stabilisation as standard - MBR

Mountain Bike Rider

Canyon pulls out all the stops on the new 2024 Spectral CF 9 trail bike with less travel, more sizes, internal storage and steering stabilisation as standard - MBR

Feb 2024

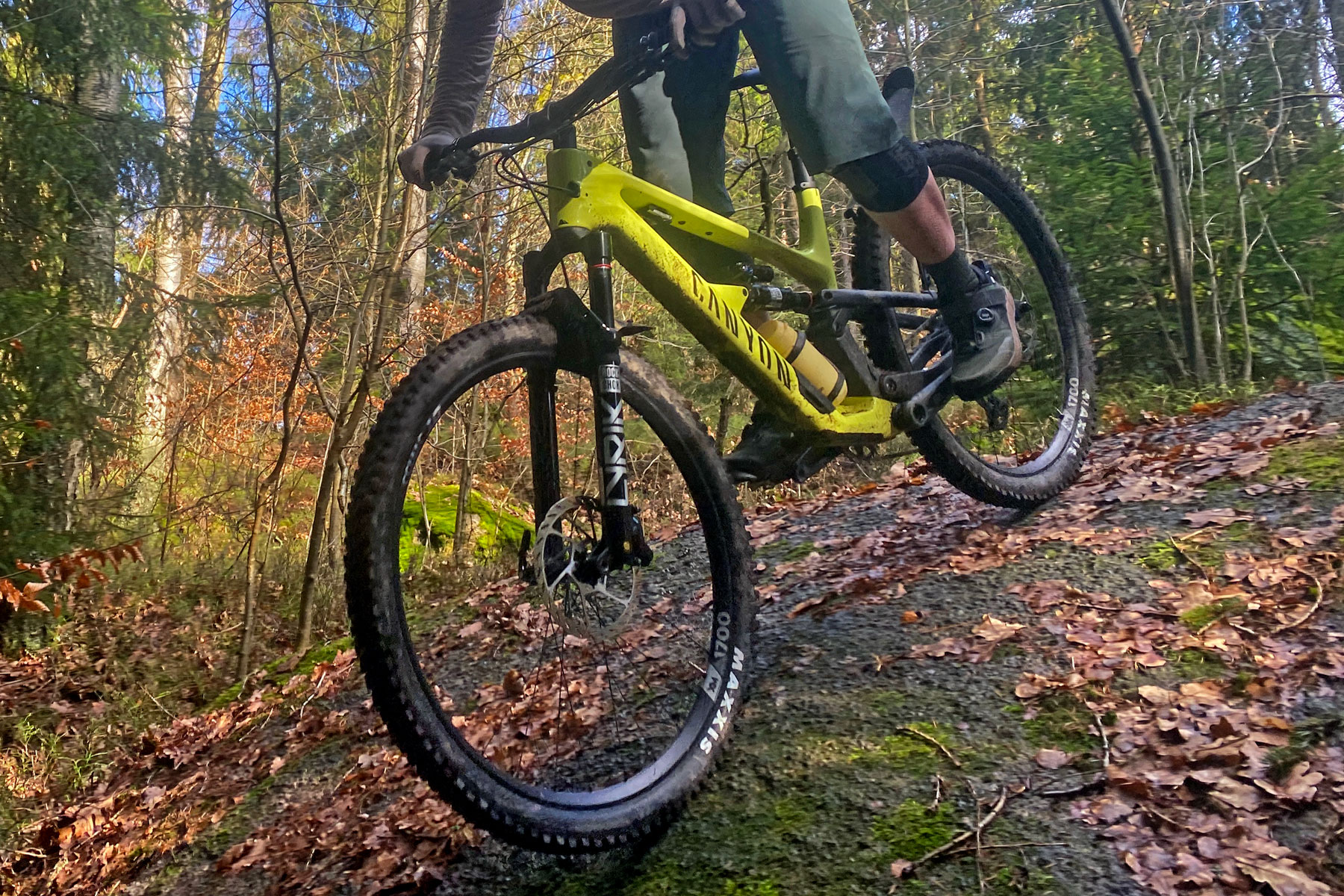

All-new Canyon Spectral Refined for Trail with Shorter Travel & KIS System: First Rides

Bike Rumor

All-new Canyon Spectral Refined for Trail with Shorter Travel & KIS System: First Rides

Cory Benson·Feb 2024

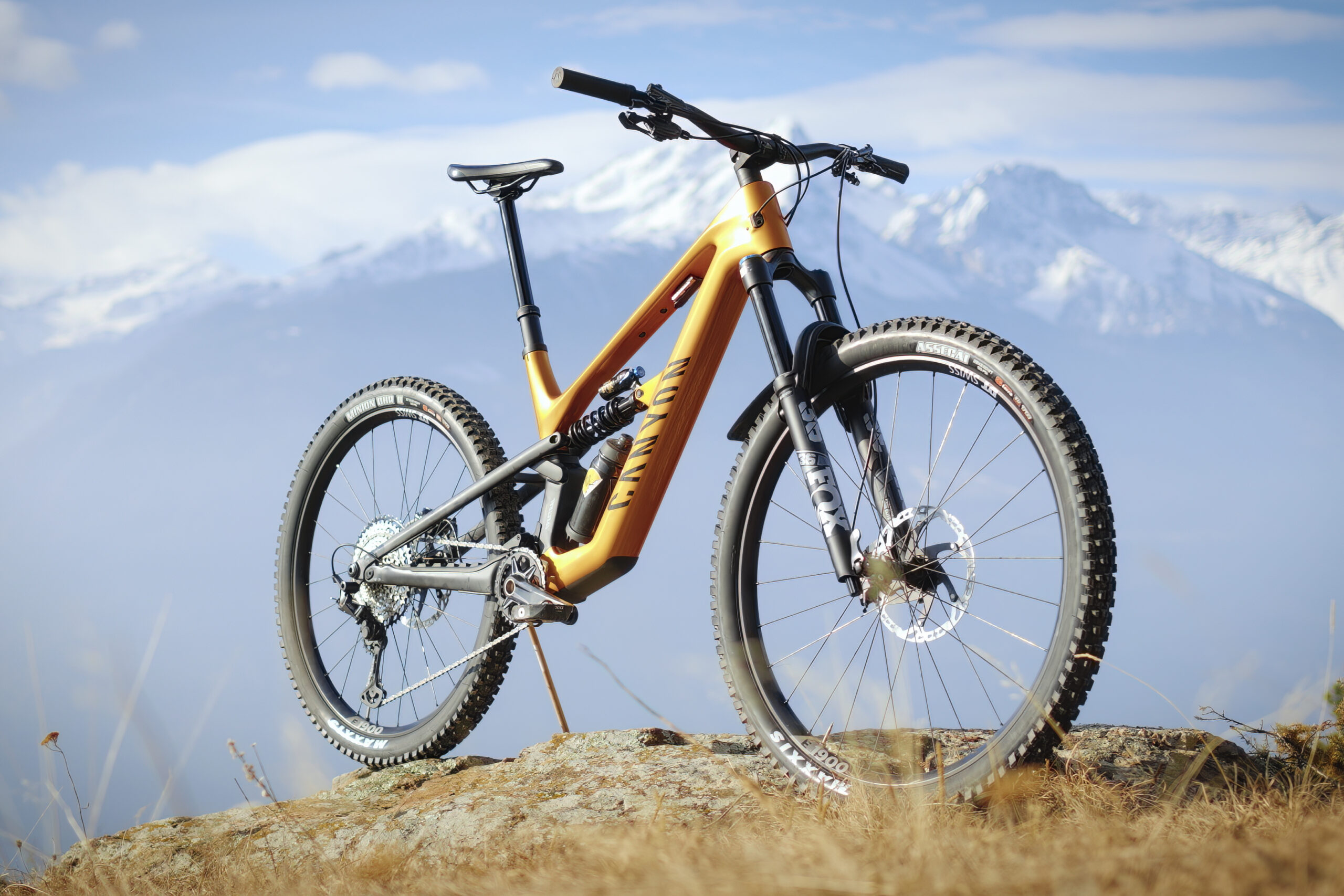

Canyon Spectral CF 2024 Review

Bike-test

Canyon Spectral CF 2024 Review

Ludwig Döhl·Feb 2024

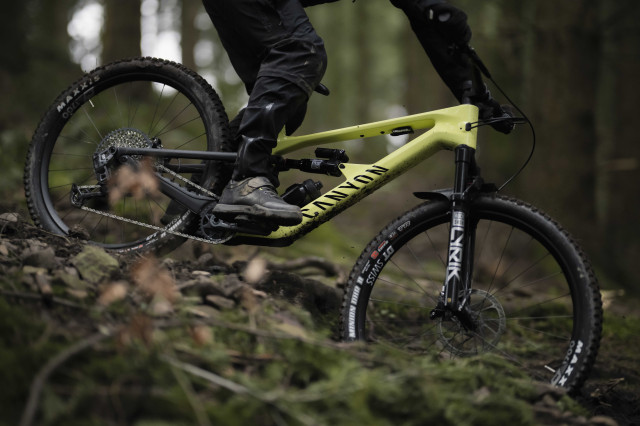

Canyon Spectral CF 9 first ride review

Off

Canyon Spectral CF 9 first ride review

Liam Mercer·Feb 2024

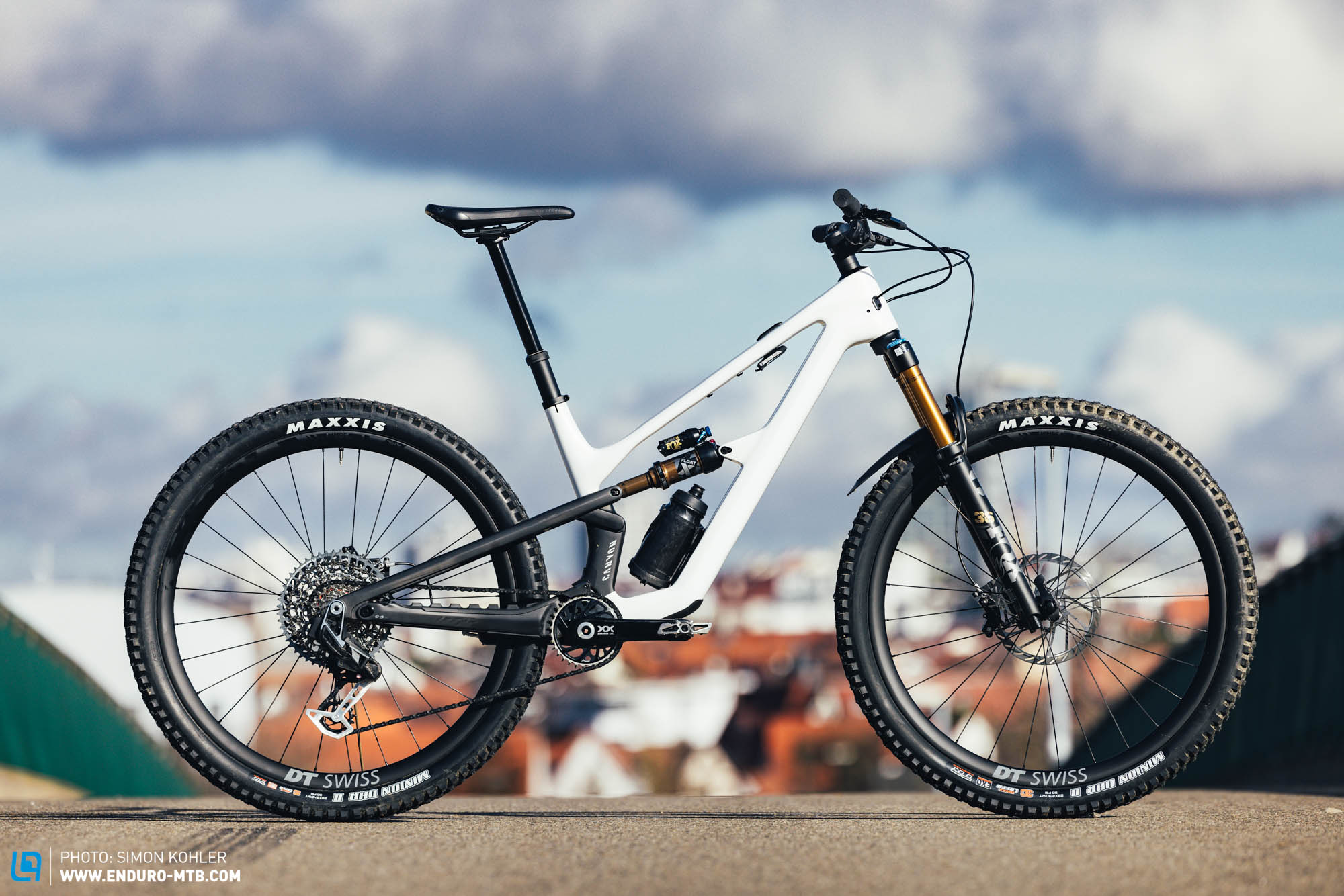

New 2024 Canyon Spectral CF LTD first time review – spot the difference?

Enduro MTB

New 2024 Canyon Spectral CF LTD first time review – spot the difference?

Simon Kohler·Feb 2024
Tested: Canyon Announces New Spectral CF

Bike Magazine

Tested: Canyon Announces New Spectral CF

Cy Whitling·Feb 2024

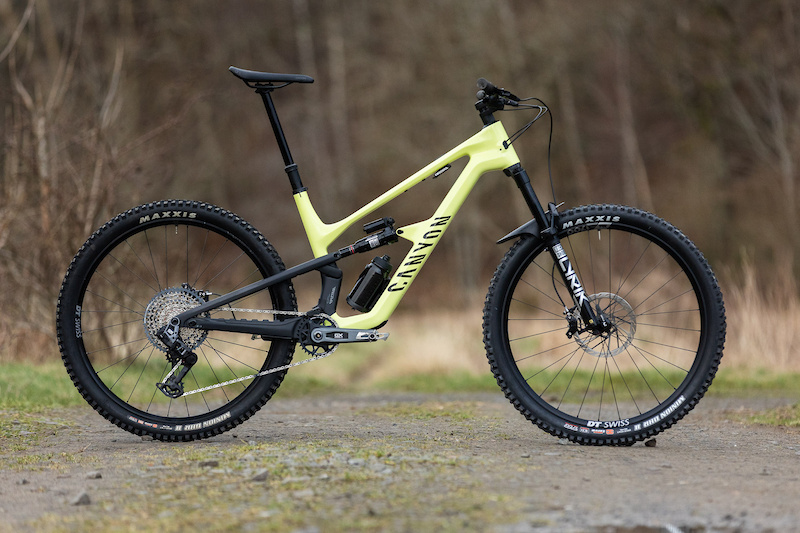

First Ride: 2024 Canyon Spectral CF - Evolution Not Revolution - Pinkbike

PinkBike

First Ride: 2024 Canyon Spectral CF - Evolution Not Revolution - Pinkbike

by Seb Stott FollowFollowing·Feb 2024
Canyon Spectral CF 7 KIS 2024 review – the best affordable trail MTB I’ve ever ridden

Bike Perfect

Canyon Spectral CF 7 KIS 2024 review – the best affordable trail MTB I’ve ever ridden

By Guy Kesteven published 22 February 2024·Feb 2024

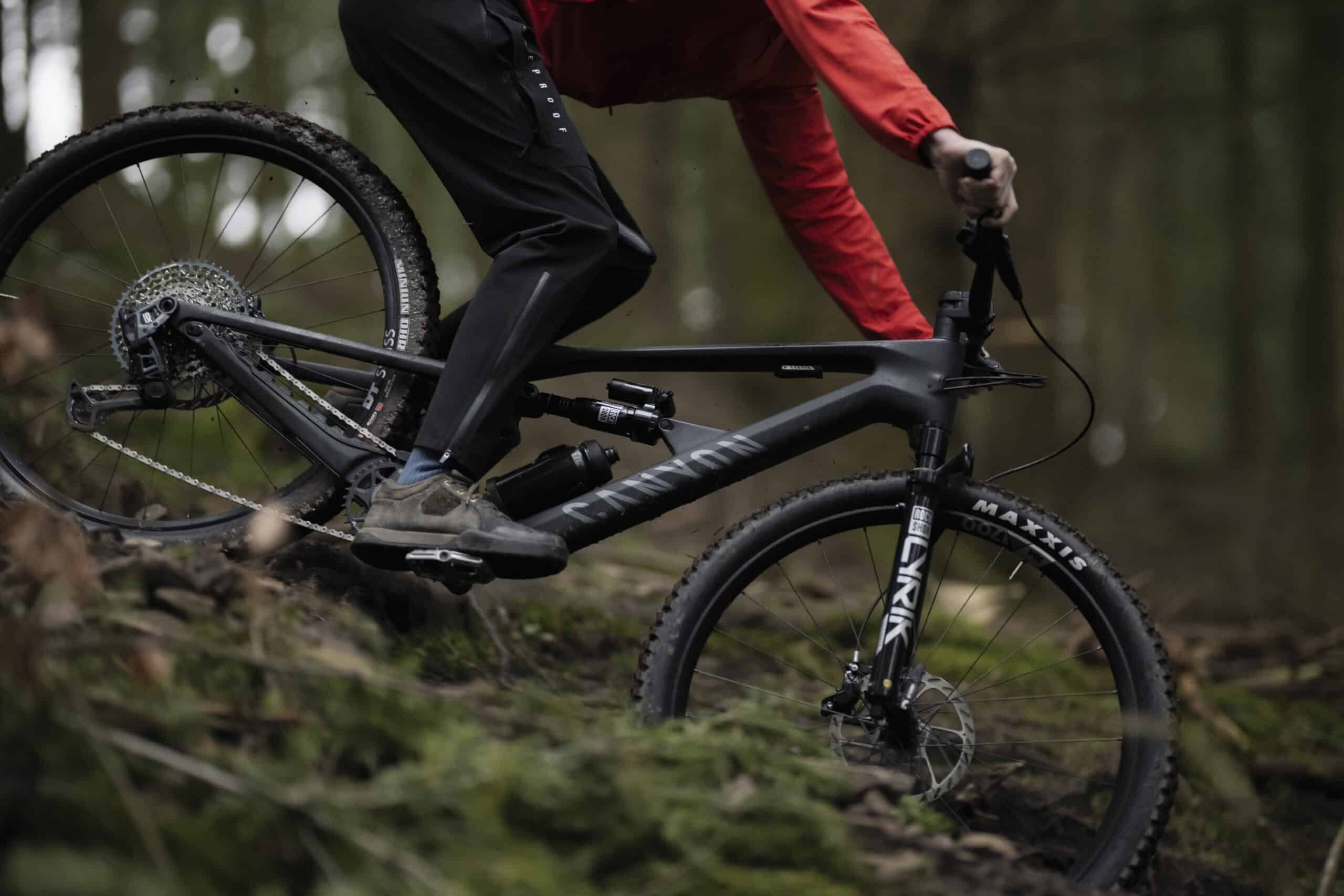

Canyon Spectral CF 9: First Fortnight Findings
