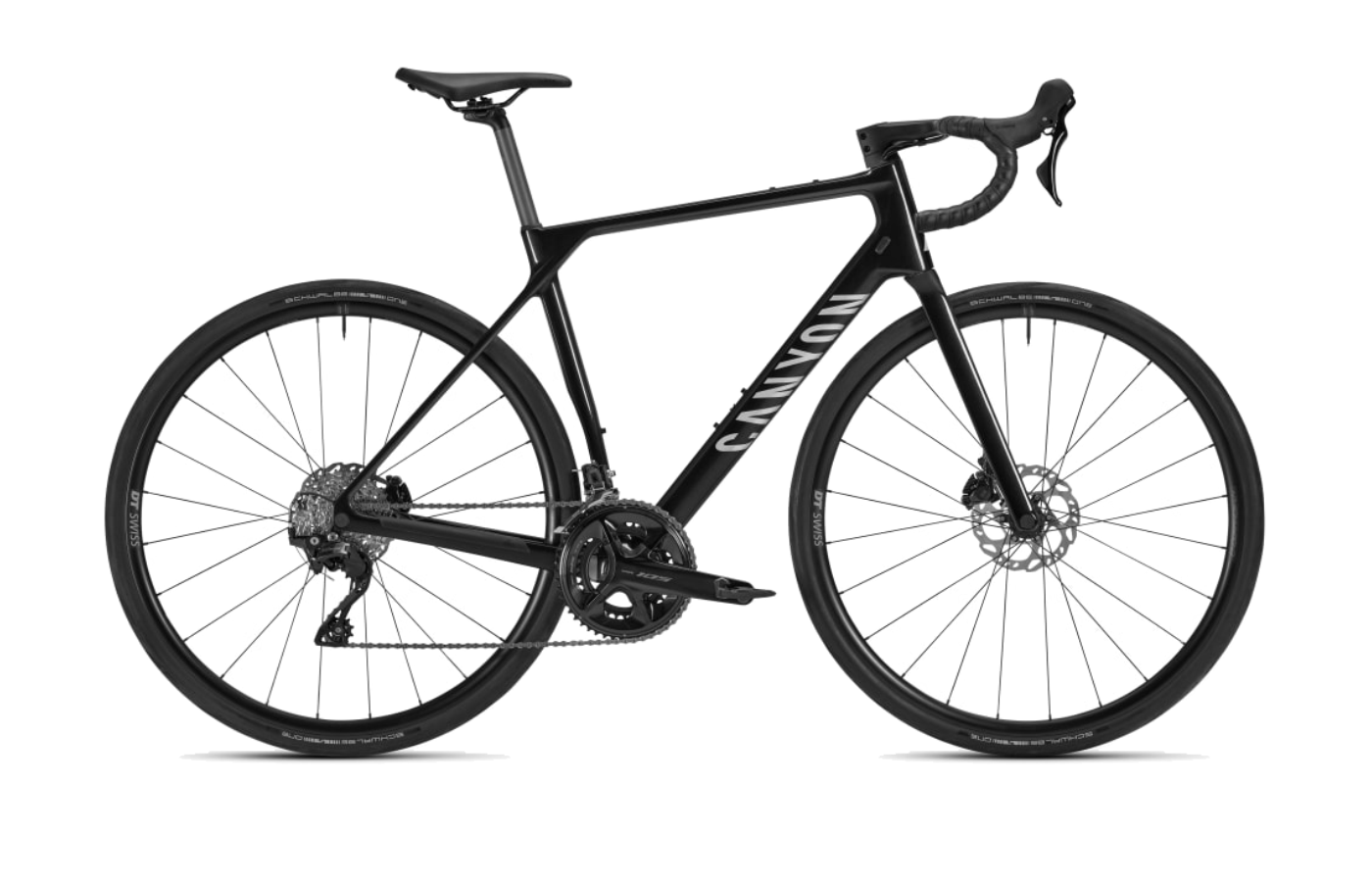

Frameset
Frame
Canyon Endurace CF (Carbon (CF), 12x142mm rear axle, 35mm tire clearance)
Fork
Canyon FK0110 CF Disc (Carbon (CF), 12x100mm front axle, 1 1/4" steerer, 35mm tire clearance)
The Canyon Endurace is a modern endurance road bike designed for riders who want long-distance comfort without sacrificing race-adjacent efficiency. Updated in 2023, this generation bridges the gap between a pure climbing bike and a dedicated all-road machine. Canyon retained the platform's signature leaf-spring seatpost while introducing aerodynamic tube shaping and a fully integrated cockpit borrowed from their race lineup. The frame also gains a top-tube storage hatch for stowing repair essentials out of the wind. With clearance for high-volume tires, the Endurace is positioned for cyclists who spend long hours on variable pavement and light dirt roads. It suits the pragmatic rider who prioritizes a forgiving posture and practical integration over razor-thin aerodynamic margins, yet still expects a highly responsive chassis when pushing the pace.

| Stack | 548mm |
| Reach | 370mm |
| Top tube | 532mm |
| Headtube length | 129mm |
| Standover height | 763mm |
| Seat tube length | 462mm |
Canyon builds the Endurace around its Sport Geometry, which is intentionally more relaxed than the brand’s dedicated race frames. By pairing a taller stack with a shorter reach, the design encourages a slightly upright posture that reduces strain on the lower back and shoulders during long days in the saddle. Despite the elevated front end, the steering geometry remains relatively quick. A moderately steep head tube angle and short chainstays keep the handling agile, ensuring the bike responds promptly to rider input without feeling nervous at high speeds.
Fit adjustability relies heavily on the proprietary Aerocockpit. The three-piece handlebar design allows riders to alter the bar width and adjust the stem height without cutting the fork steerer or disconnecting hydraulic hoses. However, because the stem length is fixed to the one-piece system and varies by frame size, riders cannot easily swap to a longer or shorter reach. The frame accommodates tires up to 35 millimeters wide, allowing riders to further tune the ride feel and traction by dropping tire pressure or sizing up the rubber.
Frameset
Frame
Canyon Endurace CF (Carbon (CF), 12x142mm rear axle, 35mm tire clearance)
Fork
Canyon FK0110 CF Disc (Carbon (CF), 12x100mm front axle, 1 1/4" steerer, 35mm tire clearance)
Groupset
Shift levers
Shimano 105 ST-R7120 (hydraulic STI levers, 2x12)
Front derailleur
Shimano 105 FD-R7100
Rear derailleur
Shimano 105 RD-R7100, 12-speed
Cassette
Shimano CS-HG710, 12-speed, 11-36T
Chain
Shimano Deore M6100
Crankset
Shimano 105 R7100 (2x)
Bottom bracket
Shimano Pressfit BB-RS500 (PF86)
Front brake
Shimano 105 ST-R7120 hydraulic disc (2-piston)
Rear brake
Shimano 105 ST-R7120 hydraulic disc (2-piston)
Front rotor
Shimano SM-RT70, 160mm (Center Lock)
Rear rotor
Shimano SM-RT70, 160mm (Center Lock)
Wheelset
Front wheel
DT Swiss Endurance LN (12x100mm, Center Lock, 22mm rim height, 22mm internal, alloy)
Rear wheel
DT Swiss Endurance LN SH11 (12x142mm, Center Lock, 22mm rim height, 22mm internal, alloy)
Front tire
Schwalbe One, 32mm
Rear tire
Schwalbe One, 32mm
Cockpit
Stem
Canyon CP0030 Aerocockpit (integrated)
Handlebars
Canyon CP0030 Aerocockpit (integrated)
Saddle
Selle Royal SRX
Seatpost
Canyon SP0057 VCLS, 27.2mm, 20mm setback
The Endurace lineup spans a wide price range, starting with an accessible aluminum frame and scaling up to premium carbon builds. The entry-level aluminum model features a Shimano CUES drivetrain and mechanical shifting, offering a durable starting point for recreational riders. Moving into the carbon tiers, the CF 7 models introduce electronic shifting options from SRAM and Shimano, alongside a mechanical Shimano 105 build, all rolling on aluminum DT Swiss wheels.
The mid-tier CF SLX frames utilize a lighter carbon layup and upgrade to deeper carbon wheelsets on the aero-focused builds. These models feature higher-end electronic groupsets, including SRAM Force AXS and Shimano Ultegra Di2, and include integrated power meters. At the top of the ladder, the CFR build uses Canyon’s lightest factory racing carbon and is equipped with a Shimano Dura-Ace Di2 groupset, a dual-sided power meter, and premium DT Swiss carbon wheels.
Across the carbon range, Canyon staggers the stock tire sizes, pairing a narrower front tire for aerodynamic efficiency with a wider rear tire for added traction and seated comfort. The value sweet spot sits in the CF 7 and CF SLX tiers, where riders gain electronic shifting without the premium price tag of the flagship CFR frame.
Reviewers consistently praise the Endurace for its exceptional rear-end compliance and brisk acceleration, though opinions diverge slightly on its overall character. The combination of the leaf-spring seatpost and wide tires effectively mutes broken pavement, creating a ride that feels "unbelievably plush" (Rouleur) while remaining highly efficient under power. Testers found that the bike climbs eagerly and holds speed well on rolling terrain, proving that a comfortable platform does not have to feel sluggish.
Handling is generally described as intuitive and stable, allowing riders to "whoosh downhill with total assuredness" (Rouleur) and navigate fast corners with "pin-point precision" (Granfondo). However, the integrated carbon cockpit generated some mixed feedback. While visually sleek, a few reviewers noted that the stiff bar and stem can make the front end feel noticeably firmer than the forgiving rear.
A minor point of contention centers on the bike's personality. While most testers enjoyed the sporty demeanor, one reviewer found the ride slightly "clinical" (Road.cc), suggesting it prioritizes sheer efficiency over engaging feedback. Additionally, multiple reviewers experienced rattling from the top-tube storage sleeve on rougher roads. Despite these quirks, the consensus points to a highly capable, fast endurance bike that excels at smoothing out long, demanding routes.

T3

BikeRadar

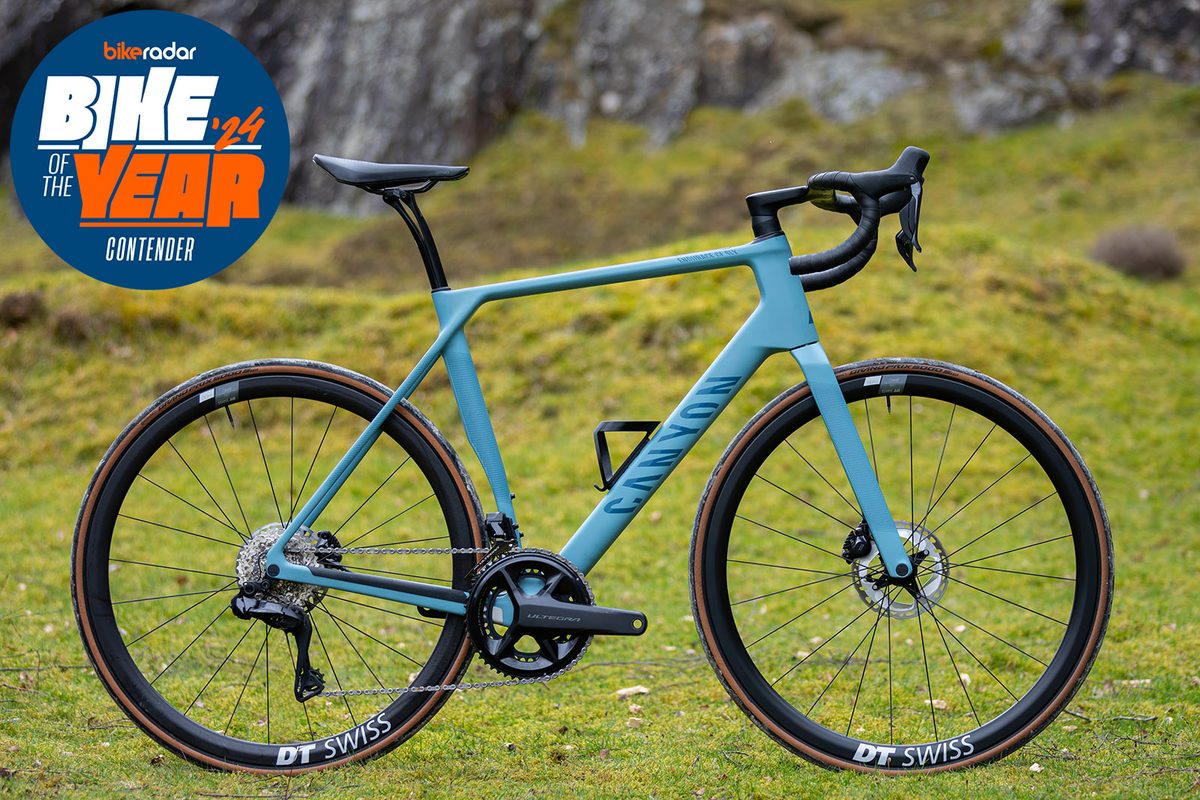

Canyon Endurace CF SLX 8 Di2 Aero | BikeRadar

Granfondo

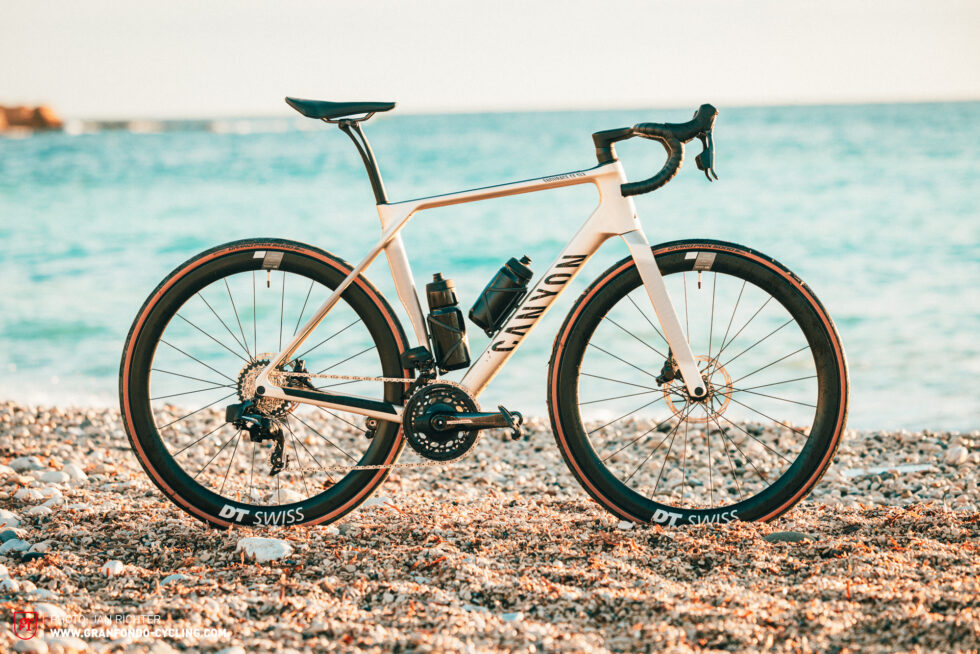

Canyon Endurace CF SLX 8 AXS Aero – All in the name of ...

YouTube

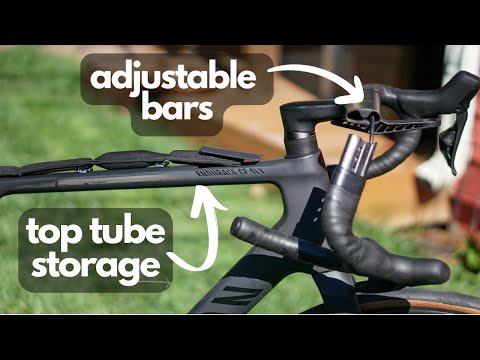

NEW Canyon Endurace: details, ride impressions ...

YouTube

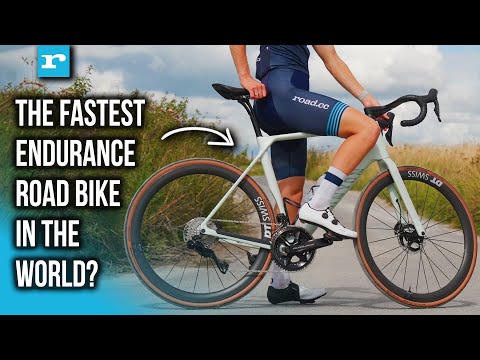

2023 Canyon Endurace - The Road Bike We SHOULD All Be ...
Stg
Canyon Endurace - Cyclist Australia/NZ

Cycling News

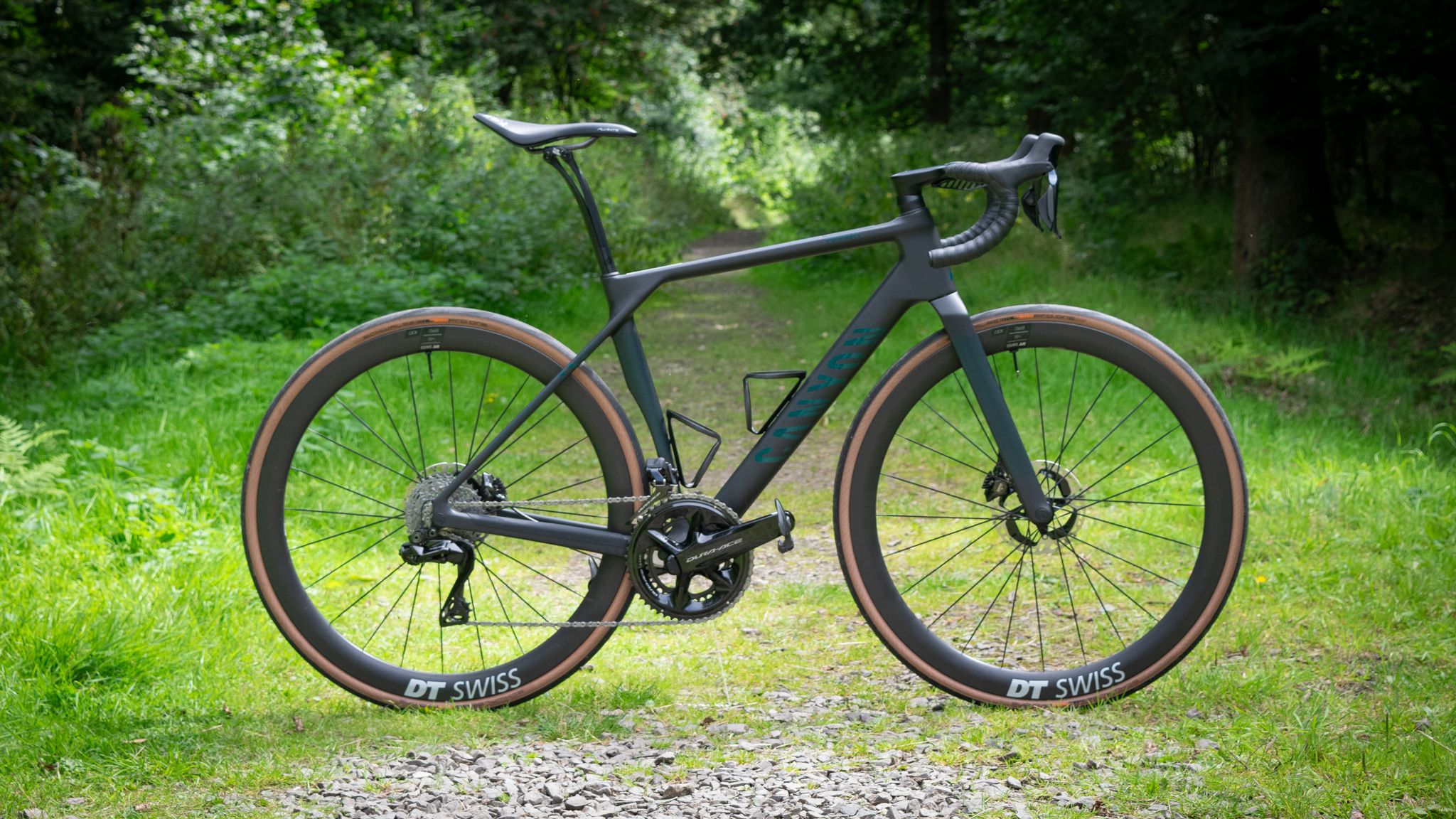

Canyon Endurace CFR Di2 Review: An excellent mix of comfort and speed

Cyclist Magazine

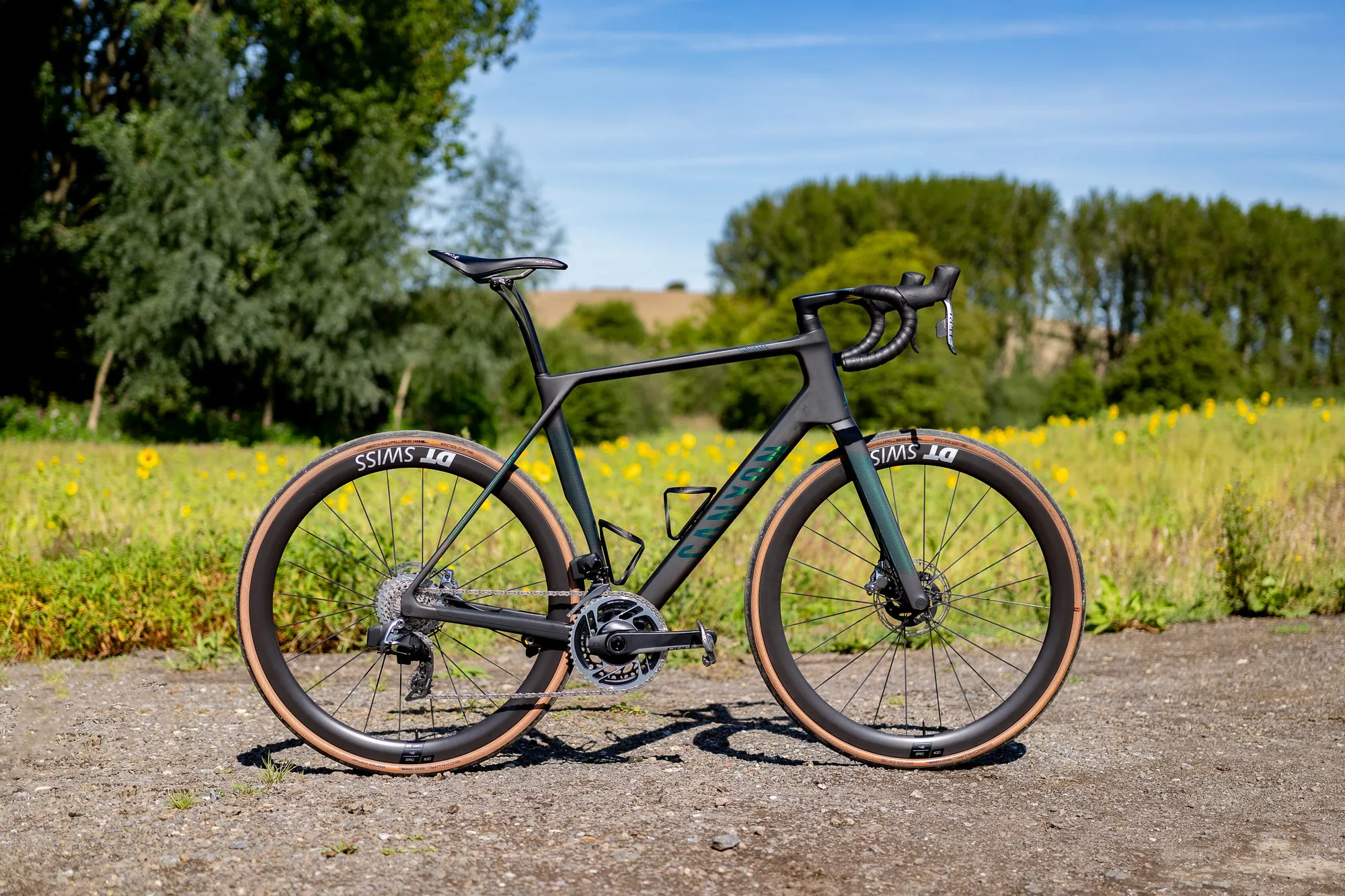

Canyon Endurace CFR AXS review

Road.cc

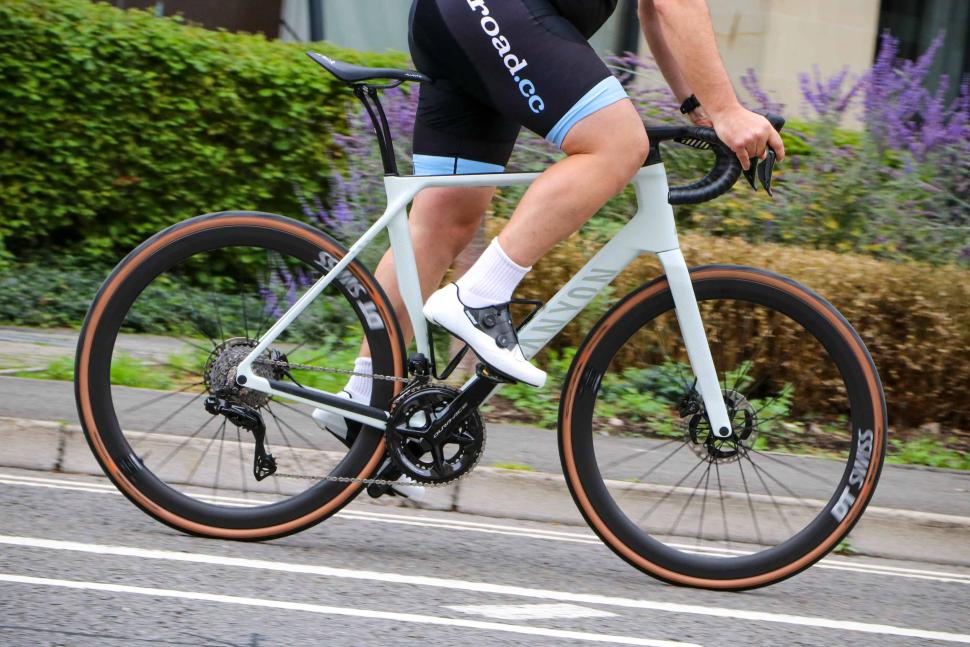

Review: Canyon Endurace CFR Di2 2023

Escape Collective

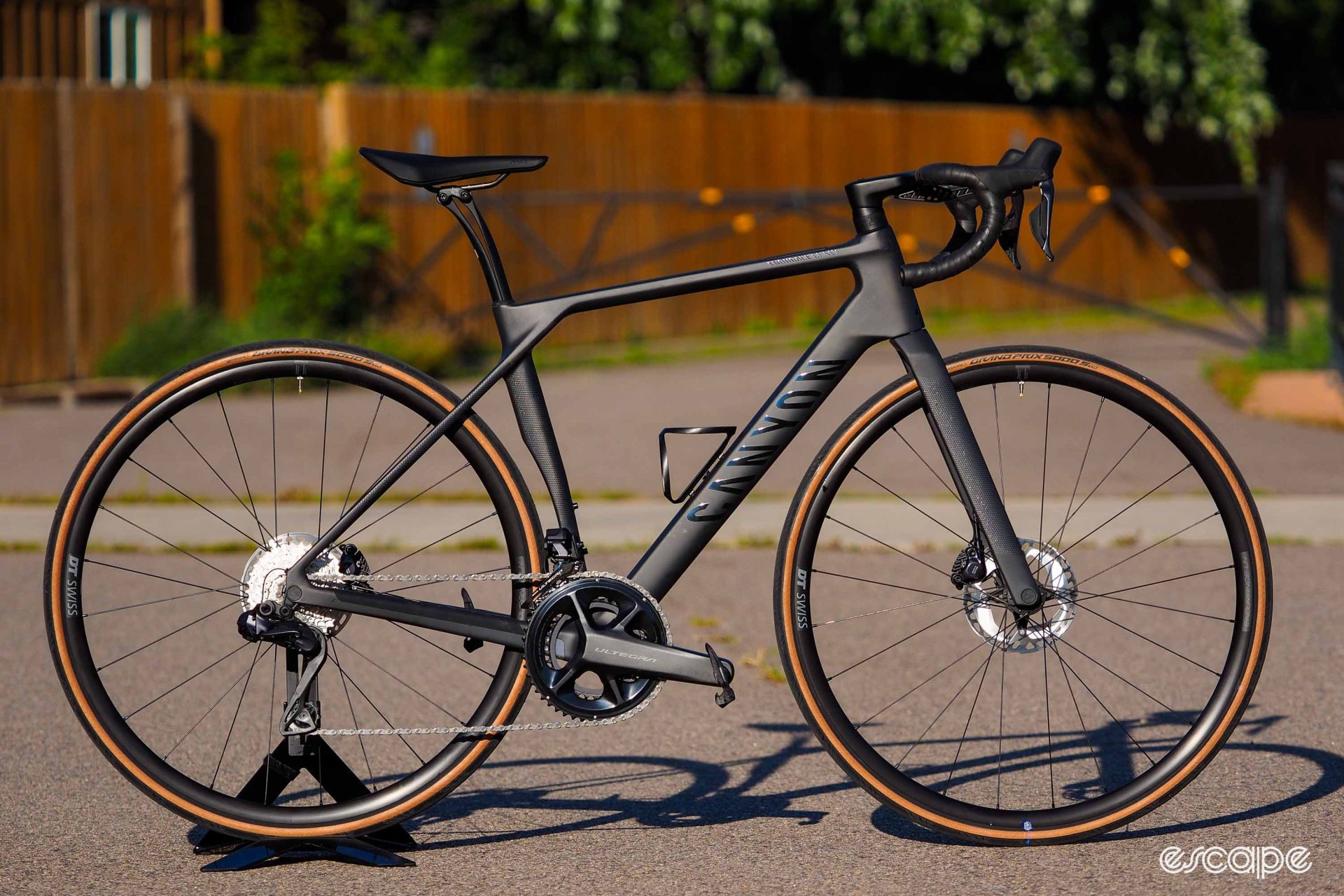

2024 Canyon Endurace CF SLX review

Rouleur

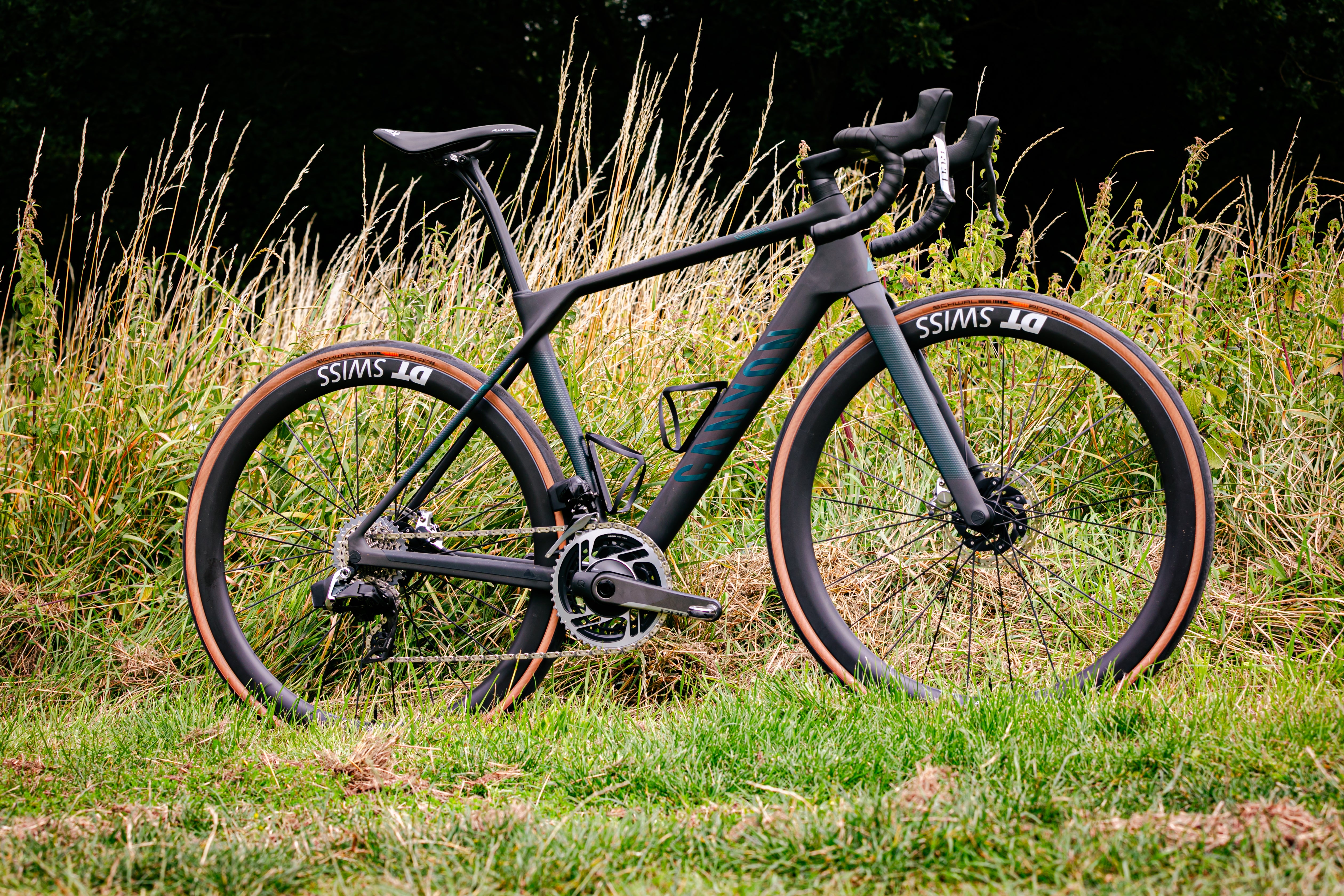

Canyon Endurace CFR eTap review - outstanding in its field

Velo

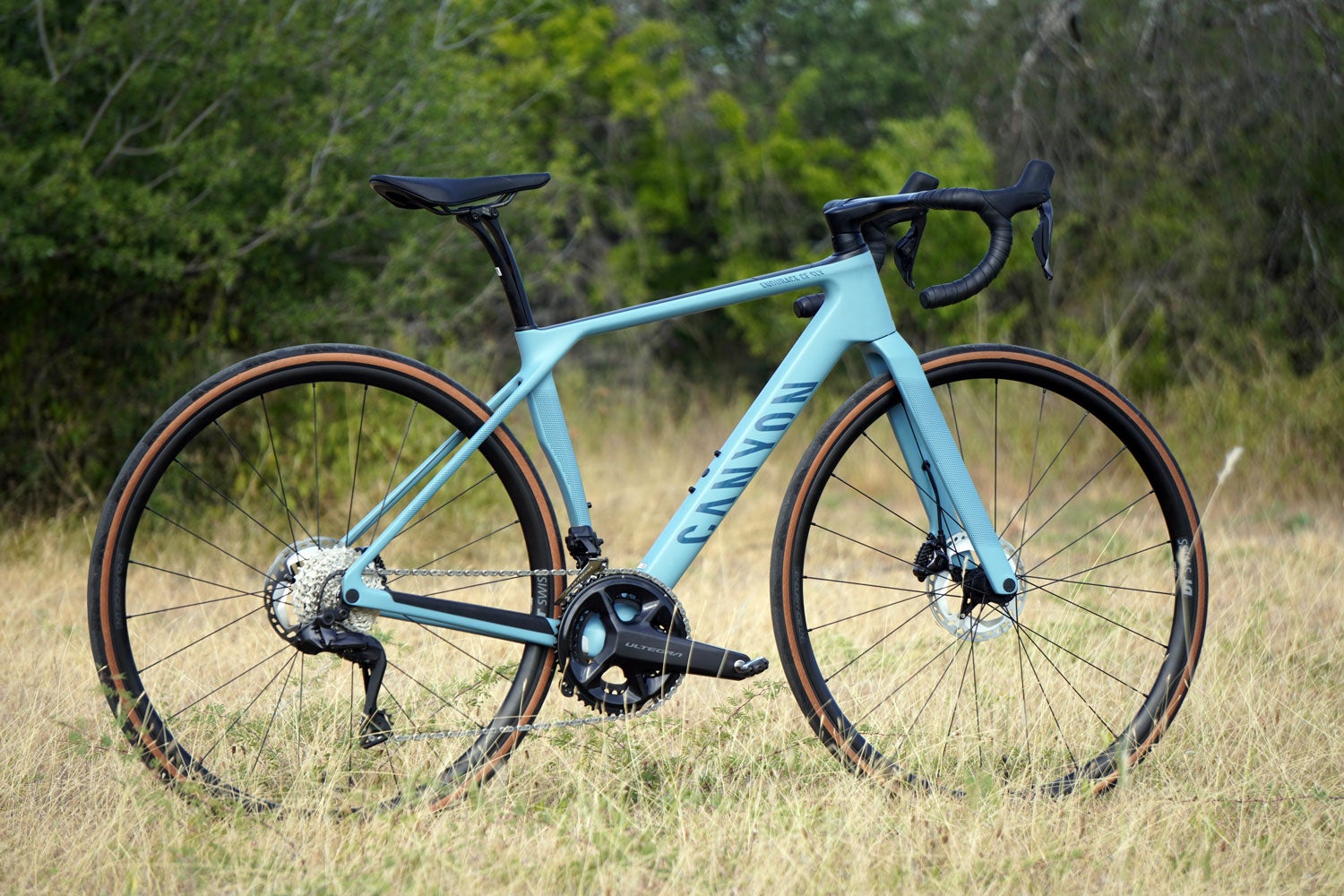

Canyon Endurace CF SLX review: It turns out that smooth is fast

BikeRadar

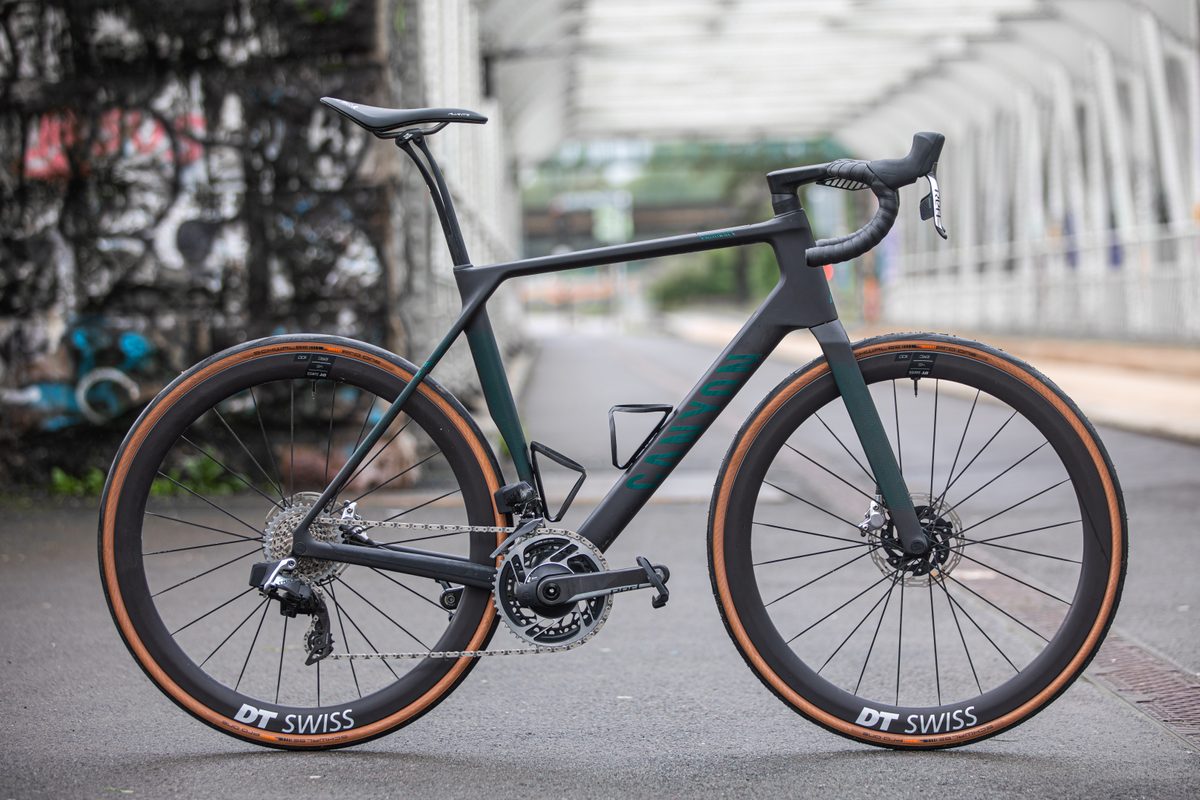

Canyon Endurace CFR AXS review - Road Bikes

Velo
Canyon Endurace CF SLX review: It turns out that smooth ...

Bicycling

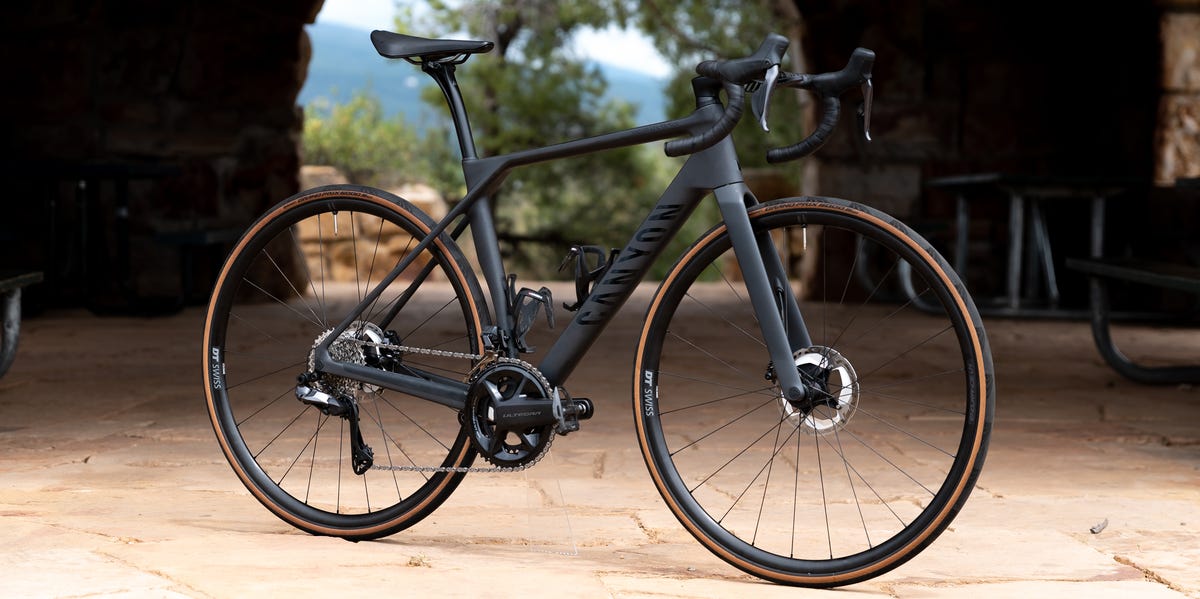

Canyon Endurace Review | Best Road Bikes 2023 - Bicycling

Granfondo

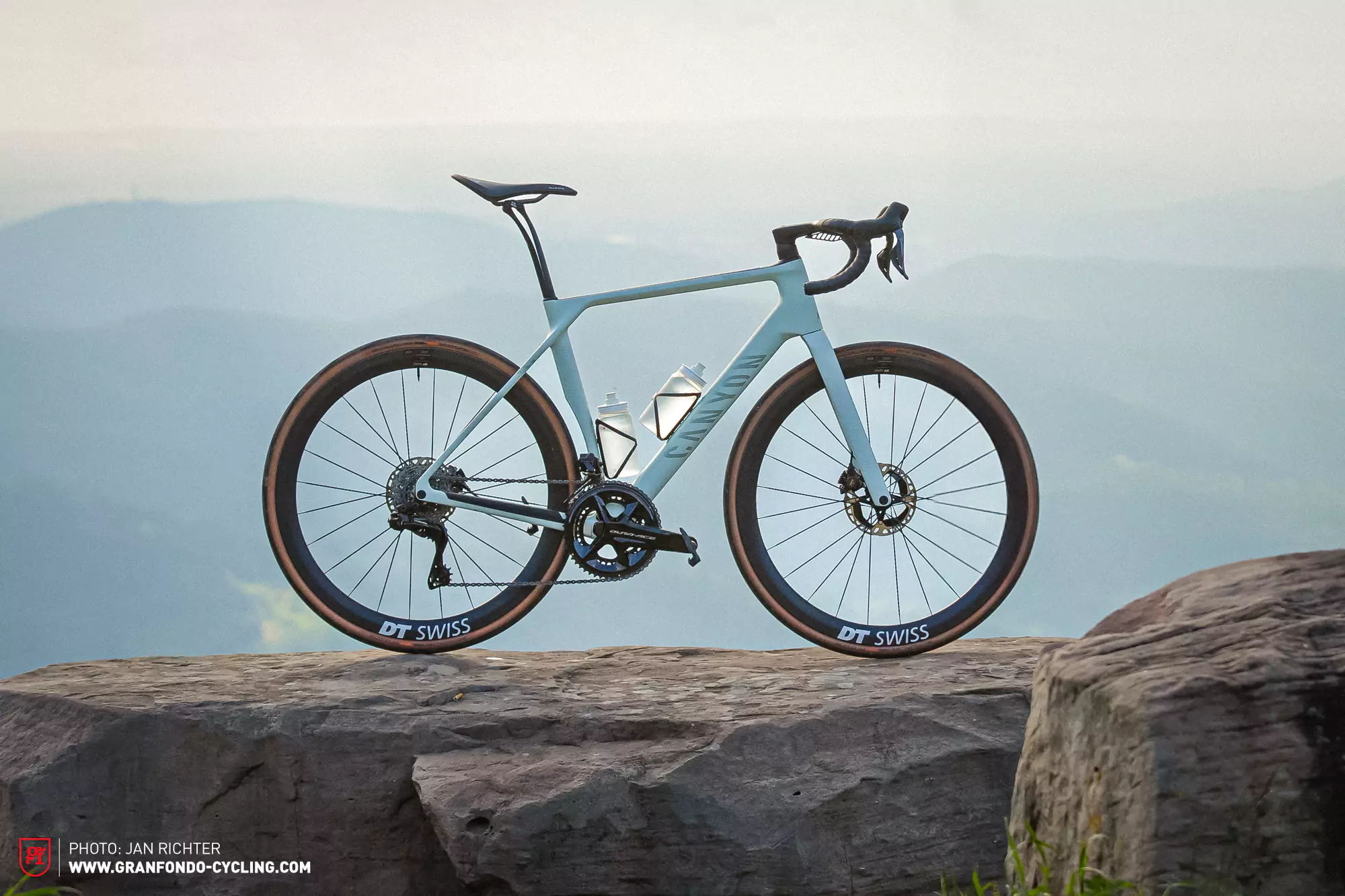

First Review: Canyon Endurace CFR Di2 2023

Argon 18 Krypton vs Canyon Endurace
View full comparison →

BMC Roadmachine vs Canyon Endurace
View full comparison →

Cannondale CAAD13 vs Canyon Endurace
View full comparison →

Cannondale Synapse vs Canyon Endurace
View full comparison →

Canyon Aeroad vs Endurace
View full comparison →

Canyon Endurace vs Cervelo Caledonia
View full comparison →

Canyon Endurace vs Cervelo Caledonia-5
View full comparison →

Canyon Endurace vs Grail
View full comparison →

Canyon Endurace vs Grizl
View full comparison →

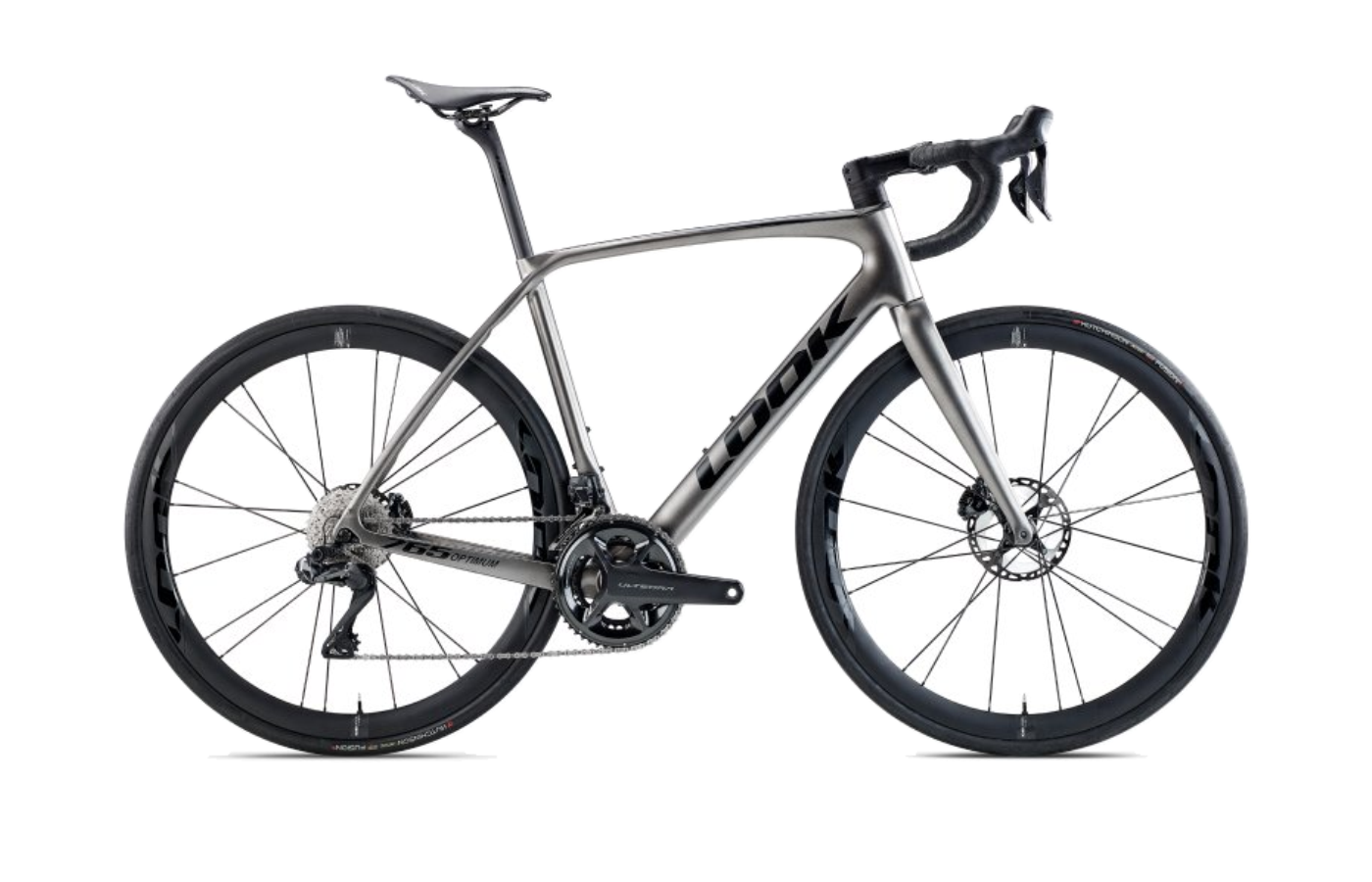

Canyon Endurace vs Look 765 Optimum
