Frameset
Frame
Fenix, Essential Series, 24T UD Carbon, Diamond Shape tubing, TA 12x142mm
Fork
Fenix, 30T-24T HM UD Carbon, TA 12x100mm
Fenix Disc Shimano 105 2x11sp
The 2023-on Ridley Fenix Disc sits as the more affordable version of the Fenix SLiC, but it is not a watered-down redesign. Ridley kept the same geometry and the same basic frame concept that defines the current Fenix platform: a bike aimed at riders who want endurance-bike comfort without giving up the direct, efficient road feel expected from a fast classics-style machine. Its identity is shaped less by maximum tire volume or gravel crossover ambitions and more by balancing long-ride composure with responsive road manners.
The frame design reflects that brief clearly. Ridley uses a stiff lower structure built around a diamond-shaped down tube, BB86 bottom bracket area, and asymmetric rear triangle to preserve power transfer, while the upper half of the frame is tuned for more vertical compliance through the slightly curved top tube and lower-slung seatstay junction. The front end also adopts Ridley’s F-Steerer/D-shaped steerer arrangement to route cables internally through the cockpit and headset area, giving the bike a cleaner look and more current integration than many mid-tier endurance road bikes. Just as important is what the Fenix Disc is not: with an official 28 mm actual tire clearance, it remains a traditional fast endurance road bike rather than an all-road platform built around oversized rubber.
Price TBD
Build
Size
| Stack | 541mm |
| Reach | 385mm |
| Top tube | 545mm |
| Headtube length | 140mm |
| Standover height | 781mm |
| Seat tube length | 492mm |
Fit and geometry
The Fenix Disc’s geometry is firmly in modern endurance-road territory, but it stays on the sportier side of that category. In size M, the bike pairs a 565 mm stack with a 392 mm reach, while the L moves to 591/401 mm. Those are relatively tall front-end numbers for road use, giving riders a more sustainable position for longer days, but the reaches are not especially short, which helps preserve a purposeful fit rather than an overly upright one. Head tube angles range from 72 degrees in XS to 74 degrees in XL, with 73 to 73.5 degrees through the core sizes, a conventional spread that should give smaller bikes stable steering while keeping larger sizes from feeling sluggish.
Chainstays are short by endurance-bike standards at 410 mm in XS through M and 413 mm in L and XL, and wheelbase stays compact as a result: 992 mm in M and 1012 mm in L. That points to handling that should feel quicker and more road-oriented than many comfort-first endurance bikes. BB drop runs from 68 mm in XS to 63 mm in the larger sizes, again suggesting a fairly typical road-bike balance of planted cornering and pedal clearance. Overall, the numbers support Ridley’s stated aim: this is an endurance fit with classic-road responsiveness, not a long-wheelbase, high-clearance all-road design.
Full specs
Groupset
Shift levers
Shimano 105 2x11-speed
Front derailleur
Shimano 105 R7000, 2x11-speed
Rear derailleur
Shimano 105 R7000, 11-speed
Cassette
Shimano 105 R7000, 11-speed, 11-32T
Chain
Shimano 105 11-speed
Crankset
Shimano 105 R7000, 172.5mm, 50/34T
Bottom bracket
Shimano 105 (compatible with frame standard)
Front brake
Flat-mount disc brake (calipers/brand not specified)
Rear brake
Flat-mount disc brake (calipers/brand not specified)
Front rotor
Disc rotor (size not specified)
Rear rotor
Disc rotor (size not specified)
Wheelset
Front wheel
Shimano RS171 DB (clincher), Shimano 11-speed compatible
Rear wheel
Shimano RS171 DB (clincher), Shimano 11-speed compatible
Front tire
Vittoria Zaffiro Pro, 700x25c, Black
Rear tire
Vittoria Zaffiro Pro, 700x25c, Black
Cockpit
Stem
Deda Zero, 90mm, Black
Handlebars
Deda Zero RHM, 400mm (c-c), Black
Saddle
Selle Italia Model X, Black
Seatpost
DEDA Zero, 19mm offset, 27.2mm, Black
Builds

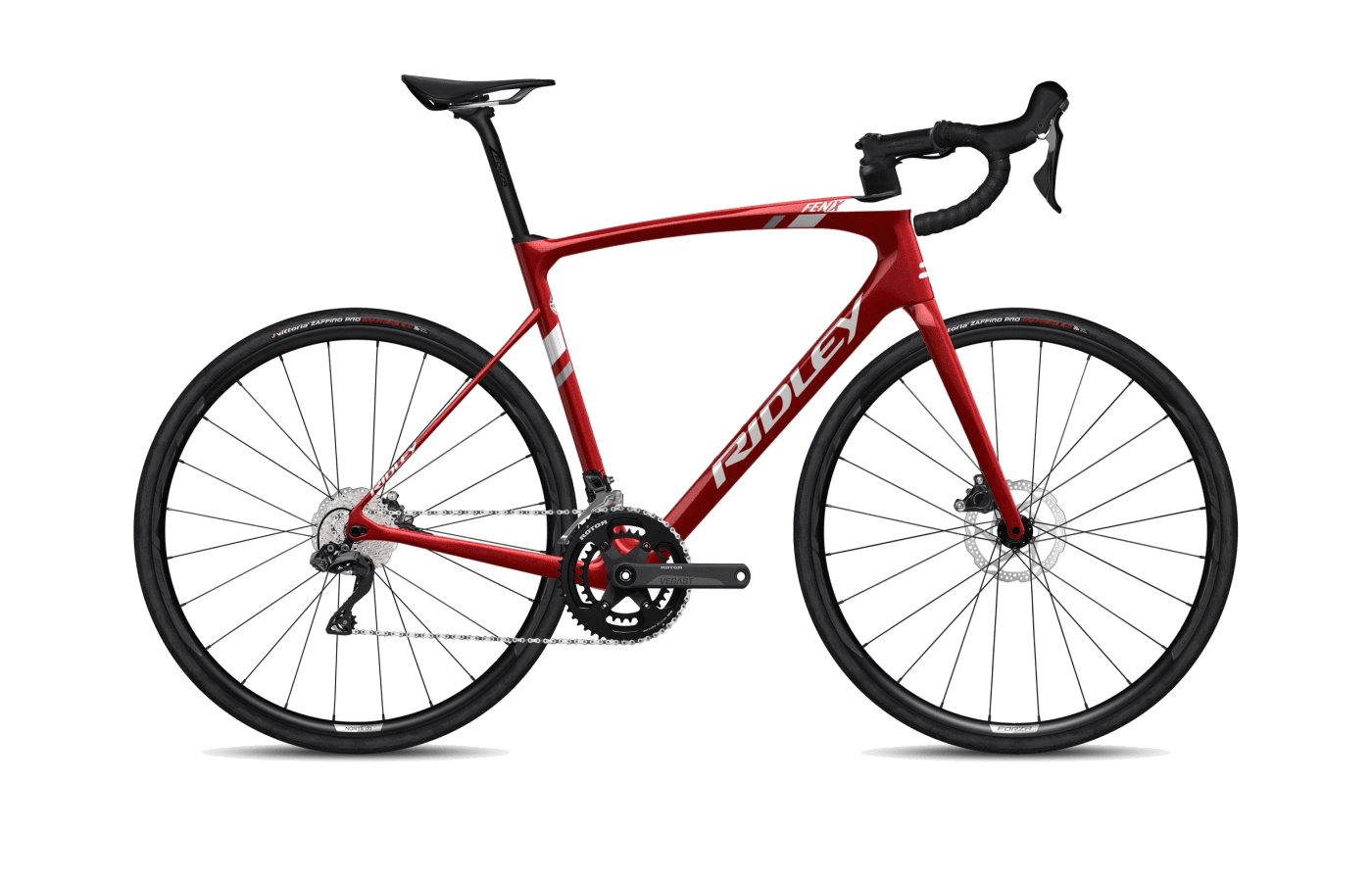

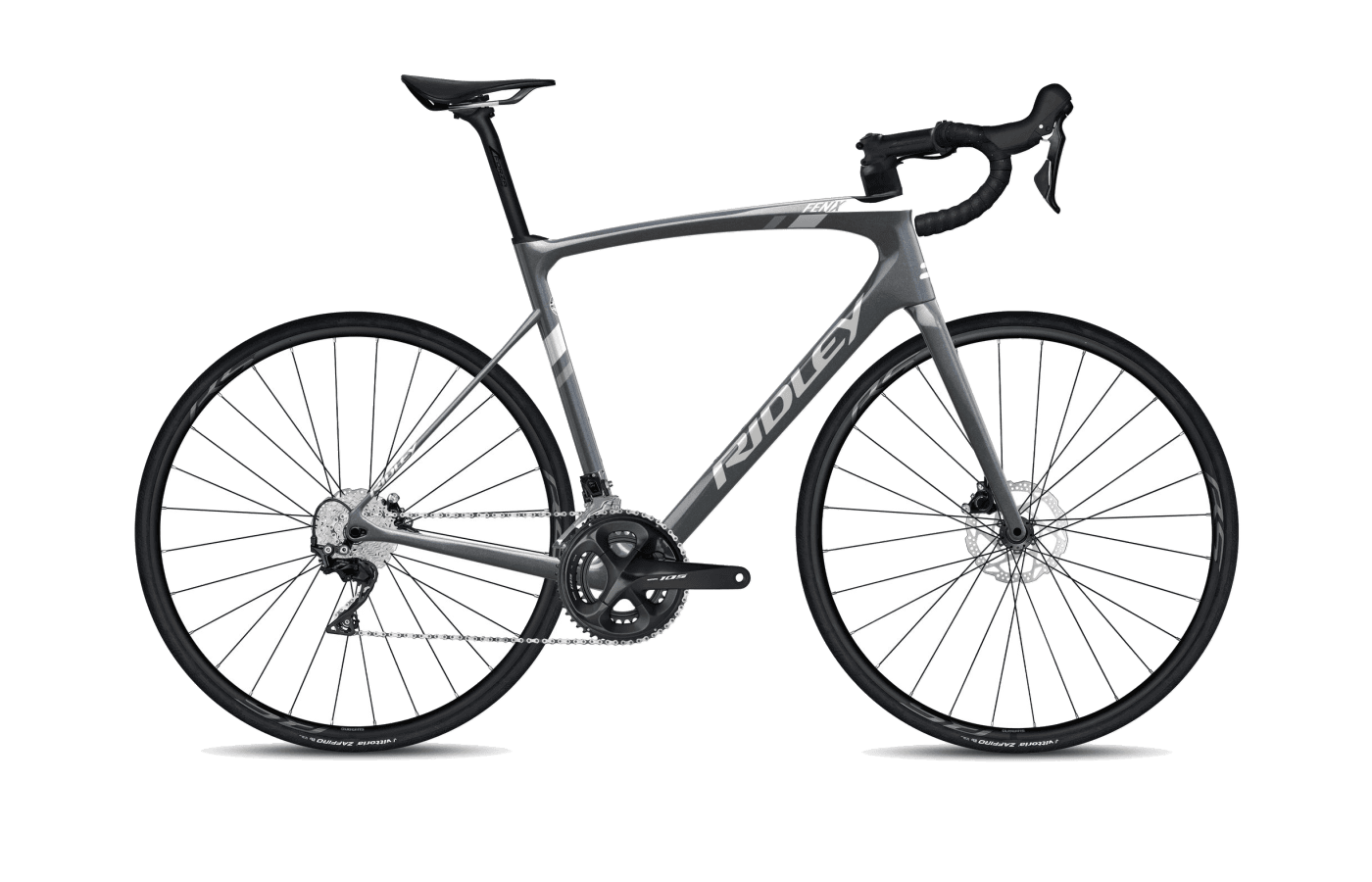

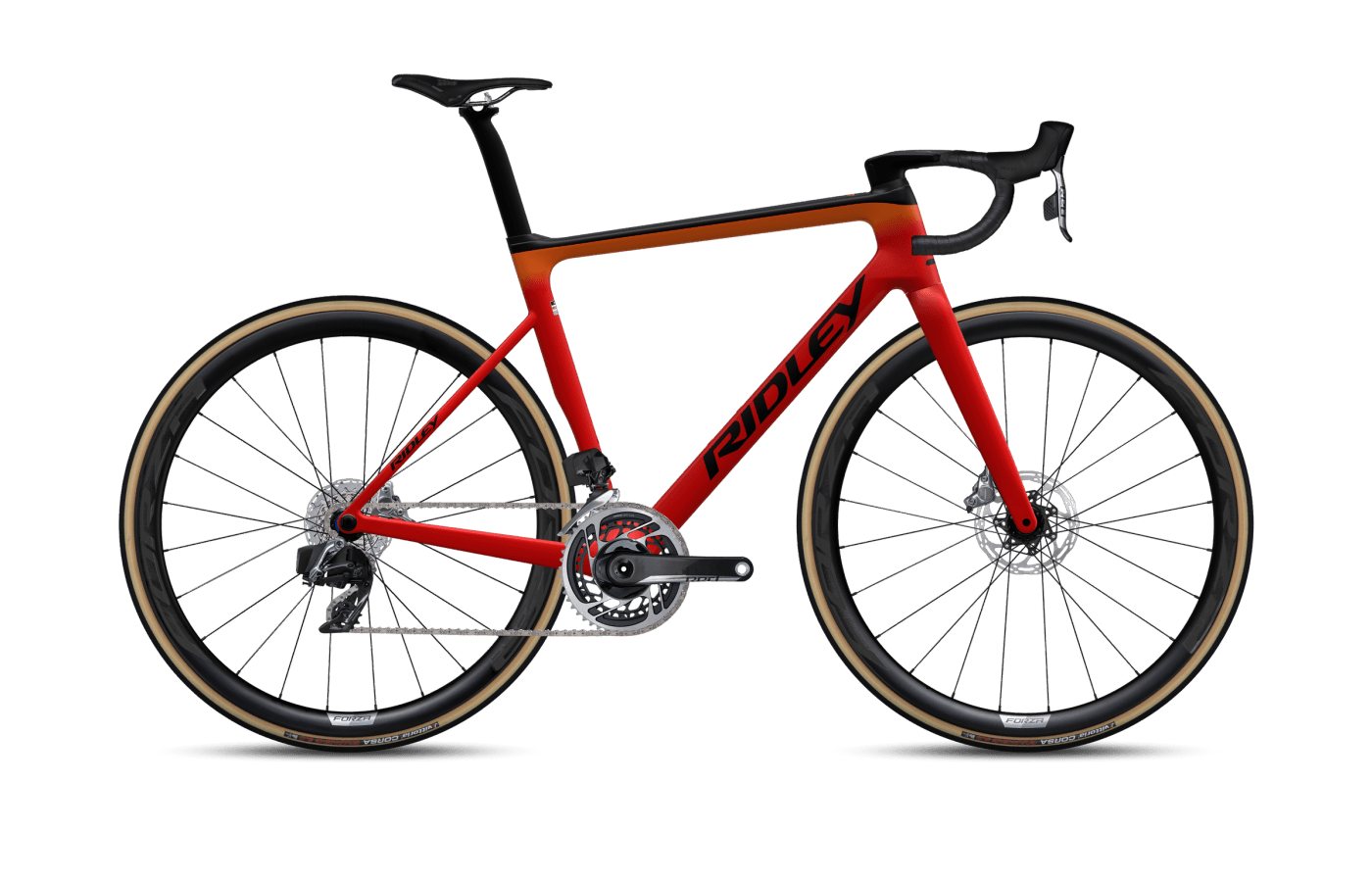

Ridley offers the Fenix Disc across a broad range of drivetrains, covering both conventional 2x road setups and more unusual Classified-based 1x configurations. The line includes Shimano Ultegra 2x11, Shimano 105 Di2 2x12, Shimano 105 2x12, and Shimano 105 2x11 builds, giving buyers a straightforward progression from mechanical value builds to electronic shifting. That spread makes the Fenix Disc accessible to riders who want the same frame platform whether they prioritize lower entry cost or a more modern drivetrain.

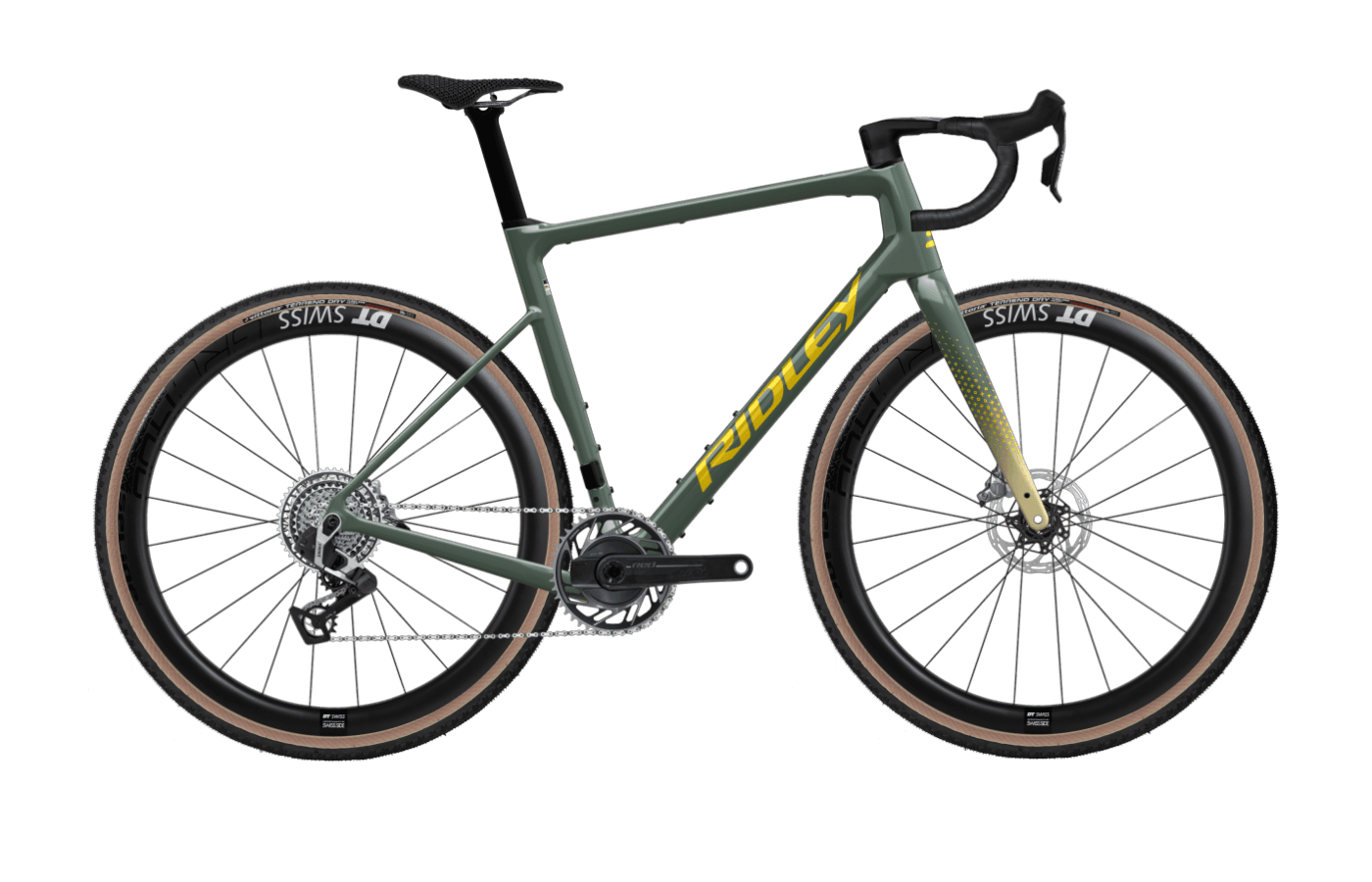

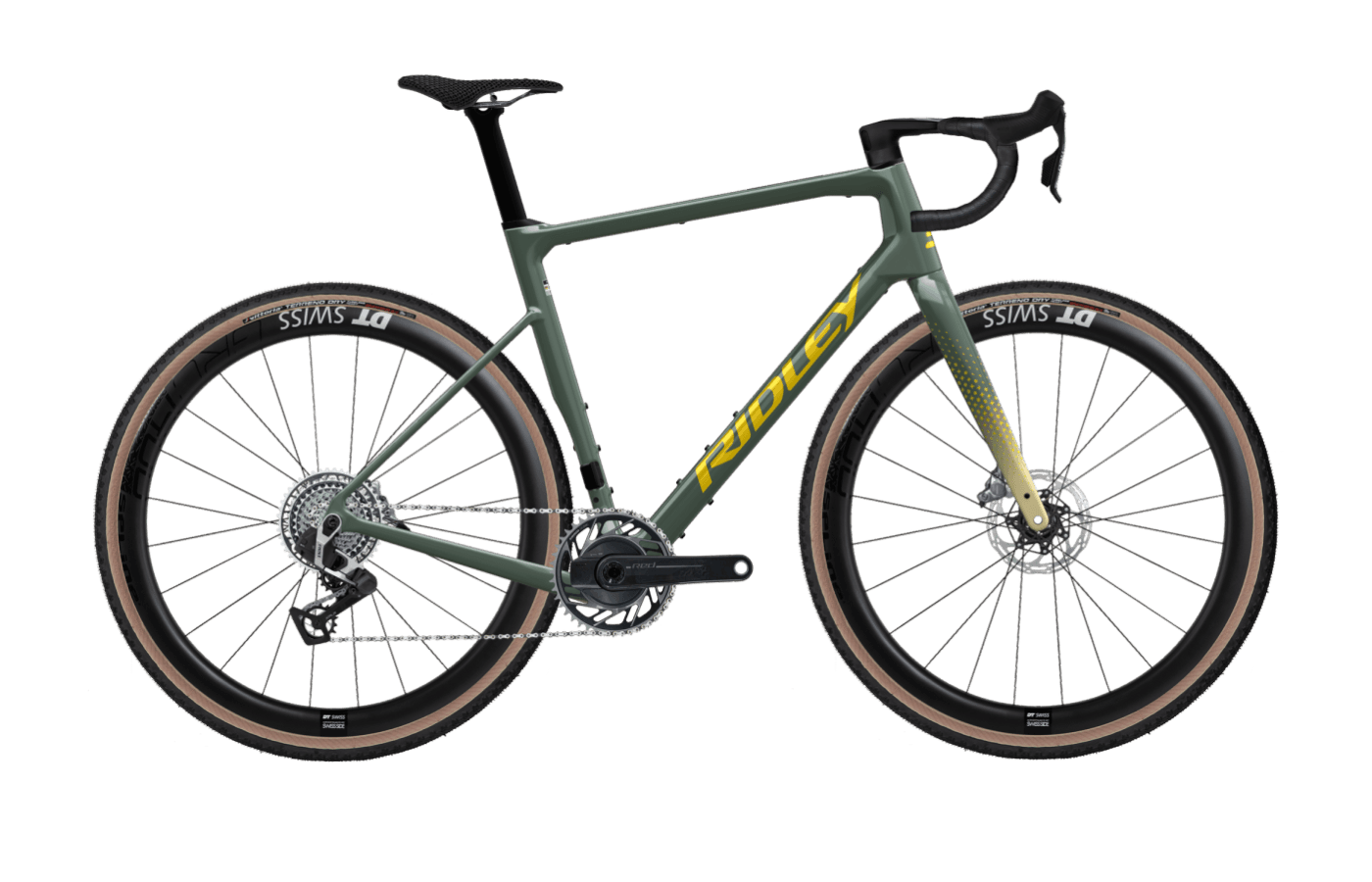

The more distinctive options are the Classified SRAM Rival AXS 1x12 Powershift and Classified Rival AXS 1x12 builds, which move the bike away from a standard double-chainring setup and toward a cleaner 1x drivetrain concept with electronic shifting. Alongside the internally routed front end, those builds give the Fenix Disc a more contemporary spec identity than the usual endurance-road formula. Without pricing or full component details, the main takeaway is that Ridley has positioned this model to cover a wide range of buyers while keeping the shared frame and geometry as the constant.
