Frameset
Frame
Ibis (model not specified)
Fork
Ibis Gravel Disc Fork, 700c, 100x12
The Ibis Hakka MX is a lightweight carbon gravel bike rooted heavily in cyclocross racing but expanded for broader off-road pursuits. Introduced as the V1 generation and maintained with only minor mid-cycle compatibility updates, it centers on a 1,000-gram monocoque frame paired with an ENVE carbon fork. Ibis positions the Hakka MX as a highly adaptable drop-bar platform, capable of lining up at a gravel race, tackling light bikepacking routes, or serving as a rugged winter road bike. Rather than adopting the slack, stretched-out dimensions of modern adventure bikes, it retains a steeper, more traditional front end that prioritizes immediate power transfer and quick steering. It suits riders who value a rigid, highly efficient pedaling platform and prefer to tune their comfort through tire volume rather than frame flex. The frame accommodates either 700c wheels for fast, mixed-surface riding or 650b wheels for rougher, rockier terrain.

| Stack | 561mm |
| Reach | 377mm |
| Top tube | 539mm |
| Headtube length | 135mm |
| Standover height | 785mm |
| Seat tube length | 525mm |
The Hakka MX utilizes a geometry that leans closer to traditional cyclocross dimensions than the slack, mountain-bike-inspired shapes found on many contemporary gravel bikes. With a head tube angle hovering around 72 degrees on most sizes and a moderate 70mm bottom bracket drop, the bike keeps the rider’s weight centered for agile, responsive steering. This steeper front end requires a more attentive hand on fast, loose descents but rewards the rider with immediate turn-in on tight trails and winding paths.
Chainstays measure 430mm across the size run, striking a balance between rear-wheel traction on steep climbs and stability at speed. The frame features a relatively horizontal top tube, which reduces standover clearance compared to heavily sloped frames but maximizes the internal front triangle space for mounting large frame bags. Rider posture is decidedly athletic, positioning the torso for efficient power output rather than upright touring comfort. The 31.6mm seatpost diameter accommodates standard dropper posts, allowing riders to lower their center of gravity on steep terrain.
Frameset
Frame
Ibis (model not specified)
Fork
Ibis Gravel Disc Fork, 700c, 100x12
Groupset
Shift levers
SRAM Rival AXS
Rear derailleur
SRAM GX AXS
Cassette
SRAM XG-1275, 12-speed, 10-52T
Chain
SRAM GX Eagle
Crankset
SRAM Rival Crankset, 42T alloy ring
Bottom bracket
SRAM BB T47 Road Wide
Front brake
SRAM Rival
Rear brake
SRAM Rival
Front rotor
SRAM Centerline 160mm
Rear rotor
SRAM Centerline 160mm
Wheelset
Front wheel
Stan's Crest Alloy, Ibis hubs (700c)
Rear wheel
Stan's Crest Alloy, Ibis hubs (700c)
Front tire
Maxxis Rambler 700c x 40mm, EXO
Rear tire
Maxxis Rambler 700c x 40mm, EXO
Cockpit
Stem
Cane Creek eeSilk Compliance Stem (49/53: 80mm, 55: 90mm, 58/61: 100mm)
Handlebars
Ibis Alloy Flared Bar
Saddle
WTB Silverado Ti 142
Seatpost
Ibis Alloy
Grips
Black EVA Bar Tape
The current Hakka MX lineup is streamlined into two 12-speed SRAM 1x builds, both utilizing the same carbon frame, ENVE gravel fork, and aluminum wheelset. The entry point is the Apex build, which relies on SRAM’s mechanical Apex Eagle drivetrain. It pairs a 42-tooth alloy chainring with a massive 10-52T cassette, providing a wide gear range that easily handles steep, loaded climbs.

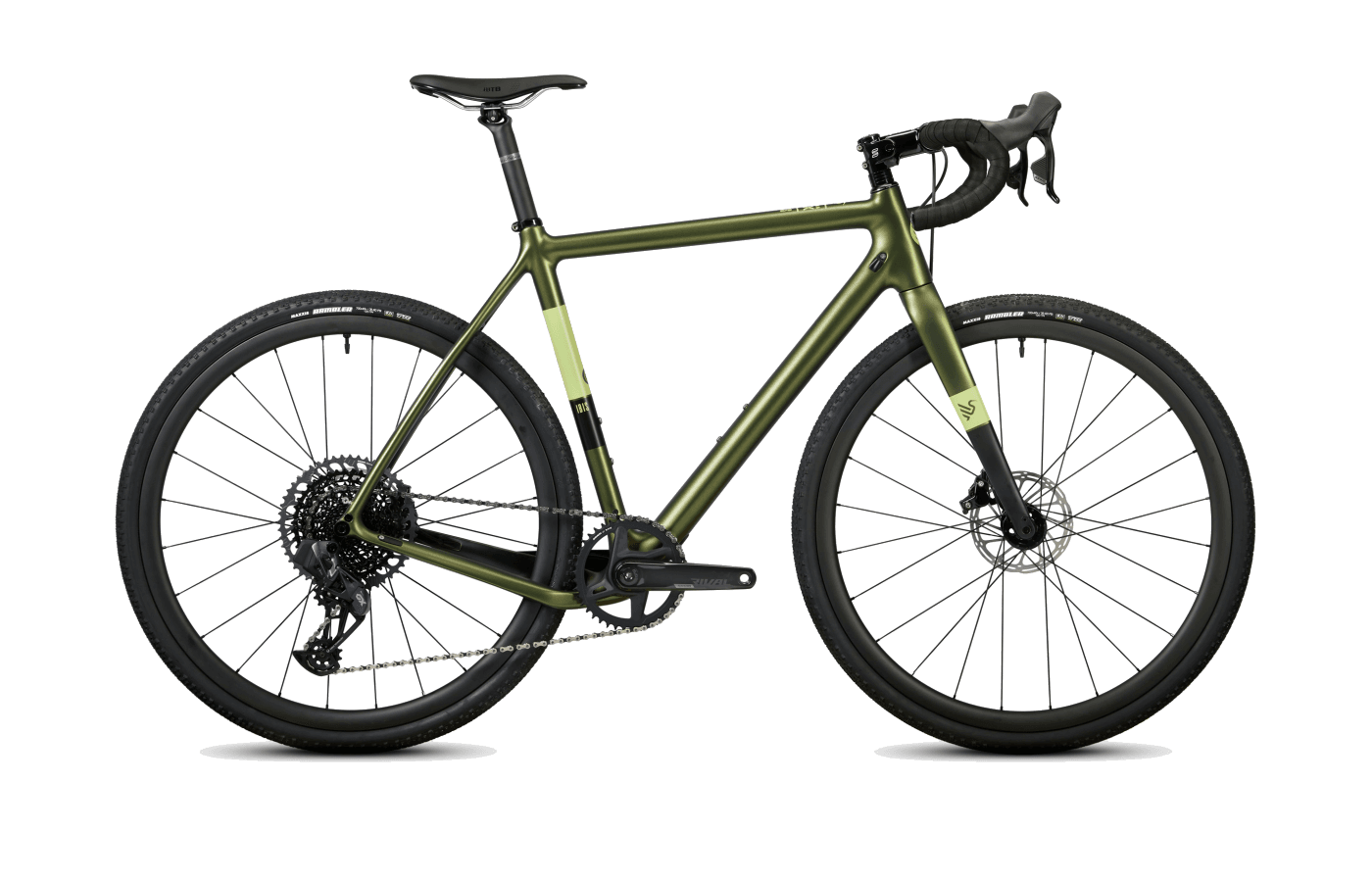

Stepping up to the Rival AXS build moves the bike to a fully wireless electronic drivetrain. This setup uses SRAM Rival AXS shifters paired with a GX Eagle AXS rear derailleur, maintaining the exact same 42T by 10-52T gearing spread but delivering the precise, low-effort shifting characteristic of electronic systems. Both builds roll on Stan's Crest alloy rims laced to Ibis hubs, wrapped in 40mm Maxxis Rambler tires, and feature an Ibis flared aluminum handlebar.
While earlier iterations of the V1 frame used 160mm rear rotors and supported mechanical front derailleurs, the current rebranded V1 frames are optimized for 140mm rear rotors and restrict 2x drivetrain compatibility to electronic front derailleurs only.
Apex
Price TBD

Rival AXS
Price TBD
Reviewers consistently praise the Hakka MX for its exceptional pedaling efficiency and rapid acceleration. The stiff carbon chassis translates rider input directly to the dirt, giving the bike an "urgency not unlike my road bike" (Ridingtherivet) when sprinting out of corners. This rigidity makes it a highly capable climber, with testers noting its low weight helps it "scamper up even the steepest technical ascent" (Road.cc). On smooth gravel and pavement, the bike maintains speed effortlessly and responds immediately to steering inputs.
However, that same frame stiffness presents a clear tradeoff in ride comfort. Multiple reviewers point out that the chassis "can feel a little harsh compared to some of the competition" (Outdoorgearlab) over washboard and rocky terrain. Because the frame itself offers minimal compliance, riders must rely entirely on tire volume and pressure to absorb trail chatter.
To mitigate this, many testers recommend running 650b wheels with 2.1-inch mountain bike tires for rougher routes, which significantly smooths out the ride while maintaining the bike's quick handling. When set up with high-volume rubber, the Hakka MX transforms into an "absolute rocketship on the descents" (Outdoorgearlab), tracking predictably through loose corners. Across all wheel sizes, the inclusion of a threaded T47 bottom bracket and internal cable routing earns high marks for creating a "silent ride even on rocky descents" (Dualsportdiary) while eliminating the creaks often associated with press-fit designs.

YouTube

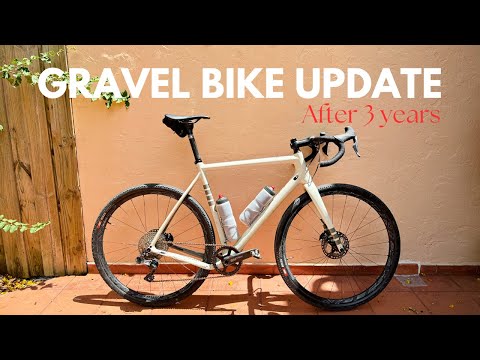

Ibis Hakka MX After 3 Years of Riding - Long Term Review

YouTube

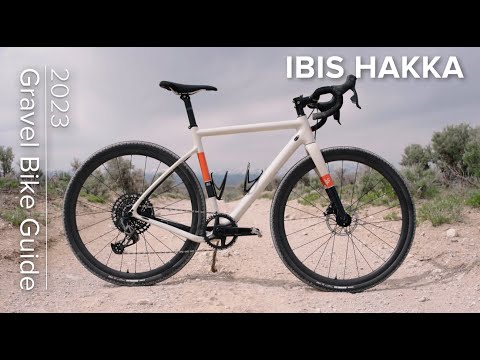

Ibis Hakka | Best Gravel Bikes Of 2023

Mtbinsider

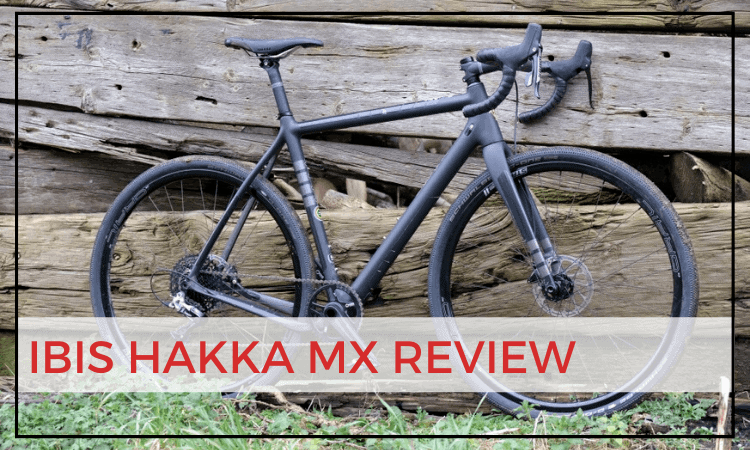

Ibis Hakka MX Review: Yay or Nay? Find Out Here! ⋆ Mountain Bike Insider
Road.cc
Ibis Hakka MX review

Dualsportdiary

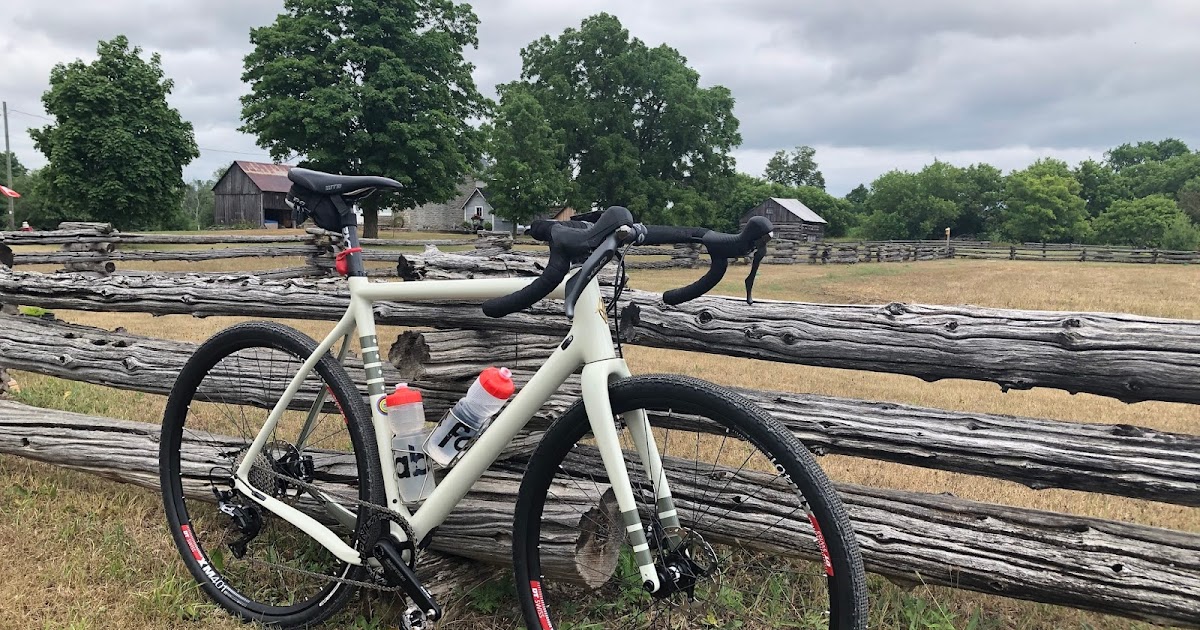

Ibis Hakka MX gravel bike: Review

Outdoorgearlab

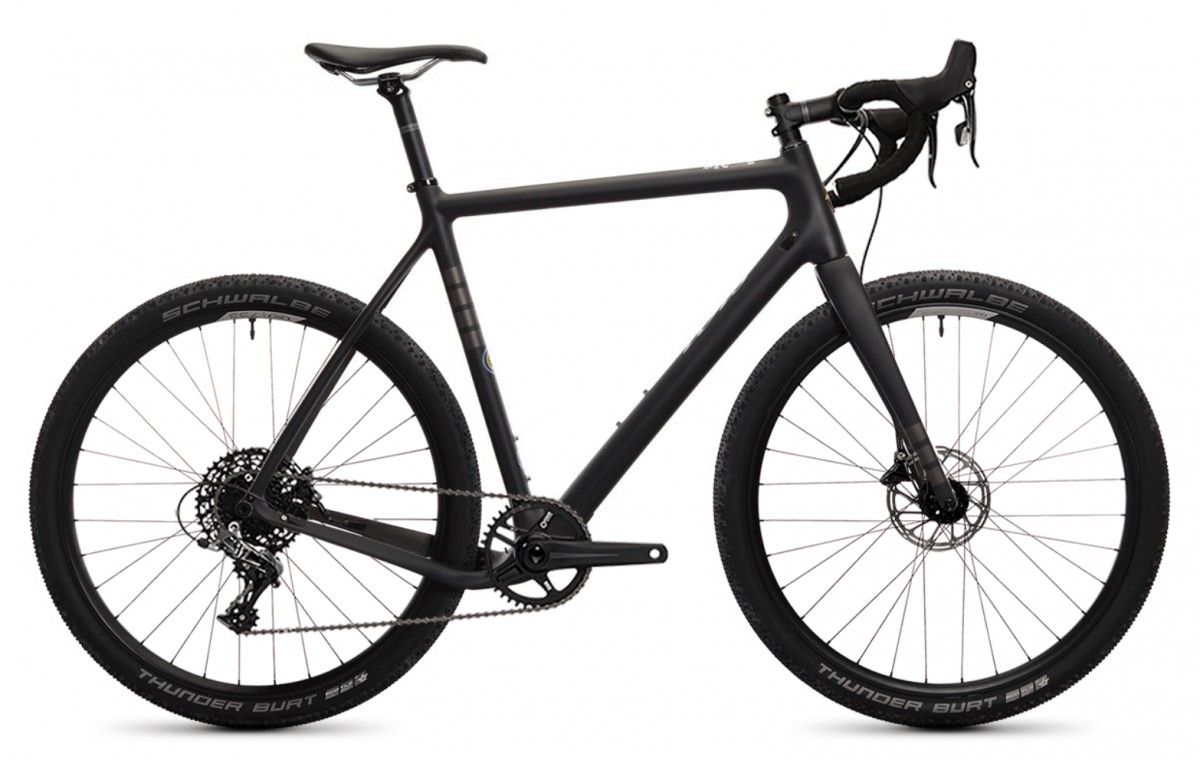

Ibis Hakka MX Rival Review | Tested & Rated

YouTube
Santa Cruz Stigmata Review vs Ibis Hakka MX (650b setup)

Theradavist

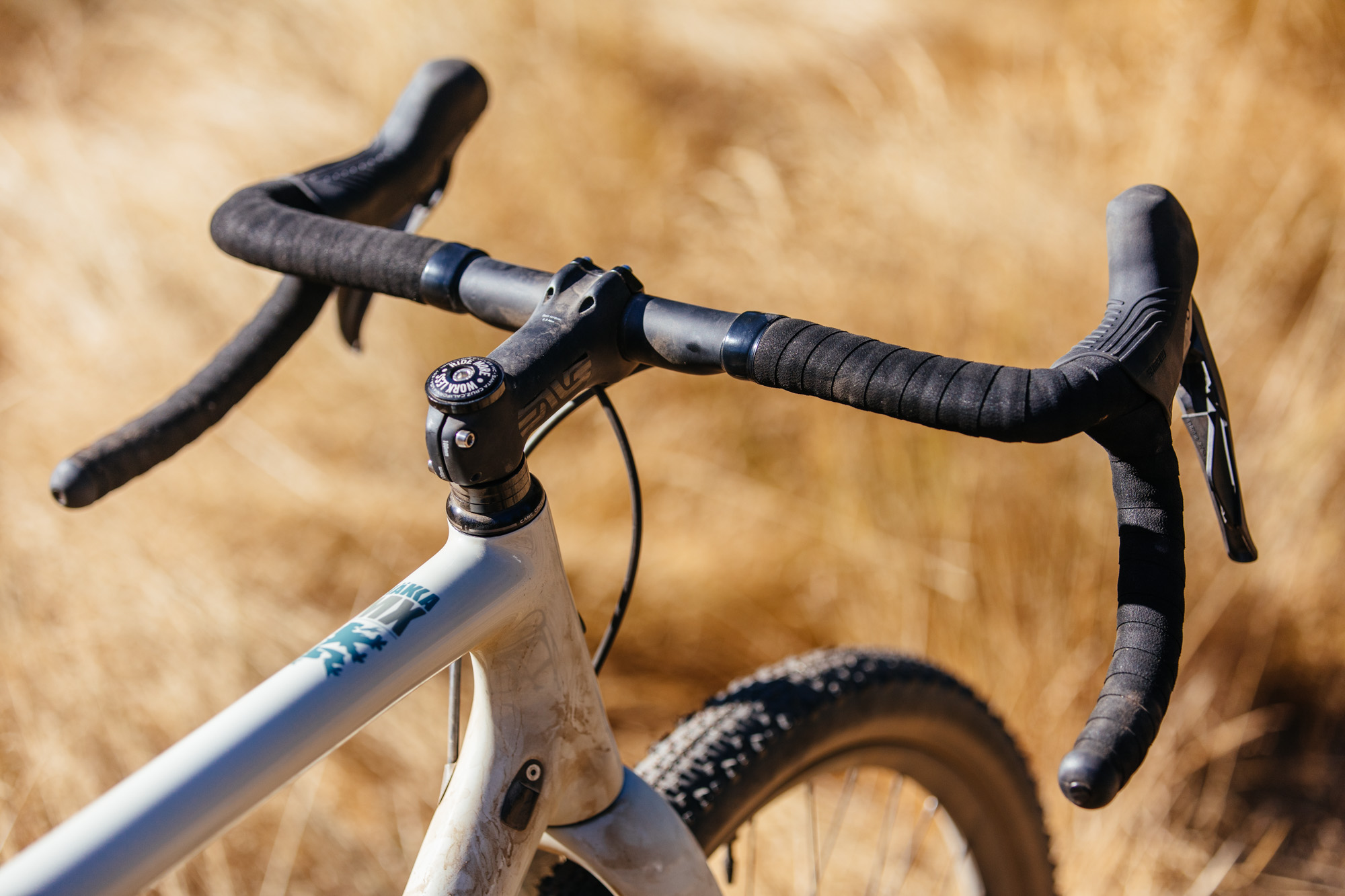

One Ride With Shimano GRX Gravel Group on an Ibis ...
Off
off-road.cc

Ibiscycles
IBIS HAKKA MX REVIEW: RAMBLE APPROVED

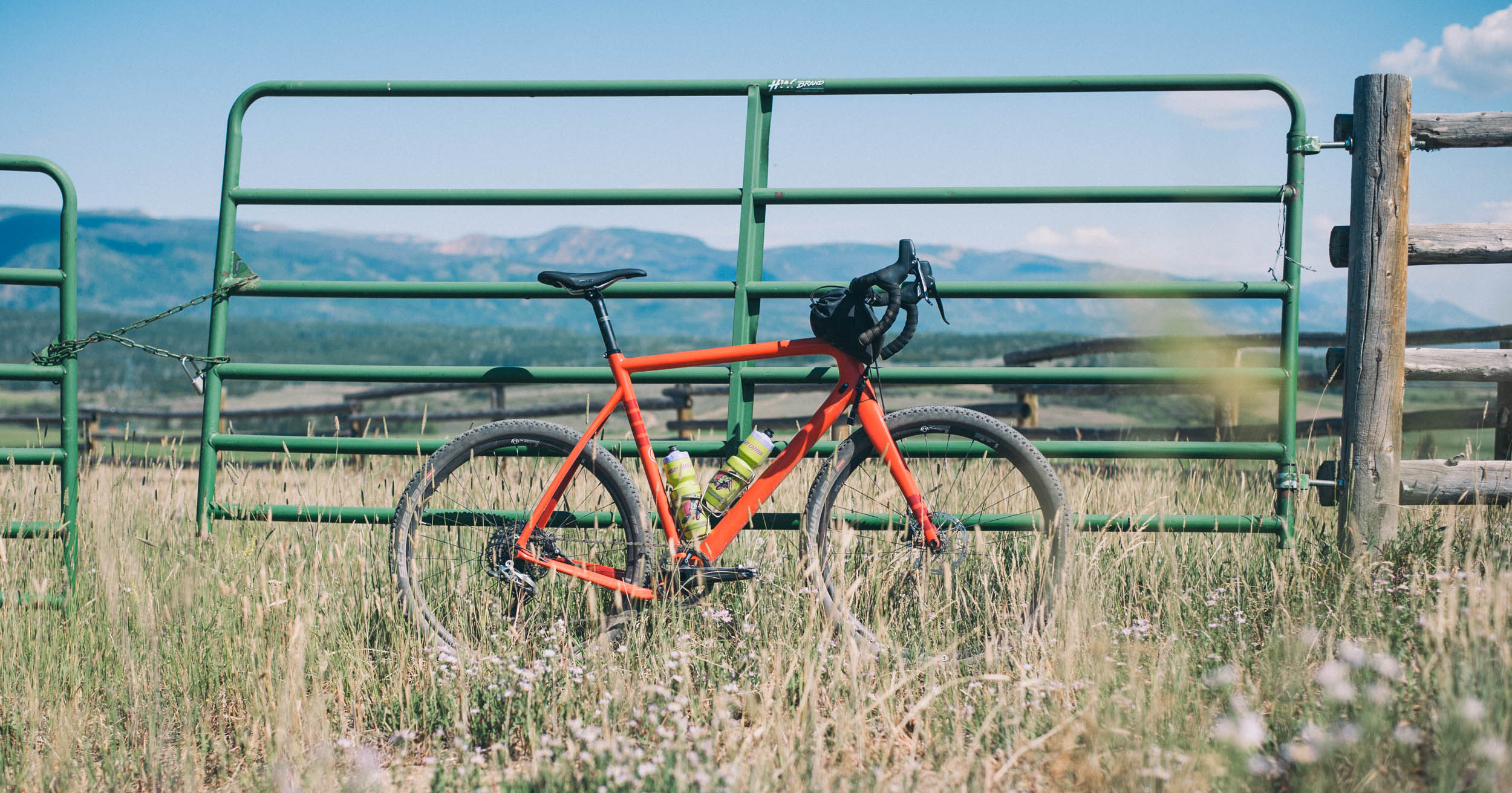

Bikepacking
Ibis Hakka MX Review: Ramble Approved

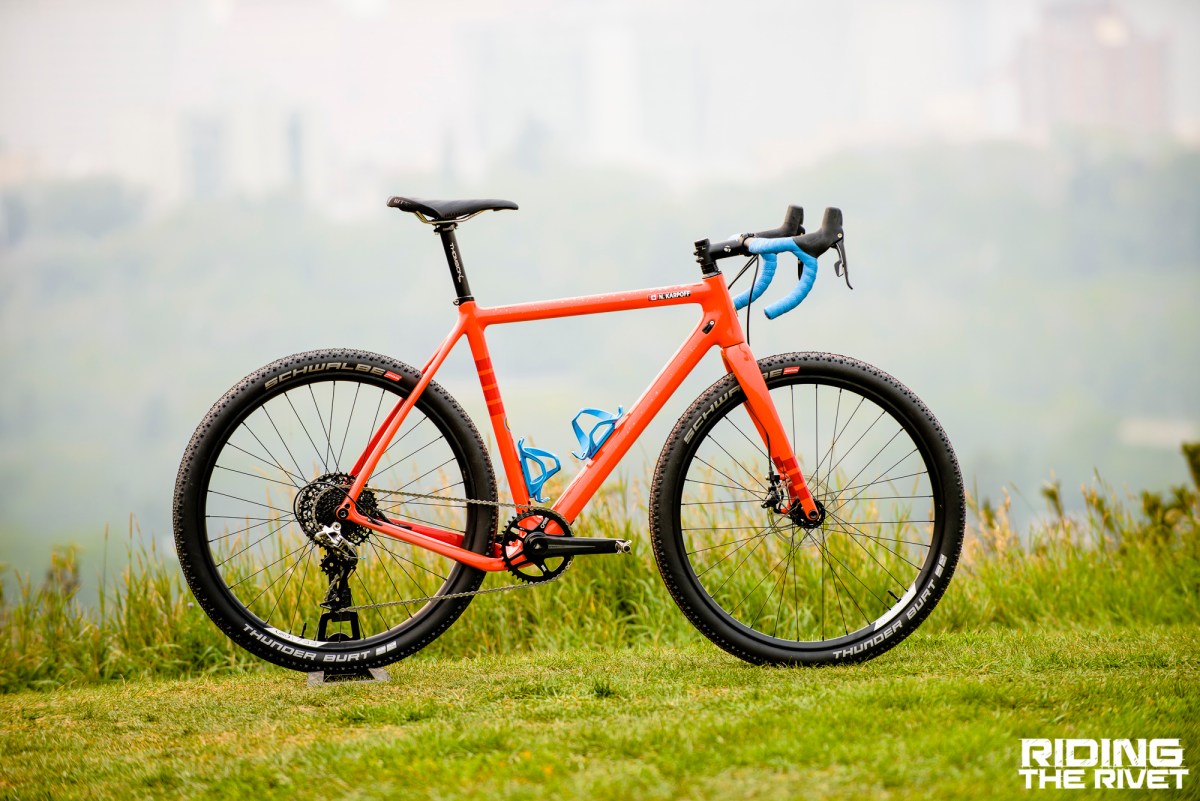

Ridingtherivet
