SRAM Eagle S-Series: Three Tiers Replace Nine, New UDH Half Mount Debuts

SRAM has overhauled its legacy Eagle mountain bike drivetrain lineup, consolidating nine product lines — from the entry-level SX and NX through the top-tier XX1 AXS — into a simplified three-tier family called the Eagle S-Series. The new S100, S200, and S500 groups are designed for riders on frames without a Universal Derailleur Hanger, keeping the traditional derailleur hanger mount while introducing a few genuine technical updates, most notably the UDH Half Mount impact-protection standard that makes its first appearance on the entry-level S100 derailleur.

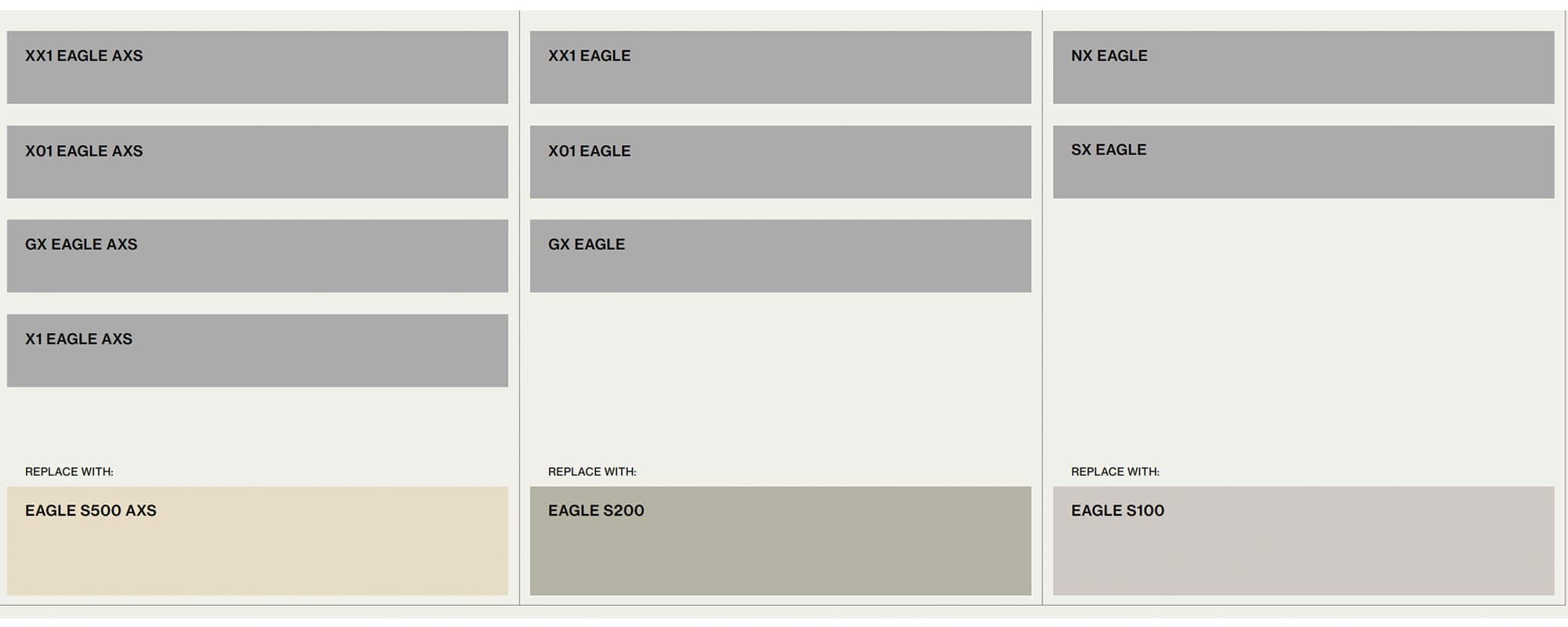

The consolidation is sweeping. On the mechanical side, the XX1, X01, GX, NX, and SX Eagle derailleurs are all replaced by just two: the mid-tier S200 and the entry-level S100. On the electronic side, the AXS variants of XX1, X01, GX, and X1 Eagle are folded into the single S500 AXS derailleur, priced at $390 USD — $40 less than the GX Eagle AXS it most directly replaces, and $440 cheaper than the XX1 Eagle AXS. SRAM provides a replacement-matrix chart so owners of any of those nine legacy groups can identify which S-Series components will serve as compatible drop-in replacements.PinkBikeEscape CollectiveBikeMag

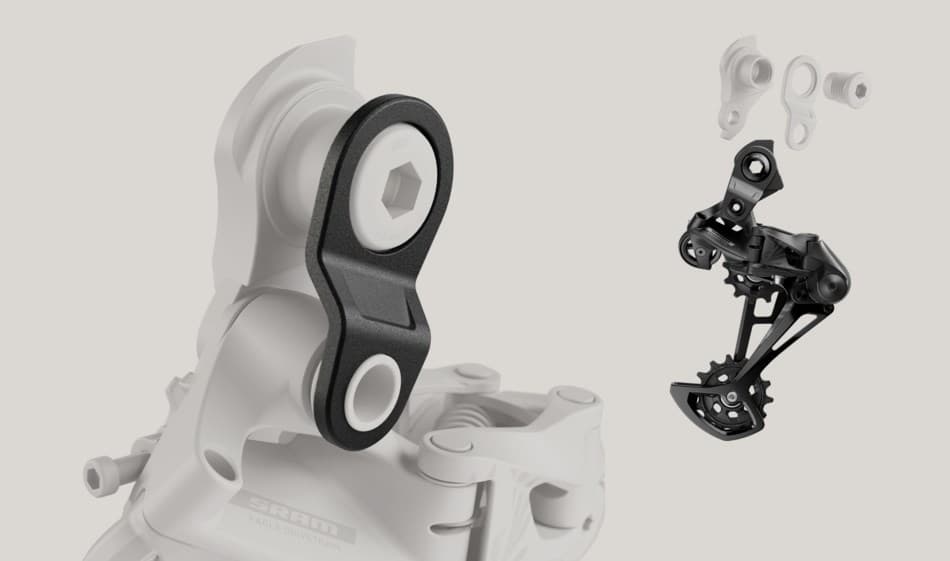

The headline technical addition is the UDH Half Mount, offered exclusively on the S100 derailleur as a $10 optional plate. On a UDH-compatible frame, the plate bolts onto the outer face of the derailleur concentric with the axle mount, bracing the derailleur against incidental side impacts without eliminating the hanger or the standard limit and B-tension adjustment screws. It is not the same as SRAM's Full Mount Transmission interface — the S100 still hangs from a regular derailleur hanger — but it provides a meaningful step up from an unguarded hanger, and early comparisons have drawn parallels to the Specialized hanger guard and the Madrone Jab aftermarket brace. Critically, the Half Mount plate only functions with a UDH frame; the S100 itself remains compatible with any hanger.PinkBikeEscape CollectiveSingletracks

The S200 is the most interesting derailleur for performance-minded riders who have been running legacy mechanical Eagle. At $135 it matches the price of the outgoing GX Eagle derailleur, uses a Type 3 roller-bearing clutch, and is compatible with both 10-50T and 10-52T cassettes. The catch is that SRAM has not published a weight figure for it, and by collapsing the XX1 and X01 mechanical options into a single part it has eliminated the choice of a premium-material mechanical derailleur — the XX1 featured a carbon outer cage and titanium hardware, weighed roughly 20g less than GX, and cost $323. The S500 AXS derailleur features an aluminum cage and an Overload Clutch that disengages the motor gearbox when the derailleur is struck from the side, letting it swing inward rather than shear, then returning to position automatically.PinkBikeSingletracksBikeMag

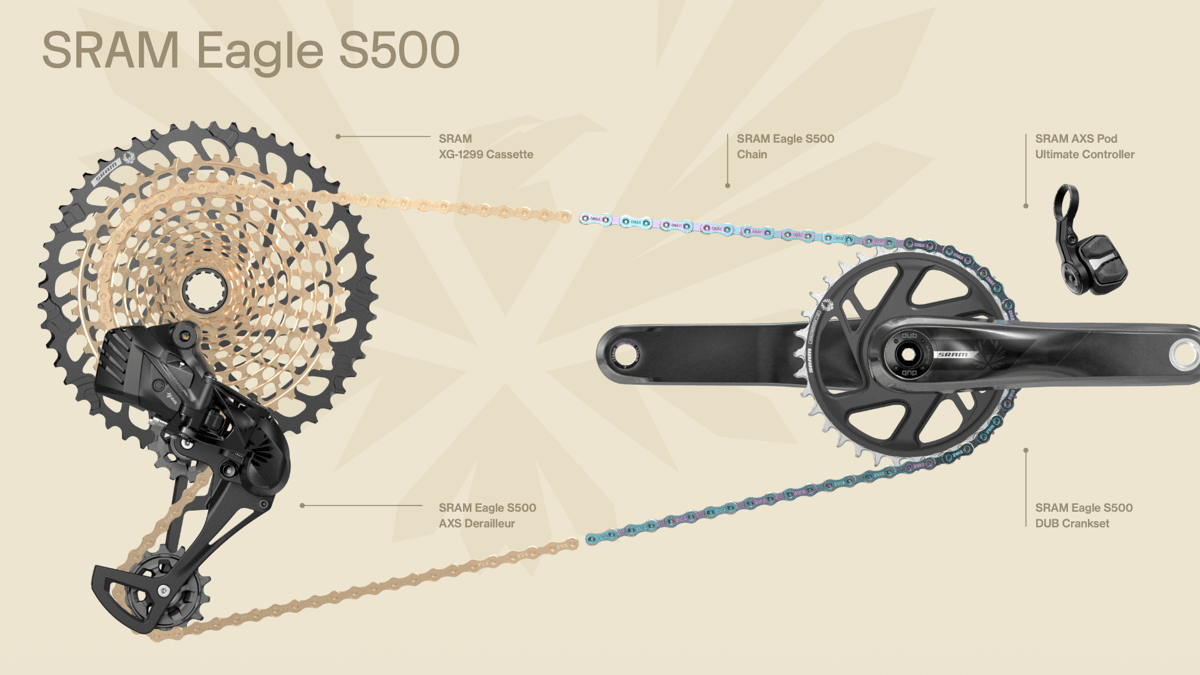

Cassette options split cleanly by tier. S100 is officially limited to the PG-1210, an all-steel 11-50T cassette weighing a claimed 630g that mounts to a standard HG splined freehub. At $85 it keeps purchase cost low, and the 11T, 13T, and 15T sprockets are individually replaceable, an important feature for high-torque e-MTB use where those cogs wear fastest. S200 and S500 step up to XD driver bodies with two options: the XG-1275 at $220 in 10-50T or 10-52T, roughly 180g lighter than the steel cassette, or the top-spec XG-1299 at $545 in 10-52T for a 520% gear range. Cranksets across all three tiers gain shorter-length options down to 155mm, addressing a longstanding gap — previous GX cranks bottomed out at 165mm, and XX1 offered only 170mm or 175mm. S200 and S500 cranks use a DUB Wide spindle with a three-bolt X-SYNC 2 chainring interface; S100 uses the older Powerspline splined bottom bracket.PinkBikeEscape CollectiveSingletracksBikeRumor

Pricing across the range runs noticeably lower than the components being replaced. A complete S100 drivetrain with the UDH Half Mount plate costs $295 USD, making it a direct competitor to options like MicroShift's 11-speed Advent X at $244. The S200 derailleur at $135 holds the same price as the GX Eagle it replaces. For the S500, pairing the $390 derailleur with the lightest 52T XG-1299 cassette and carbon cranks puts a full electronic group around $1,480 USD, approximately $120 less than the most affordable T-Type Transmission drivetrain — which additionally requires a UDH-compatible frame. An S500 upgrade kit covering the derailleur, battery, charger, and AXS Pod Controller is available for $599 USD.PinkBikeBikeMagRoad.cc

Strategically, the S-Series signals that SRAM is drawing a clean boundary between two parallel drivetrain generations rather than forcing a single upgrade path. Transmission — with its UDH Full Mount interface, Flattop chain, and direct-mount derailleur — remains SRAM's performance flagship; S-Series components are largely incompatible with Transmission parts and SRAM advises keeping each system intact. The S-Series exists to serve the enormous installed base of non-UDH frames and riders who prefer a cable-actuated system, and to give OEM bike brands a rationalized, cost-effective parts bin. By cutting SKUs from nine to three the company has also reduced the confusion that accumulated as Eagle proliferated — though the decision to drop premium mechanical options like the XX1 cage will leave some weight-conscious riders without a SRAM mechanical choice short of the heavier Transmission T90 derailleur at $210.Escape CollectiveSingletracksBikeRumorBikeMag
