Canyon Lux World Cup CFR: Slacker, Lighter, and Now Packing 110mm

Canyon's new Lux World Cup CFR is the most thorough rework of the platform since the previous generation debuted in 2022. The CFR frameset now weighs 1,480g — 55g lighter than its predecessor despite a jump from 100mm to 110mm of rear travel — and the geometry has been pulled 2.5 degrees slacker at the head tube, landing at 66 degrees, while reach grows by 5mm per size and the wheelbase stretches by 43mm. Canyon timed the release to coincide with the opening round of the Whoop UCI XC World Cup series in South Korea, arriving just days after Specialized unveiled the new Epic 9.

The outgoing Lux, which launched in 2022 with a 68.5-degree head angle, had been showing its age against a new crop of bikes that arrived with more aggressive geometry and longer travel. Canyon's own Lux Trail — offering 120/115mm of travel and slacker numbers — had effectively been absorbing demand from riders who found the race model too conservative. That gap closes with this generation. The new bike was developed in close collaboration with Canyon's World Cup squad, and the results were validated in competition long before the formal launch: Luca Schwarzbauer and Sam Gaze took three stage wins at the 2026 Cape Epic on an unreleased prototype, while Jenny Rissveds swept all eight stages of the mixed pairs category alongside Simon Andreassen — making the new Lux the most race-proven unreleased bike in recent XC memory.BikeRumorSingletracksEscape Collective

The headline specification is the frame weight. Canyon claims 1,480g for a size medium CFR frameset, inclusive of shock and hardware — a 55g reduction from the prior CFR and a 445g drop from the old CF frame. Complete bike weights start at 9.82kg (21.6lb) on the top XTR build in size medium, and that figure includes a dropper post, which was not standard on any previous Lux generation. Travel increases to 120mm at the fork and 110mm at the rear, the latter driven by a revised linkage-driven single-pivot with flex stays. Canyon redesigned the leverage curve to be flatter and more linear, keeping the suspension more active around sag for better traction on technical climbs without sacrificing end-stroke support.PinkBikeBikeMagBikeRumor

The most technically novel addition is the adjustable anti-squat flip chip at the lower main pivot. It allows riders to shift the bike's anti-squat curve to suit different chainring sizes or course conditions — a degree of tunability that XC bikes have not previously offered at any price point. Canyon notes the adjustment creates no meaningful change in geometry or suspension feel, targeting only pedaling efficiency. That specificity makes it genuinely useful for racers who swap chainrings between a short-track sprint and a marathon stage race. A stiffer 3D-forged alloy rocker link and circlip-secured bearings at the shock extension also address durability feedback from the previous generation.PinkBikeSingletracksBikeRumor

Geometry changes reach into every corner of the fit. The 2.5-degree slack shift to a 66-degree head angle is paired with a 0.5-degree steeper seat tube angle, now 75.5 degrees, keeping the rider centered over the bike on climbs. Reach runs 415mm (XS) to 495mm (XL) in 20mm increments — 5mm longer per size than before — while stack grows by 15mm across the board. Chainstay length scales with frame size for the first time: XS through M use 435mm, with L and XL stepping to 440mm. Bottom bracket drop is 42mm across all sizes. The net effect is a longer, lower, and slightly more forward stance that matches what Canyon's racers had been asking for as XCO courses became increasingly technical.PinkBikeBikeMagBikeRadar MTB

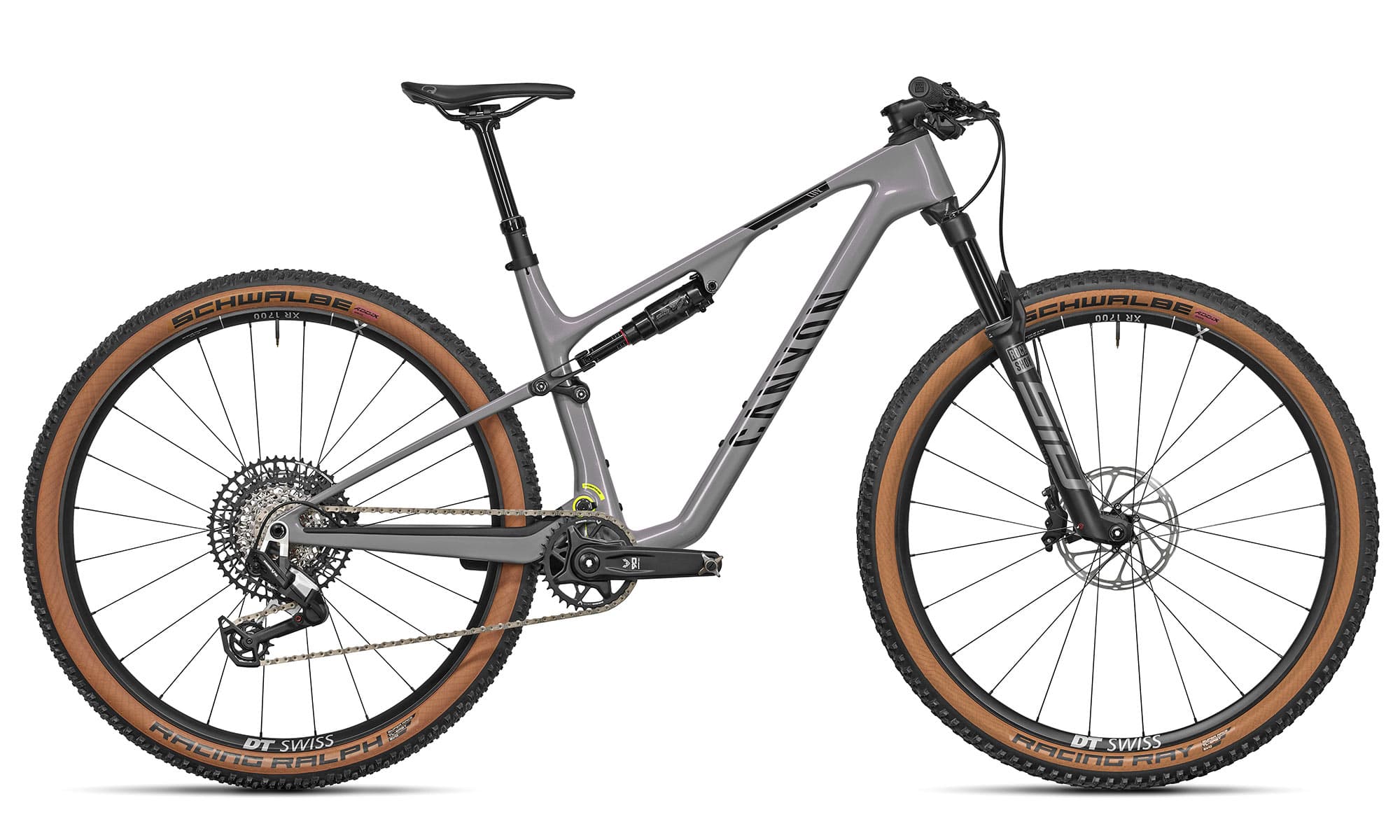

Five builds are available globally, four of which use the full CFR frame with an integrated one-piece carbon bar and stem cockpit. The entry point is the Lux World Cup CF 9 at $5,499 US ($4,000 EUR), which uses the same sub-1,500g CFR-level frame but with a conventional two-piece cockpit, RockShox SID/SIDluxe Select+ suspension, SRAM Eagle 90 mechanical drivetrain, and DT Swiss XR1700 alloy wheels at a claimed 11.5kg. The CFR X0 at $7,499 US steps up to SRAM X0 AXS with a power meter and DT Swiss XRC1500 carbon wheels at 10.8kg. At the top, the CFR XTR at $9,499 US pairs Fox 34 SL and Float SL Factory suspension with Shimano XTR Di2, XTR carbon wheels, and a Fox Transfer SL dropper, claiming 9.82kg. A CFR XT with Fox suspension and Shimano XT Di2 is offered in EU and Canadian markets but not the US.PinkBikeBikeRumorBikeMag

The Lux arrives two days after Specialized launched the Epic 9, and the two bikes are now the defining matchup in XC racing. Specialized claimed the lightest full-suspension XC frame ever at 1,589g; Canyon's 1,480g CFR figure undercuts that by 109g, though the two brands don't use identical accounting conventions for what the frame weight includes. Both bikes run 120mm front travel, 110mm rear, and 29-inch wheels, and both arrive with the first XCO World Cup round on the calendar. Where they diverge is pricing: the Lux CF 9 at $5,499 is $2,000 less than the Epic 9 Expert at $7,500, a substantial accessibility gap. The more direct comparison is the Lux CFR X0 at $7,499 against the Epic 9 Expert, where Canyon's bike offers a power meter drivetrain and lighter wheelset. As Schwarzbauer noted, the design philosophy behind the extra travel is primarily about recovery: a bike that absorbs technical descents lets the rider arrive at the next climb with more left in the legs — a principle both Canyon and Specialized have now converged on, even if they've reached it by slightly different mechanical routes.PinkBikeEscape CollectiveBikeRumorBikeRadar MTB
