Frameset
Frame
Ridley Kanzo Adventure Alu (Kanzo Adventure Alu 7E8/M/D1176A), Aluminium, Hydro Series
Fork
Forza Gravel Disc, 12mm thru-axle, flat mount, dynamo routing, 54mm tire clearance
Weight
Weight limit: 110 kg (bike included)

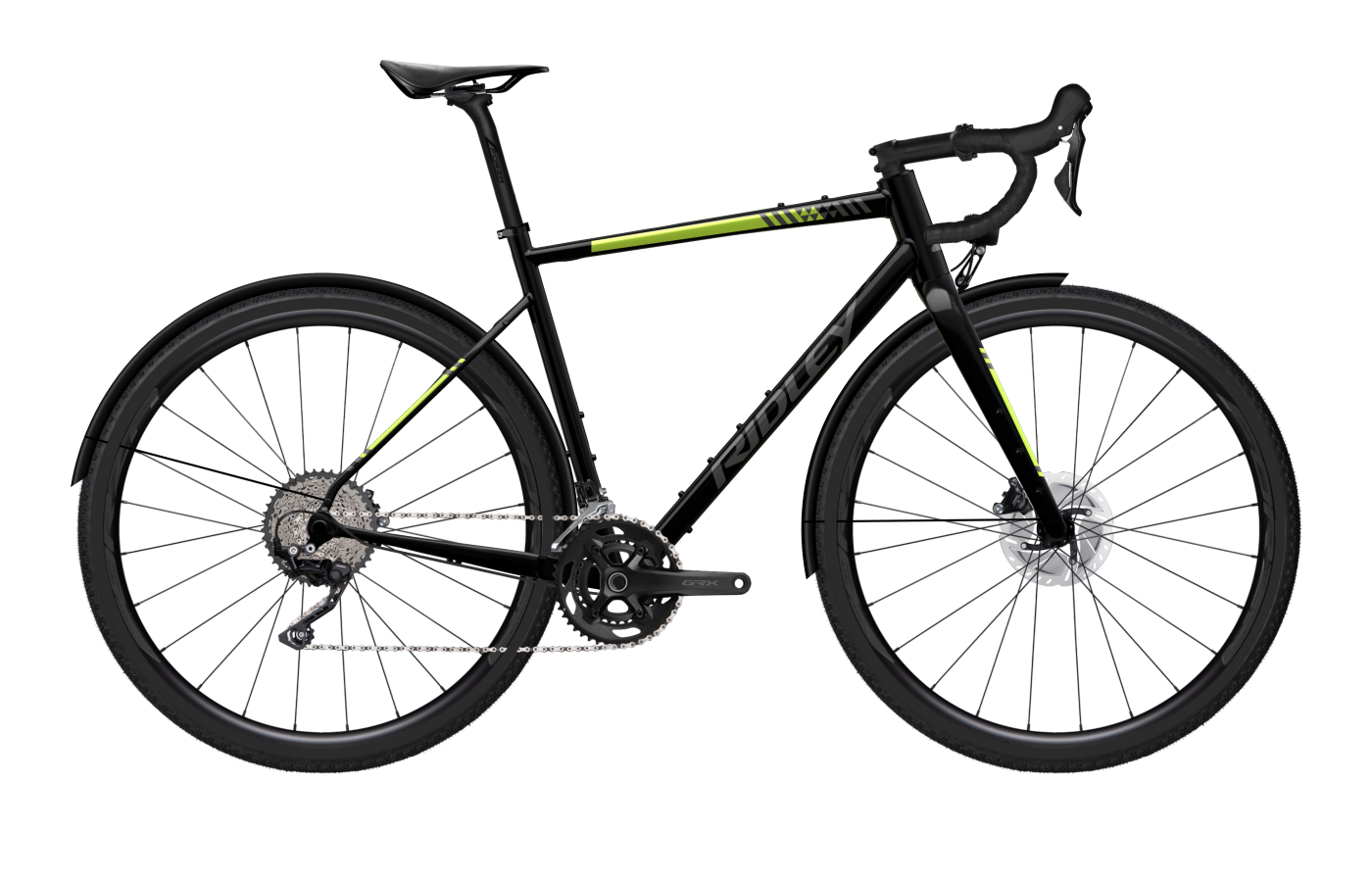

Kanzo Adventure Alu Equipped Shimano GRX400 2x10sp
The Ridley Kanzo Adventure Alu Equipped is the utility-focused version of the Kanzo Adventure A aluminum platform, using the same frame generation Ridley introduced in late 2024 and packaging it for riders who want a gravel bike that can double as a serious daily machine. Its defining character is not speed-first gravel racing but stability, load-carrying versatility, and confidence on rough surfaces. Ridley built the platform around what it describes as an MTB-influenced geometry concept: a slack front end, low bottom bracket, and relatively steep seat tube, paired with a shorter stem to avoid slow, floppy steering.
What distinguishes this generation is how thoroughly it is set up for real-world use. Tire clearance reaches 52 mm in a 1x setup or 47 mm with 2x, which puts it firmly in the wide-clearance adventure category rather than the all-road end of gravel. The frame and fork are also unusually mount-heavy, with 18 total mounting points, and Ridley includes internal routing for dynamo-powered lighting, including through the fork and to the rear of the bike. In EQ form, that utility brief becomes even clearer: mudguards, hub-dynamo lighting, and reflective details turn the same adventure platform into a ready-to-ride commuter, winter bike, or bikepacking rig for riders who value self-sufficiency and equipment integration over minimalism.
Price TBD
Build
Size
| Stack | 560mm |
| Reach | 390mm |
| Top tube | 550mm |
| Headtube length | 130mm |
| Standover height | 795mm |
| Seat tube length | 505mm |
Fit and geometry
The Kanzo Adventure Alu Equipped uses geometry that clearly prioritizes control and stability over quick, race-oriented handling. Across the size range, the head tube angle is a notably slack 70.75 degrees, while chainstays are a consistent 435 mm and bottom bracket drop is 75 mm. That combination points to a bike with a planted front end, good composure on loose descents, and a low center of gravity that should feel secure when carrying bags or riding in poor conditions. Wheelbase numbers are correspondingly long for the category, from 1003 mm in XXS to 1106 mm in XL, reinforcing the bike's calm, confidence-first character.
Fit trends are modern without being especially aggressive. Reach runs from 365 mm in XXS to 429 mm in XL, while stack is relatively generous, from 522 mm to 630 mm, which should make it easier to achieve an upright endurance or commuting position. Seat tube angles range from 74.5 degrees in the smallest sizes to 73.5 degrees in XL, helping keep rider weight centered as the frame grows. In practice, this is the kind of geometry that should suit long mixed-surface days, loaded riding, and riders who want gravel capability without the stretched, nervous feel of a race bike.
Full specs
Groupset
Shift levers
Shimano GRX400, 2x10-speed
Front derailleur
Shimano GRX 400, 2x10-speed
Rear derailleur
Shimano GRX 400, 10-speed, max 36T
Cassette
Shimano HG50, 10-speed, 11-36T
Chain
Shimano 10-speed chain
Crankset
Shimano GRX 600, 172.5mm, 46/30T (2x10)
Bottom bracket
Shimano GRX compatible threaded bottom bracket
Front brake
Shimano GRX400 hydraulic disc brake, flat mount
Rear brake
Shimano GRX400 hydraulic disc brake, flat mount
Front rotor
Shimano Center Lock disc rotor
Rear rotor
Shimano Center Lock disc rotor
Wheelset
Front wheel
DT Swiss G1800 Spline Dynamo, 25mm deep
Rear wheel
DT Swiss G1800 Spline, 12x142mm TA, tubeless ready, 25mm deep, 24mm internal width
Front tire
Schwalbe G-One Overland 365 TLE, 45-622 (700x45c), Black
Rear tire
Schwalbe G-One Overland 365 TLE, 45-622 (700x45c), Black
Cockpit
Stem
Forza Stratos, 90mm, Black Glossy
Handlebars
4ZA Stratos Gravel, 420/480mm
Saddle
Selle Italia Model X, Black
Seatpost
Forza Stratos, zero offset, 27.2mm, 350mm, Black Glossy
Builds
The available build information is limited, but Ridley lists the Kanzo Adventure Alu Equipped with a Shimano GRX400 2x10-speed specification. That positions the bike as a practical, mid-level build rather than a premium lightweight offering, and it fits the EQ concept well: GRX400 is a proven mechanical gravel group with sensible gearing and straightforward serviceability for commuting, winter riding, and touring use.
What matters more than build-tier variety here is the EQ packaging itself. This version is defined by integrated utility equipment rather than multiple spec ladders: a hub-dynamo lighting system with a Supernova front light and integrated rear light, plus Curana mudguards and reflective tire sidewalls. Those choices add real everyday value for riders who would otherwise retrofit lights and fenders, and they make the bike more coherent as an all-weather, battery-free transport and adventure platform.

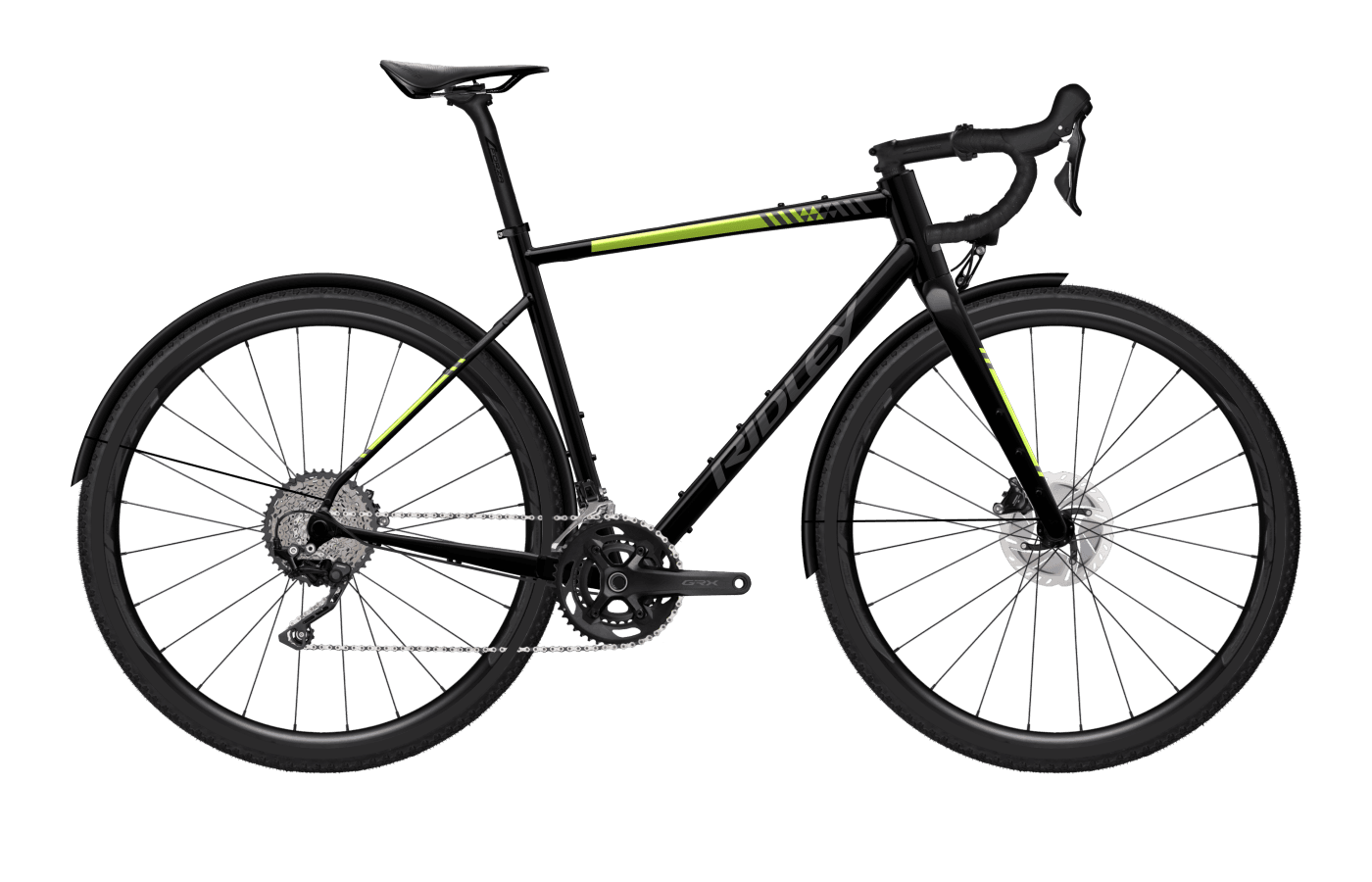

Shimano GRX400 2x10sp
Price TBD
Selected
