Frameset
Frame
null
Fork
Fox Factory Stepcast 32 29in w/ Remote, 44mm offset, GRIP SL — 100mm
Rear shock
Fox Factory Float SL
Mach 4 SL World Cup World Cup XX Eagle Transmission World Cup Build
The third-generation Pivot Mach 4 SL World Cup is a dedicated cross-country race platform engineered for modern, highly technical courses. Launched in 2023, this iteration represents a ground-up redesign focused on shedding significant frame weight while expanding the bike's capability. Pivot achieved a substantial weight reduction compared to the previous generation, paring down the chassis to maximize climbing efficiency and acceleration.
What sets this generation apart is its adaptable suspension platform. While the broader Mach 4 SL family includes longer-travel variants, the World Cup models are purpose-built for the tape. They pair a 100mm fork with a shorter-stroke shock, delivering a firmer, more immediate pedaling response. A flip chip in the rocker link allows racers to toggle between 95mm and 103mm of rear travel, letting riders tune the suspension kinematics for either maximum efficiency on smooth tracks or added compliance on rougher circuits.
$11,899Gen Gen 3
Build
Size
| Stack | 594mm |
| Reach | 450mm |
| Top tube | 609mm |
| Headtube length | 105mm |
| Standover height | 672mm |
| Seat tube length | 419mm |
Fit and geometry
The Mach 4 SL World Cup utilizes a modernized cross-country geometry that balances high-speed stability with the sharp handling required for tight racecourses. Because the World Cup builds are equipped with a 100mm fork, the head tube angle sits at a relatively steep 68 degrees. This keeps the steering immediate and precise, favoring aggressive riders who need to make quick line corrections or navigate slow-speed switchbacks.
To offset the steeper front end, Pivot lengthened the reach across all sizes, stretching to 450mm on a medium frame. This longer front center positions the rider evenly between the wheels, improving composure on descents without requiring a slacker head angle. The seat tube angle is set at a steep 76 degrees, placing the rider in a forward, powerful pedaling position directly over the bottom bracket.
The cockpit is unapologetically race-focused. Both builds feature a 60mm stem paired with a 760mm flat carbon handlebar, keeping the rider’s weight low and forward for optimal front-wheel traction on steep climbs. Short 432mm chainstays tuck the rear wheel tightly under the rider, ensuring the bike remains agile and easy to manual through technical sections.
Full specs
Groupset
Shift levers
SRAM AXS Pod Ultimate Controller
Rear derailleur
SRAM XX SL Eagle AXS, 12-speed
Cassette
SRAM XX SL 1299 Eagle Transmission, 12-speed, 10-52T
Chain
SRAM XX SL Eagle 12-speed Flattop
Crankset
SRAM XX SL Eagle DUB, 34T
Bottom bracket
null
Front brake
SRAM Motive Ultimate, 4-piston hydraulic disc
Rear brake
SRAM Motive Ultimate, 4-piston hydraulic disc
Front rotor
null
Rear rotor
null
Wheelset
Front wheel
Reynolds Blacklabel 309 XC PRO, 29in, 15x110 (front), Industry Nine Solix hub
Rear wheel
Reynolds Blacklabel 309 XC PRO, 29in, 12x148 (rear), Industry Nine Solix hub
Cockpit
Stem
Phoenix Team XC/Trail — 60mm
Handlebars
Phoenix Team Flat Carbon — 760mm
Saddle
Phoenix WTB World Cup Volt Carbon, Medium Width
Seatpost
Fox Transfer SL Factory
Grips
SRAM TwistLoc Grips
Builds
The World Cup tier of the Mach 4 SL represents Pivot’s uncompromising approach to cross-country racing, with both available builds priced identically at the top of the market. The choice between the two comes down entirely to drivetrain preference, as they share an identical, premium foundation.
Both models are suspended by a 100mm Fox Factory Stepcast 32 fork and a Fox Factory Float SL rear shock, utilizing a lightweight Fox Transfer SL dropper post to keep overall weight to an absolute minimum. They also roll on the same high-end wheelset: Reynolds Blacklabel 309 XC PRO carbon rims laced to fast-engaging Industry Nine Solix hubs.
The divergence happens at the groupset. One build features Shimano’s XTR Di2 12-speed electronic drivetrain paired with XTR two-piston brakes, offering incredibly fast, precise shifts and a traditional 10-51T cassette range. The alternative is built around SRAM’s XX Eagle Transmission, utilizing a direct-mount derailleur, a slightly wider 10-52T cassette, and SRAM Motive Ultimate four-piston brakes. Both options deliver elite-level performance, leaving the decision to whether a rider prefers the robust, hangerless design of SRAM Transmission or the lightning-fast actuation of Shimano Di2.

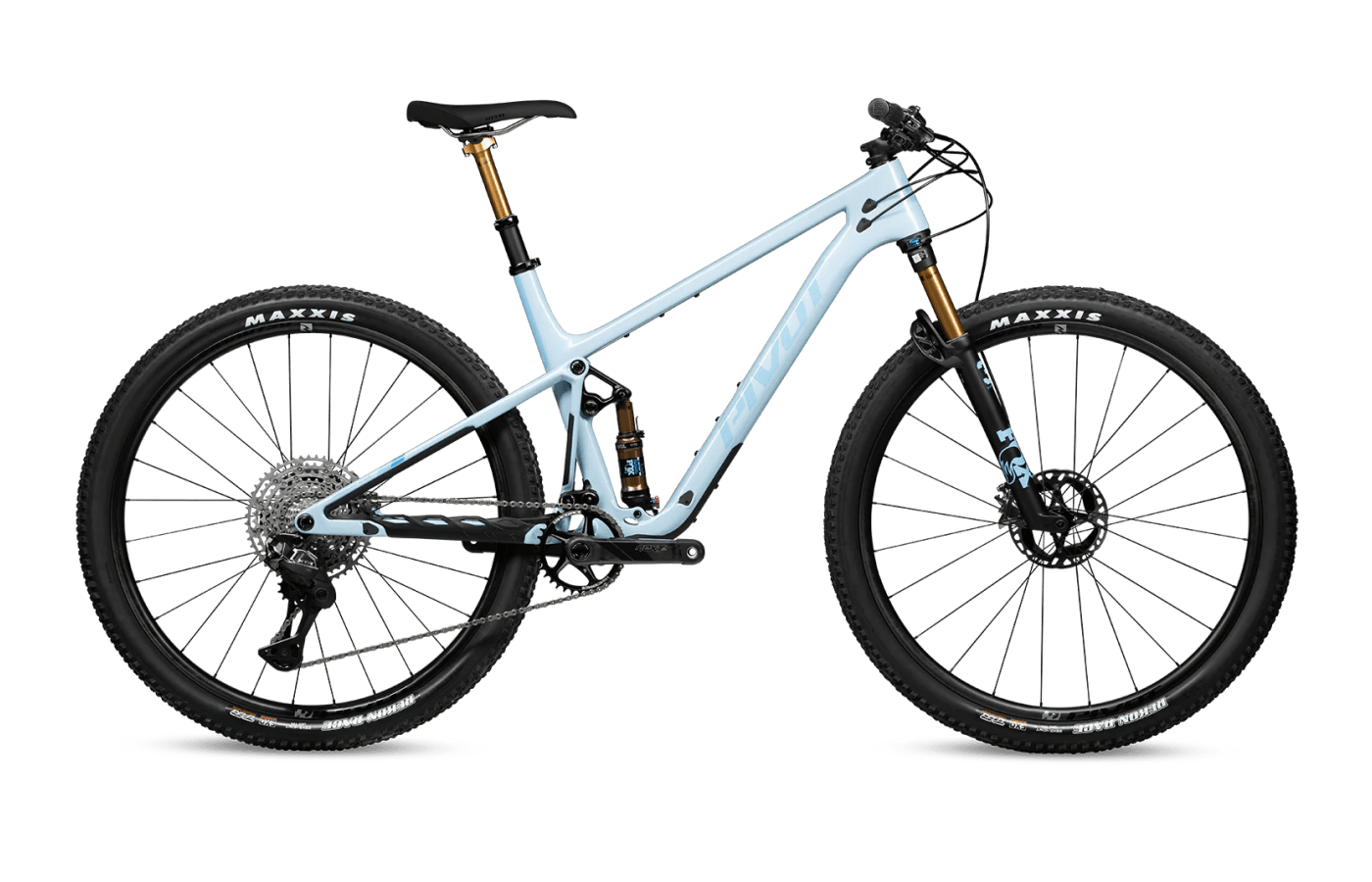

World Cup XTR Di2 World Cup Build
$11,899
World Cup XX Eagle Transmission World Cup Build
$11,899
Selected
Reviews
Reviewers consistently praise the Mach 4 SL for its exceptional pedaling dynamics, noting that the revised dw-link suspension isolates rider inputs without sacrificing grip on technical climbs. Testing the platform on undulating, hard-packed trails, one reviewer found that "power transfer was shockingly good" (Vital MTB). The anti-squat characteristics are so effective that testers often "never felt the need to twist the lockout for the rear" (Vital MTB), preferring to leave the shock open to maintain traction over rocky, low-grip ascents.
Beyond pure acceleration, the frame's construction earns high marks for ride quality. The carbon layup manages to filter out trail chatter while remaining highly responsive under power. Reviewers highlight this "delicate balance, offering a perfect blend of stiffness and responsiveness without tipping into excessive flex" (Vital MTB). This tuned chassis helps mitigate rider fatigue during long efforts.
When pointed downhill, the updated platform proves surprisingly capable for a lightweight race bike. While the World Cup builds are inherently firmer and steeper than their longer-travel siblings, the underlying frame stability remains. Testers found the bike "nimble and efficient" (Vital MTB) through tight corners, yet composed enough to handle tricky chutes and rock rolls without feeling overwhelmed.
