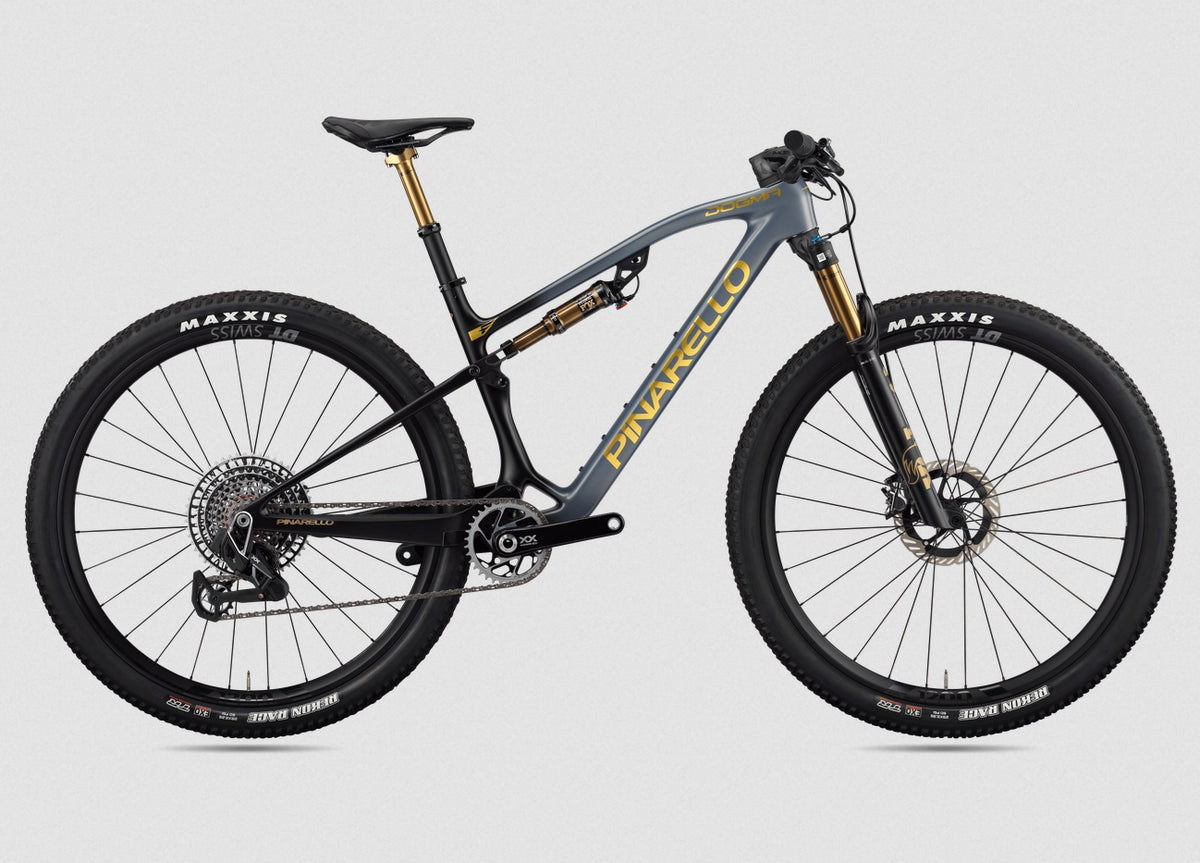

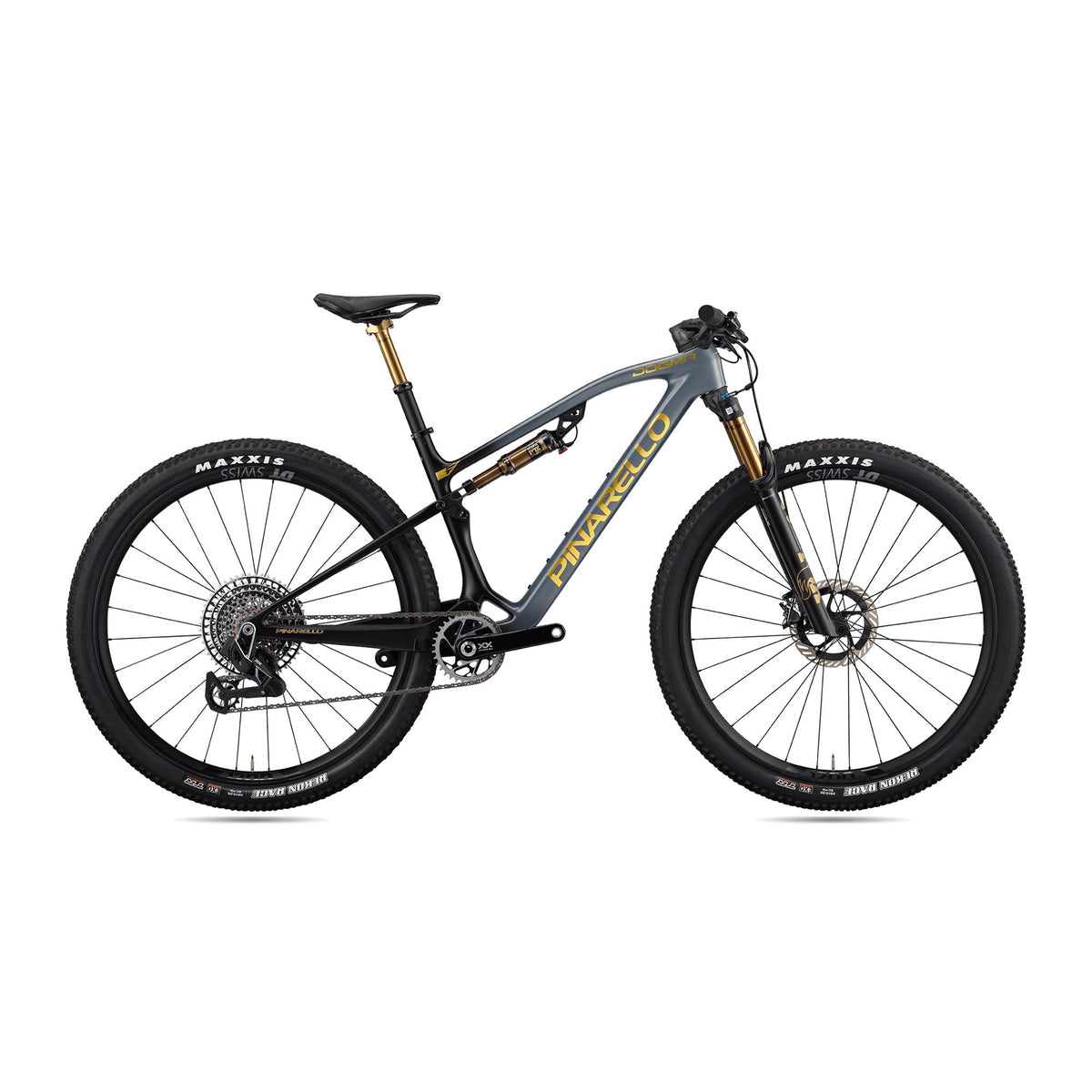

Dogma XC XX SL 120

The Pinarello Dogma XC marks the Italian brand’s return to modern mountain biking with an uncompromising cross-country race platform. Developed directly with elite racers Tom Pidcock and Pauline Ferrand-Prévot, the bike debuted to consumers in April 2024 after securing multiple world titles. The defining structural theme is absolute drivetrain and rear-end stiffness, achieved through a unique triangulated bottom bracket area and a split rear triangle that eliminates traditional seatstay and chainstay bridges. The two rear halves tie together at an oversized main pivot. The frame utilizes a linkage-driven, flex-stay suspension layout. A signature feature is its adjustable shock mount under the top tube, allowing riders to swap shock strokes and move between a shorter-travel cross-country setup and a slightly longer-travel configuration while maintaining consistent geometry.

$13,000

Build

Size

Inventory

$13,000

$13,449

$13,500

Stack	589.5mm
Reach	455mm
Top tube	608mm
Headtube length	90mm
Seat tube length	435mm

Fit and geometry

The Dogma XC utilizes a geometry approach that leans conservative by contemporary cross-country standards, prioritizing sharp, low-speed agility over downhill stability. The head tube angle sits between 67.5 and 68 degrees depending on size, paired with notably short chainstays to keep the wheelbase tight and reactive. Reach measurements are relatively long, stretching to 455mm on a medium frame.

Rider posture is heavily dictated by the integrated Most Talon Ultra XC carbon cockpit. Featuring a pronounced wing profile and a steep negative drop, the one-piece bar and stem pull the rider into a low, forward-leaning, aerodynamic stance. This hyper-stretched position is optimized for attacking climbs and maintaining speed on flats, but it places considerable weight on the hands and can accelerate fatigue during extended rides. Additionally, the headset incorporates an internal steering block that restricts handlebar rotation to 60 degrees. While this protects the top tube during a crash, it can limit maneuverability in extremely tight, slow-speed switchbacks.

Full specs

Frameset

Frame

TORAY M40J carbon

Fork

FOX 34 Factory SC Kashima, 120mm

Rear shock

FOX Float SL Factory Kashima, 210x50

Groupset

Shift levers

SRAM XX SL Eagle

Rear derailleur

SRAM XX SL Eagle

Cassette

SRAM XX SL Eagle

Chain

SRAM XX SL Eagle

Crankset

SRAM XX SL Eagle

Bottom bracket

SRAM XX SL Eagle

Front brake

Shimano XTR hydraulic disc brake

Rear brake

Shimano XTR hydraulic disc brake

Front rotor

180mm

Rear rotor

160mm

Wheelset

Front wheel

DT Swiss XRC 1200 Spline wheelset (front)

Rear wheel

DT Swiss XRC 1200 Spline wheelset (rear)

Front tire

Maxxis Rekon Race, 29x2.25, EXO, TR, 120 TPI

Rear tire

Maxxis Rekon Race, 29x2.25, EXO, TR, 120 TPI

Cockpit

Stem

TALON Ultra XC integrated handlebar/stem

Handlebars

TALON Ultra XC integrated handlebar

Saddle

Lynx 2.0 XC

Seatpost

FOX Transfer SL Kashima, 30.9mm, 100mm drop

Builds

Pinarello splits the platform into two distinct frame tiers. The flagship Dogma XC builds utilize Toray M40J carbon fiber to maximize stiffness and minimize weight, while the base 100 model uses a slightly heavier Toray T900 layup.

The premium tier includes the XX SL 100, XX SL 120, and XTR Di2 100. These top-end models feature Fox Factory suspension, DT Swiss XRC 1200 carbon wheels, and Fox Transfer SL Factory dropper posts. The XX SL builds rely on SRAM's wireless Transmission drivetrains, while the XTR Di2 100 uses Shimano's electronic shifting and braking components. The XX SL 120 variant takes advantage of the frame's adjustable shock mount, pairing a 120mm Fox 34 Step-Cast fork with a longer-stroke shock to increase rear travel.

The entry point to the range, simply named the 100, steps down to Fox Performance Elite suspension, a SRAM GX Eagle AXS drivetrain, and DT Swiss XR 1700 aluminum wheels. Across all builds, the pricing sits at the absolute top of the market, reflecting the bike's positioning as a bespoke racing instrument rather than a high-value consumer option.

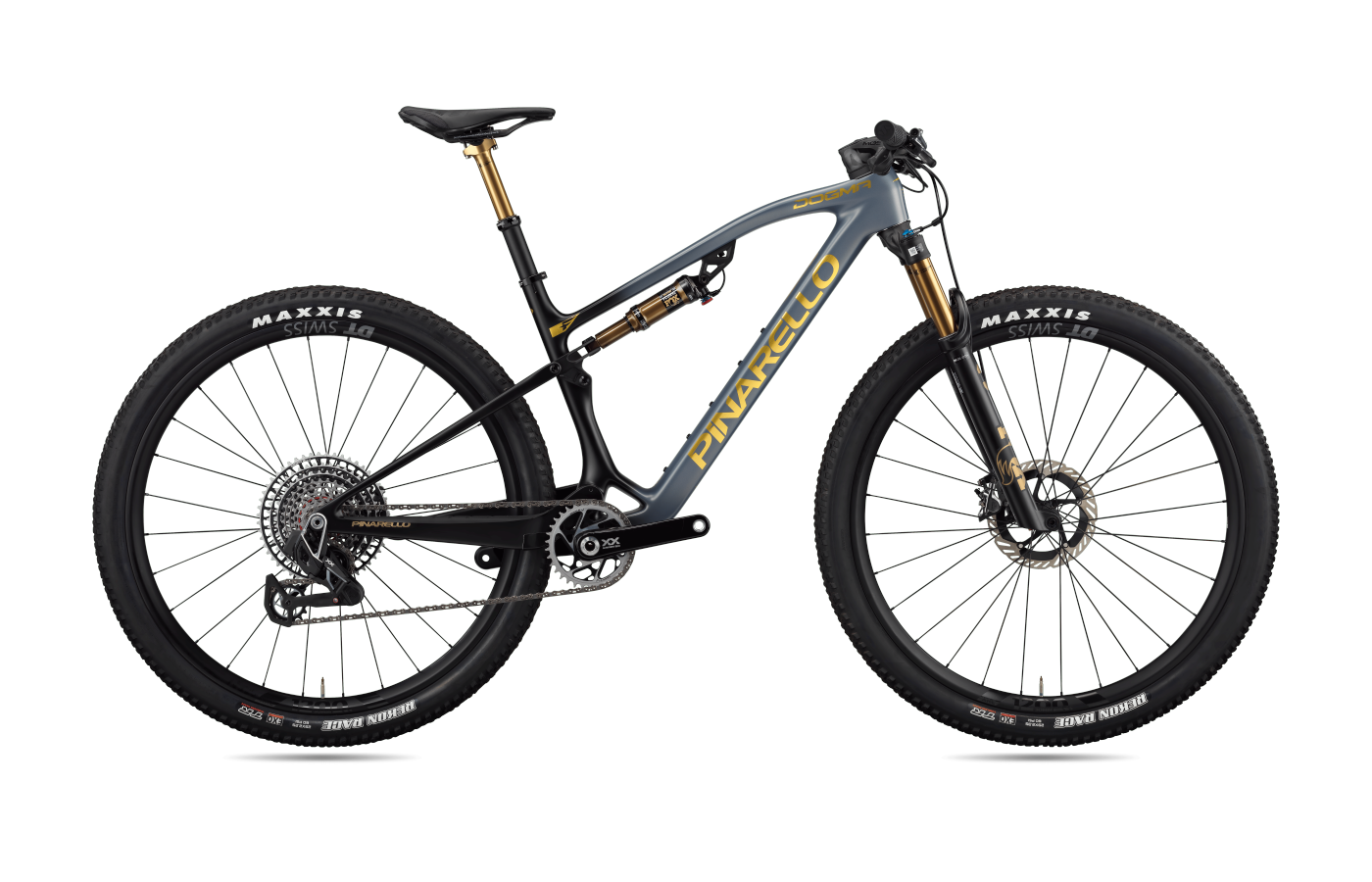

XX SL 100

$13,000

XX SL 120

$13,000

Selected

100

Price TBD

XTR Di2 100

Price TBD

Reviews

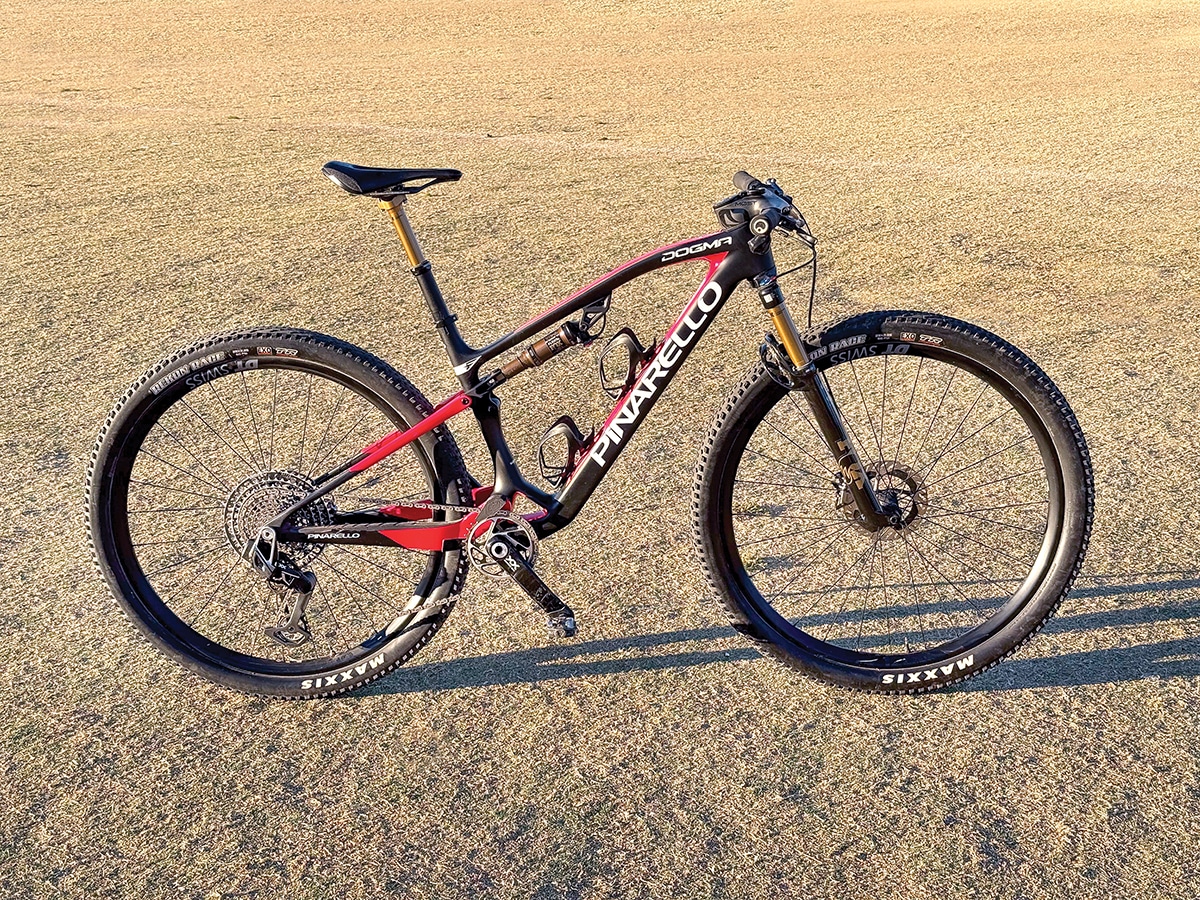

Reviewers universally characterize the Dogma XC as a highly specialized tool built for elite power output rather than everyday trail comfort. On climbs and smooth, fast sections, the immense frame stiffness translates into immediate acceleration. Testers noted the bike is a "proper rocket ship" (YouTube) when pointed uphill, benefiting from a firm suspension platform and a highly effective remote lockout. The low leverage ratio and high anti-squat keep the rear end tight and efficient under power, though it "doesn't quite reach the level of other more complex rear suspension systems" (En) in terms of absolute traction.

This relentless focus on rigidity creates a demanding ride profile on rough terrain. The chassis transmits significant feedback, and multiple testers found the bike required intense concentration when the trail pointed downward. The stiff rear end and conservative geometry make it "more frightening to ride on technical, steep descents" (PinkBike) compared to slacker modern alternatives. While highly skilled riders can exploit its precise, direct steering to navigate tight courses, average riders may find the handling nervous. Ultimately, the consensus points to a machine that rewards exceptional fitness and bike handling skills, prioritizing speed over forgiveness.
