Dogma GR SRAM Red XPLR AXS 1X13

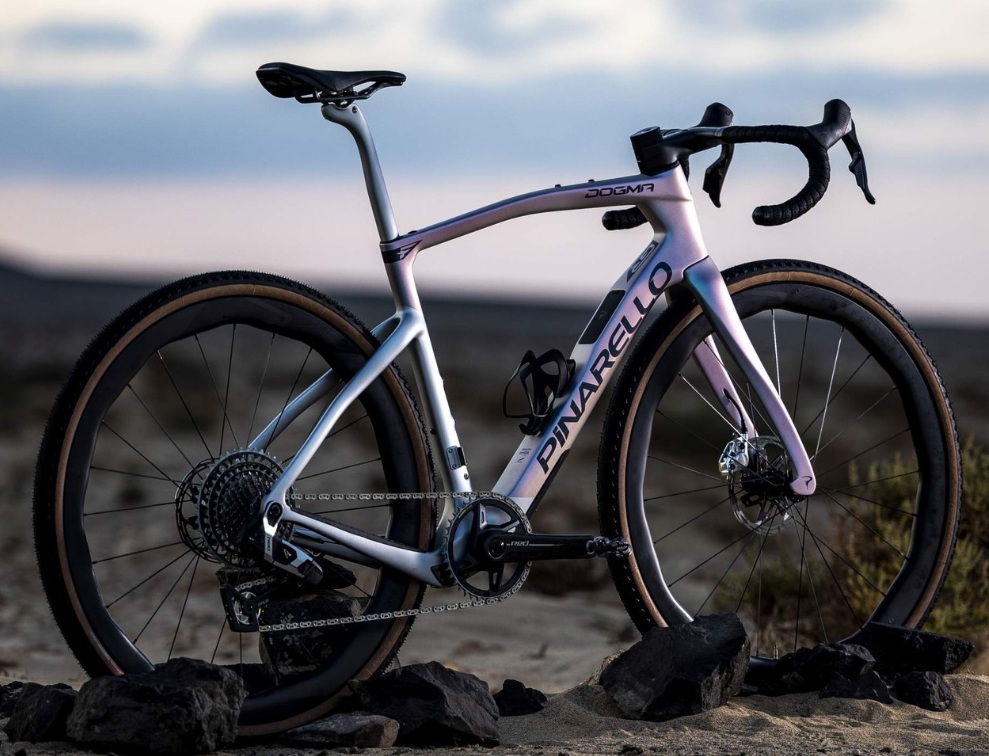

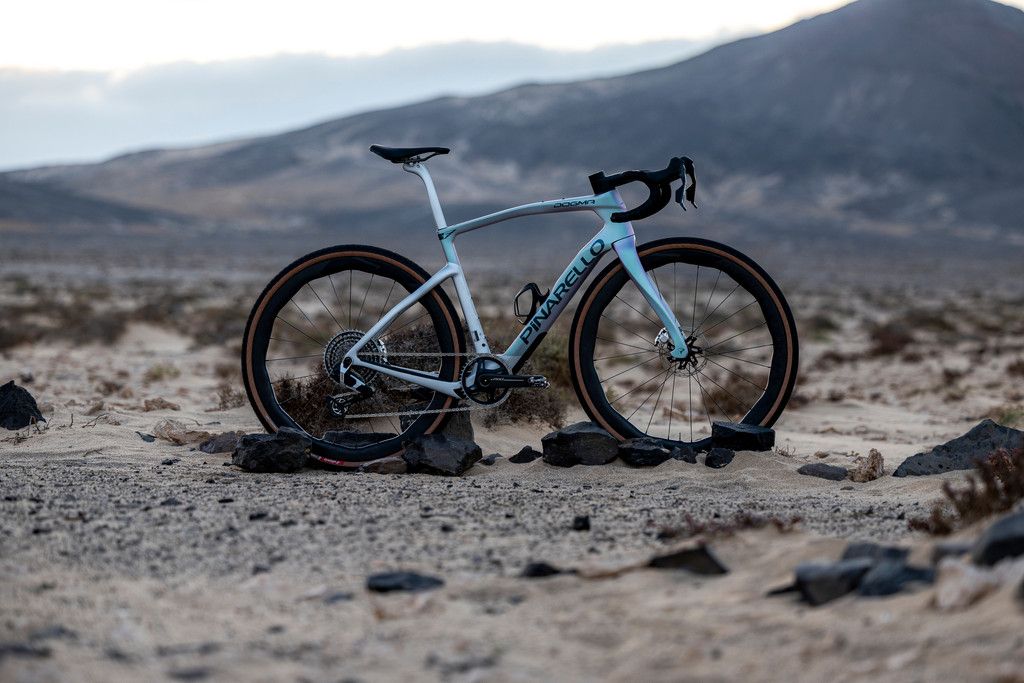

The Pinarello Dogma GR is an uncompromising gravel race bike engineered specifically for high-speed, mixed-surface events lasting under five hours. Drawing heavily from the brand’s flagship road and cyclocross platforms, it prioritizes aerodynamic efficiency, structural stiffness, and rapid power transfer over plush compliance or bikepacking versatility. Pinarello utilizes the same high-modulus Torayca M40X carbon fiber found in its top-tier road frames, resulting in a chassis that feels distinctly like a road racing machine adapted for the dirt. By deliberately limiting tire clearance to 45mm in the front and 42mm in the rear, the design bucks the industry trend toward mountain-bike-sized rubber, focusing instead on maintaining a tight, responsive wheelbase. This is a specialized tool for riders who want to maintain aggressive postures and high average speeds on hard-packed dirt, smooth gravel, and broken tarmac.

$14,500

Pinarello Dogma GR SRAM Red XPLR AXS 1X13

Build

Size

Stack	545mm
Reach	384mm
Top tube	562mm
Headtube length	165mm
Standover height	587.1mm
Seat tube length	500mm

Fit and geometry

The Dogma GR’s geometry is heavily influenced by Pinarello’s Crossista cyclocross bike, resulting in a long, low, and aggressive rider posture. With a relatively steep head tube angle and a tight wheelbase, the handling is tuned for immediate steering response and high-speed stability rather than slow-speed meandering. This setup encourages a forward-leaning, aerodynamic position that will feel immediately familiar to dedicated road racers.

Fit is further dictated by the integrated MOST Talon Ultrafast GR one-piece carbon cockpit. While it features a modest seven-degree flare and inward bend at the drops, the bar is narrower and less splayed than typical gravel handlebars, keeping the rider’s frontal area compact. The cockpit also includes integrated top bosses designed specifically for Pinarello’s optional gravel time-trial extensions. At the rear, the proprietary D-shaped Adaptive aero seatpost is engineered to provide a few millimeters of flex to take the edge off sharp impacts, though the overall fit remains firmly rooted in race-day efficiency rather than endurance comfort.

Full specs

Frameset

Frame

TorayCa M40X, TiCR™ Cable Routing, Italian BB

Fork

NEW eTICR Onda Fork with ForkFlap™, 1.5" upper and lower steerer

Groupset

Shift levers

SRAM RED AXS (XPLR 1x13)

Rear derailleur

SRAM RED XPLR AXS 1x13

Cassette

SRAM RED XPLR AXS 1x13

Chain

SRAM Red

Crankset

SRAM RED XPLR AXS 1x13

Bottom bracket

SRAM BB DUB ITALIAN 70mm ROAD WIDE

Front brake

SRAM Red hydraulic disc, 2-piston caliper

Rear brake

SRAM Red hydraulic disc, 2-piston caliper

Front rotor

160mm

Rear rotor

160mm

Wheelset

Front wheel

PRINCETON GRIT 4540 DB wheelset (front)

Rear wheel

PRINCETON GRIT 4540 DB wheelset (rear)

Front tire

Maxxis Reaver 40mm

Rear tire

Maxxis Reaver 40mm

Cockpit

Stem

TALON ULTRA FAST GR (integrated cockpit)

Handlebars

TALON ULTRA FAST GR (integrated handlebar)

Saddle

LYNX 2.0 XC

Seatpost

Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts

Builds

Positioned at the absolute pinnacle of the market, the Dogma GR is priced as a premium, boutique race machine. The primary complete build features SRAM’s Red XPLR AXS 1x13 groupset, paired with Princeton Grit 4540 carbon wheels and 40mm Maxxis Reaver tires. This specification highlights the bike's singular focus on minimizing weight and maximizing aerodynamic efficiency, bringing the complete bike weight down to roughly 16 pounds.

The frame itself incorporates high-end details like an integrated downtube storage compartment, a 3D-printed titanium seatclamp, and fully internal cable routing through the headset. Because the Dogma GR is offered only with top-tier components and the highest-grade M40X carbon layup, there is no entry-level or mid-tier build available. Reviewers universally note the exceptional build quality but emphasize that the price tag places it strictly in the realm of well-heeled privateers and sponsored professionals. For riders who want to customize their componentry or utilize a 2x drivetrain, Pinarello also offers the Dogma GR as a standalone frameset.

SRAM Red XPLR AXS 1X13

$14,500

Selected

Reviews

Reviewers consistently characterize the Dogma GR as a remarkably fast, stiff platform that demands a proactive rider. On smooth gravel and broken pavement, the bike excels at holding high speeds and delivering immediate acceleration. Testers frequently note its unwavering composure on fast descents, with one observing that it "follows its trajectory like a train on rails" (Cyclonline). The frame’s rigidity translates to excellent climbing efficiency, providing the "pedaling feedback of a road bike" (Bike Rumor) when standing on the pedals.

However, this road-adjacent stiffness comes with distinct tradeoffs. The bike is unapologetically firm, relying primarily on its engineered seatpost and tire volume to mute impacts. While the seatpost does a "sterling effort on dialling out trail buzz" (Cycling Weekly), testers agree the chassis transmits significant feedback on rougher terrain. The tight tire clearance also limits how much riders can rely on high-volume rubber for suspension. Consequently, reviewers caution that the bike feels out of its depth on chunky, technical singletrack, where its aggressive demeanor becomes a liability. Ultimately, the consensus points to a highly specialized machine that thrives on fast, open courses but requires the rider to absorb the punishment of rougher trails.
