Frameset
Frame
Niner RDO carbon fiber frame; internal cable routing; integrated bottle/bag mounts; flat-mount disc; 12x142 thru-axle
Fork
Niner RDO full-carbon fork; internal cable routing; flat-mount disc; 12x100 thru-axle

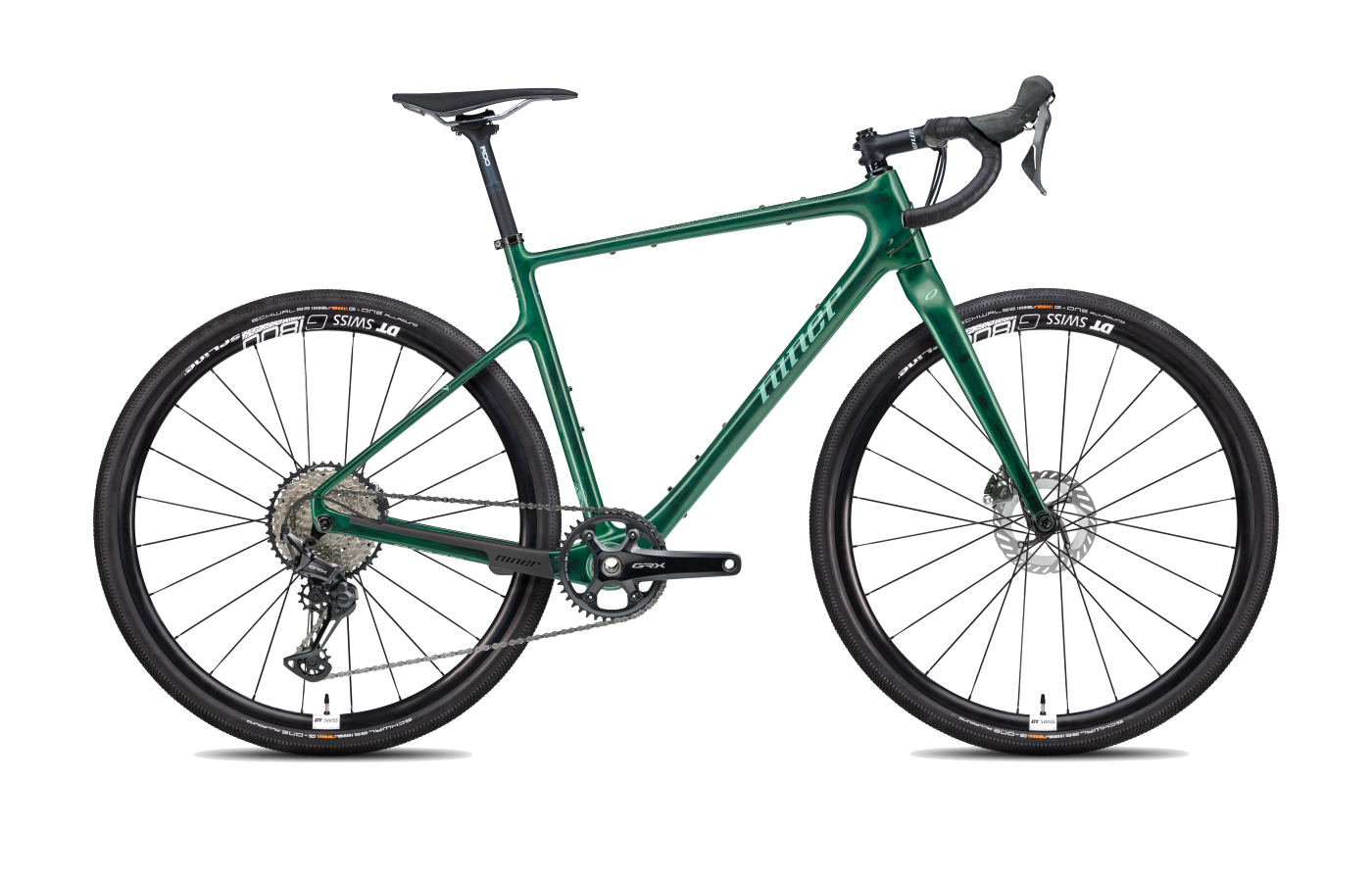

ORE 9 RDO 4-STAR Shimano GRX 800 1x 12sp
Introduced for 2025, the Niner ORE 9 RDO is a carbon gravel platform designed to push further into rough terrain than the brand’s traditional RLT line. Positioned as an adventure-leaning, monster-cross option, it retains drop-bar pedaling efficiency while adopting mountain bike standards to handle aggressive routes. The chassis is built around a suspension-corrected front end and tested to mountain bike ISO standards, signaling its intent for heavy use.
While the frame utilizes Niner’s lightweight Race Day Optimized carbon construction, it prioritizes versatility over pure minimalism. The platform accommodates high-volume tires and features modern drivetrain compatibility, including a Universal Derailleur Hanger and internal routing for a dropper post. It suits riders who want a fast-rolling gravel bike that can comfortably blur the line into light singletrack and remote bikepacking territory.
Price TBD
Build
Size
| Stack | 560mm |
| Reach | 395mm |
| Top tube | 556mm |
| Headtube length | 106mm |
| Standover height | 731mm |
| Seat tube length | 460mm |
Fit and geometry
The ORE 9 RDO utilizes a progressive geometry approach that leans heavily on mountain bike influence. A slack 69-degree head tube angle paired with a 50mm fork offset creates a stable, composed front end that resists twitchiness at speed and on steep descents. To maintain pedaling efficiency, Niner pairs this relaxed front with a relatively steep seat tube angle, keeping the rider positioned effectively over the bottom bracket for sustained climbing.
A defining trait of the frame is its 70mm bottom bracket drop. This is shorter than many contemporary gravel bikes, resulting in a slightly higher center of gravity. While this reduces the sensation of sitting deeply inside the bike, it provides crucial pedal clearance for navigating rocky, rutted doubletrack. The frame is also suspension-corrected, meaning the stock rigid carbon fork can be swapped for a short-travel gravel suspension fork without disrupting the bike's handling characteristics. Combined with internal routing for a 27.2mm dropper post, the geometry provides a clear pathway for riders looking to adapt the fit for technical trails.
Full specs
Groupset
Shift levers
Shimano GRX RX820 12-speed (rear only)
Rear derailleur
Shimano GRX RX822 12-speed Shadow Plus
Cassette
Shimano SLX 12-speed, 10-45T
Chain
Shimano XT M8100 12-speed w/ Quick-Link
Crankset
Shimano GRX RX800 (rear 12-speed), Hollowtech II, 40T (47/50: 170mm; 53/56: 172.5mm; 59/62: 175mm)
Bottom bracket
Prestine T47 BB for 24mm spindle
Front brake
Shimano GRX RX820 hydraulic disc
Rear brake
Shimano GRX RX820 hydraulic disc
Front rotor
Shimano CL800 160mm Center Lock
Rear rotor
Shimano CL800 160mm Center Lock
Wheelset
Front wheel
DT Swiss G 1800 Spline, 700c aluminum clincher
Rear wheel
DT Swiss G 1800 Spline, 700c aluminum clincher
Front tire
Schwalbe G-One Allround Performance RaceGuard, TLE, 700x40
Rear tire
Schwalbe G-One Allround Performance RaceGuard, TLE, 700x40
Cockpit
Stem
Niner RDO Stem w/ Niner graphic (47/50: 50mm; 53/56: 60mm; 59/62: 70mm)
Handlebars
Niner Gravel Alloy bar (47/50: 420mm; 53/56: 440mm; 59/62: 460mm) with 16° flare
Saddle
Niner custom saddle w/ CRN-Ti rails, embossed Niner graphic
Seatpost
Niner full-carbon seatpost, 27.2mm, 400mm
Grips
Niner bar tape
Builds
The ORE 9 RDO lineup is structured around two 1x12 mechanical builds, both utilizing the same carbon frame and fork. The entry point is the 2-Star Apex 1 XPLR model, which pairs SRAM’s reliable wide-range drivetrain with Niner’s house-brand alloy wheels. Stepping up to the 4-Star Shimano GRX 800 build upgrades the shifting to Shimano’s dedicated gravel group and swaps the rolling stock to a DT Swiss G 1800 Spline aluminum wheelset.
Both builds share a similar gearing philosophy, utilizing a 40-tooth chainring paired with a wide cassette to manage steep off-road gradients. Despite the frame’s generous clearance for up to 50c rubber, both stock options ship with 40c Schwalbe G-One Allround tires, leaning the out-of-the-box setup toward faster, hardpacked surfaces rather than maximum traction.
The chassis embraces current component standards across the board. It utilizes a threaded T47 bottom bracket for creak-free maintenance and a Universal Derailleur Hanger, ensuring compatibility with modern direct-mount mountain bike derailleurs should a rider choose to convert the drivetrain for extreme adventure use.

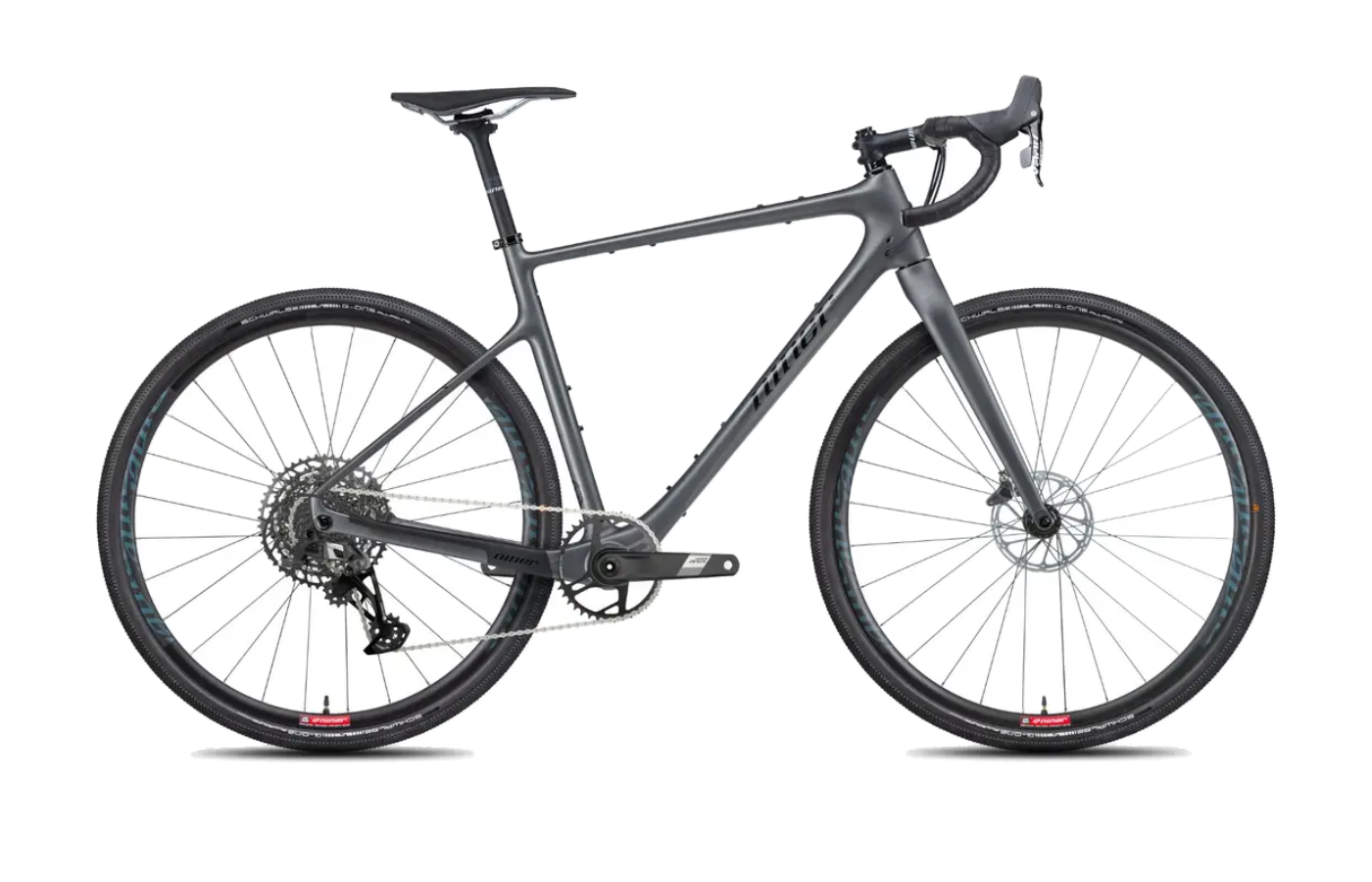

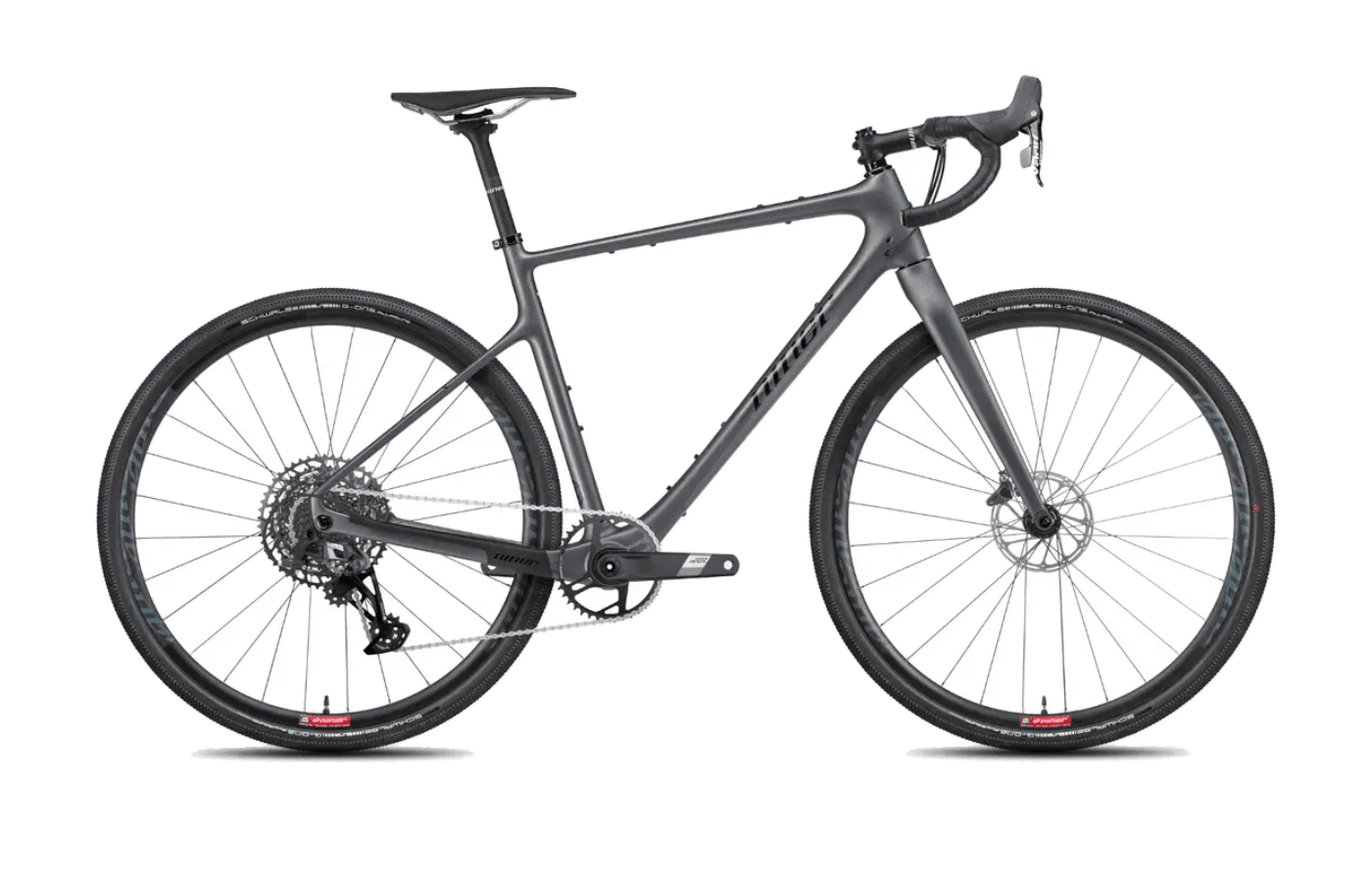

2-STAR Apex 1 XPLR 12sp
Price TBD

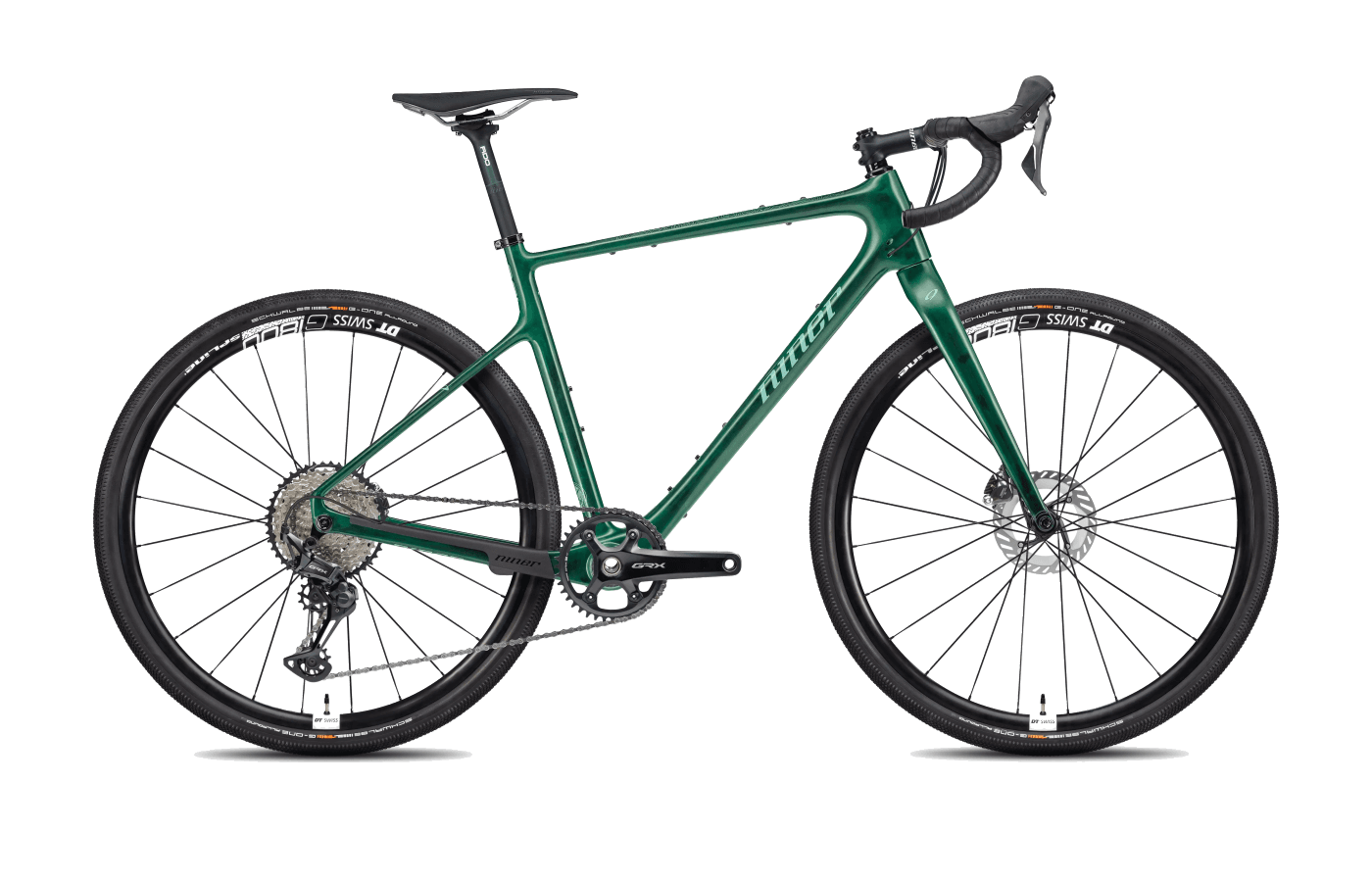

4-STAR Shimano GRX 800 1x 12sp
Price TBD
Selected
Reviews

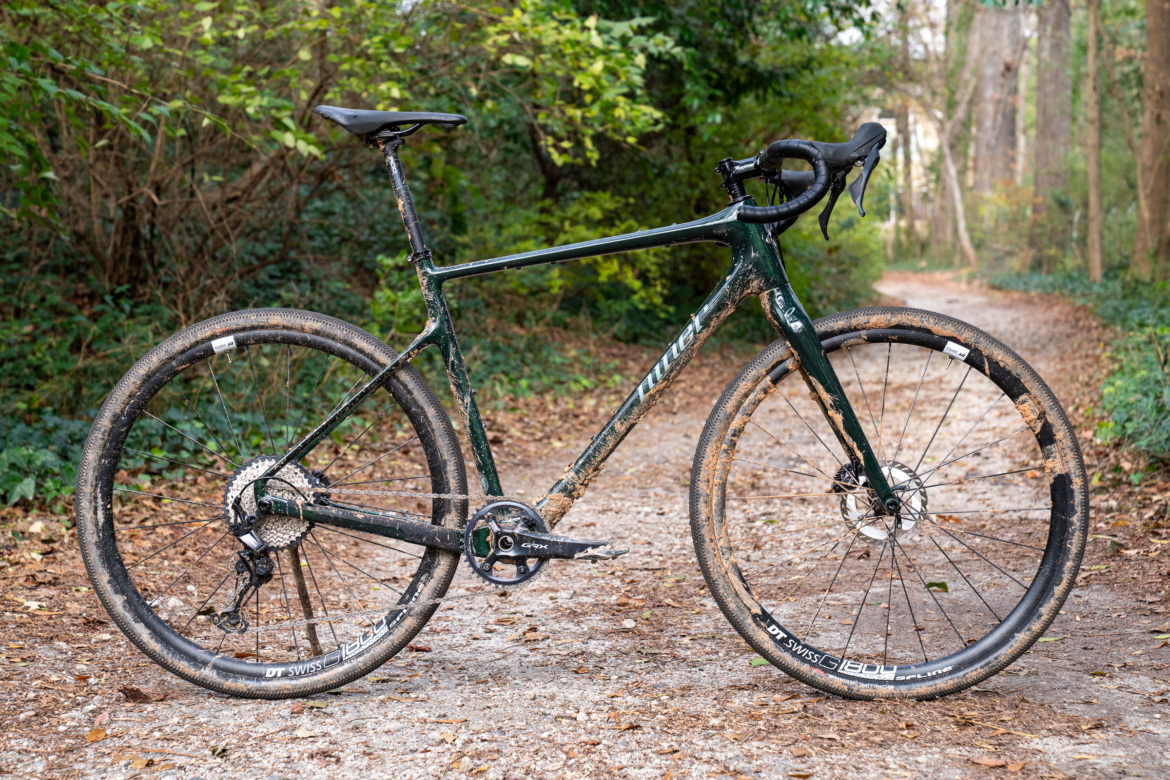

Reviewers characterize the ORE 9 RDO as a highly adaptable machine that balances pedaling response with necessary compliance. On mixed surfaces, the carbon chassis is "stiff and efficient for putting power to the ground" (Singletracks), yet testers note it remains forgiving enough to mute standard road chatter. The slack front end noticeably aids stability when the route points downhill, taking "some of the pucker-factor out of trail descents" (Singletracks).
While the bike handles fast dirt roads and pavement well, its stock configuration has limits in demanding conditions. Testers found the supplied tires felt unstable in deep, loose gravel, suggesting a tread upgrade for riders frequenting softer surfaces. Additionally, the rigid carbon fork lacks cargo mounts, which slightly curtails its utility for dedicated bikepacking.
A notable construction critique centers on the bottom bracket access hatch, which one reviewer found "doesn’t snap into place firmly, allowing dirt and water to enter the frame" (Singletracks). Despite this flaw, the overall consensus points to a versatile platform that is "capable enough for most rides, but not optimized for any one area" (Singletracks), making it a solid foundation for riders who want to tune their setup over time.
