Gestalt X
The Marin Gestalt X platform underwent a radical redesign for 2023, abandoning traditional gravel conventions in favor of a heavily mountain-bike-influenced approach. Positioned for aggressive beyond-road riding, this generation blurs the line between a drop-bar gravel bike and a rigid cross-country mountain bike. Marin shifted the sizing from standard road measurements to mountain-bike-style letter sizing, signaling a fundamental change in how the bike is meant to be ridden. It is built specifically for riders who want to push into rougher, steeper terrain than a standard gravel bike can handle, or for mountain bikers looking for a familiar feel on drop bars. Rather than focusing on lightweight climbing or mixed-surface commuting, the Gestalt X prioritizes descending capability and high-speed composure on chunky trails.
| Stack | 589.1mm |
| Reach | 440mm |
| Top tube | 608.9mm |
| Headtube length | 175mm |
| Standover height | 708.6mm |
| Seat tube length | 505mm |
Fit and geometry
The geometry of the Gestalt X is defined by a very slack 67.5-degree head tube angle and a substantially lengthened reach across all sizes. To balance this long front center, Marin equips the bike with short 50mm stems and wide, flared drop bars. This setup mirrors modern mountain bike fit, placing the rider in a stable, centered posture that resists pitching forward on steep descents.
The handling prioritizes straight-line tracking over low-speed agility. At higher speeds, the steering is calm and deliberate, requiring a bit more rider input to initiate turns but rewarding that effort with unwavering predictability. To keep the bike from feeling entirely sluggish, Marin paired the long front end with short 425mm chainstays. This tight rear center helps maintain traction on climbs and allows the rider to flick the rear wheel through tighter corners. Tire clearance is generous, accommodating up to 700x50mm or 650bx54mm rubber, which further reinforces the frame's capacity for chunky terrain.
Builds

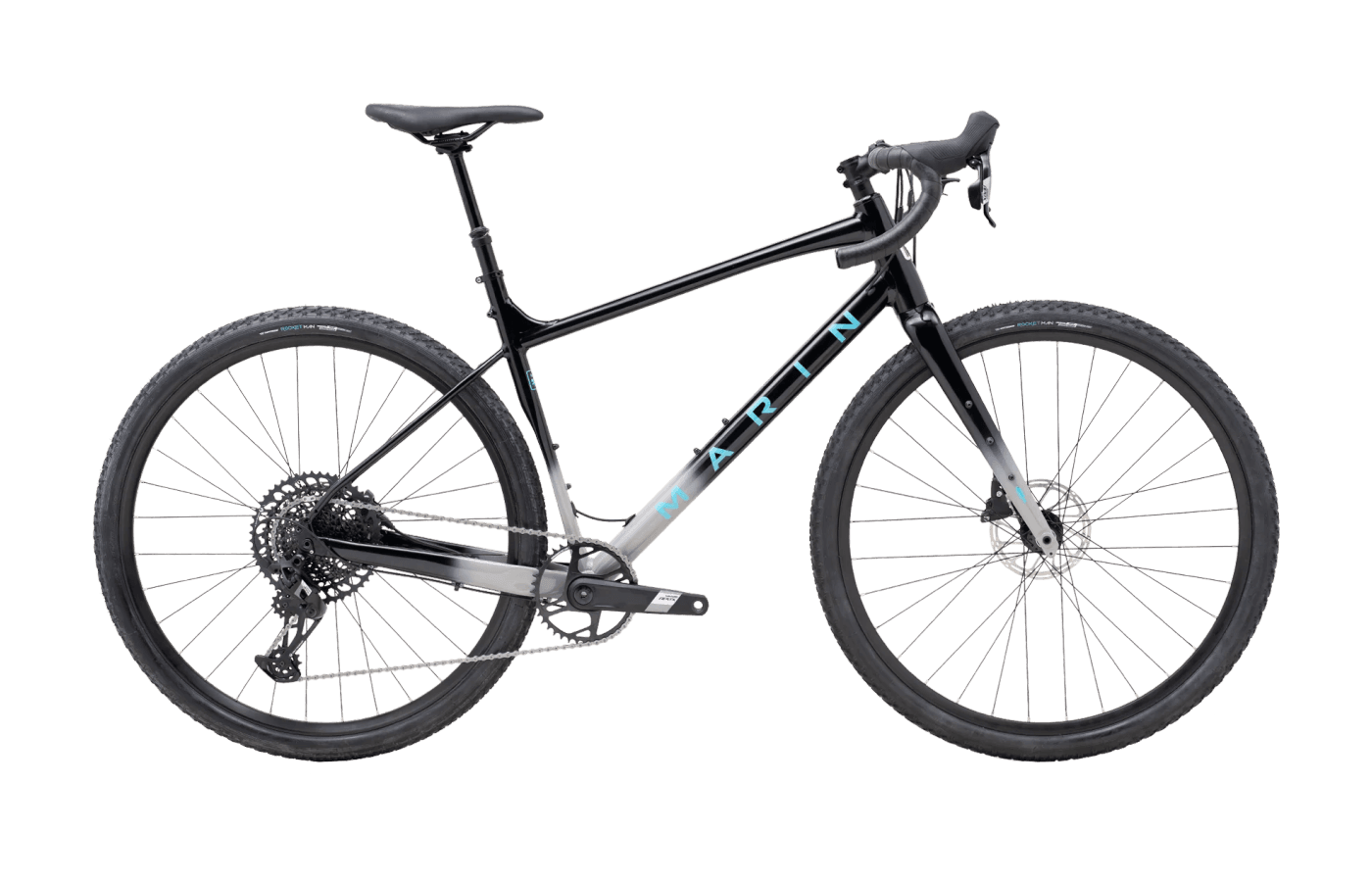

The Gestalt X lineup consists of two aluminum models, both sharing the same frame, full carbon fork, and 700x44mm Vee Tire Co. Rocket Man tires. The premium XR build utilizes a Shimano GRX 11-speed drivetrain with an 11-42T cassette and a 42T chainring. It also features Shimano GRX hydraulic disc brakes and a TranzX dropper post, which integrates cleanly with the left shifter to maximize the frame's descending potential.

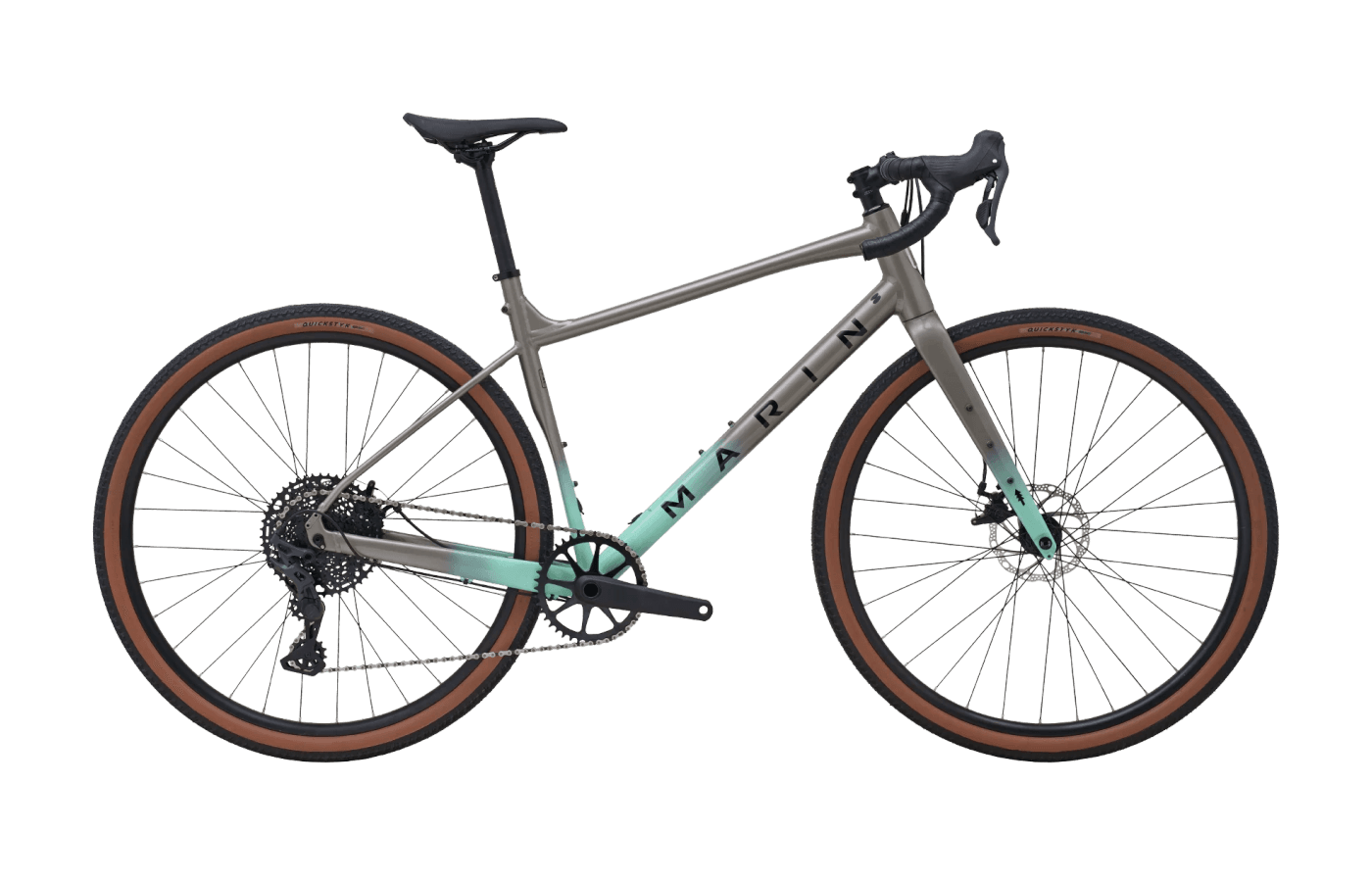

The entry-level X build drops the price significantly by moving to a microSHIFT Advent X 10-speed drivetrain and Tektro mechanical disc brakes. It also swaps the dropper for a standard rigid alloy seatpost, though it gains a slightly wider 11-51T cassette that provides an easier climbing gear than the more expensive XR model. Both builds use Marin's own double-wall aluminum wheels and a threaded bottom bracket for straightforward maintenance. The value in this platform lies primarily in the progressive frame geometry rather than high-end componentry, making either build a solid foundation for riders who prioritize aggressive handling over low weight.
Reviews
Reviewers consistently note that the Gestalt X requires a mental recalibration for riders accustomed to traditional gravel bikes. Once acclimated, the bike earns praise for its exceptional composure at speed. Testers found it to be a "weapon over flat surfaces" (Off), where the long wheelbase and relaxed steering make it easy to hold a line through rough patches. The rear triangle and voluminous tires provide a forgiving ride over trail chatter, but the front end tells a different story.
The stock carbon fork and aluminum cockpit are notably rigid, which can lead to "painful arm pump" (Off) on extended rocky descents. Reviewers suggest that riders pushing the bike on technical singletrack may want to upgrade to a more compliant handlebar or suspension stem. Climbing is another area of compromise. While the bike maintains momentum well on rolling terrain, the stock gearing on the upper-tier build can make it "quite a pig to crank up a hill" (Off) when gradients spike. Despite the stiff front end and tall gearing, the overarching consensus is that the bike excels at its primary goal: delivering massive descending capability and high-speed stability for riders willing to muscle it through tight corners.
