The 2025-on Marin Bobcat Trail is a clear repositioning of Marin’s entry-level hardtail toward contemporary trail riding rather than old-school cross-country geometry. The key change is the updated frame layout: head angles are now 66-66.5 degrees depending on size, and chainstays are shortened to 415mm on Small and Medium frames and 430mm on Large and XL. That gives the bike a noticeably more planted front end and a more responsive rear triangle than many budget hardtails, while still keeping the Bobcat Trail in the affordable, first-real-MTB part of the market.
The frame remains Marin’s Series 2 butted and hydroformed 6061 aluminum chassis, with internal cable routing, dropper-post routing, a 68mm bottom bracket shell, and sizing/wheel options built around Marin’s mixed-wheel approach with 27.5-inch or 29-inch configurations depending on size or selection. It is designed around a 120mm fork and intended as a true trail hardtail, not a lightweight XC bike. That makes the Bobcat Trail distinctive among sub-$1,100 mountain bikes: it is aimed at riders who want modern handling and upgrade potential without stepping into the price bracket of more advanced alloy or full-suspension trail bikes.
One practical caveat is the inconsistency in Marin’s published rear dropout information, with some company materials referencing 141x9mm open dropouts while some Bobcat Trail listings mention 135mm forged dropouts. For buyers concerned about wheel compatibility or future wheel upgrades, that is something worth confirming directly on the frame or through a dealer.
| Stack | 603mm |
| Reach | 445mm |
| Top tube | 612mm |
| Headtube length | 105mm |
| Standover height | 640mm |
| Seat tube length | 381mm |
The Bobcat Trail’s geometry is notably progressive for an affordable hardtail. A 66.5-degree head tube angle on Small and Medium sizes, and 66 degrees on Large and XL, is substantially slacker than traditional budget XC-oriented hardtails and should give the bike more composure on steeper descents and rougher trail sections. Reach is also generous for the category at 445mm in Small, 455mm in Medium, 475mm in Large, and 495mm in XL, pointing to a roomier cockpit that suits shorter stems and a more centered descending position.
Chainstay length is size-specific, with 415mm stays on Small and Medium frames and 430mm on Large and XL. That is a thoughtful detail: the shorter rear end on smaller sizes should help preserve agility and weight distribution, while the longer rear center on bigger frames helps keep handling balanced for taller riders. Wheelbase grows from 1144mm in Small to 1230mm in XL, reinforcing stability as sizes increase. The 74.5-degree seat tube angle is moderate rather than especially steep, so climbing position should feel familiar and comfortable, though not as aggressively centered over the bottom bracket as on newer high-end trail bikes.
Frameset
Frame
Series 2 6061 Aluminum, 27.5" or 29” wheels, low standover, 68mm BB shell, 135mm forged dropouts, IS chainstay disc mount, internal housing & dropper post routing
Fork
SR Suntour XCM HLO-DS, 120mm travel, hydraulic lockout, 46mm offset
Groupset
Shift levers
Shimano CUES 10-speed
Rear derailleur
Shimano CUES U6000GS, w/ clutch
Cassette
Shimano CUES CS-LG300, 10-speed, 11-48T
Chain
KMC LG
Crankset
Alloy crank, steel narrow-wide chainring, 32T
Bottom bracket
Sealed cartridge bearings, square taper
Front brake
Tektro M280 hydraulic disc
Rear brake
Tektro M280 hydraulic disc
Front rotor
180mm
Rear rotor
160mm
Wheelset
Front wheel
Marin aluminum double wall, 25mm inner, pinned joint, disc specific; Forged alloy, disc, 32H; 14g black stainless steel
Rear wheel
Marin aluminum double wall, 25mm inner, pinned joint, disc specific; Forged alloy, disc, 32H; 14g black stainless steel
Front tire
MTB, 27.5/29x2.25"
Rear tire
MTB, 27.5/29x2.25"
Cockpit
Stem
Marin alloy, 31.8mm clamp, 45mm
Handlebars
Marin 31.8 riser, 12mm rise, 780mm width
Saddle
Marin MTB
Seatpost
Marin alloy, 30.9
Grips
Marin MTB, closed end

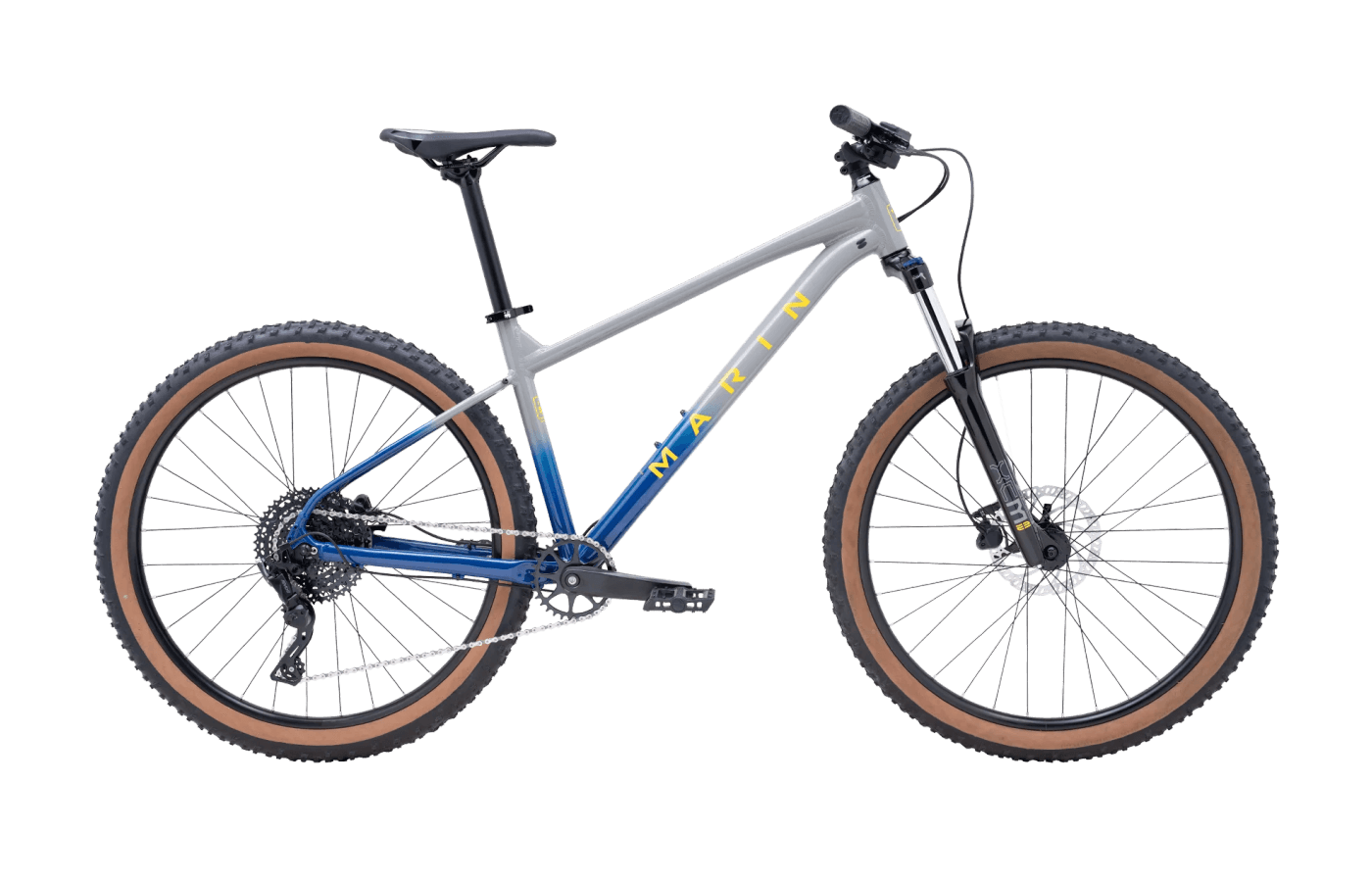

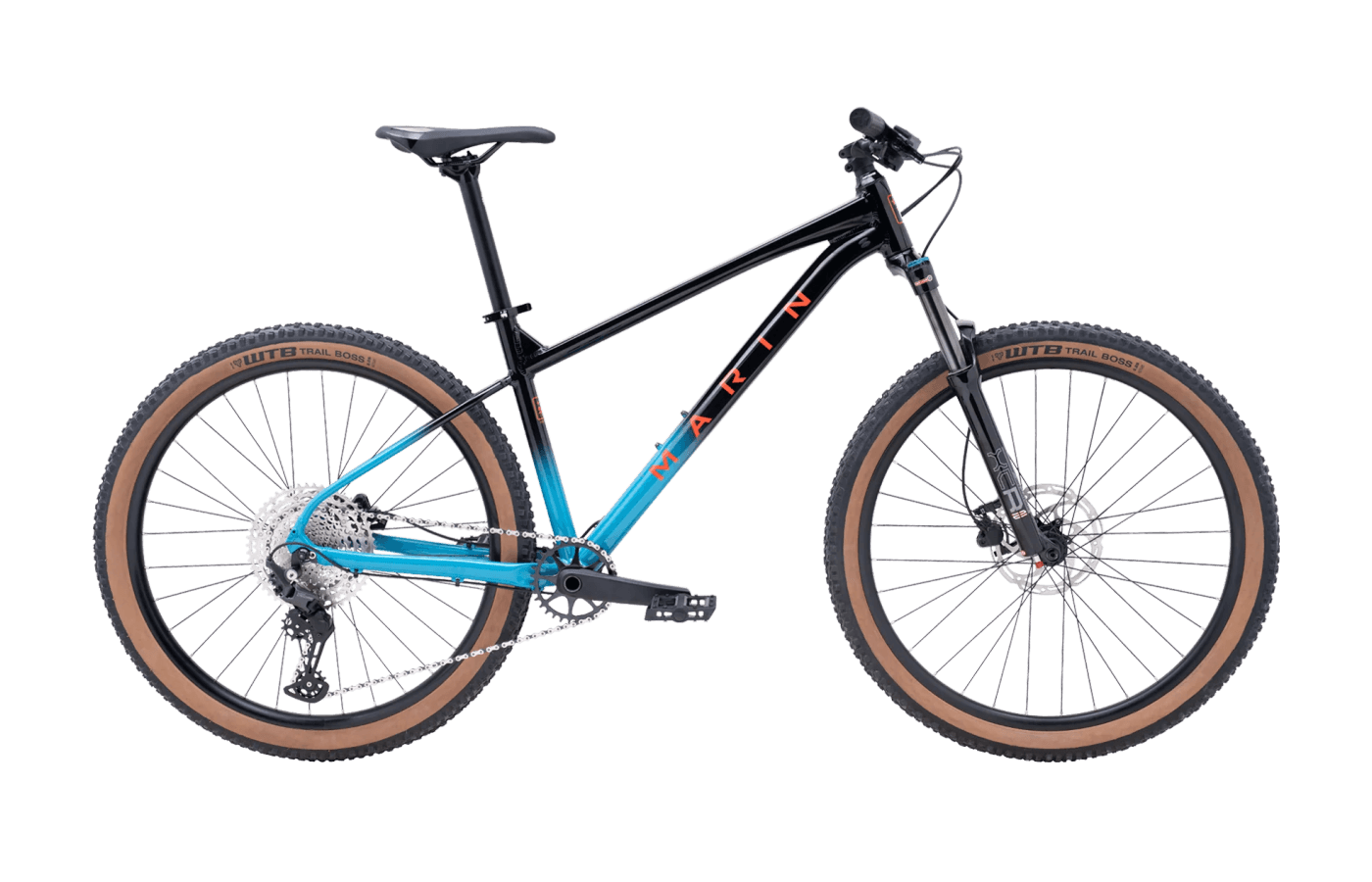

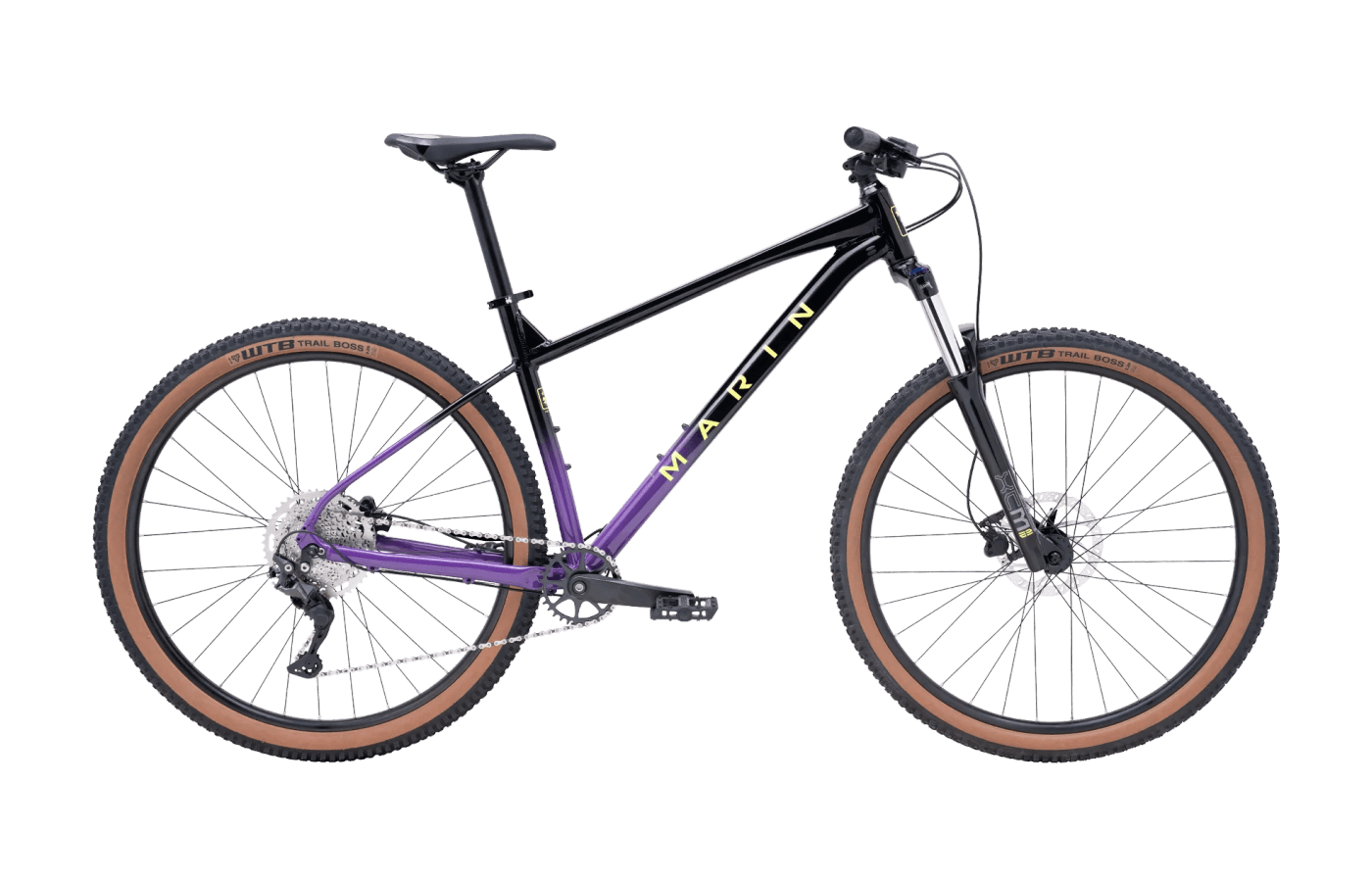

The Bobcat Trail range is straightforward and price-led, with three builds: the Bobcat Trail 3 at $829, the 4 at $949, and the 5 at $1049. That places the model squarely in the gateway mountain bike category, where value and frame quality matter as much as component level. In this case, the updated frame and geometry are the main story, because they give even the lower-cost builds a more current trail-bike foundation than many similarly priced hardtails.
With only pricing provided here, the clearest takeaway is that Marin offers the same updated chassis across a relatively tight price spread, letting buyers choose how much they want to spend without leaving the platform. The Bobcat Trail 3 serves as the lowest-cost entry point, while the 5 is still modestly priced for riders who want the highest-spec version of the range. Without full component lists, the frame update is the strongest value proposition across all three models.
