The 2024-on Bianchi Arcadex is a substantial repositioning of the model toward adventure riding and light bikepacking rather than pure all-road gravel. The key update is IFS internal frame storage in the down tube, which gives the bike a built-in place for tools and ride essentials without relying entirely on bags. That change is paired with more practical off-road capacity: tire clearance increases to 700x50 mm, or 45 mm with clip-on fenders, making the new Arcadex notably better suited to rougher tracks, longer mixed-surface routes, and loaded riding than the previous version.
Bianchi has also updated the platform around current gravel standards and fit expectations. The frame is now 1x-only, uses a UDH rear dropout, routes cables fully internally through an Acros headset, and keeps a BB86 press-fit bottom bracket with a 27.2 mm round seatpost secured by a wedge clamp. Geometry revisions push reach longer across the size range, while slightly longer chainstays and wheelbase aim to preserve the brand's endurance-oriented handling under load. In the market, that places the Arcadex closer to the stable, high-clearance adventure end of carbon gravel, rather than the racier side of the category.
| Stack | 563mm |
| Reach | 383mm |
| Top tube | 545mm |
| Headtube length | 110mm |
| Seat tube length | 448mm |
The Arcadex geometry points clearly to stable, endurance-oriented gravel handling rather than quick cyclocross-style responses. Across sizes XS to XL, head tube angles run from 70.5 to 71.5 degrees, paired with 430 mm chainstays on most sizes and a 75 mm bottom bracket drop. Those numbers suggest a bike that should feel planted on descents and composed on loose surfaces, with the longer rear center and lower bottom bracket helping calm the bike when loaded with bags or ridden on rougher terrain. Wheelbase is correspondingly generous, from 1020 mm in XS to 1077 mm in XL, reinforcing that emphasis on straight-line stability.
Fit has been modernized with relatively longer reach numbers for an adventure gravel bike: 376 mm in XS, 383 mm in SM, 391 mm in MD, 402 mm in LG, and 410 mm in XL. Stack remains fairly generous, from 544 mm to 638 mm, so the overall position should still suit riders looking for an endurance posture rather than an aggressive race setup. The steeper seat tube angles on smaller sizes, up to 74.5 degrees in XS, help keep rider weight centered as front centers grow, while the slightly slacker 73-degree seat angle on XL avoids over-compressing taller riders. One geometry table entry lists the XL chainstay as "432432," which appears to be a data error, but the intended figure is likely in line with the rest of the range.
Frameset
Frame
Bianchi Arcadex, Carbon, Flat mount disc, PressFit 86.5x41 mm, Thru axle, OLD: 142 mm, Rear derailleur: Sram UDH hanger type, Tire clearance: ETRTO 622-50 sizes XS-SM-MD-LG-XL
Fork
Bianchi Arcadex, Carbon, flat mount disc brake, thru axle 12x100 mm
Groupset
Shift levers
Sram Apex AXS, D1
Rear derailleur
Sram Apex Eagle D1, 12sp
Cassette
Sram PG-1210 Eagle, for HG body, 11-13-15-17-19-22-25-28-32-36-42-50T
Chain
Sram SX Eagle, 12 sp
Crankset
Sram Apex D1 Wide, 40T Crank length: 170 mm (XS-SM); 172.5 mm (MD-LG); 175 mm (XL)
Bottom bracket
Sram Press fit Road Wide 86.5x41
Front brake
Sram Apex, Hydraulic disc brake
Rear brake
Sram Apex, Hydraulic disc brake
Front rotor
Sram Centerline, Center Lock, 160 mm
Rear rotor
Sram Centerline, Center Lock, 160 mm
Wheelset
Front wheel
Velomann V24G, Aluminium rim, profile height 24 mm, 700x24c, 24h, XDR body
Rear wheel
Velomann V24G, Aluminium rim, profile height 24 mm, 700x24c, 24h, XDR body
Front tire
Pirelli Cinturato Gravel M, 700x45, 120 TPI
Rear tire
Pirelli Cinturato Gravel M, 700x45, 120 TPI
Cockpit
Stem
Velomann AL6061, fully internal cable routing stem, compatible with Acros ICR system Size: 80 mm (XS-SM); 90 mm (MD); 100 mm (LG); 110 mm (XL)
Handlebars
Velomann Gravel, Aluminium, diameter 31.8 mm, reach 70 mm, drop 130 mm, flare 16 deg, Size: 400 mm (XS-SM); 420 mm (MD-LG); 440 mm (XL)
Saddle
Velomann Mitora 149 H2, steel rails, length 250 mm, width 149 mm
Seatpost
Velomann Carbon, offset 15 mm, diameter 27.2 mm length: 300 mm (XS); 350 mm (SM-XL)
Grips
Bianchi Hexagon tape, 2.5 mm thickness, black
The Arcadex range spans both carbon and aluminum versions and is offered in five builds: Comp GRX 610 12-speed, Pro Rival XPLR AXS E1 12-speed, Comp Apex Eagle D1 12-speed, AL GRX 610 12-speed, and Pro GRX 820/822 Disc 1x12-speed. Even without pricing provided here, the lineup is clearly structured around material and drivetrain level, with the aluminum GRX 610 bike serving as the more accessible entry point and the Pro models occupying the higher-spec end of the range.
The main differences center on drivetrain tier and cockpit integration. Shimano GRX 610 and SRAM Apex Eagle builds target practical mid-range buyers, while the Pro builds step up to either wireless SRAM Rival XPLR AXS E1 or higher-end Shimano GRX 820/822. Bianchi also differentiates the front-end treatment: Pro models use a cleaner fully hidden cockpit setup, while Comp builds retain a semi-integrated arrangement. Across the range, the 1x-only frame design aligns with the bike's adventure brief, prioritizing simplicity, tire clearance, and compatibility with modern gravel and mixed-terrain gearing.

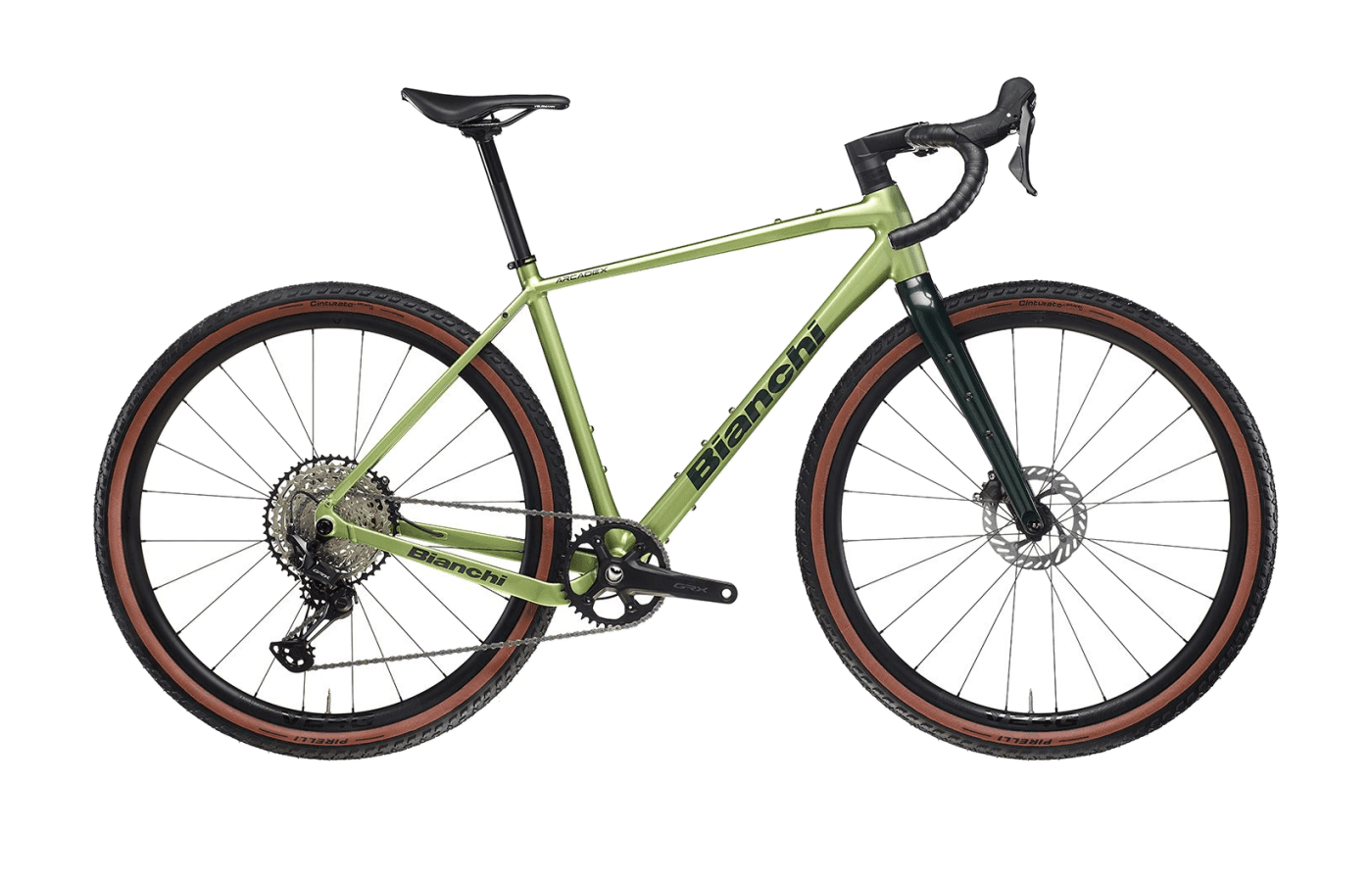

AL GRX 610 12sp
Price TBD

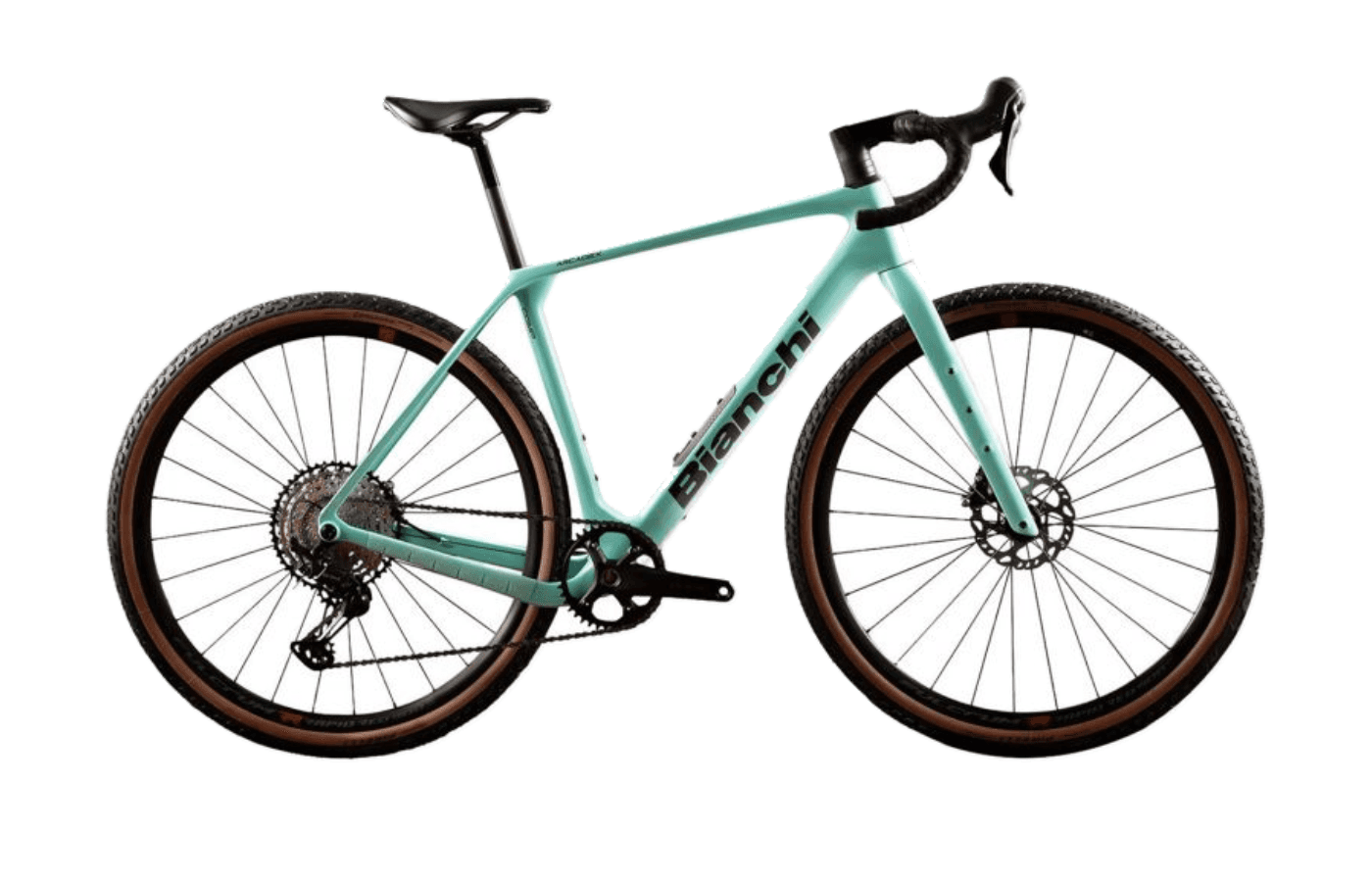

Comp Apex Eagle D1 12sp
Price TBD

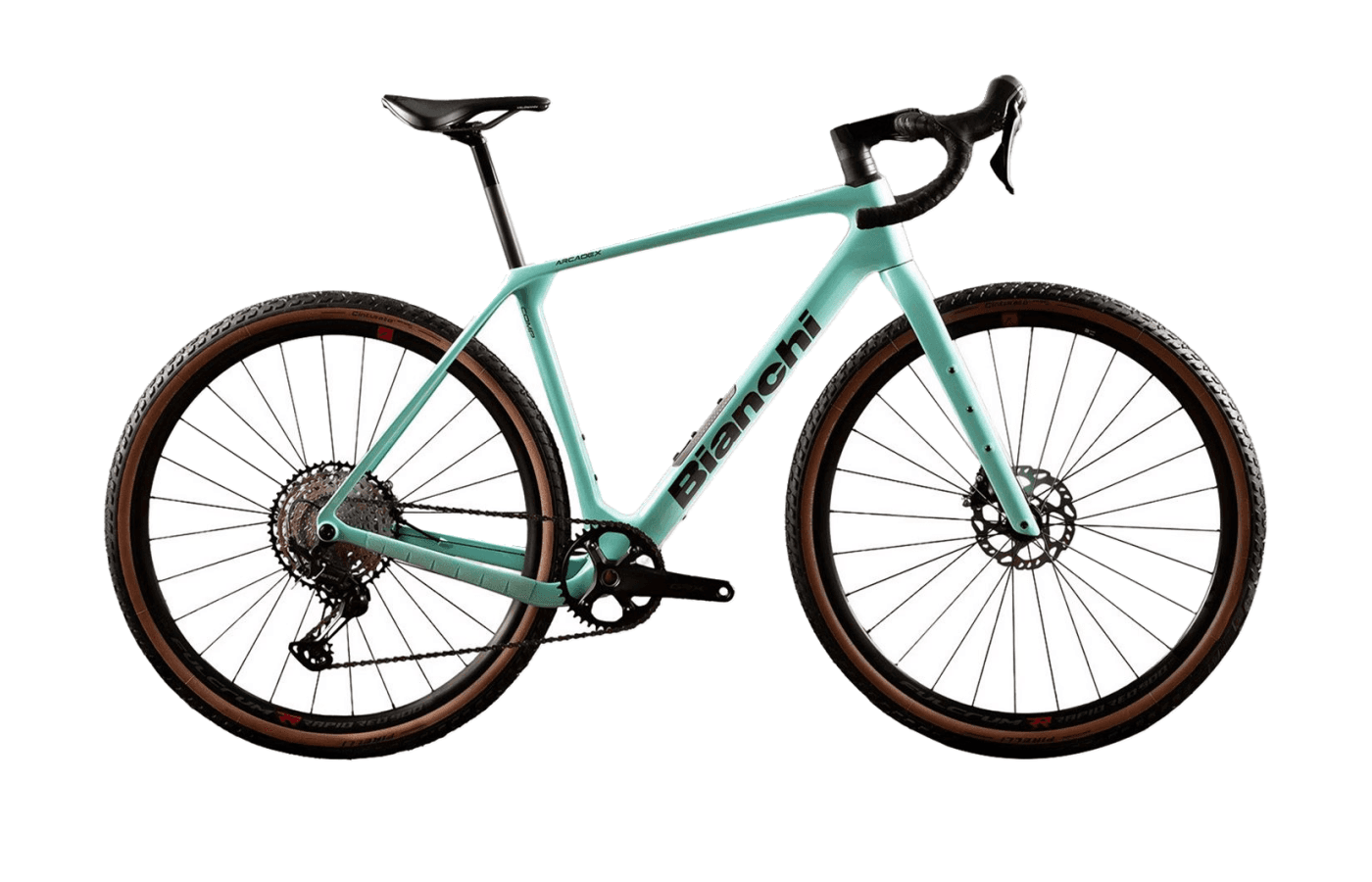

Comp GRX 610 12sp
Price TBD
Pro GRX 820/822 Disc 1x12sp
Price TBD

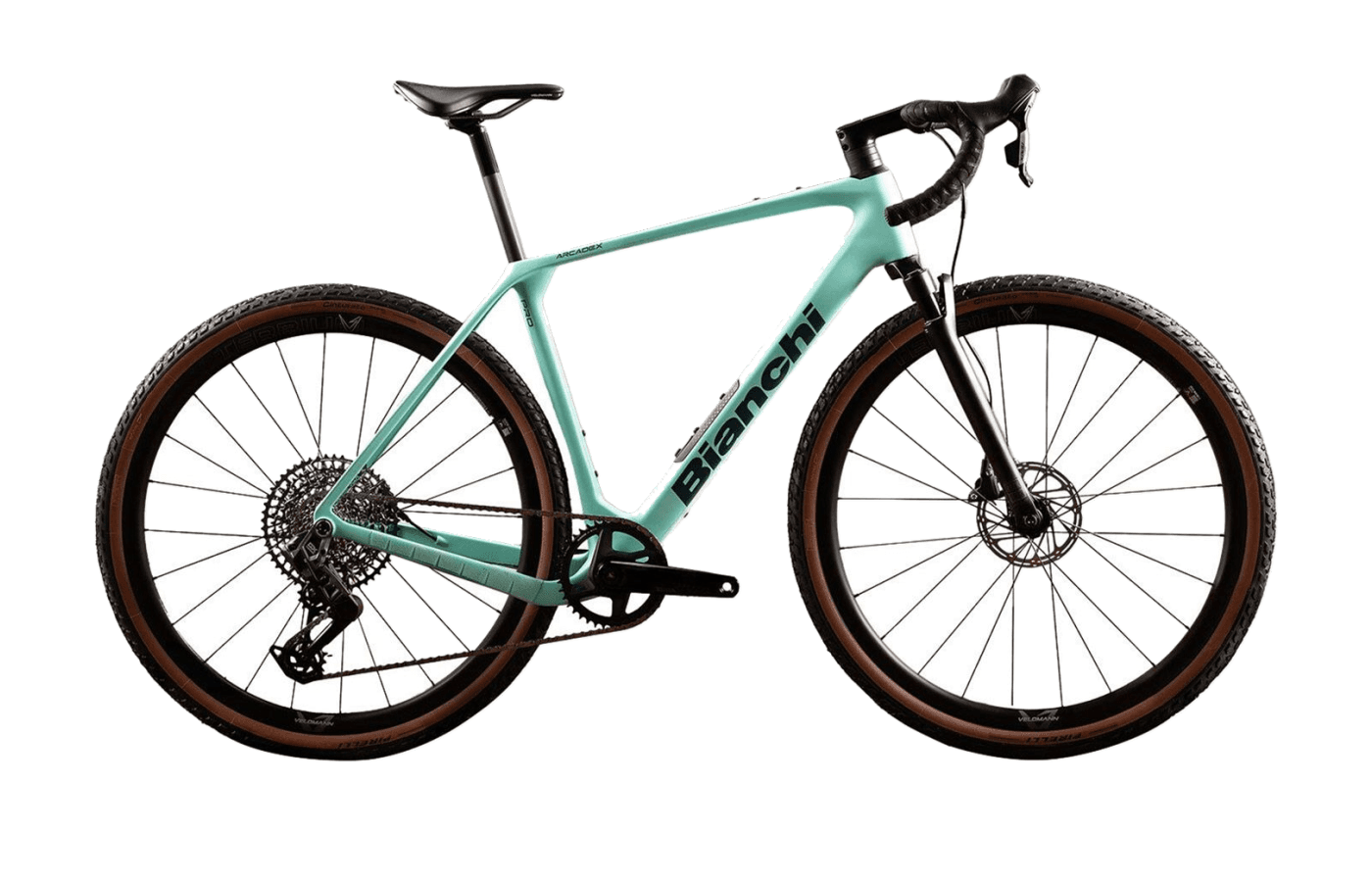

Pro Rival XPLR AXS E1 12sp
Price TBD
